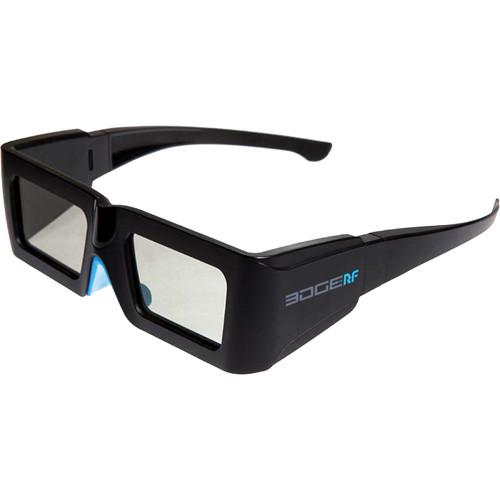

User Manual for Barco Volfoni Edge RF Active 3D Glasses with RF Link Click to enlarge the picture
Contents of the user manual for the Barco Volfoni Edge RF Active 3D
- Product category: Glasses & Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Glasses & Accessories
|
User manual for the Barco Volfoni Edge RF Active 3D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The Volfoni Edge RF Active 3D Glasses from Barco are designed to enable you to view 3D images from a projector or 3D TV, and offer RF synchronization to avoid interference from other devices. The Edge RF Glasses are compatible with all projectors and active 3D TVs. Note: An RF emitter (sold separately) is required to use these 3D glasses. - Silver screen not required, high-quality images preserved at all seating positions
- Radio frequency synchronization avoids interference from other devices
- Battery life up to 75 hours
- Bright images and natural colors
- Automatic power-off function saves energy
- Rubberized nose-piece provides comfort
- Three sizes of adjustable arms included
In the Box Barco Volfoni Edge RF Active 3D Glasses with RF Link Micro-USB Cable Microfiber Cleaning Wipe 3 x Pair of Removable Arms (S, M, L) Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco Volfoni Edge RF Active 3D Glasses with RF Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco 503-0347-00 Specs | Recommended Use | Projector Type: All
Screen: White - gain 1.0/1.2
Compatible Emitter: Volfoni RF emitters | | Performance | Optical Transmission: 38%
Stereoscopic Contrast: >940:1
Field of Vision (H, V): 170, 115° | | Compatibility | 3D Projectors: DCI, DLP, 3DLP, DILA, SXRD, and 3LCD
Flatscreen 3D TVs: Plasma, LCD / LED 3D TVs, LCD 3D screens & PCs, and DLP TVs
3D Protocols: Volfoni 3D (RF) | | Frame Rates | 96 Hz HFR & Home Cinema 3D
120 Hz Sport HFR & 3D-Ready
144 Hz Triple Flash 3D Cinema
192 Hz HFR Full Comfort
240 Hz
Dual View Mode | | Lens Size | 2.1 x 1.2" (55 x 31 mm) | | Optics | Liquid Crystal Type: STN
Residual Light (LEF): 18.5%
Transition (90%): 1300 µsec | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 23 to 122°F (-5 to 50°C) | | Relative Humidity | 20 to 80% | | Frequency | 2.4 GHz | | Power Supply | 1 x Li-Ion 120 mAh
5 VDC USB | | Battery Life | 75 hours approximate
Auto-off | | Certification | CE and RoHS | | Dimensions | 7.08 x 6.29 x 1.77" (18.0 x 16.0 x 4.5 cm) | | Weight | 1.97 oz (56 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.7 x 3.1 x 2.5" |
