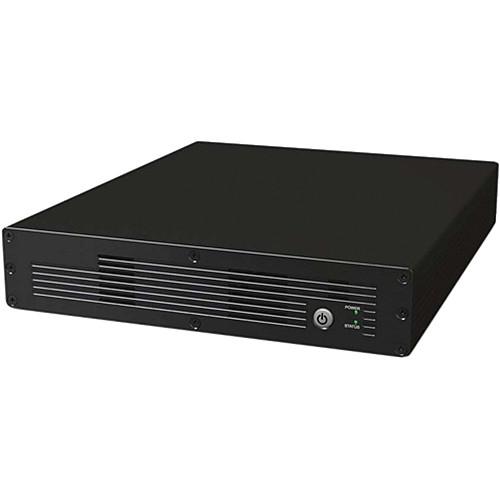

User Manual for Barco WB2560 Image Processor Click to enlarge the picture
Contents of the user manual for the Barco WB2560 Image Processor
- Product category: Projector Accessories Barco
- Brand: Barco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barco Projector Accessories
|
User manual for the Barco WB2560 Image Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barco product will considerably shorten its lifespan!
|
Product description The WB-Series Image Processor from Barco allows you to connect multiple projectors together in order to project one large image. This processor is designed to be compatible with many projection devices and can be used in multi-image environments. Features include camera-based AutoAlign and RealTime warp. This image processor is able to enhance the projected picture by using geometry correction, blending and overlap, and various scaling methods. Your projector will then be able to project onto various surfaces with clarity. The black level matching technology as well as the pixel, uniformity and brightness matching technologies is used to enhance the overall picture. This item connects directly to your source and offers unlimited scalability and channel count. The processor can be controlled completely through Ethernet. - Enables projection onto any surface and diminishes latency
- Allows for projection with geometry correction and blending and overlap
- Available scaling formats: 4x4 Lanczos scaling, Bi-linear scaling, and B-cubic scaling
- Fully transparent to source, no software or source requirements
- User selectable algorithm setups and 12-bit internal resolution
- Uses patented black level matching technology for uniform black levels
- Per-pixel color, uniformity and brightness matching
- Built-in power supply for easy power management in large racks
- Unlimited scalability and channel count
In the Box Barco WB2560 Image Processor Power Cable 2 x Dual Link DVI Cables Network Cable Limited 36-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barco WB2560 Image Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarco R9801224 Specs | Rack Mount Dimensions | 1/2 width, 1U height | | Stereo Format | 3D stereo compatible, up to 1920 x 1200 @120Hz | | Maximum Resolution | 2560 x 1600 | | Software Compatibility | Pro-Net 2.0 required to set up and operate multi image processing system processors, works with Microsoft Windows operating systems only. The following versions are supported: Windows XP (32-bit only), SP xx or Windows Vista (32- or 64- bit) and Windows 7 (32- or 64-bit). Microsoft. NET Framework 3.5 or later must be installed. | | System Requirements | Computer running ProNet 2.0 should have at least: Intel Dual Core architecture or similar, 2 GB of RAM, 200 MB of free disk space and 1.0 Gigabit Ethernet interface. | | Color Depth | 12 bits per color | | Connectivity | Control through Ethernet | | Connectors | 1 x IEC Power Port
2 x DVI (in/out)
1 x RS232 port (for service only - do not use)
1 x LAN | | Security Lock Slot | 1 x Kensington Lock Slot | | Dimensions (H x W x D) | 1.7 x 8.5 x 10.8" / 43.5 x 216.0 x 275.5 mm | | Weight | Not specified by manufacturer |
