User Manual for Barr & Stroud 10x42 Series-4 Binocular Click to enlarge the picture
Contents of the user manual for the Barr & Stroud 10x42 Series-4 Binocular
- Product category: Binoculars Barr & Stroud
- Brand: Barr & Stroud
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barr & Stroud Binoculars
|
User manual for the Barr & Stroud 10x42 Series-4 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barr & Stroud product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barr & Stroud user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barr & Stroud product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More butuwersqequzweezeayfqrydfewtuxczrdc The 10x42 Series-4 Binocular from Barr & Stroud combines a fully multicoated lens system and phase-corrected BaK4 prisms to create a color-faithful high-transmission optical path that is well-suited for low light performance. This 10x optic features a 6° angle of view and has the ability to focus within seven feet, equipping the Series-4 for close to mid-range observations like birding and hunting. In addition to their image quality, the Series-4 binocular also has a long 15mm eye relief and twist-up rubber eyecups with multiple click-stop settings that can provide a comfortable viewing distance even for eyeglass wearers.Complementing the high-transmission 10x42 optical path is a nitrogen-filled fogproof housing that is submergible to almost five feet for three minutes. An open-bridge design helps to evenly balance the weight of the binocular and make it easier to handle with one hand than other common bridge configurations. A lightweight polycarbonate housing, armored with slip-resistant rubber, equips the Series-4 binocular to handle demanding weather conditions. The combination of high-transmission optics, user-friendly features, and a weather-sealed housing make the Series-4 binocular ready for a wide range of outdoor viewing tasks. - Optical Performance
-
- 10x magnification, 42mm objectives
- Fully multicoated optics, BaK4 prisms
- 6° angle of view
- 15mm eye relief

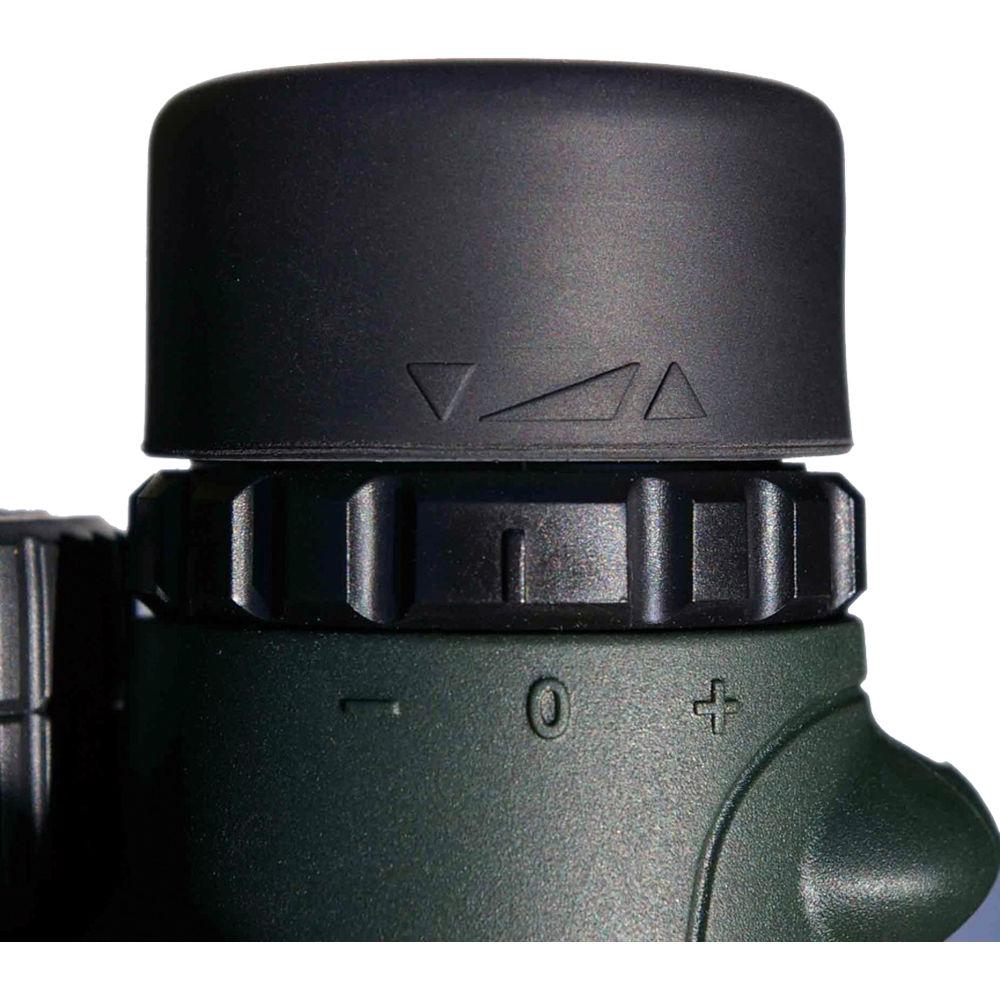

- +/- 4 diopter correction
- 6.5 ft minimum focus distance
- Use and Handling
-
- Rapid center focus wheel

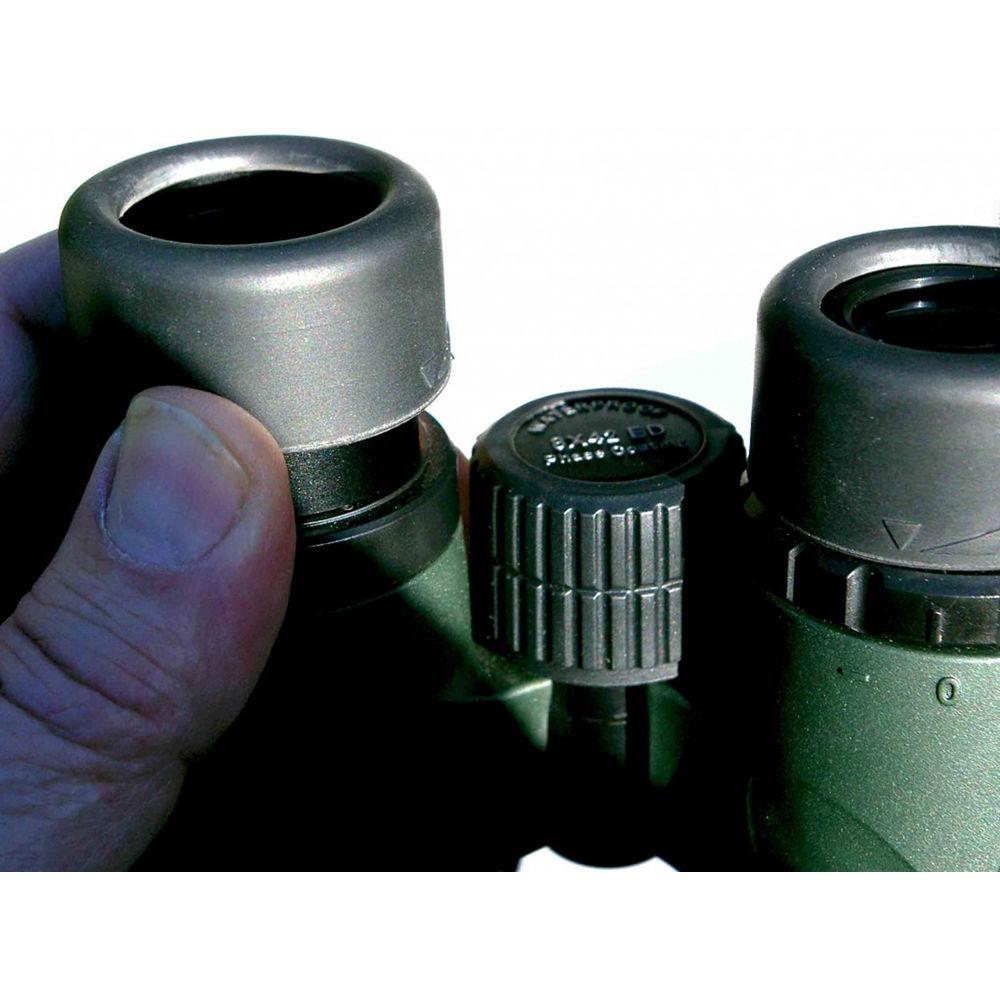

- Twist-up rubber eyecups with multiple click-stop positions
- Construction Details
-
- Nitrogen-filled fogproof and waterproof
- Ergonomic finger rest indentations

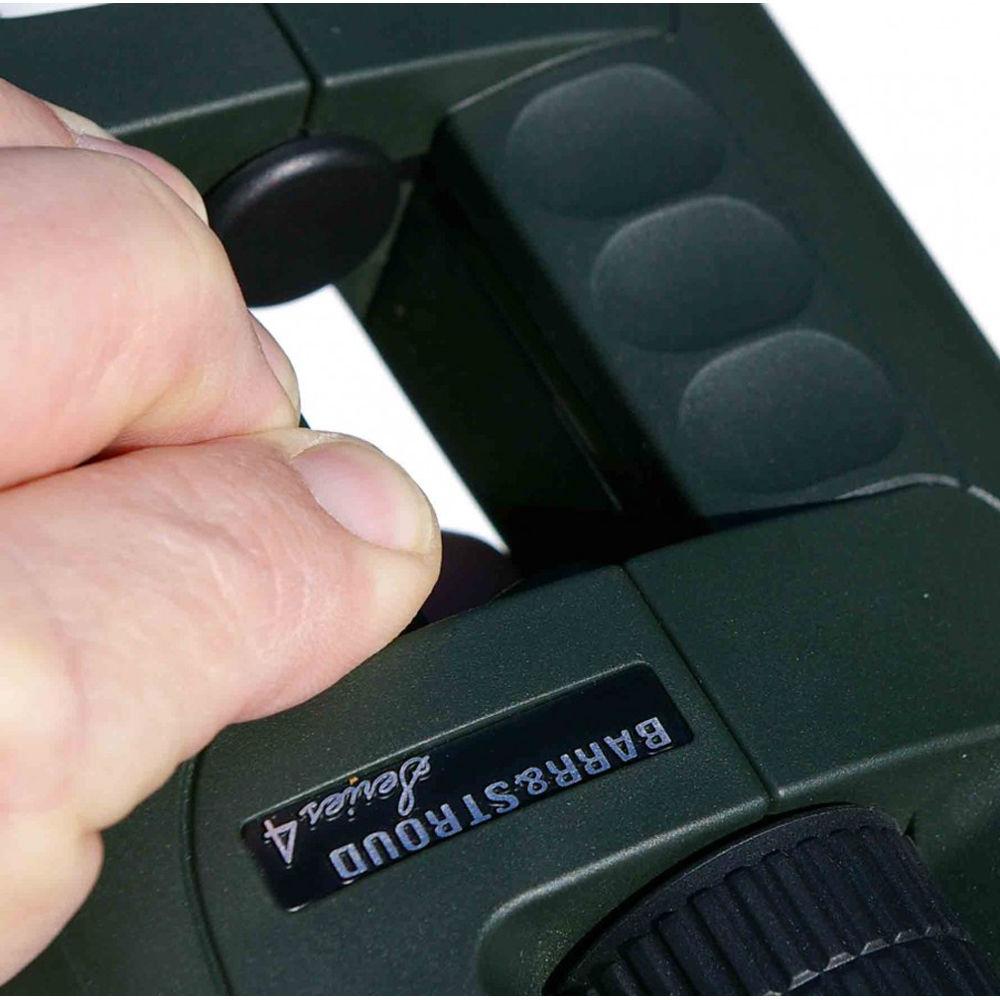

- Open-bridge configuration
- Rubber armored body
- Forest green finish
- 24 oz weight

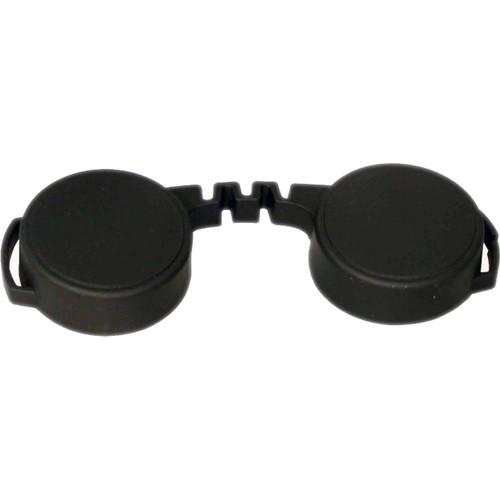

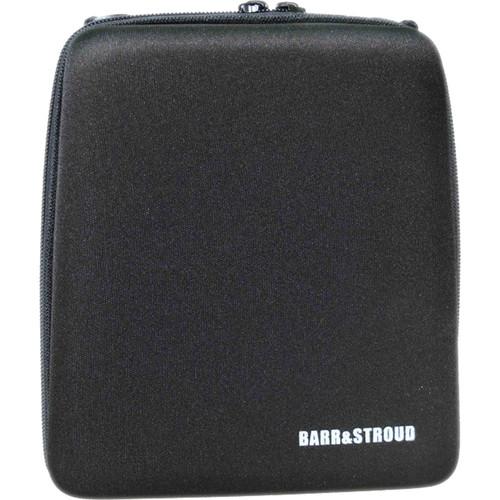

In the Box Barr & Stroud 10x42 Series-4 Binocular Carrying Case Tethered Lens Covers Lens Covers Rainguard Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Barr & Stroud 10x42 Series-4 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarr & Stroud OLBSS41042-US 70191 Specs Prism Type | Roof | Magnification | 10.0 x | Objective Lens Diameter | 42 mm | Angle of View | 6.0° (actual) | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | Minimum Focus Distance | 41.9' / 12.8 m | Exit Pupil Diameter | 4.1 mm | Eye Relief | 15.2 mm | Interpupillary Adjustment | 8.7 to 11.5 mm / 22 to 29.1" | Dioptric Correction | ±4 | Focus Type | Center | Tripod Mount | Yes (Adapter Optional) | Dimensions | 5.7 x 5.2 x 2.3" / 14.5 x 13.2 x 5.8 cm | Weight | 24.00 oz / 680.40 g |
