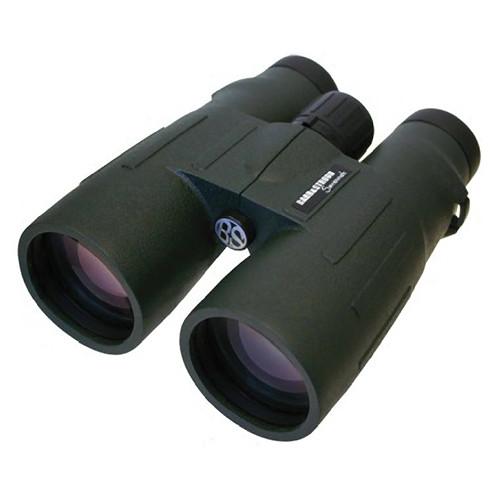

User Manual for Barr & Stroud 10x56 Savannah ED Binocular Click to enlarge the picture
Contents of the user manual for the Barr & Stroud 10x56 Savannah ED
- Product category: Binoculars Barr & Stroud
- Brand: Barr & Stroud
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barr & Stroud Binoculars
|
User manual for the Barr & Stroud 10x56 Savannah ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barr & Stroud product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barr & Stroud user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barr & Stroud product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 10x56 Savannah ED Binocular from Barr & Stroud combines a fully multicoated extra-low dispersion (ED) lens system, large objectives and phase-corrected BaK4 prisms to create a color-faithful high-transmission optical path built for low light performance. This 10x handheld optic features an immersive 60° apparent viewing angle and has the ability to focus within ten feet, making the Savannah ED ready for almost any intermediate to long-range glassing task.In addition to the image quality rendered by their premium optics, this Savannah ED configuration also has a long 18mm eye relief and twist-up rubber eyecups with multiple click-stop positions. A rapid focus wheel allows the observer to focus from close-up to infinity within a single rotation. Additionally, Barr & Stroud's individual diopter control, located next to the focus wheel, helps the observer calibrate the oculars for their eyesight. Complementing the 10x56 high-transmission optics and handling features is a nitrogen-filled fogproof housing; Savannah ED binoculars are submergible to five feet (for up to three minutes) and are wrapped with slip-resistant rubber armor that absorbs light impact. - Optical Performance
-
- 10x magnification, 56mm objectives
- Extra-low dispersion glass lenses, fully multicoated
- BaK4 roof prisms, phase-corrective coating
- 6° angle of view, 60° apparent viewing angle
- 18mm eye relief
- +/- 4 diopter correction
- 9.8 ft minimum focus distance
- Use and Handling
-
- Rapid center focus wheel
- 9.8 ft to infinity in one rotation
- Dual diopter adjustment ring next to focus wheel
- Twist-up rubber eyecups with multiple click-stop positions
- Construction Details
-
- Nitrogen-filled fogproof and waterproof
- Closed bridge configuration
- Rubber armored body
- Forest green finish
- 37 oz weight
In the Box Barr & Stroud 10x56 Savannah ED Binocular Carrying Case Tethered Lens Covers Lens Covers Rainguard Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Barr & Stroud 10x56 Savannah ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarr & Stroud OLBSSA1056ED-US 70504 Specs | Prism Type | Roof | | Magnification | 10.0 x | | Objective Lens Diameter | 56 mm | | Angle of View | 6° (actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 63.2' / 19.3 m | | Exit Pupil Diameter | 5.6 mm | | Eye Relief | 18.2 mm | | Interpupillary Adjustment | 8.7 to 11.5 mm / 22 to 29.1" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.5 x 5.8 x 2.6" / 16.5 x 14.7 x 6.6 cm | | Weight | 37.00 oz / 1.05 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 7.8 x 6.8 x 3.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
