Barra Optics H20 3-9x32 Hunting Riflescope

Search your instruction manual in PDF to download

User Manual for Barra Optics H20 3-9x32 Hunting Riflescope

Click to enlarge the picture
Barra Optics H20 3-9x32 Hunting Riflescope Contents of the user manual for the Barra Optics H20 3-9x32 Hunting Riflescope
  • Product category: Riflescopes Barra Optics
  • Brand: Barra Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Barra Optics Riflescopes

Barra Optics H20 3-9x32 Hunting Riflescope Barra Optics H20 3-9x32 Hunting Riflescope Barra Optics H20 3-9x32 Hunting Riflescope Barra Optics H20 3-9x32 Hunting Riflescope Barra Optics H20 3-9x32 Hunting Riflescope Barra Optics H20 3-9x32 Hunting Riflescope
User manual for the Barra Optics H20 3-9x32 Hunting Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Barra Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Barra Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Barra Optics product will considerably shorten its lifespan!



Product description

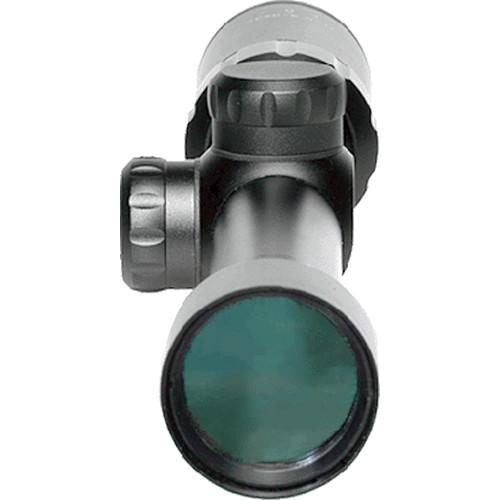

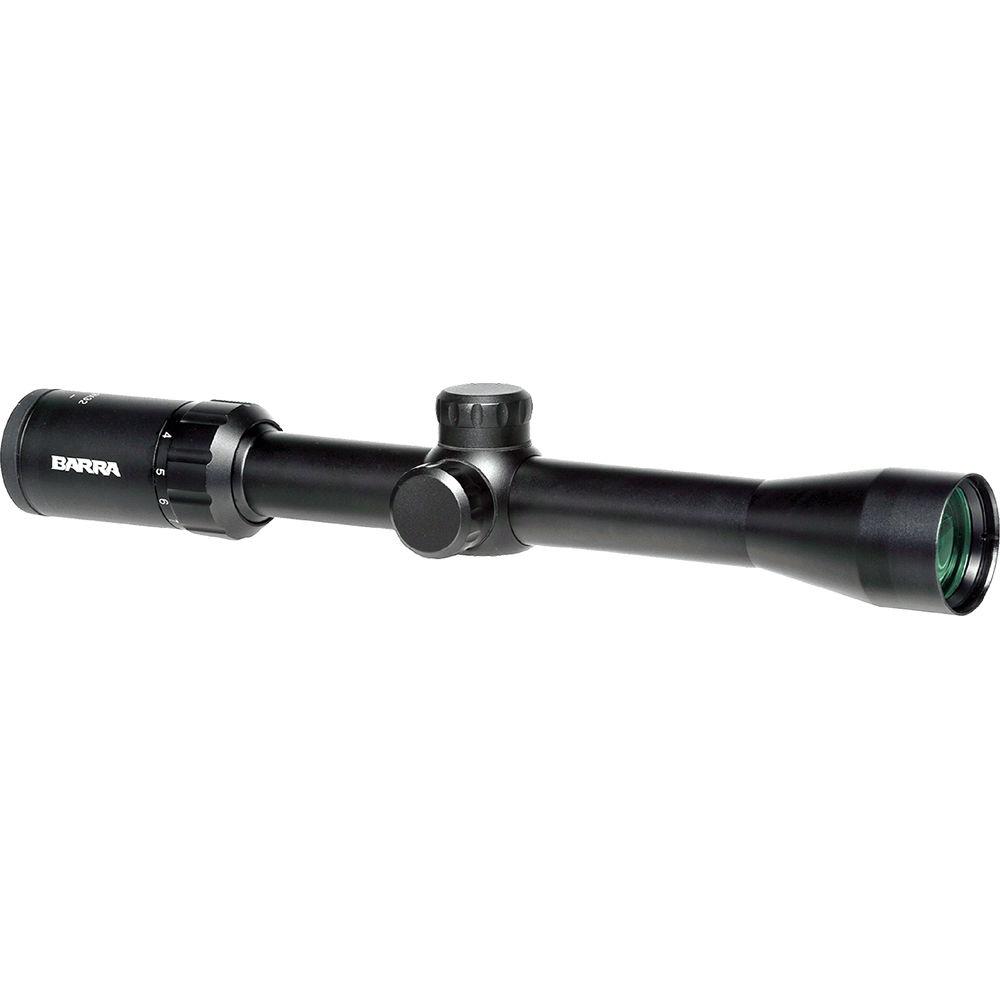

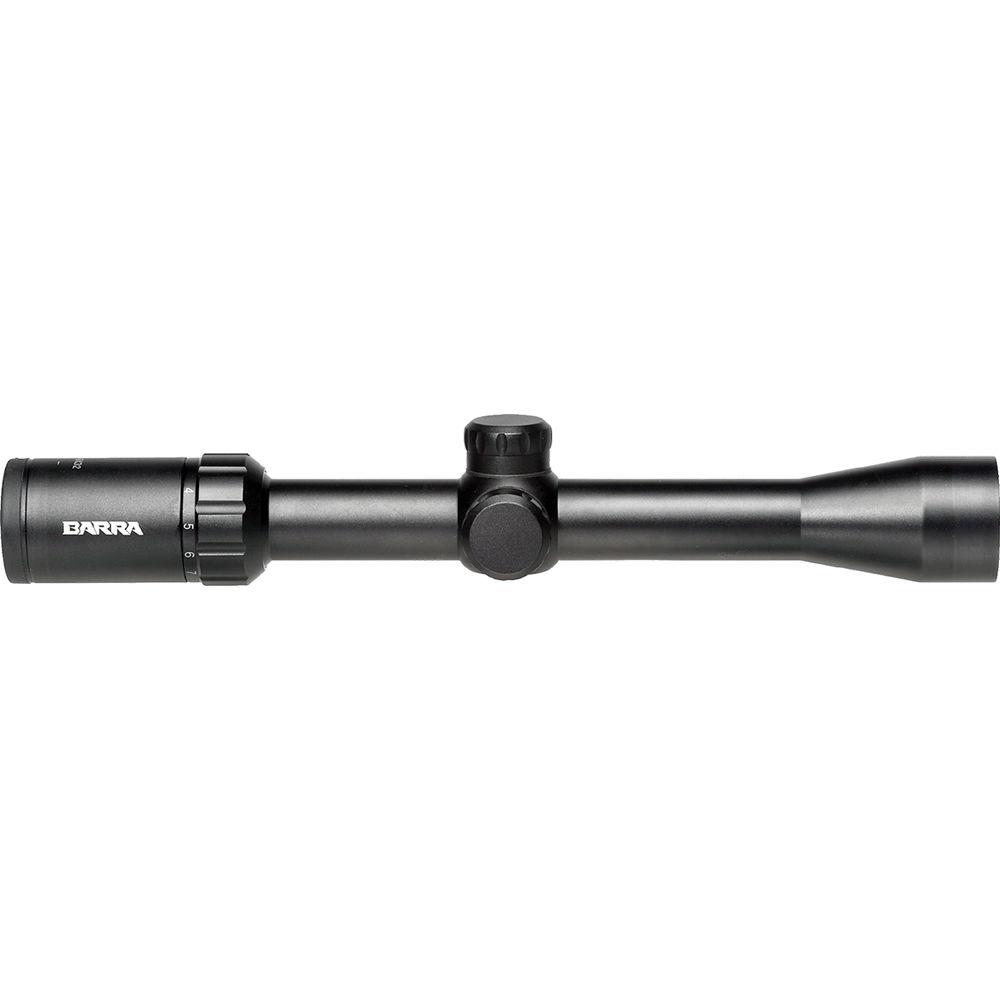

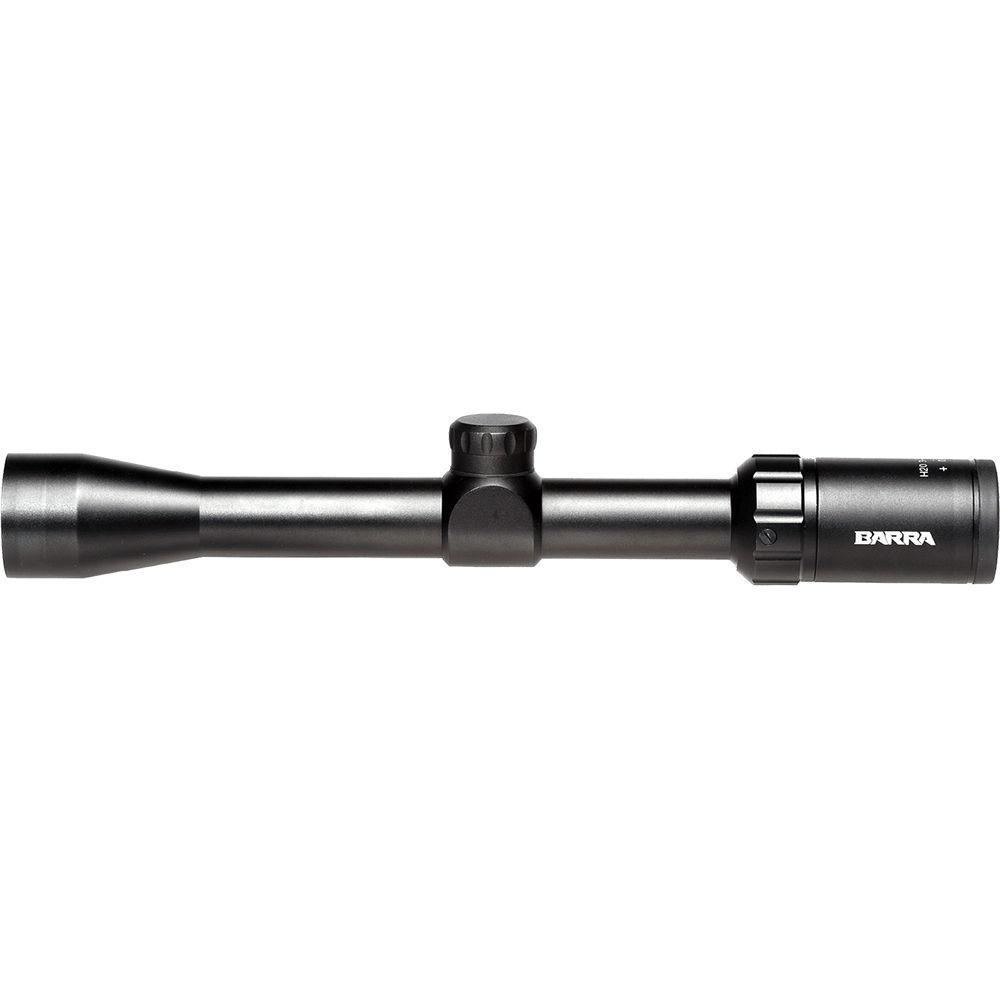

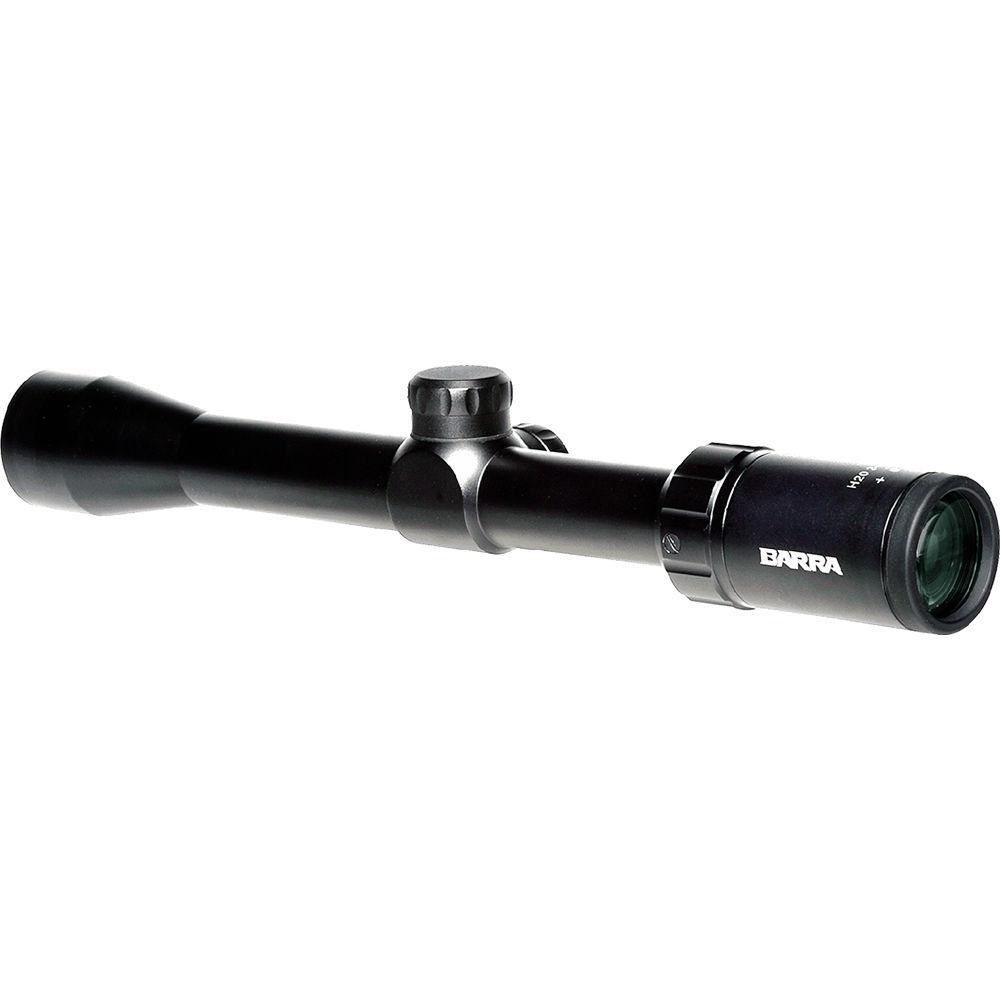

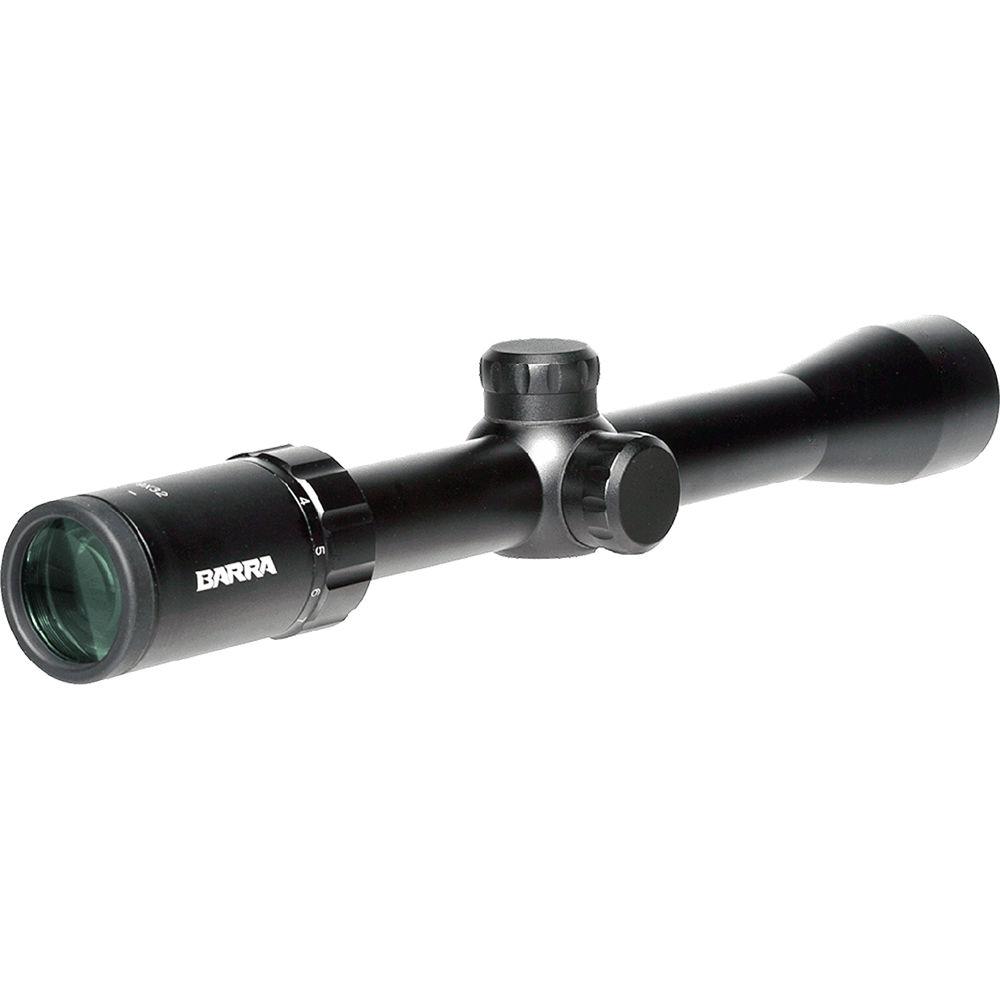

Get on target with the BARRA Optics H20 3-9x32 Hunting Riflescope. This simple-to-operate scope offers a 3-9x zoom optical system, a H1R BDC Reticle, and a 6063 aluminum housing with a fast-focus eyepiece and capped turrets. With 99.9% per surface transmission, the fully-coated lenses deliver total throughput of light up to 95% and minimized glare. To ensure precise aiming without magnifying its pattern, the H1R BDC Reticle is located in the second image plane. Its duplex-style outline features four tapered posts and a thin crosshair with three bars for ballistic estimation. A special highlight of the scope is its parallax free performance from 100 yards to infinity.

To enable you to follow your hunting instincts anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof (nitrogen-filled) 6063 aluminum alloy body with a hard anodized finish.
    Optical Performance
    • Fully-coated optics
    • 3 - 9x zoom magnification
    • 32mm objective diameter
    • 95% total transmission of the optical system
    • 29.9 - 10' at 100 yd linear field of view
    • 11 - 3.5mm exit pupil
    Use and Handling
    • 1/4 MOA impact point correction
    • 30 MOA windage and 30 MOA elevation adjustments
    • 100 yd to infinity parallax correction
    • 4.8 - 3.7" eye relief

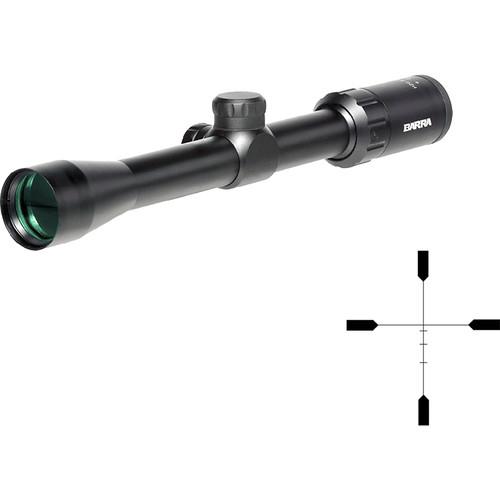

      H1R BDC Reticle
      • 2nd focal plane
      • Duplex-style pattern
      • Four tapered posts
      • Thin crosshair
      • Three BDC bars below center
        Construction
        • 6063 aluminum housing
        • Hard black anodized finish
        • 1" maintube diameter
        • Capped hunting turrets
        • Flip-up objective cap
        • Waterproof and fogproof
        • Nitrogen-filled
        UPC: 815208020015 In the Box Barra Optics H20 3-9x32 Hunting Riflescope (H1R BDC Reticle, Matte Black)
      • Flip-Up Objective Cap
      • Limited Lifetime Warranty
      Table of Contents




Upload User Manual

Have you got an user manual for the Barra Optics H20 3-9x32 Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Barra Optics H203-9X32B1 Specs

Magnification 3 to 9x
Objective Lens Diameter 32 mm
Field of View 3x: 29.9' @ 100 yd / 10 m @ 100 m
9x: 10' @ 100 yd / 3.3 m @ 100 m
Exit Pupil Diameter 3x: 11 mm
9x: 3.5 mm
Eye Relief 3.7 to 4.8" / 94 to 123 mm
Reticle Type BDC Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Windage Adjustment 30 MOA
Elevation Adjustment 30 MOA
Parallax Correction Yes, 100 yd / 91.4 m
Water Resistance Waterproof
Fogproof Yes, Nitrogen Filled
Maintube Diameter 1"
Battery None
Dimensions Length: 12" / 30.5 cm
Weight 13.8 oz / 390 g
