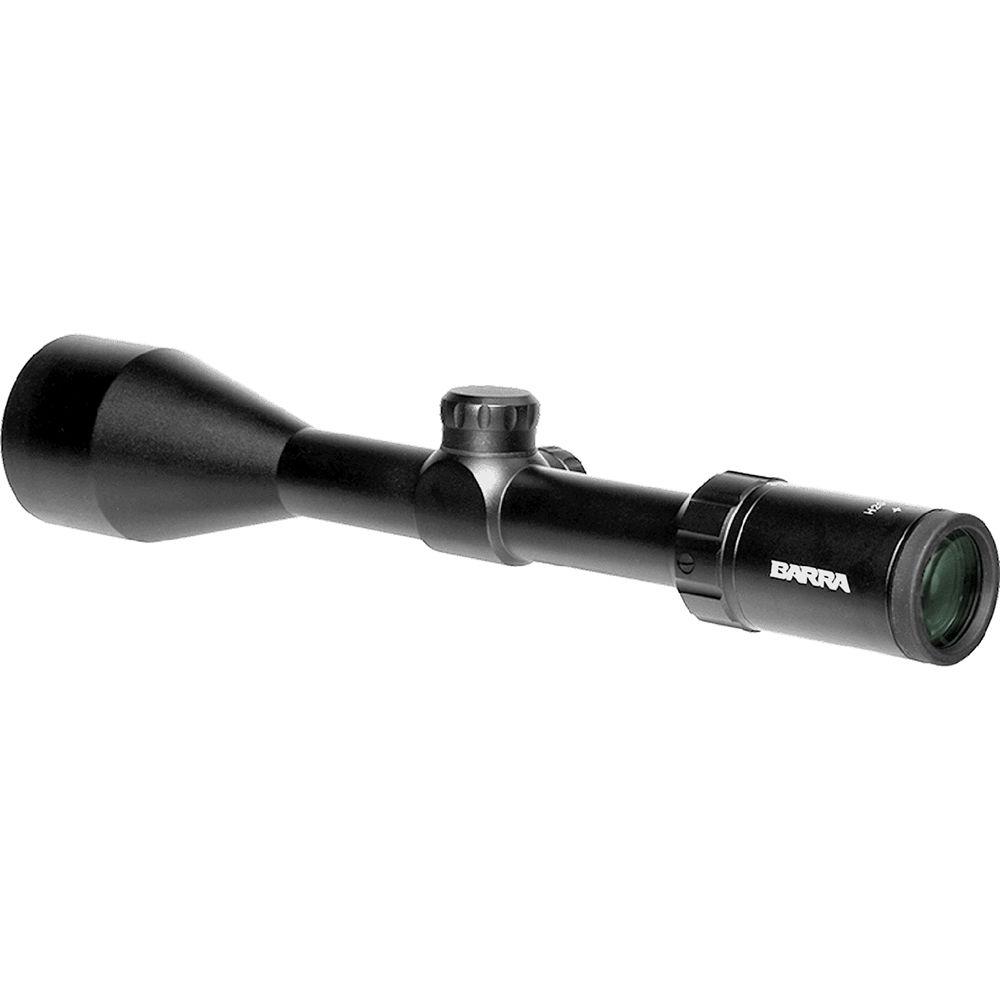

User Manual for Barra Optics H20 3-9x50 Hunting Riflescope Click to enlarge the picture
Contents of the user manual for the Barra Optics H20 3-9x50 Hunting Riflescope
- Product category: Riflescopes Barra Optics
- Brand: Barra Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barra Optics Riflescopes
|
User manual for the Barra Optics H20 3-9x50 Hunting Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barra Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barra Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barra Optics product will considerably shorten its lifespan!
|

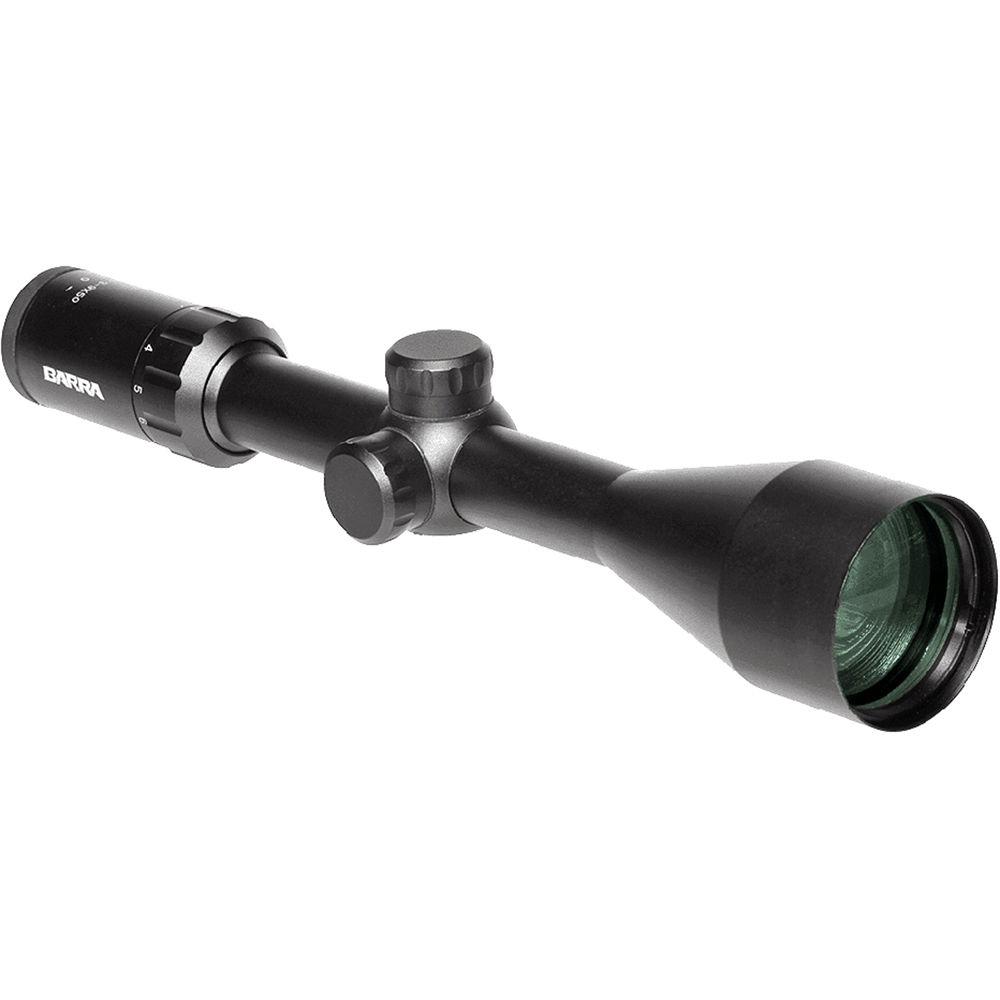

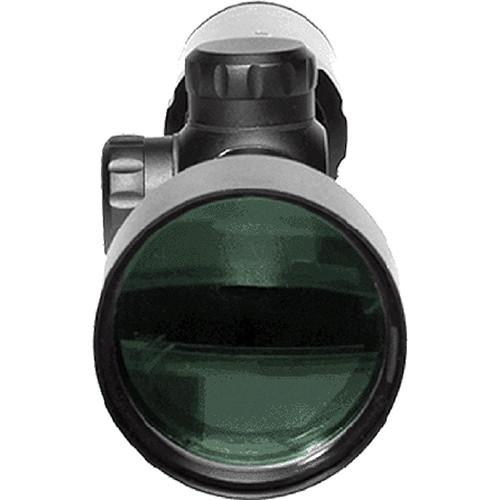

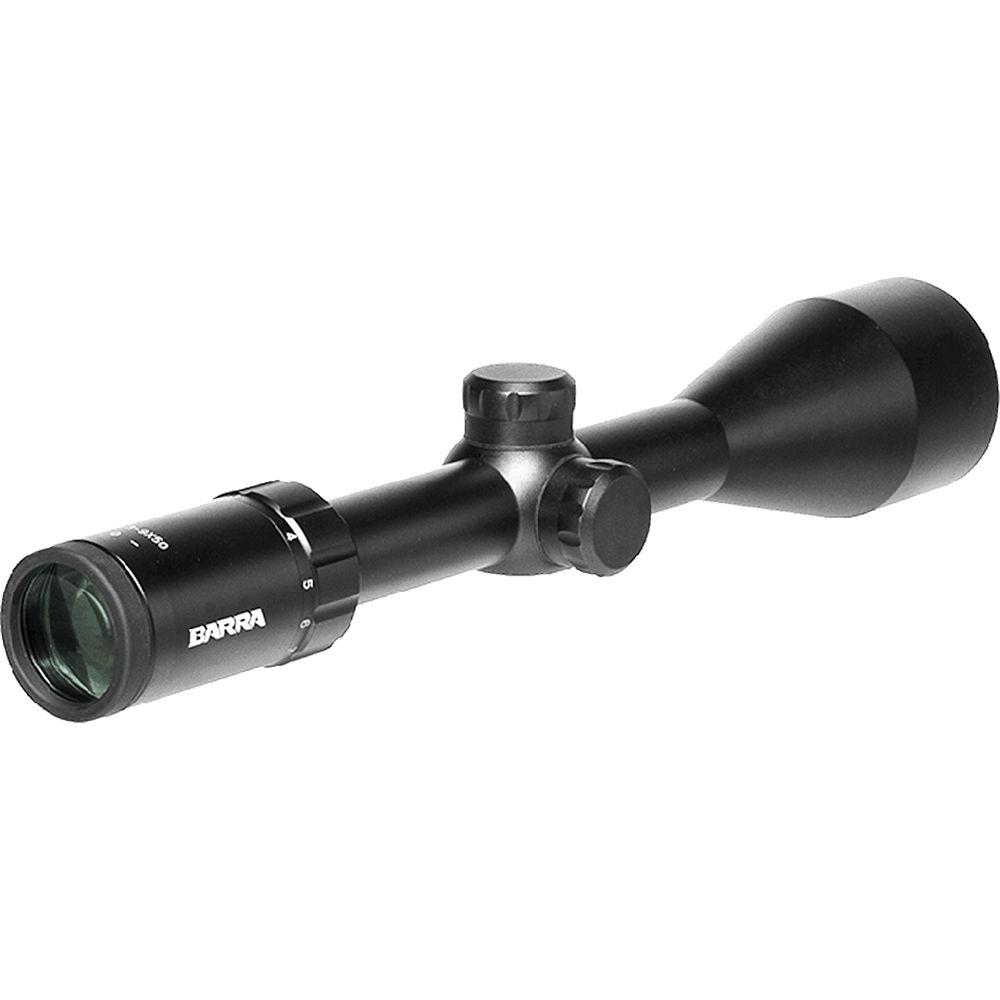

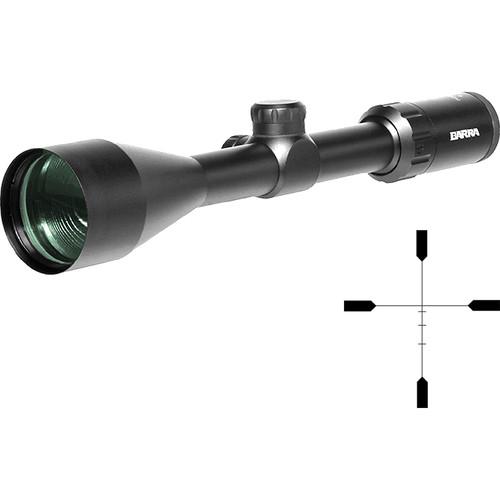

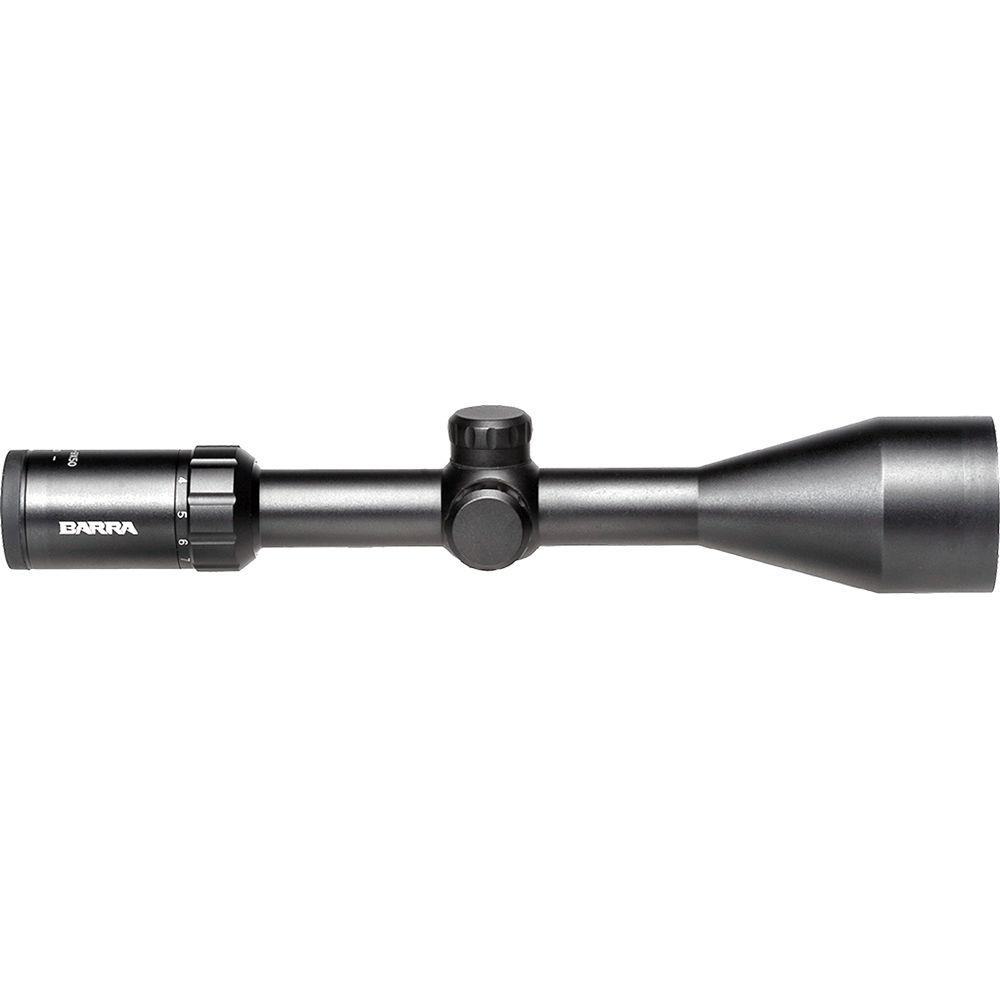

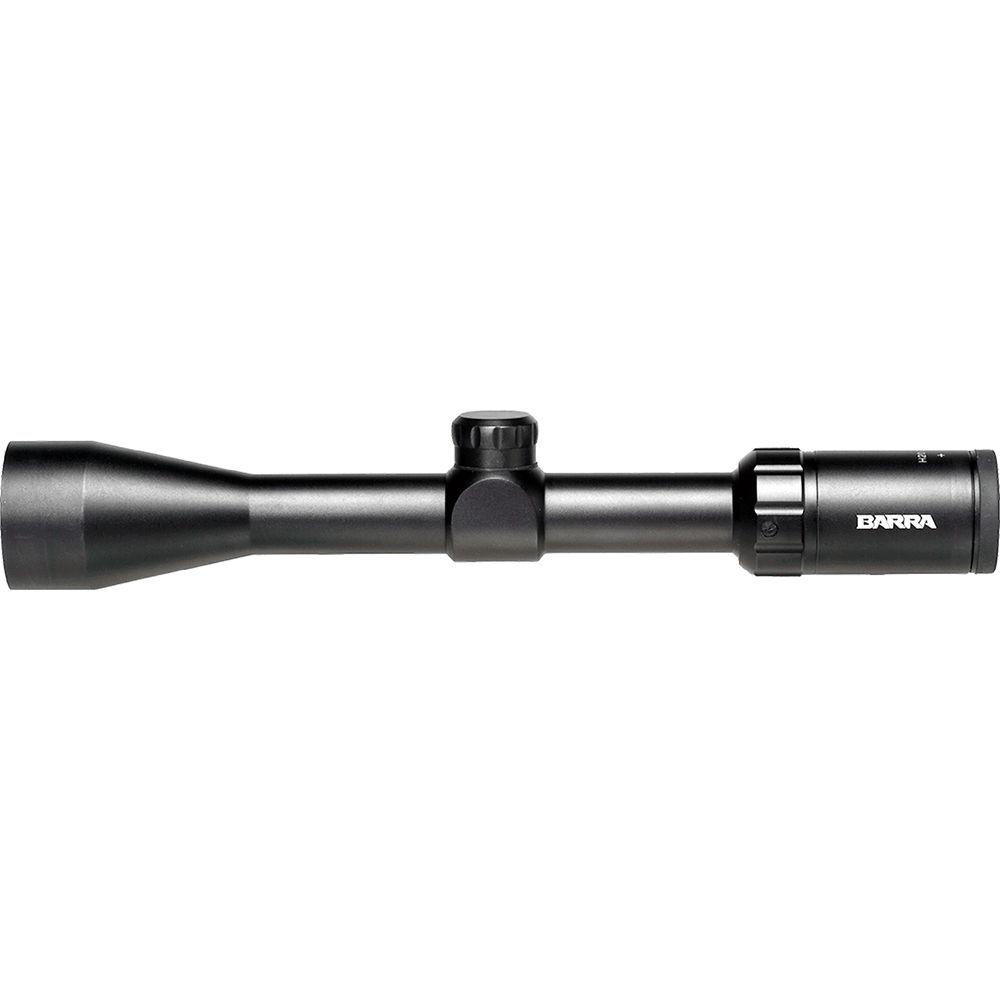

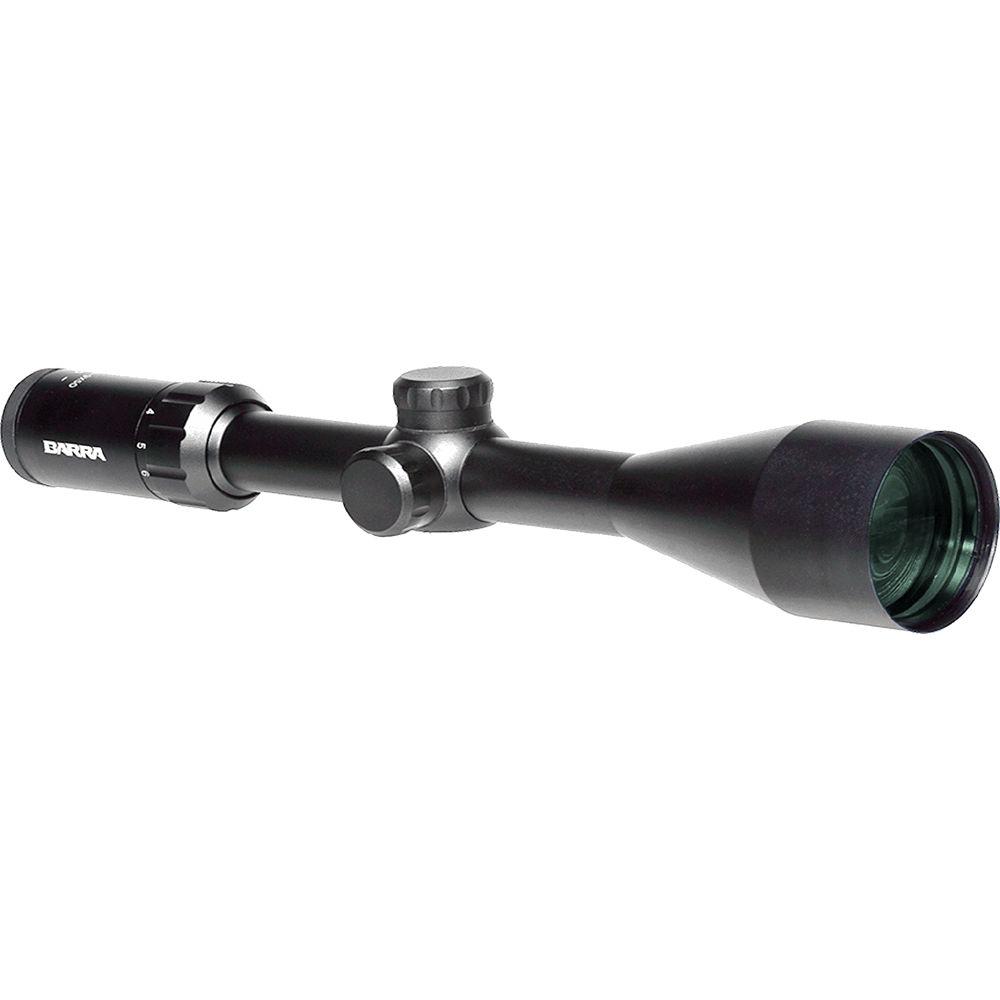

Product description Hone your hunting skills with the BARRA Optics H20 3-9x50 Hunting Riflescope. This simple-to-operate scope offers a 3-9x zoom optical system, a wide 50mm objective aperture (for low-light conditions), a duplex-style H1R BDC Reticle, and a 6063 aluminum housing with a fast-focus eyepiece and capped turrets. With 99.9% per surface transmission, the fully-coated lenses deliver total throughput of light up to 95% and minimized glare. To ensure precise aiming without magnifying its pattern, the H1R BDC Reticle is located in the second image plane. Its duplex-style outline features four tapered posts and a thin crosshair with three bars for ballistic estimation. A special highlight of the scope is its parallax-free performance from 100 yards to infinity.
To enable it to follow your hunting instincts anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof (nitrogen-filled) 6063 aluminum alloy body with a hard anodized finish. - Optical Performance
-
- Fully-coated optics
- 3 - 9x zoom magnification
- Wide 50mm objective delivers brighter images in low-light conditions
- 95% total transmission of the optical system
- 31- 10.5' at 100 yd linear field of view
- 15 - 5.7 mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 30 MOA windage and 35 MOA elevation adjustments
- 100 yd to infinity parallax correction
- 4.8 - 3.7" eye relief

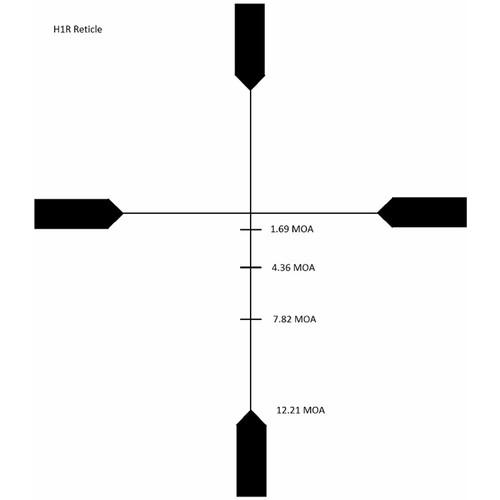

- H1R BDC Reticle
-
- 2nd focal plane
- Duplex-style pattern
- Four tapered posts
- Thin crosshair
- Three BDC bars below center
- Construction
-
- 6063 aluminum housing
- Hard black anodized finish
- 1" maintube diameter
- Capped hunting turrets
- Flip-up objective cap
- Waterproof and fogproof
- Nitrogen-filled
UPC: 815208020039 In the Box Barra Optics H20 3-9x50 Hunting Riflescope (H1R BDC Reticle, Matte Black) - Flip-Up Objective Cap
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barra Optics H20 3-9x50 Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarra Optics H203-9X50B1 Specs | Magnification | 3 to 9x | Objective Lens Diameter | 50 mm | Field of View | 3x: 31' @ 100 yd / 10.3 m @ 100 m 9x: 10.5' @ 100 yd / 3.5 m @ 100 m | Exit Pupil Diameter | 3x: 15 mm 9x: 5.7 mm | Eye Relief | 3.7 to 4.8" / 94 to 123 mm | | Reticle Type | BDC Reticle (Second Focal Plane) | | Impact Point Correction | 1/4 MOA per Click | Windage Adjustment | 30 MOA | Elevation Adjustment | 35 MOA | Parallax Correction | Yes, 100 yd / 91.4 m | | Water Resistance | Waterproof | Fogproof | Yes, Nitrogen Filled | | Maintube Diameter | 1" | Battery | None | Dimensions | Length: 12.1" / 30.7 cm | Weight | 18.9 oz / 536 g |
