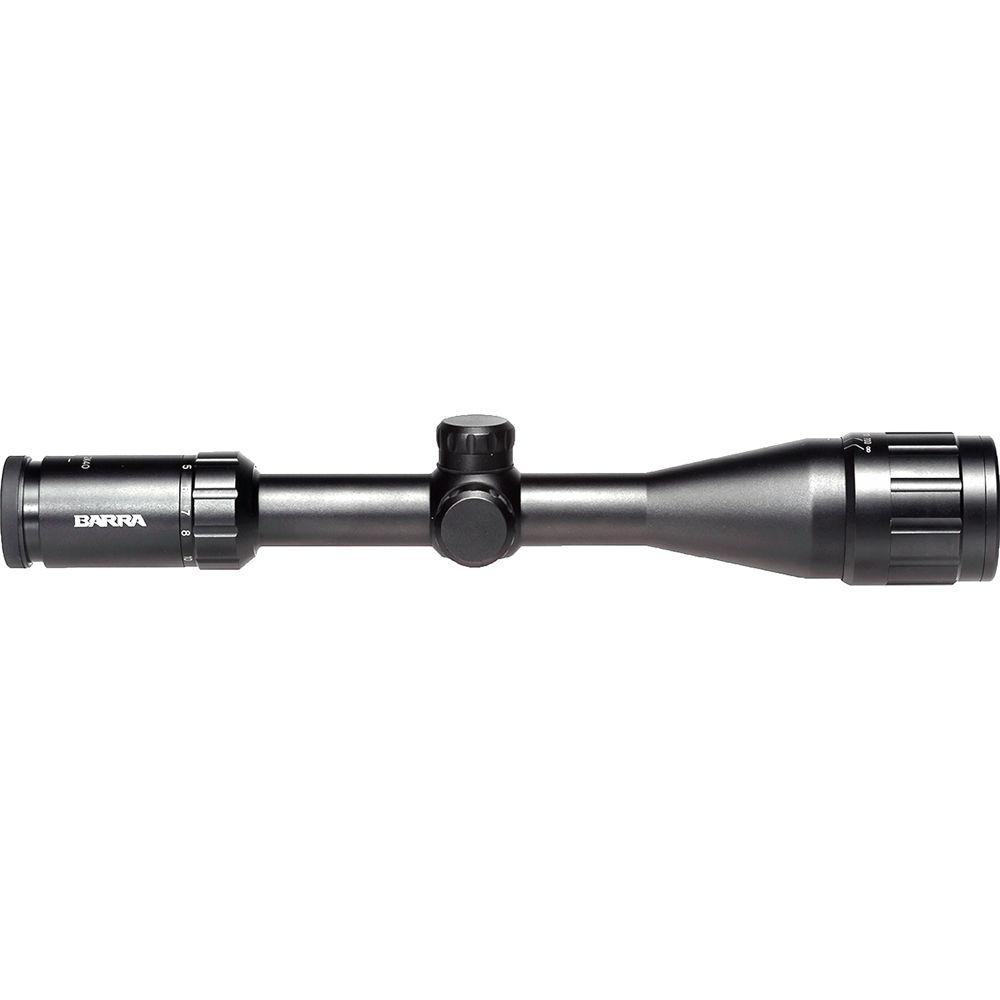

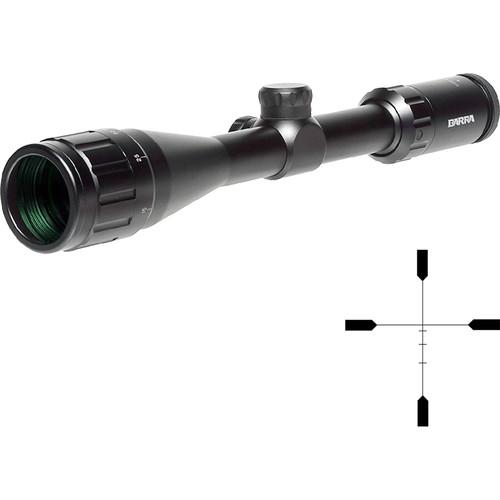

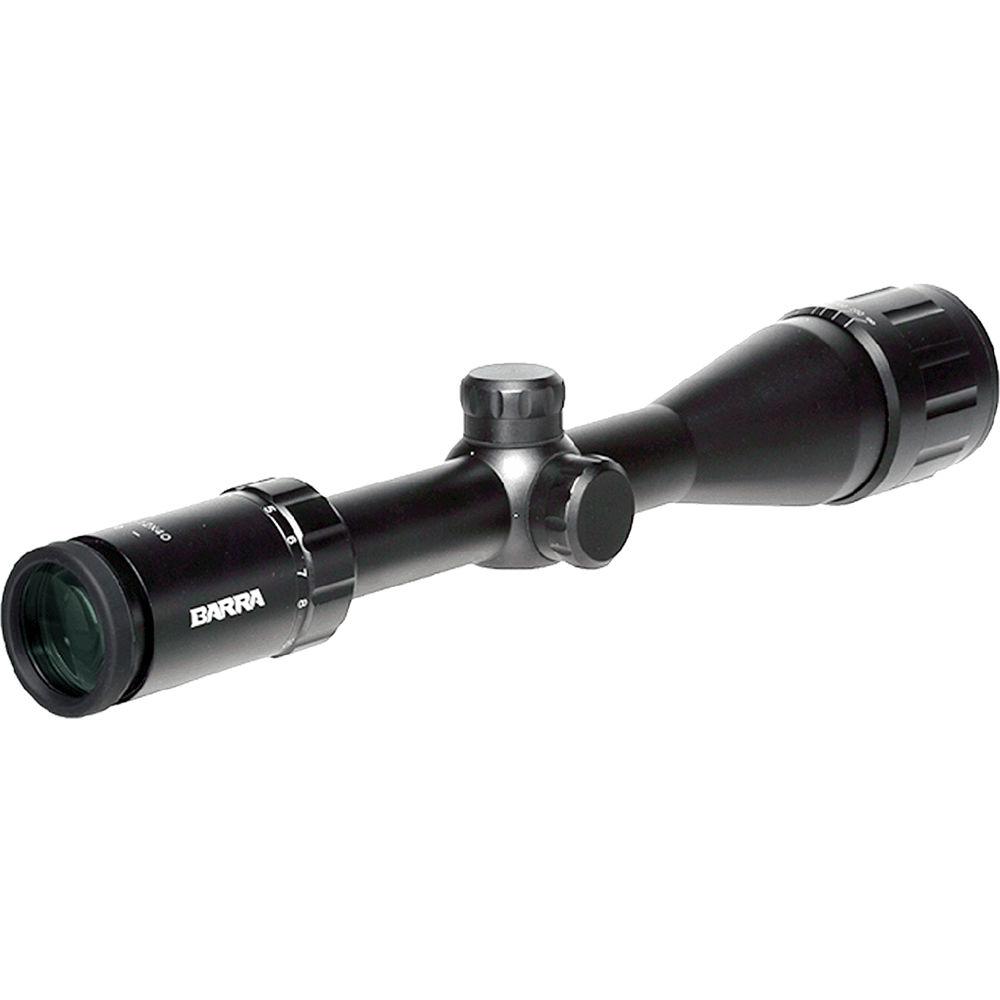

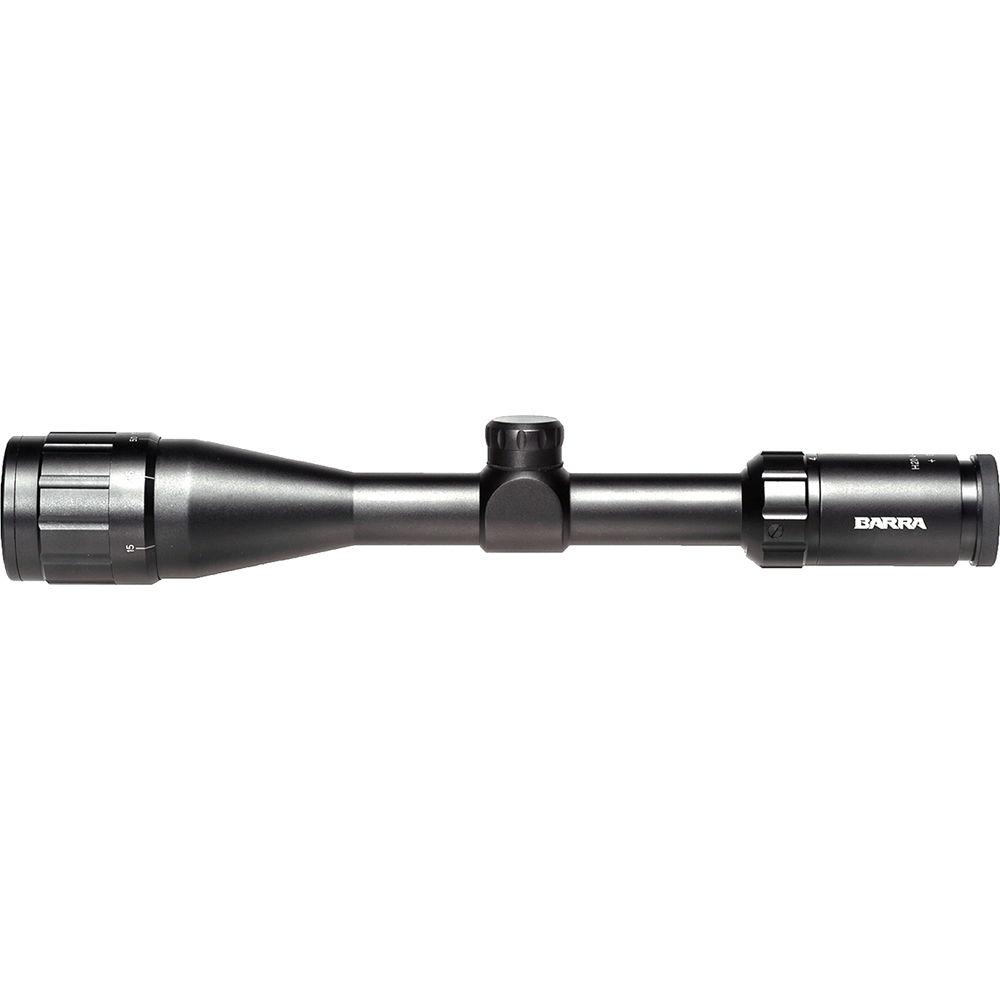

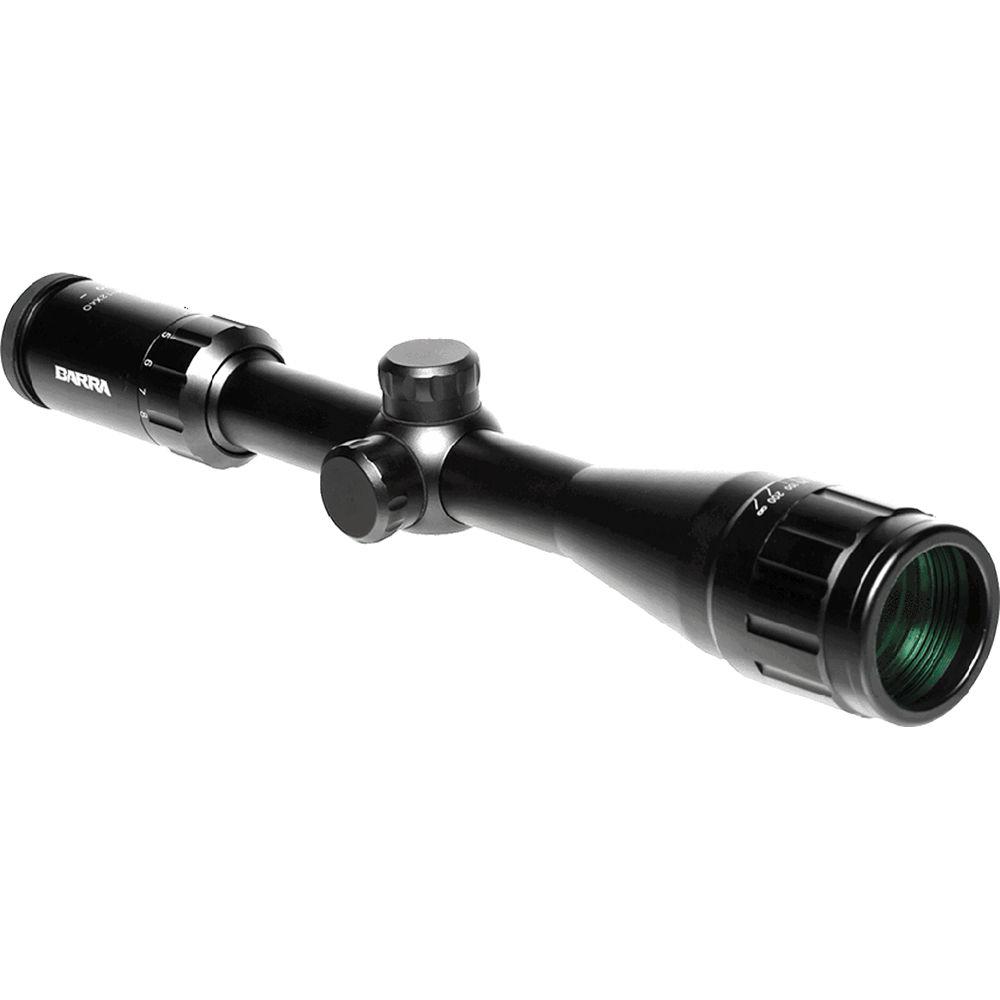

Product description Get on target with the BARRA Optics H20 4-12x40 AO Hunting Riflescope. This simple-to-operate scope offers a 4-12x zoom optical system, a H1R BDC Reticle, and a 6063 aluminum housing with a fast-focus eyepiece and capped turrets. With 99.9% per surface transmission, the fully-coated lenses deliver total throughput of light up to 95% and minimized glare. To ensure precise aiming without magnifying its pattern, the H1R BDC Reticle is located in the second image plane. Its duplex-style outline features four tapered posts and a thin crosshair with three bars for ballistic estimation. A special highlight of the scope is its parallax-free performance from 15 yards to infinity.
To enable you to follow your hunting instincts anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof (nitrogen-filled) 6063 aluminum alloy body with a hard anodized finish. - Optical Performance
-
- Fully-coated optics
- 4 - 12x zoom magnification
- 40mm objective diameter
- 95% total transmission of the optical system
- 25.1 - 8.4' at 100 yd linear field of view
- 10 - 3.3mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 30 MOA windage and 30 MOA elevation adjustments
- 15 yd to infinity parallax correction
- 3.5" eye relief

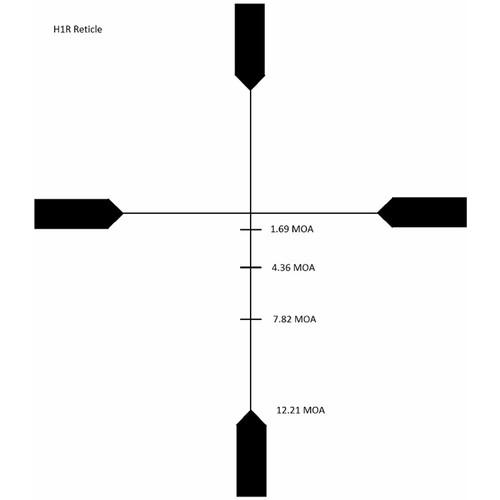

- H1R BDC Reticle
-
- 2nd focal plane
- Duplex-style pattern
- Four tapered posts
- Thin crosshair
- Three BDC bars below center
- Construction
-
- 6063 aluminum housing
- Hard black anodized finish
- 1" maintube diameter
- Capped hunting turrets
- Flip-up objective cap
- Waterproof and fogproof
- Nitrogen-filled
In the Box Barra Optics H20 4-12x40 AO Hunting Riflescope (H1R BDC Reticle, Matte Black) - Flip-Up Objective Cap
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barra Optics H20 4-12x40 AO Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarra Optics H204-12X40B1 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 25.1' @ 100 yd / 8.3 m @ 100 m
12x: 8.4' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | BDC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 30 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 310 mm | | Weight | 14.8 oz / 420 g |
