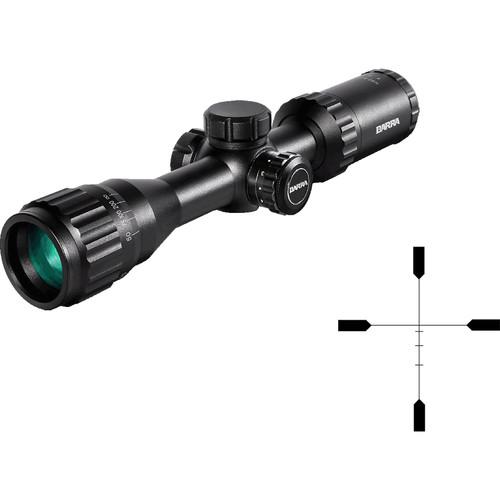

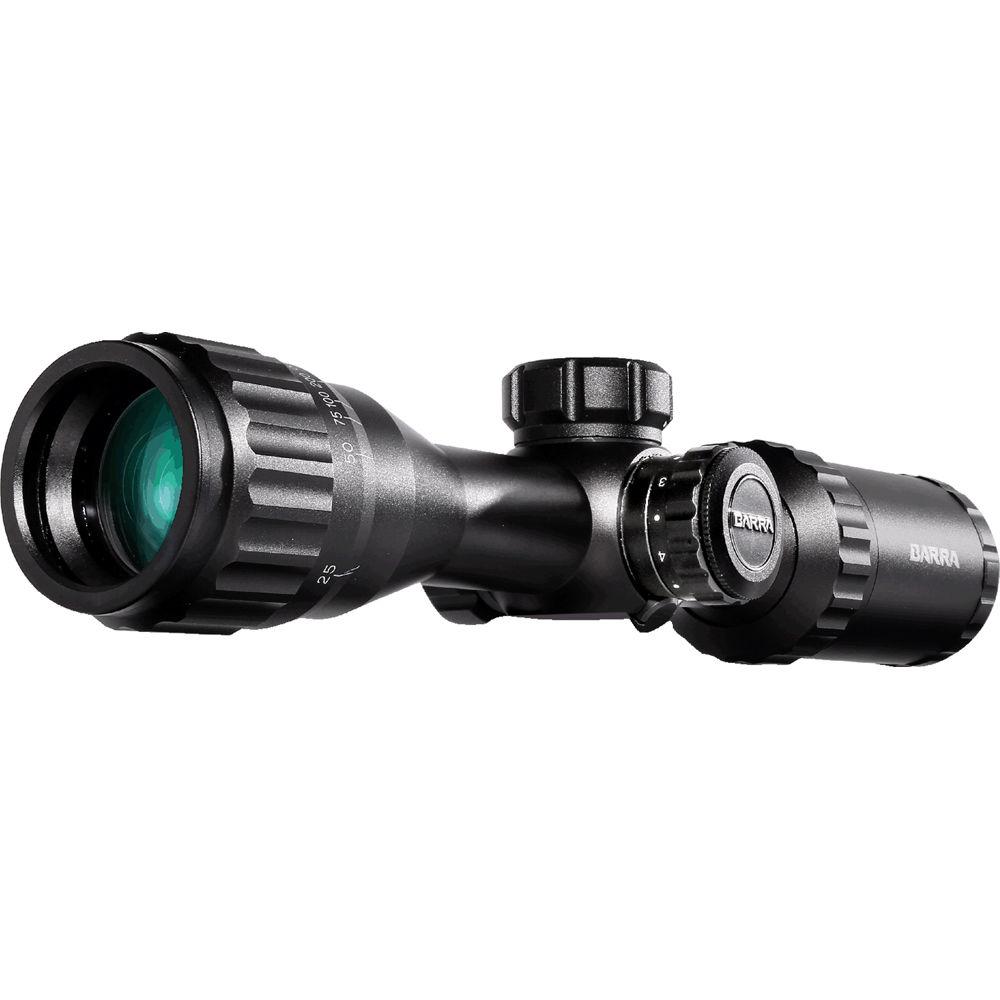

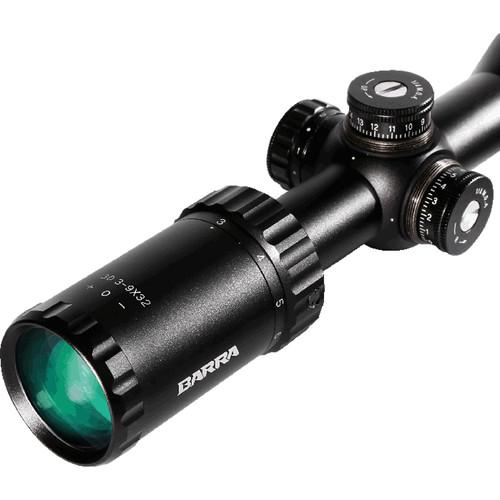

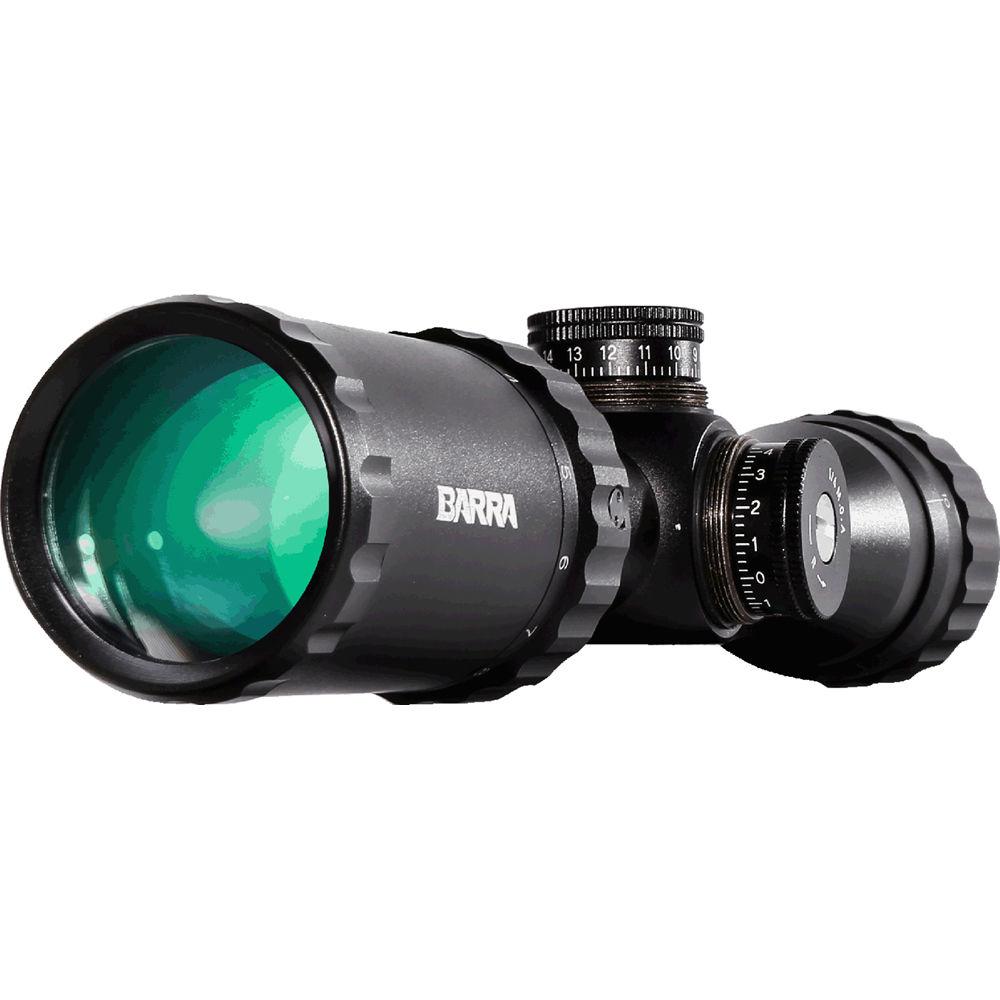

Product description Haunt your game using the H30 3-9x32 AOIR Adjustable Objective Hunting Riflescope from BARRA Optics. This simple-to-operate scope boasts a German-engineered zoom optical system, an adjustable parallax corrector, and an illuminated H1R BDC Reticle. With 99.9% surface transmission, the fully-coated lenses deliver a total throughput of light up to 95% and minimize glare. To ensure precise aiming without magnifying its pattern, the H1R BDC Illuminated Reticle is located in the second image plane. Its duplex-style outline features four tapered posts and a thin crosshair with three bars for ballistic estimation. The reticle can be illuminated and uses one CR2032 battery. A special highlight of the scope is its adjustable objective that will ensure parallax-free performance of the reticle from 10 yards to infinity.

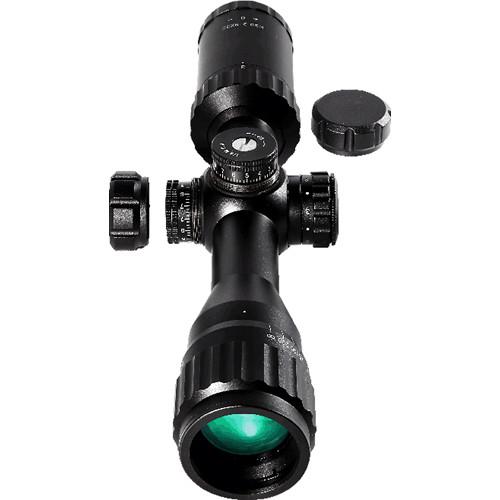

To enable you to follow your hunting instincts anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof 6063 aluminum alloy construction with a 1" single-piece maintube. To protect windage and elevation turrets from dust and accidental turning, they are covered with protective caps. - Optical Performance
-
- Fully-coated optics
- 3 - 9x zoom magnification
- 32mm objective diameter
- 95% total transmission of the optical system
- 43.5 - 14.1' at 100 yd linear field of view
- 10.5 - 3.5mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 30 MOA windage and elevation adjustments
- 10 yd to infinity parallax correction
- 3.0 - 3.14" eye relief

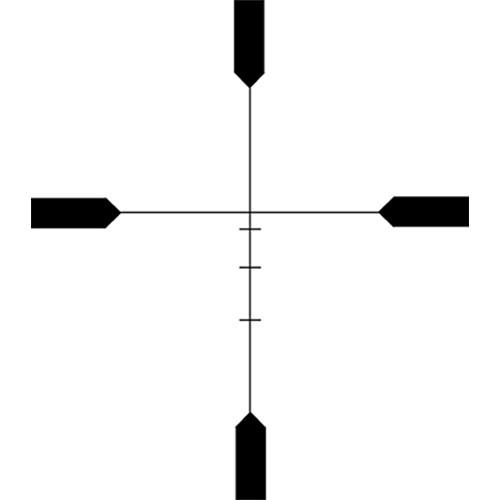

- H1R Illuminated Reticle
-
- Second focal plane
- Adjustable brightness
- Duplex-style pattern
- Four tapered posts
- Thin crosshair
- Three BDC bars below center
- Powered by one included CR2032 battery
- Construction
-
- 6063 aluminum housing
- Hard black anodized finish
- 1" maintube diameter
- Fast focus eyepiece
- Adjustable objective parallax corrector
- Flip-up objective cover included
- Capped hunting turrets
- Waterproof and fogproof
- Nitrogen-filled
UPC: 815208020084 In the Box Barra Optics H30 3-9x32 AOIR Adjustable Objective Hunting Riflescope (H1R BDC Illuminated Reticle, Matte Black) - CR2032 Battery
- Flip-Up Lens Cap
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barra Optics H30 3-9x32 AOIR Adjustable Objective Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarra Optics H303-9X32B1 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 32 mm | | Field of View | 3x: 43.5' @ 100 yd / 14.5 m @ 100 m
9x: 14.1' @ 100 yd / 4.7 m @ 100 m | | Exit Pupil Diameter | 3x: 10.5 mm
9x: 3.5 mm | | Eye Relief | 3 to 3.1" / 75 to 80 mm | | | | Reticle Type | H1R BDC Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 30 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 11" / 28 cm | | Weight | 20.6 oz / 584 g |
