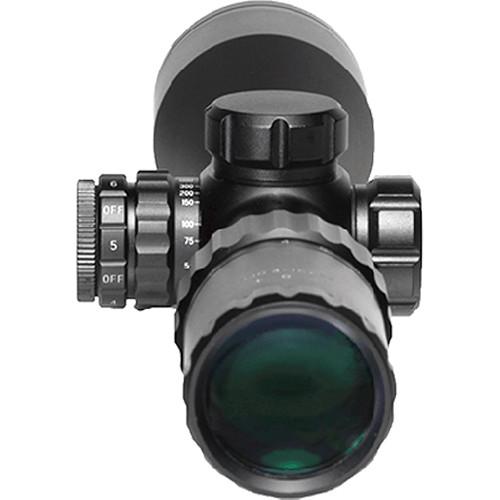

User Manual for Barra Optics H30 4-16x50 SFIR Side Focus Hunting Riflescope Click to enlarge the picture
Contents of the user manual for the Barra Optics H30 4-16x50 SFIR Side
- Product category: Riflescopes Barra Optics
- Brand: Barra Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barra Optics Riflescopes
 |
User manual for the Barra Optics H30 4-16x50 SFIR Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barra Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barra Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barra Optics product will considerably shorten its lifespan!
|

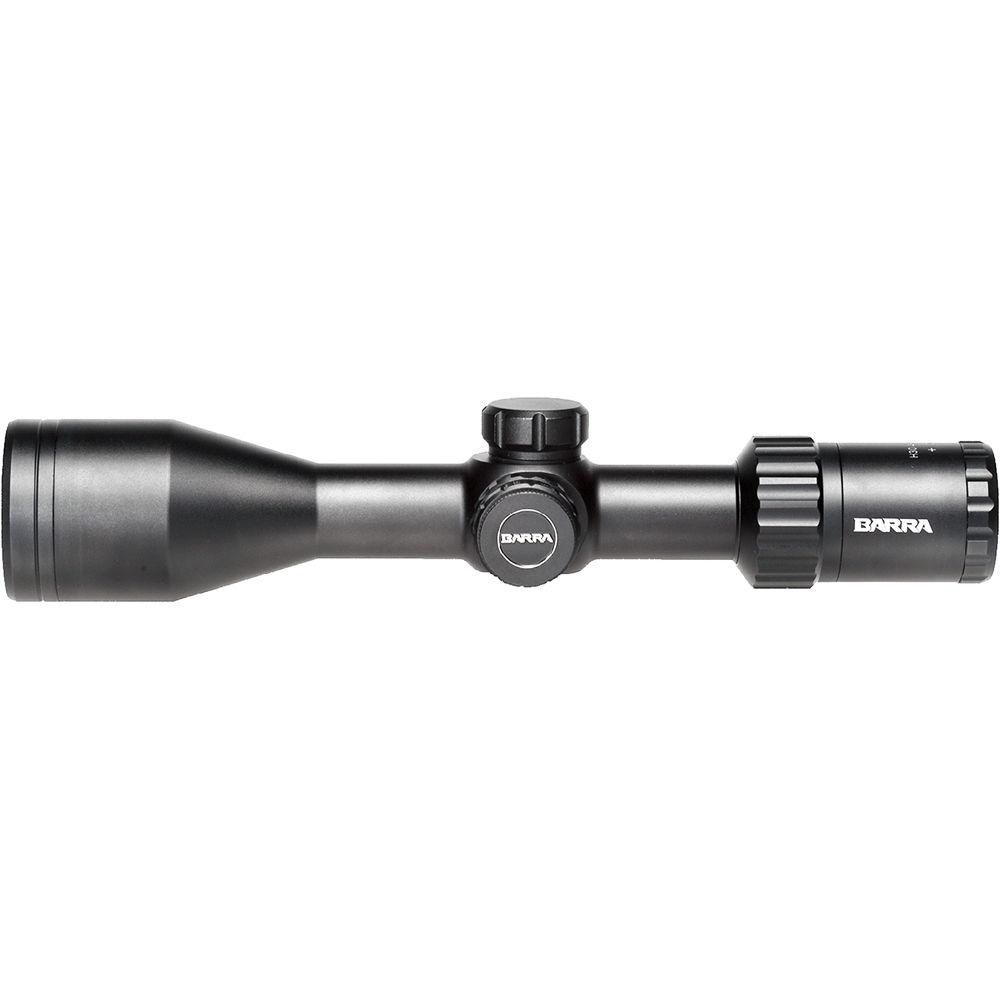

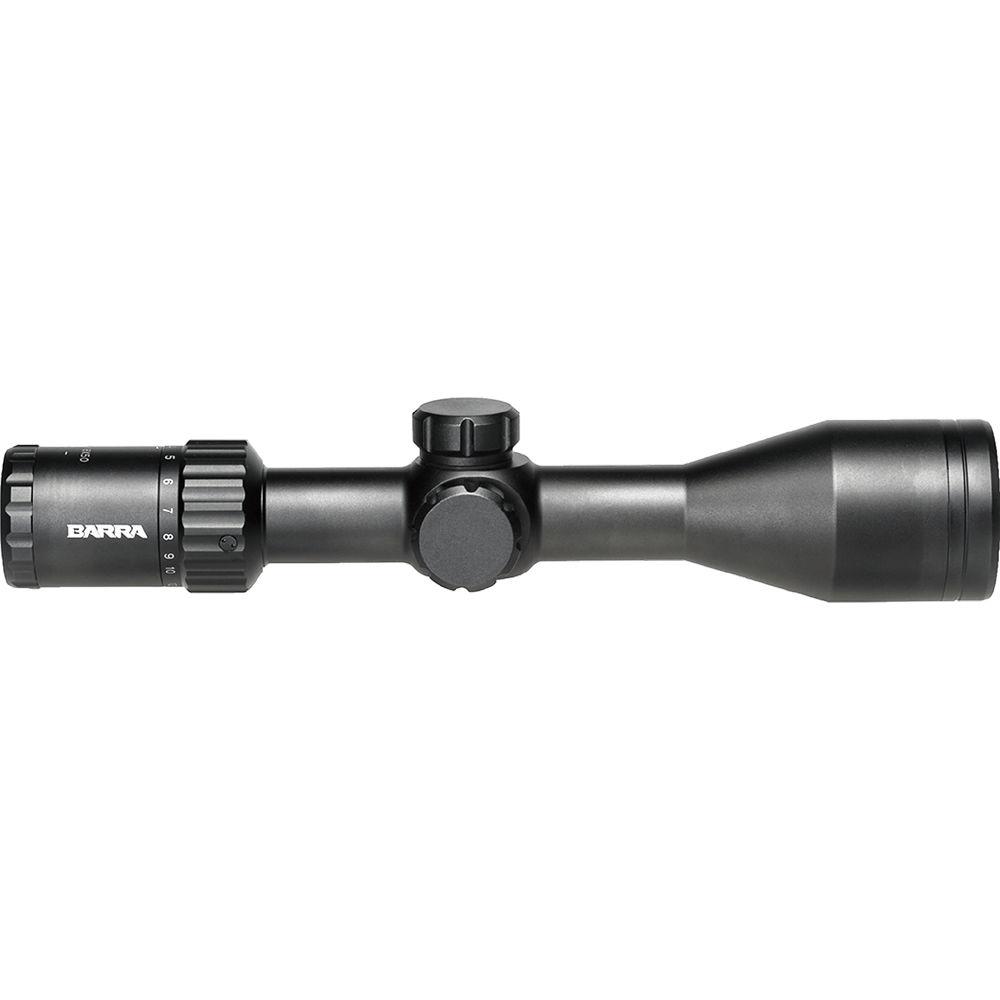

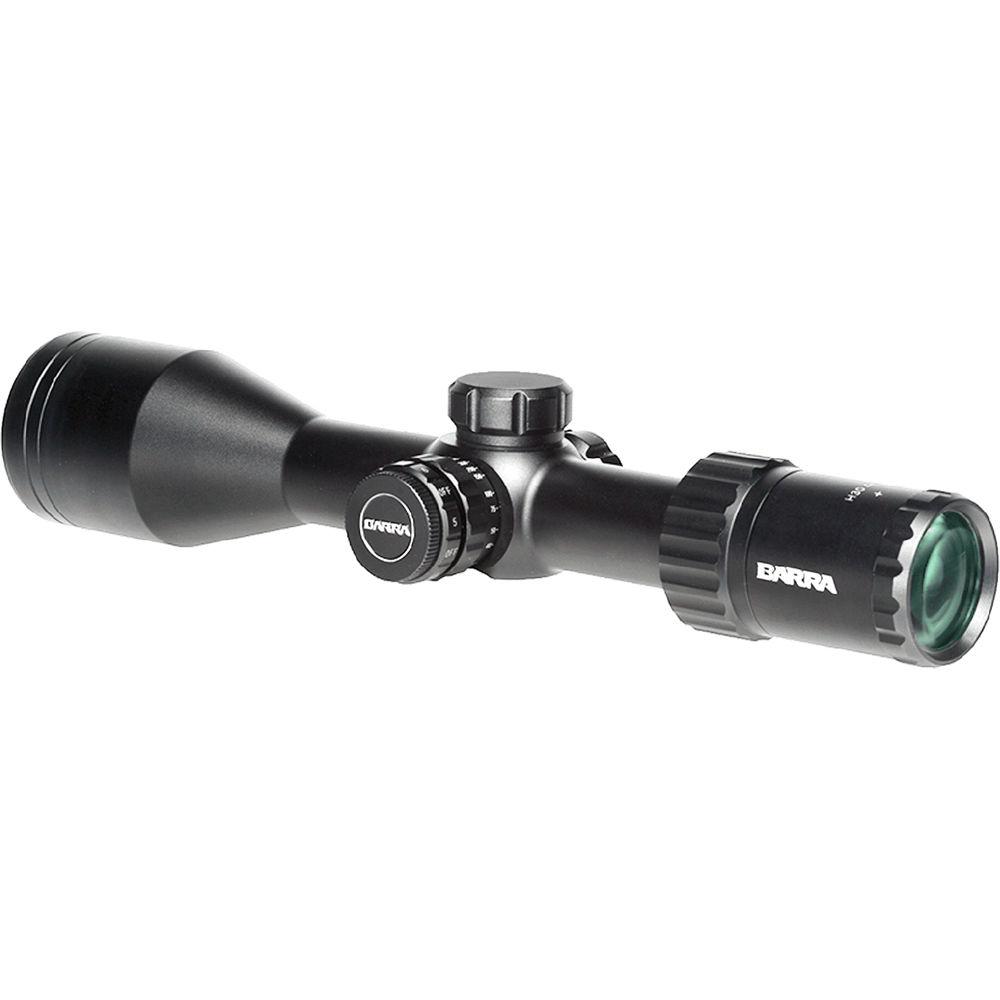

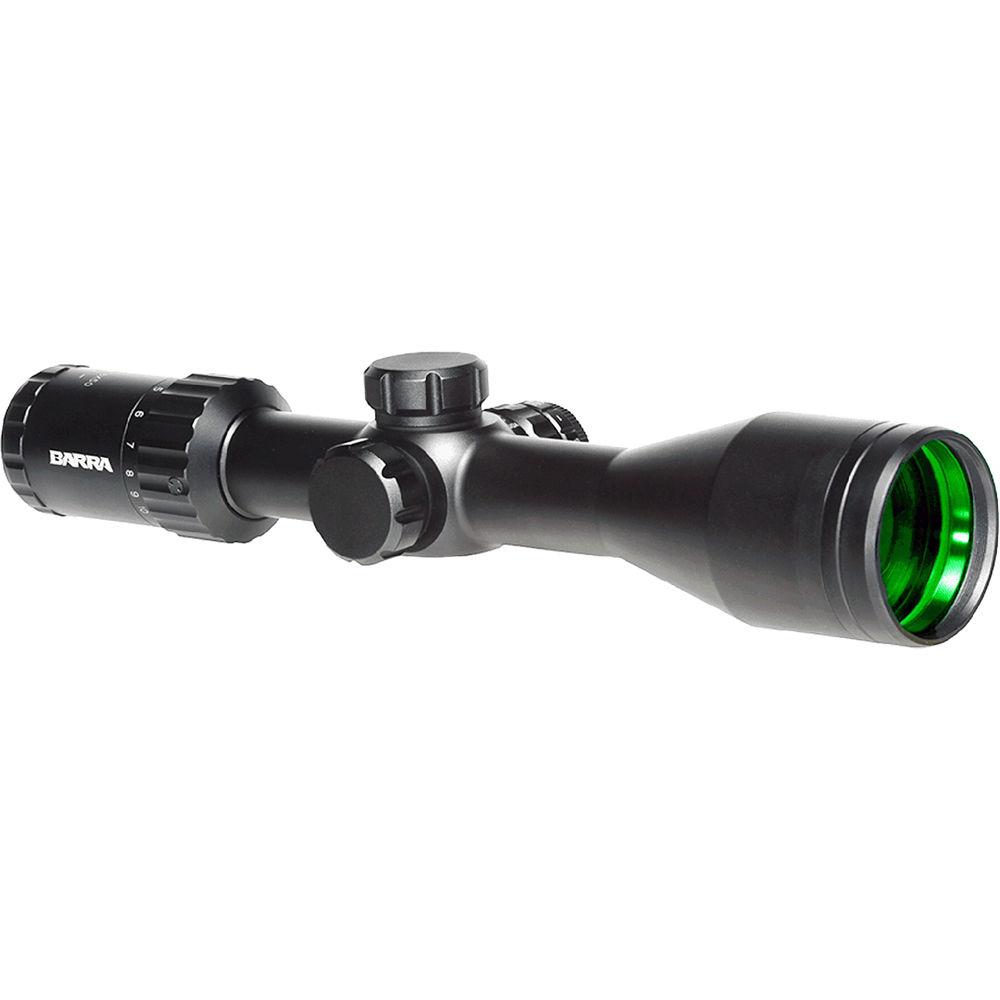

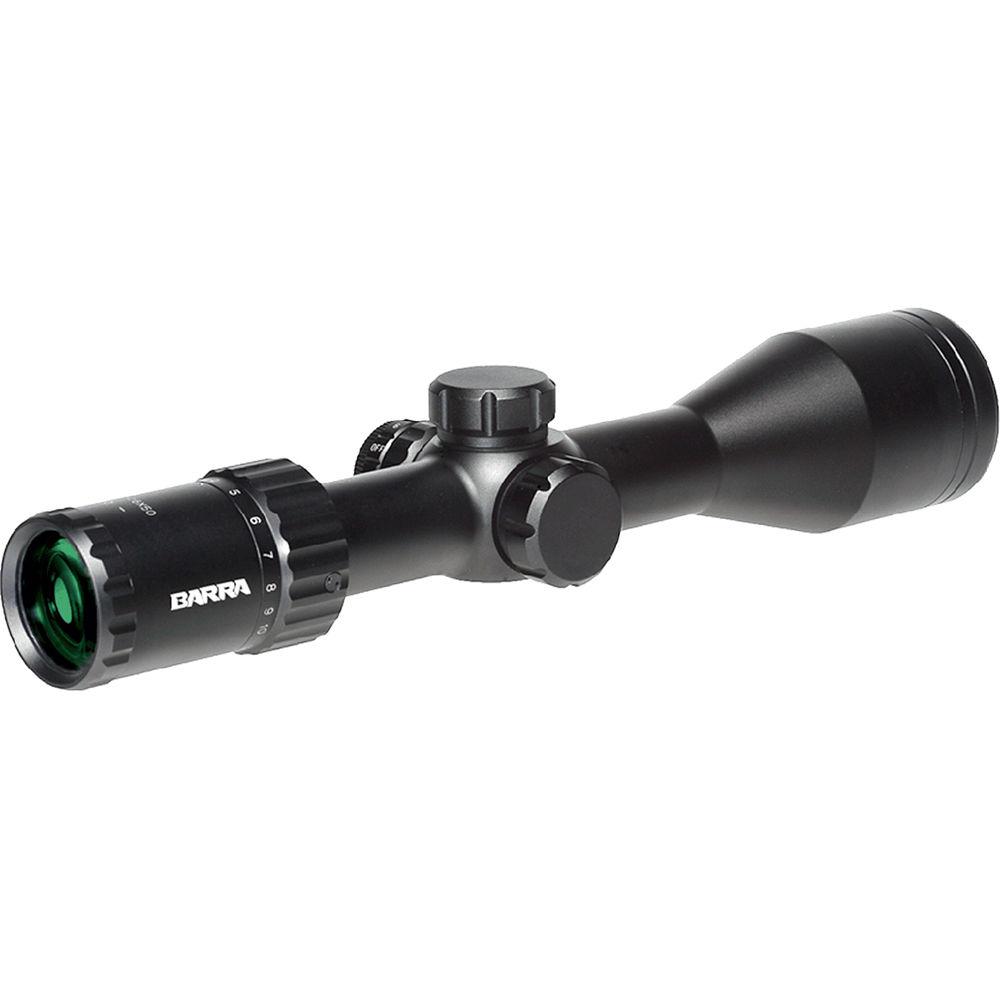

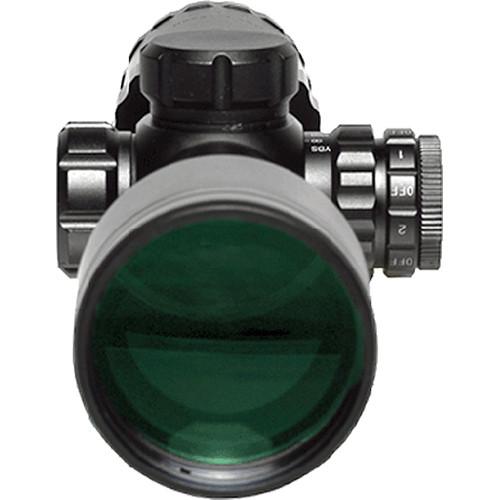

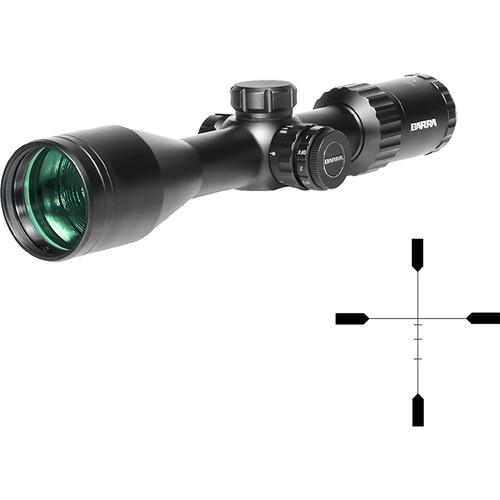

Product description Get on target with the Barra Optics H30 4-16x50 SFIR Side Focus Hunting Riflescope. This simple-to-operate scope offers a high 4-16x zoom, especially intended for shooting at longer ranges or for high precision. The optical system also provides a wide 50mm objective lens for collecting more light in the dark or at high zoom factors. With 99.9% per surface transmission, the fully multi-coated lenses deliver total throughput of light up to 95% and minimized glare. To ensure precise aiming without magnifying its pattern, the H1R BDC Illuminated Reticle is located in the second image plane. It is powered by a single included CR2032 battery and features a duplex-style outline with four tapered posts and a thin crosshair. The lower hair on the crosshair also offers three bars for ballistic estimation. A special highlight of the scope is its parallax-free performance from 10 yards to infinity.
To enable you to follow your hunting instincts anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof (nitrogen-filled) 6063 aluminum alloy body (with a hard-anodized finish). Its additional strength comes from a thicker one-piece 30mm maintube. - Optical Performance
-
- Fully multi-coated optics
- 4 - 16x zoom magnification
- 50mm objective delivers good visibility even in challenging lighting conditions
- 95% total transmission of the optical system
- 31.4 - 7.85' at 100 yd linear field of view
- 11.5 - 3.1 mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 30 MOA windage and 30 MOA elevation adjustments
- 10 yd to infinity parallax correction
- 3.0 - 3.14" eye relief

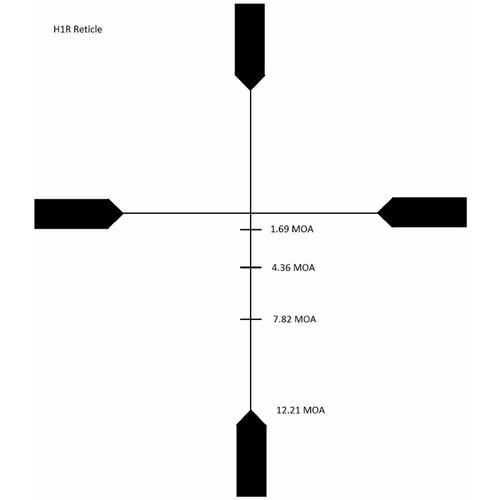

- H1R BDC Illuminated Reticle
-
- Second focal plane
- Duplex-style pattern
- Four tapered posts
- Thin crosshair
- Three BDC bars below center
- Adjustable illumination
- Powered by one CR2032 battery
- Construction
-
- 6063 aluminum housing
- Hard black anodized finish
- One-piece 30mm maintube
- Fast-focus eyepiece
- Capped hunting turrets with zero-reset

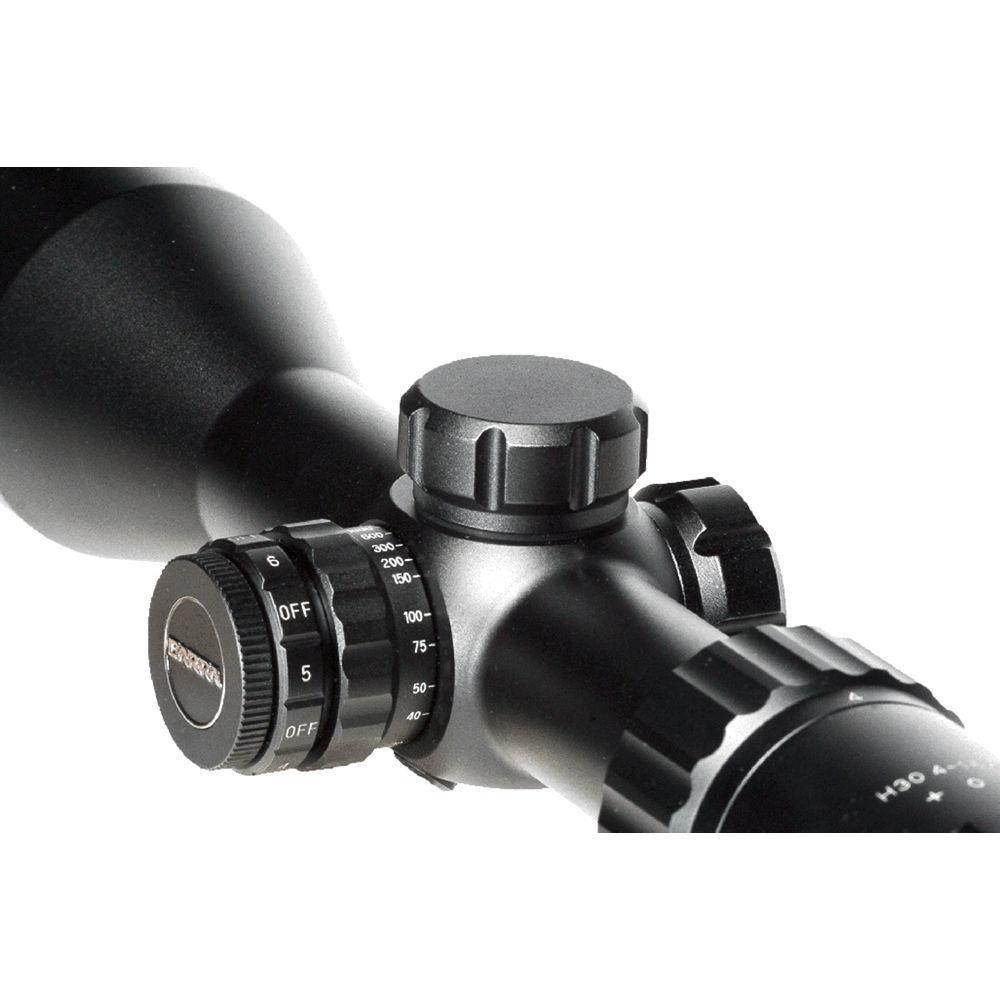

- Side focus parallax corrector
- Flip-up objective cap
- Waterproof and fogproof
- Nitrogen-filled
UPC: 815208020107 In the Box Barra Optics H30 4-16x50 SFIR Side Focus Hunting Riflescope (H1R BDC Illuminated Reticle, Matte Black) - CR2032 Battery
- Flip-Up Objective Cap
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barra Optics H30 4-16x50 SFIR Side Focus Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarra Optics H304-16X50B1 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 31.4' @ 100 yd / 10.5 m @ 100 m
16x: 7.9' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 4x: 11.5 mm
16x: 3.1 mm | | Eye Relief | 3 to 3.1" / 75 to 80 mm | | | | Reticle Type | H1R BDC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 30 MOA | | Elevation Adjustment | 30 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.4" / 315 mm | | Weight | 26.3 oz / 745 g |
