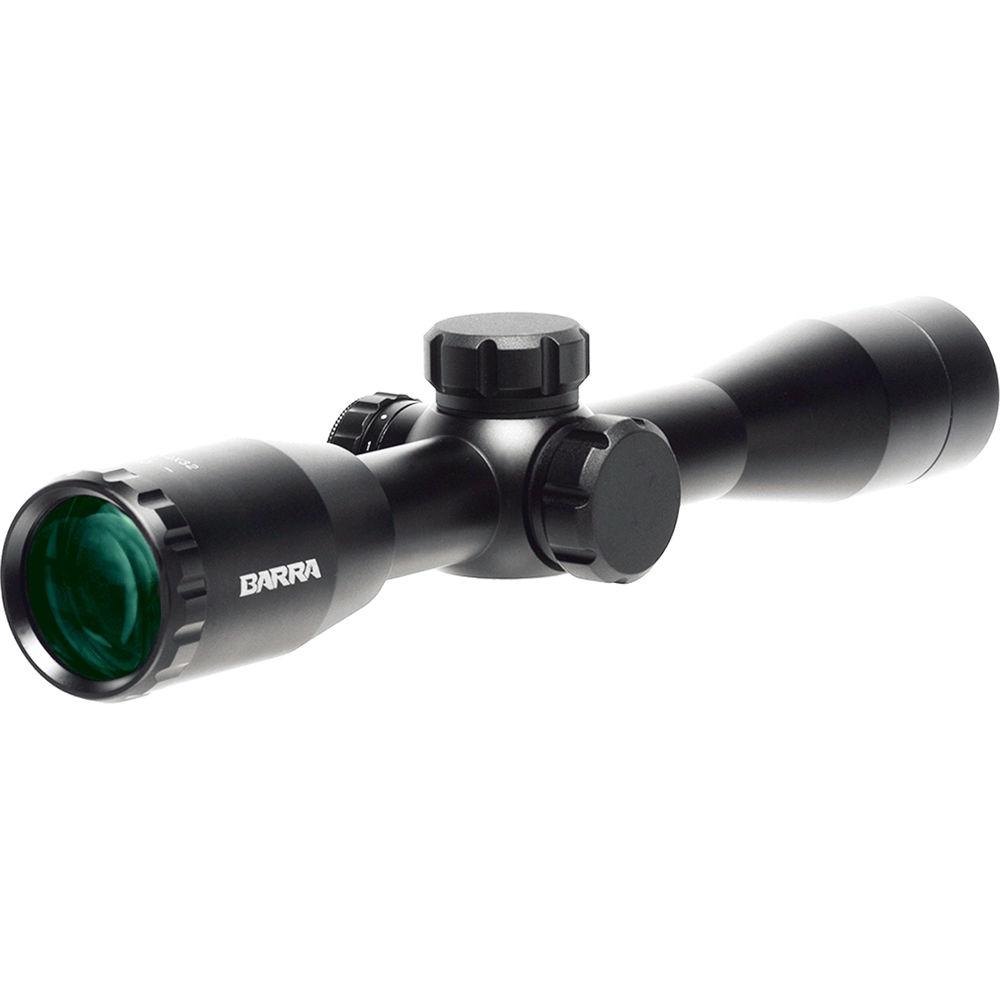

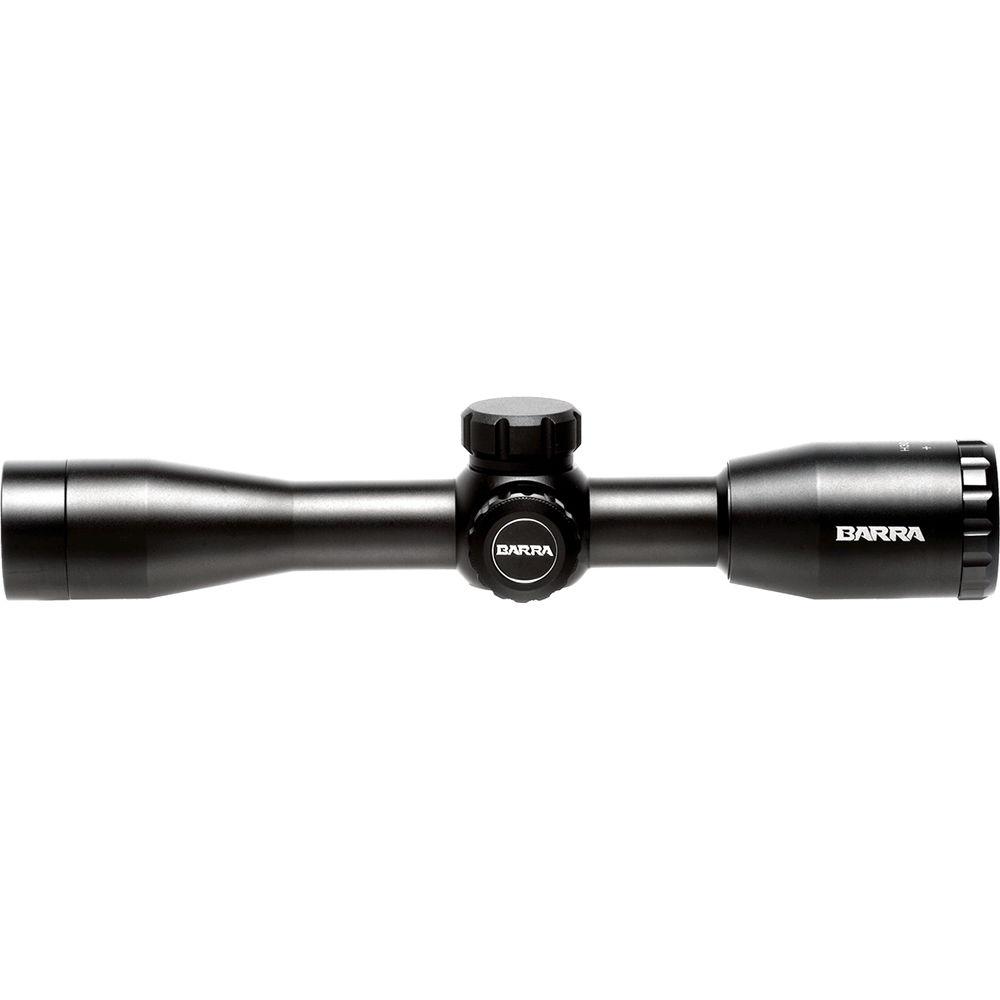

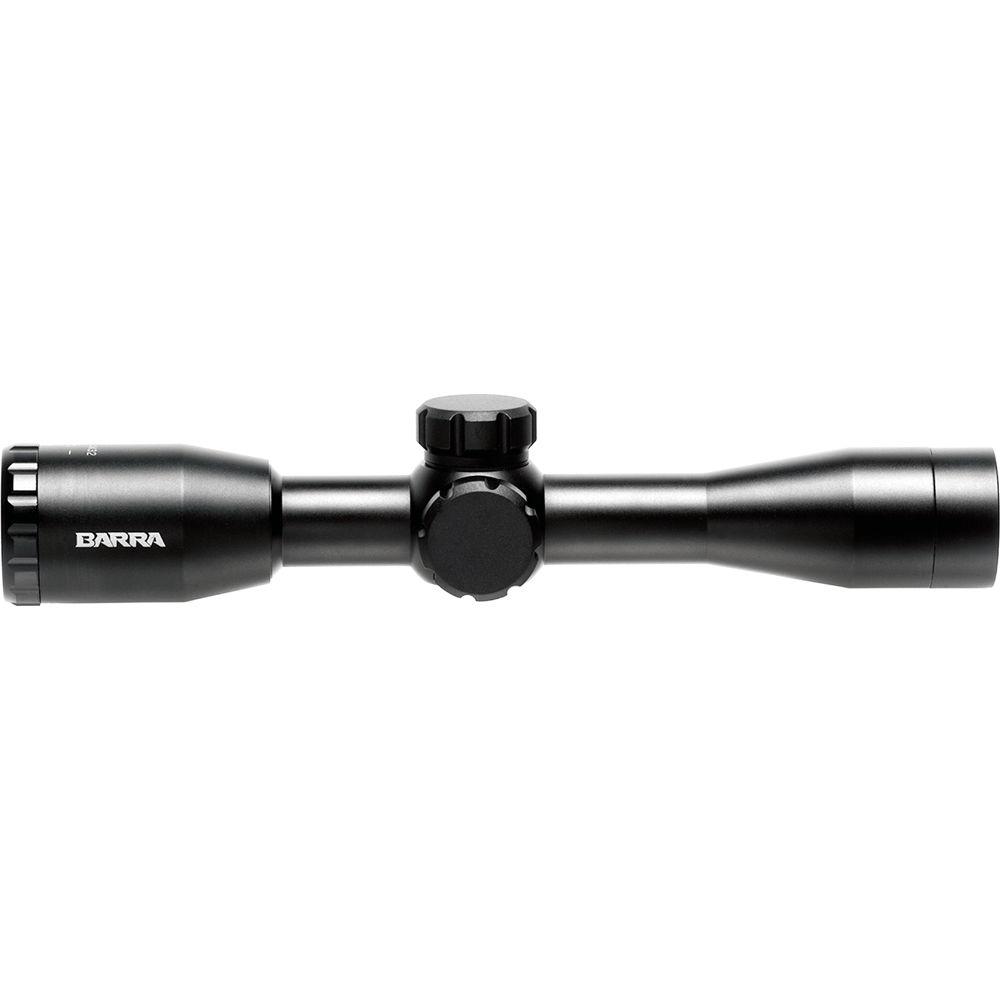

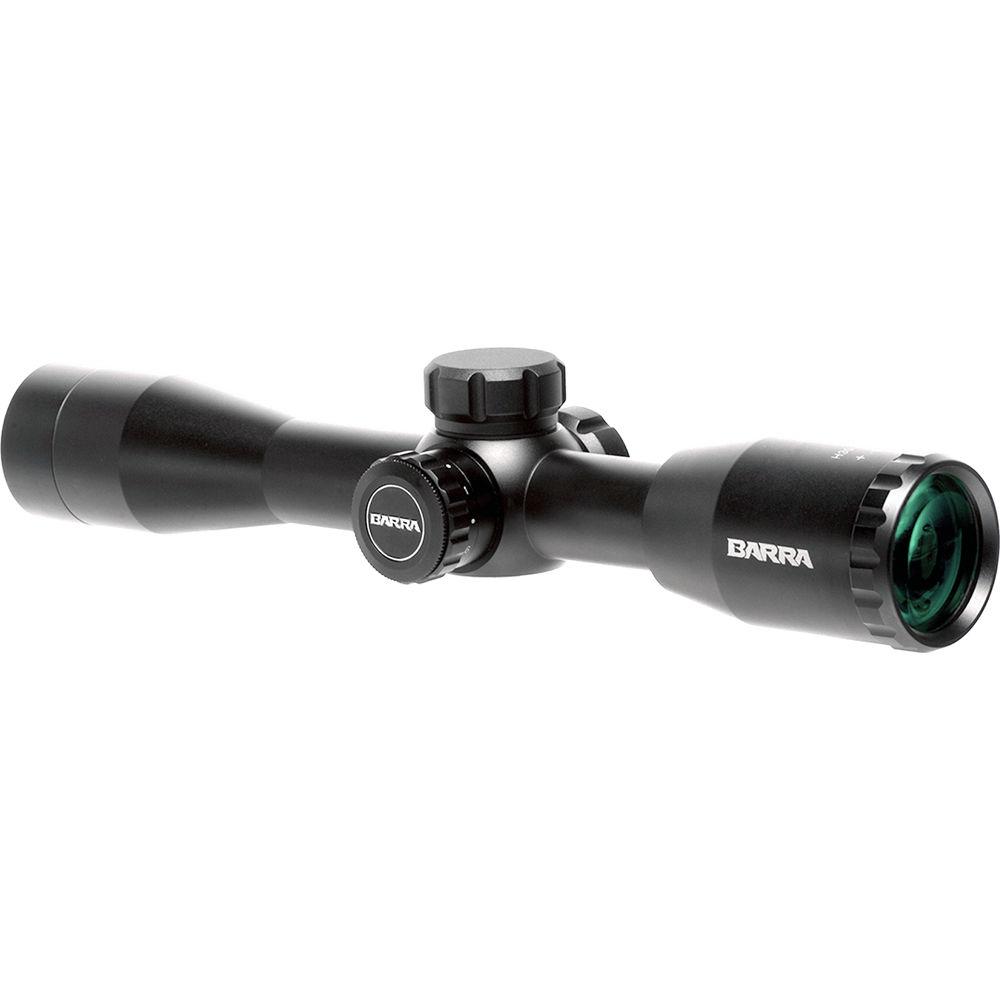

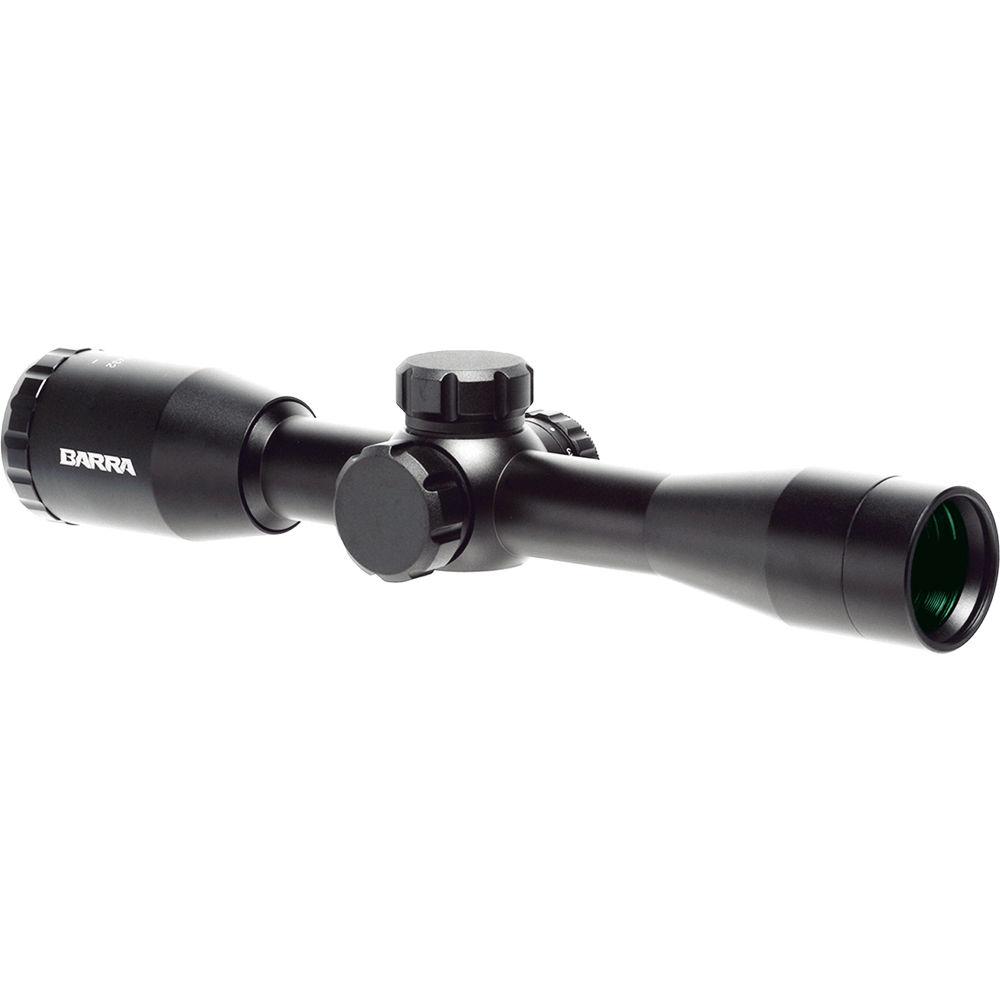

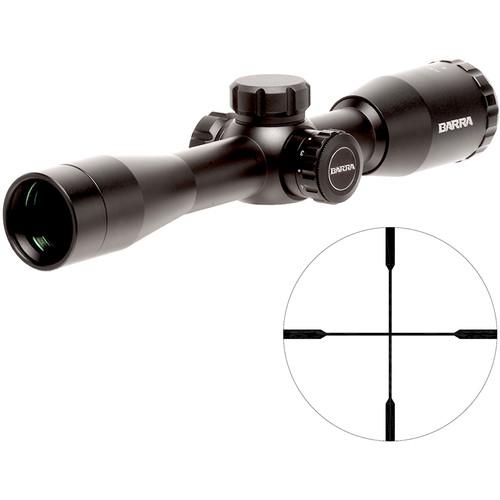

Product description Hone your hunting skills using the Barra Optics H30 4x32 IR Hunting Riflescope. This simple-to-operate scope offers a 4x magnification and an illuminated "A" Reticle to achieve your goals. With 99.9% per surface transmission, the fully multi-coated lenses deliver total throughput of light up to 95% and minimized glare. To ensure precise aiming without magnifying its pattern, the "A" Illuminated Reticle is located in the second image plane. It is powered by a single included CR2032 battery and features a duplex-style outline with four tapered posts and a crosshair. For accurate aiming the reticle is set to be parallax-free at a 100-yard range.
To enable your hunting instincts to follow you anywhere, without worrying about weather or terrain, the scope features a waterproof and fogproof (nitrogen-filled) 6063 aluminum alloy body (with a hard anodized finish). Its additional strength comes from a 1" single-piece maintube. - Optical Performance
-
- Fully multi-coated optics
- 4x zoom magnification
- 32mm objective diameter
- 95% total transmission of the optical system
- 32.5' at 100 yd linear field of view
- 8.0mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 30 MOA windage and 20 MOA elevation adjustments
- Parallax-free at 100 yd
- 3.14" eye relief
- "A" Illuminated Reticle
-
- Second focal plane
- Duplex-style pattern
- Four tapered posts
- Thin crosshair
- Adjustable illumination
- Powered by one CR2032 battery
- Construction
-
- 6063 aluminum housing
- Hard black anodized finish
- One-piece 1" maintube

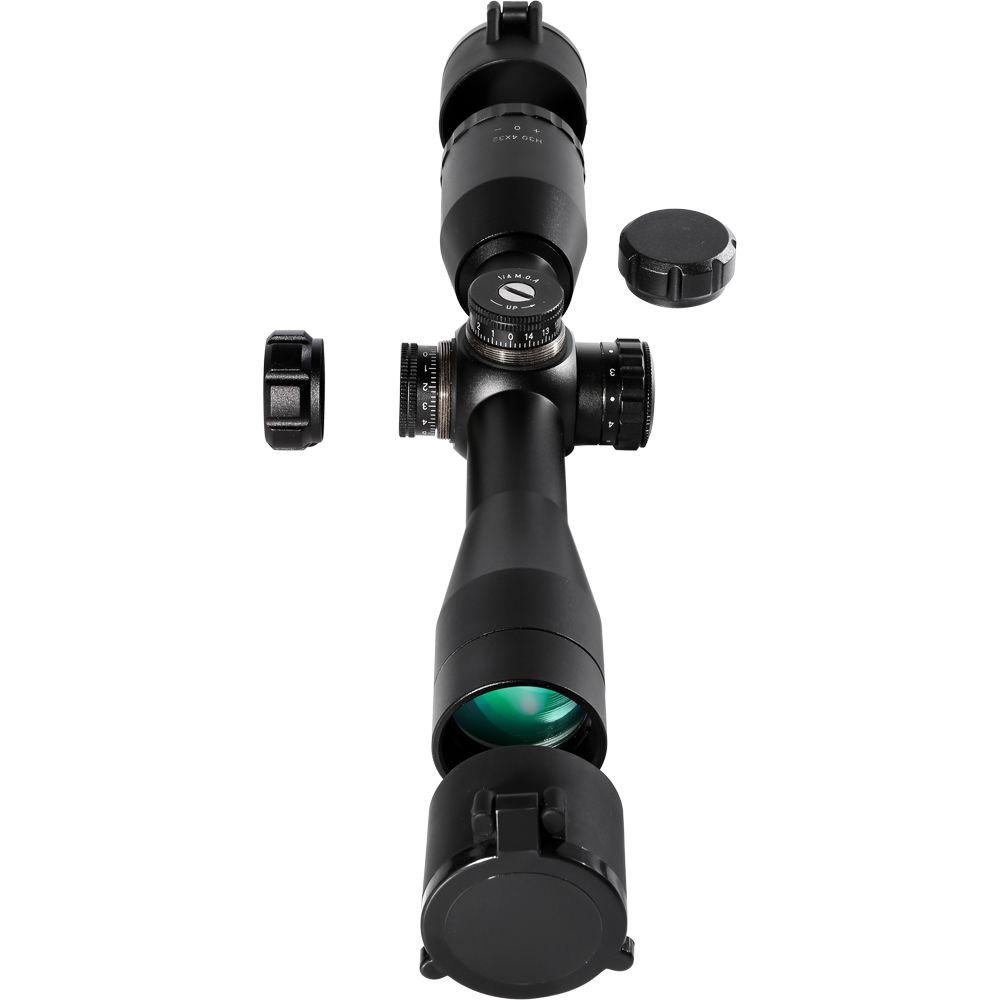

- Capped hunting turrets

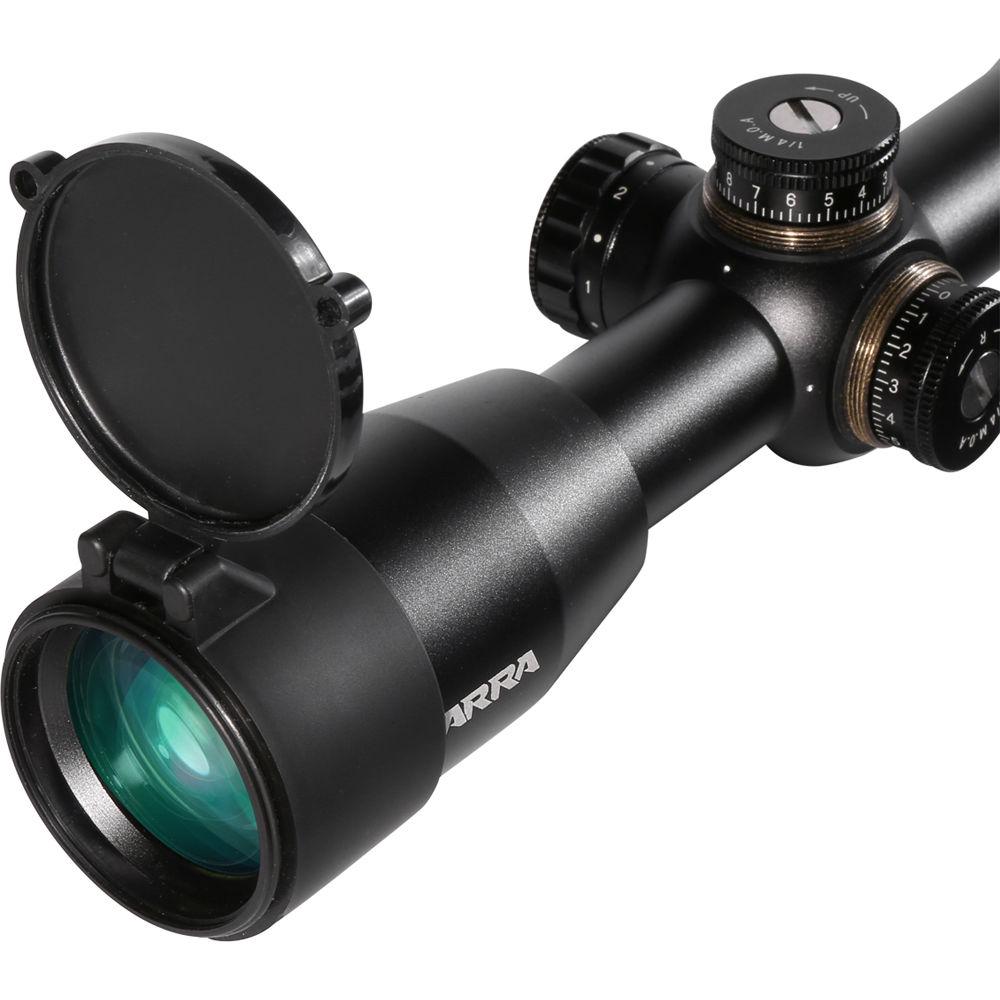

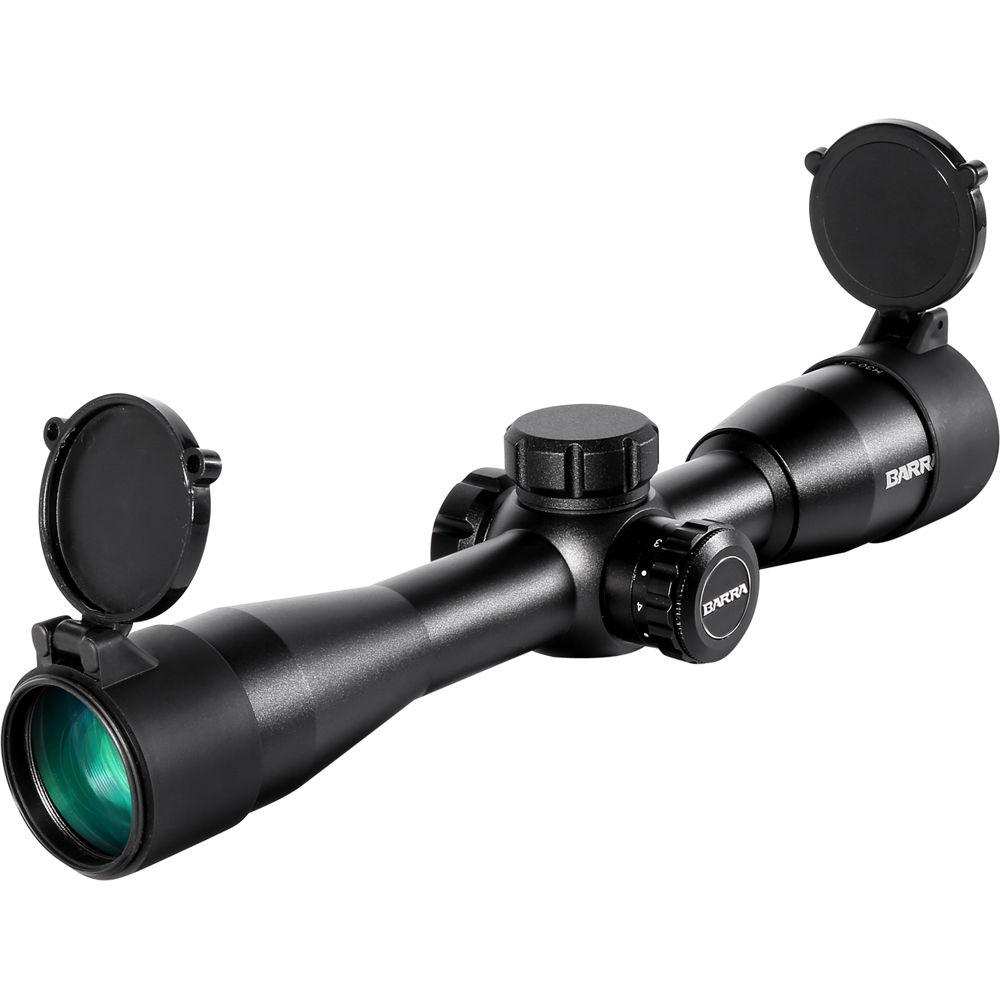

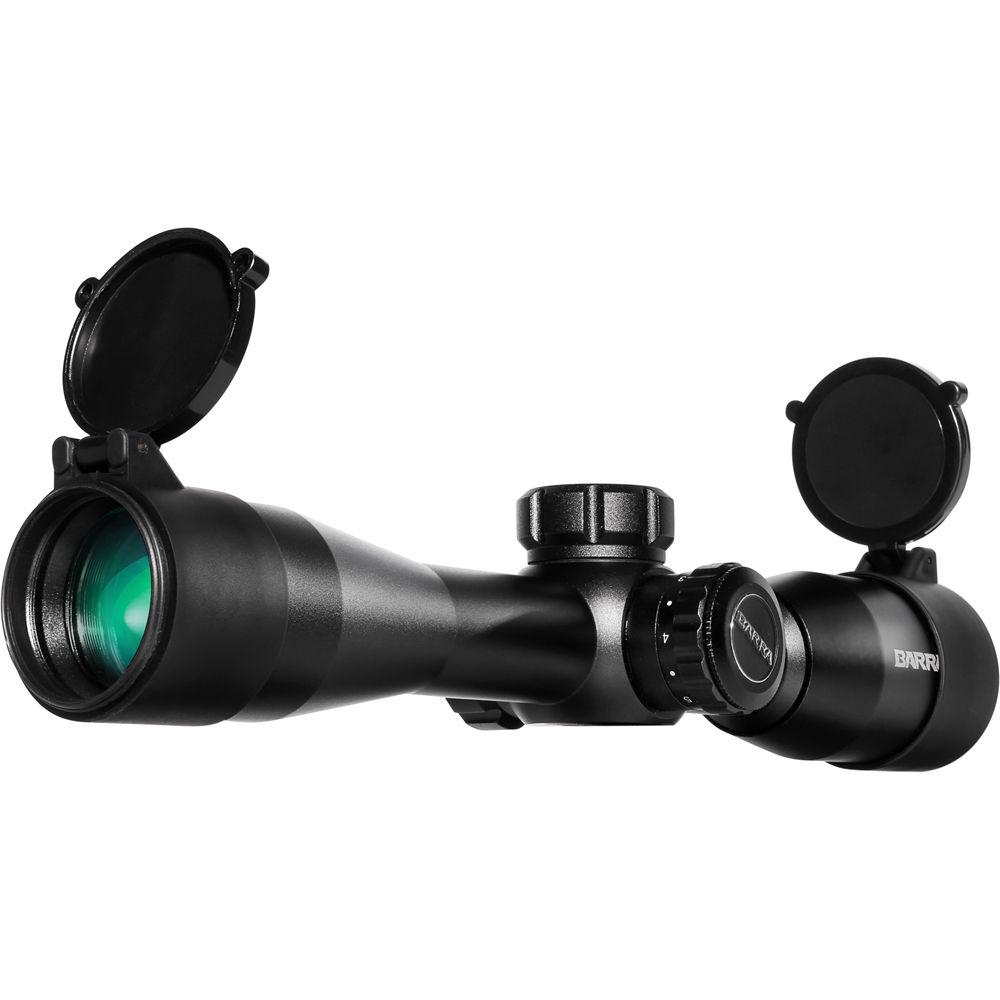

- Flip-up lens caps
- Waterproof and fogproof
- Nitrogen-filled
UPC: 815208020077 In the Box Barra Optics H30 4x32 IR Hunting Riflescope ("A" Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Flip-Up Lens Caps
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barra Optics H30 4x32 IR Hunting Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarra Optics H304X32B1 Specs | Magnification | 4x | Objective Lens Diameter | 32 mm | Field of View | 32.5' @ 100 yd / 10.8 m @ 100 m | Exit Pupil Diameter | 8 mm | Eye Relief | 3.1" / 80 mm | | Reticle Type | "A" Reticle (Second Focal Plane) | | Impact Point Correction | 1/4 MOA per Click | Windage Adjustment | 30 MOA | Elevation Adjustment | 20 MOA | Parallax Correction | Yes, 100 yd / 91.4 m | | Water Resistance | Waterproof | Fogproof | Yes, Nitrogen Filled | | Maintube Diameter | 1" | Battery | 1 x CR2032 | Dimensions | Length: 11.4" / 290 mm | Weight | 19.2 oz / 545 g |
