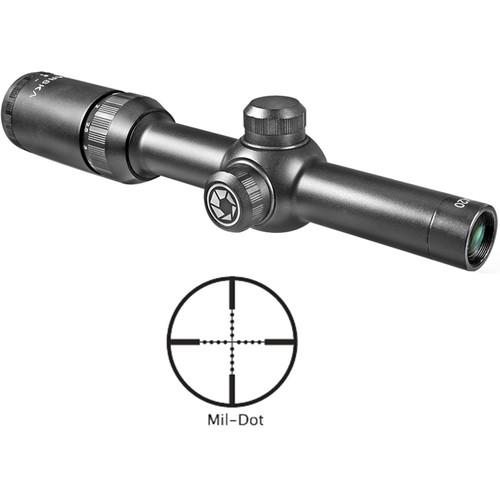

User Manual for Barska 1.5-4.5x20 Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 1.5-4.5x20 Tactical Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
|
User manual for the Barska 1.5-4.5x20 Tactical Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|
Product description Designed for tactical applications, the Barska 1.5-4.5x20 Tactical Riflescope features a 20mm low-glint objective lens and high transmission, fully multi-coated optics that offer high image clarity and detail. Another highlight is a 1st focal plane Mil-Dot Reticle, which provides accurate ranging scales at any zoom to address demanding situations on a battlefield. It features four long and fine posts and a thin crosshair with dot-shaped marks. To correct for ballistics and wind, the capped windage and elevation turrets offer 1/2 MOA impact point correction and an 80 MOA total range. Also noteworthy is its Accu-Lock system, which is comprised of a security mechanism that, once engaged, locks dead your windage and elevation setting and allows you to make repeatable shots. Just press a button on the lower left corner of the windage and elevation box.
The anodized aluminum housing has a single-piece 1" maintube that delivers durability when using high calibers and a waterproof, fogproof, and shock-resistant performance. For getting your targets in focus when timing is everything, this optic is enhanced with a fast focus eyepiece. Also included with this riflescope are a two Dovetail mounts, lens caps, and a lens cloth. - Reticle
-
- Mil-Dot reticle
- 1st focal plane for accurate ranging at any zoom
- Four short thin tapered posts
- Thin crosshair with ranging dots
- Optical Performance
-
- 20mm objective
- Fully multi-coated optics
- 1.5-4.5x zoom magnification
- Field of View: 76-25' at 100 yards
- Exit pupil maximum is 12mm
- Eye relief: 3.3"
- Use and Handling
-
- 1/4 MOA impact point correction
- 80 MOA windage and elevation adjustments
- Construction Details
-
- 1" single-piece maintube
- Anodized aluminum housing
- Fast focus eyepiece
- Capped windage and elevation turrets
- Accu-Lock System locks windage and elevation for repeatability
- Dovetail mounting rings included
- Two lens caps included
- Waterproof and fogproof
UPC: 790272978298 In the Box Barska 1.5-4.5x20 Tactical Riflescope (Mil-Dot Reticle, Matte Black) - 2 x Lens Caps
- 2 x Mounting Rings
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 1.5-4.5x20 Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10770 Specs | | | Magnification | 1.5 to 4.5x | | Objective Lens Diameter | 20 mm | | Field of View | 1.5x: 75.7' @ 100 yd / 25.2 m @ 100 m
4.5x: 24.5' @ 100 yd / 8.2 m @ 100 m | | Exit Pupil Diameter | 1.5x: 11.9 mm
4.5x: 4.4 mm | | Eye Relief | 3.3" / 84 mm | | | | Reticle Type | MIL Dot Reticle (First Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 10.3" / 260 mm | | Weight | 12.6 oz / 355.8 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 15.276 x 3.386 x 3.15" |
