Barska 1-6x24 IR AR6 Tactical Riflescope

Search your instruction manual in PDF to download

User Manual for Barska 1-6x24 IR AR6 Tactical Riflescope

Click to enlarge the picture
Barska 1-6x24 IR AR6 Tactical Riflescope Contents of the user manual for the Barska 1-6x24 IR AR6 Tactical Riflescope
  • Product category: Riflescopes Barska
  • Brand: Barska
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Barska Riflescopes

Barska 1-6x24 IR AR6 Tactical Riflescope Barska 1-6x24 IR AR6 Tactical Riflescope Barska 1-6x24 IR AR6 Tactical Riflescope Barska 1-6x24 IR AR6 Tactical Riflescope Barska 1-6x24 IR AR6 Tactical Riflescope
User manual for the Barska 1-6x24 IR AR6 Tactical Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Barska product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!



Product description

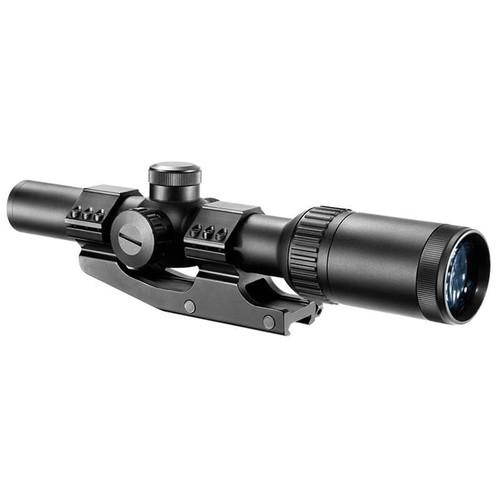

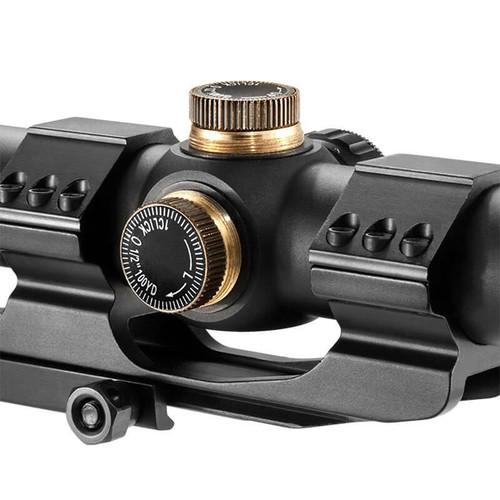

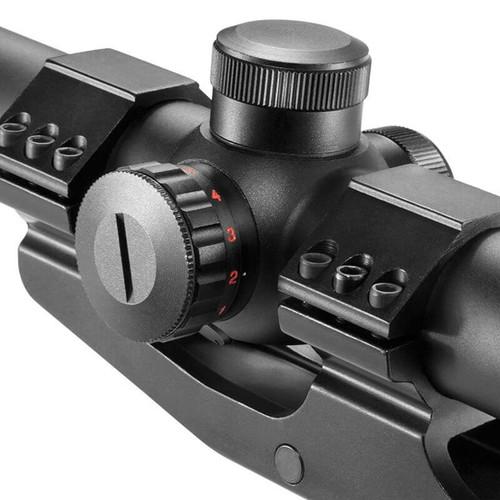

Gain tactical advantage with the game-changing Barska 1-6x24 IR AR6 Tactical Riflescope. Its 1-6x zoom optical system offers an ideal magnification and aperture for short to medium-range target acquisition and close quarters use. With full multi-coatings, it will deliver bright, clear, and low-glare images. For more precise aiming, the optic is outfitted with an illuminated Mil-Dot reticle, featuring four bold posts and a crosshair with milling dots. The reticle is etched on glass in the second focal plane and offers variable green or red illumination with adjustable brightness. For convenience and an easy reach, the graduated illumination rheostat knob is located on the opposite side from the windage turret. To help you compensate for ballistics and crosswinds, the scope also offers capped finger-operated windage and elevation turrets with 1/2 MOA click values.

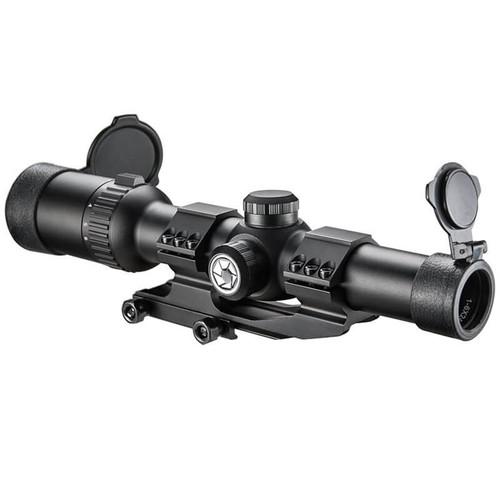

The waterproof and fogproof scope's housing is engineered around its 30mm maintube. It is compact, durable, lightweight, and impact-resistant. For easy and fast zooming, the eyepiece offers a ribbed zooming ring with a low-profile lever. With the included easily deployable flip-up lens covers, a cantilever mount, and one CR-2032 battery, this scope offers a complete package that can be quickly readied for use right out of the box.
    Optical Performance
    • 1 - 6x zoom magnification
    • Fully multi-coated optics
    • 69.3 - 11.7' at 100 yards linear field of view
    • 11 - 4 mm exit pupil
    • 3.7" eye relief
      Use and Handling
      • 1/2 MOA impact point correction
      • Windage and elevation adjustments
        Construction Details
        • 30mm aluminum maintube
        • Capped finger-operated turrets
        • Graduated illumination rheostat
        • Waterproof and fogproof
        • Flip-up lens caps included
        • 30mm cantilever Picatinny/Weaver mount included

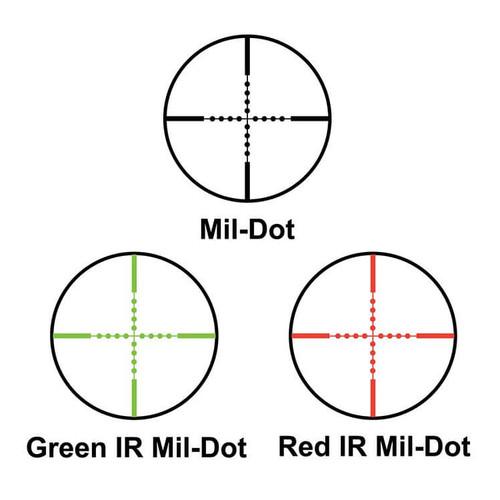

          Mil-Dot Illuminated Reticle
          • 2nd focal plane
          • Glass-etched reticle pattern
          • Four posts and crosshair with milling dots
          • Red or green adjustable illumination
          • Black non-illuminated reticle pattern
          UPC: 790272000708 In the Box Barska 1-6x24 IR AR6 Tactical Riflescope (Red-Green Mil-Dot Illuminated Reticle, Matte Black)
        • CR-2032 Battery
        • 2 x Flip-Up Lens Caps
        • Lens Cloth
        • 30mm Cantilever Mount
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Barska 1-6x24 IR AR6 Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Barska AC12390 Specs

Magnification 1 to 6x
Objective Lens Diameter 24 mm
Field of View 1x: 69.3' @ 100 yd / 23.1 m @ 100 m
6x: 11.7' @ 100 yd / 3.9 m @ 100 m
Exit Pupil Diameter 1x: 11 mm
6x: 4 mm
Eye Relief 3.7" / 94 mm
Reticle Type MIL Dot Reticle (Second Focal Plane)
Impact Point Correction 1/2 MOA per Click
Water Resistance Waterproof
Fogproof Yes
Maintube Diameter 30 mm
Battery 1 x CR2032
Dimensions Length: 11.5" / 292 mm
Weight 17.6 oz / 499 g
