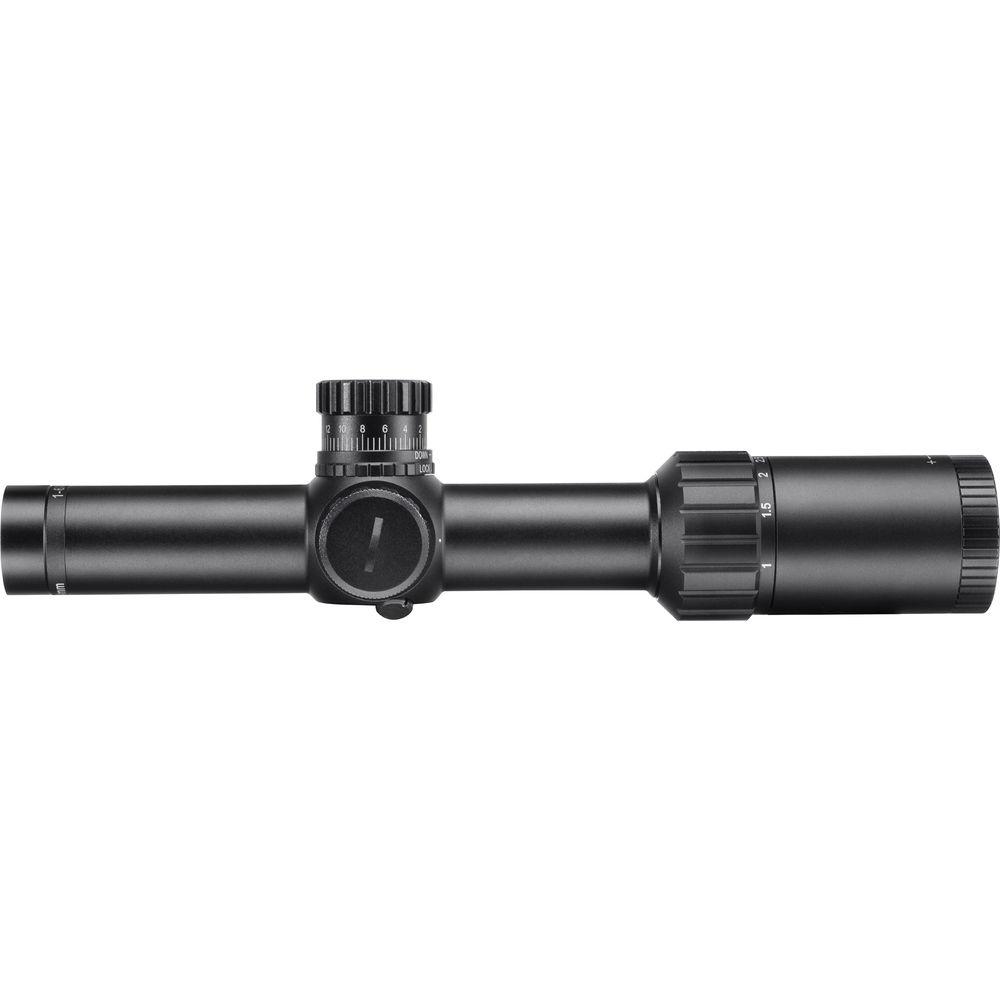

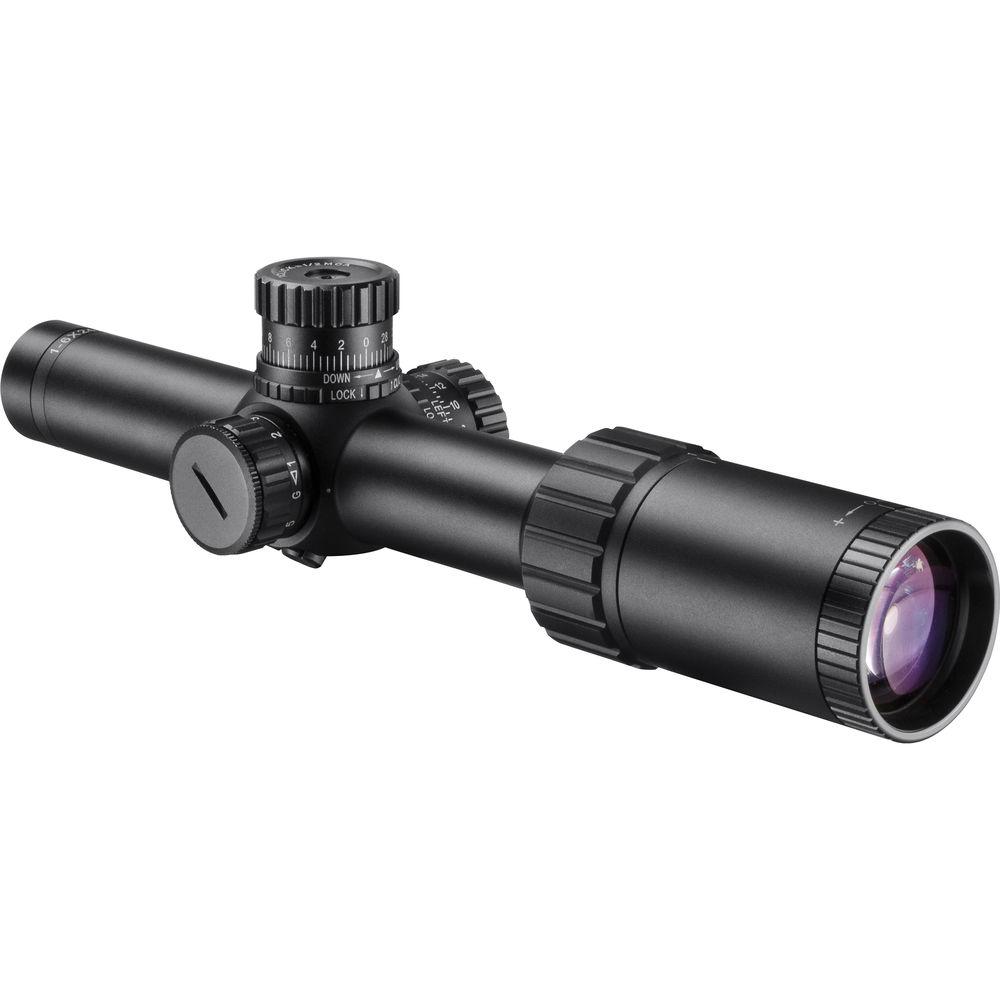

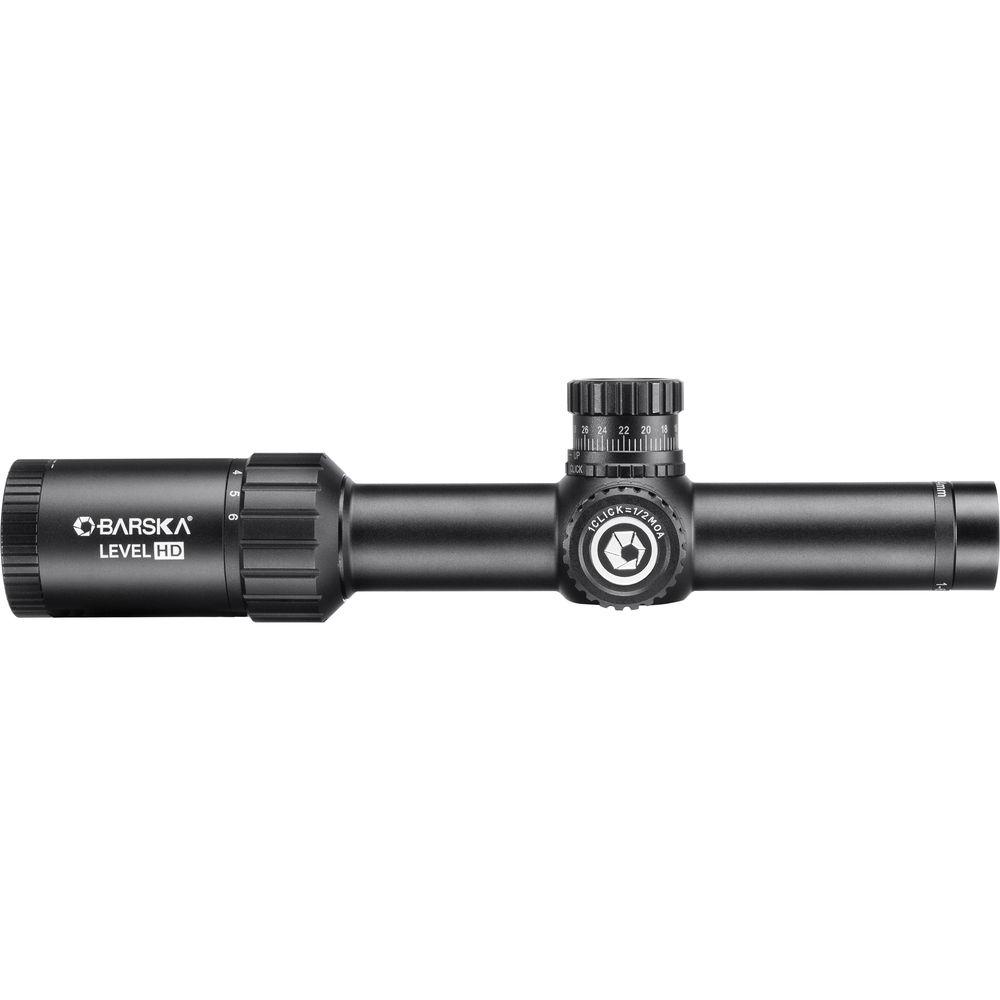

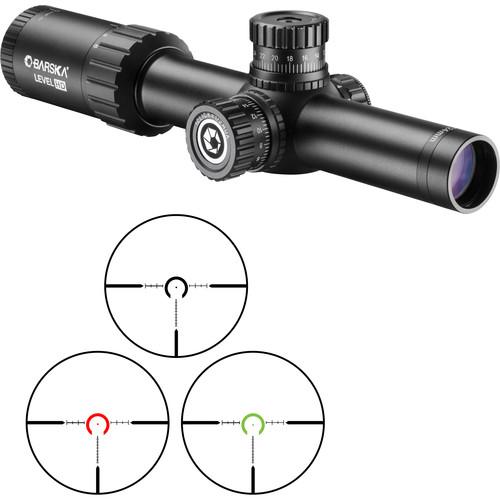

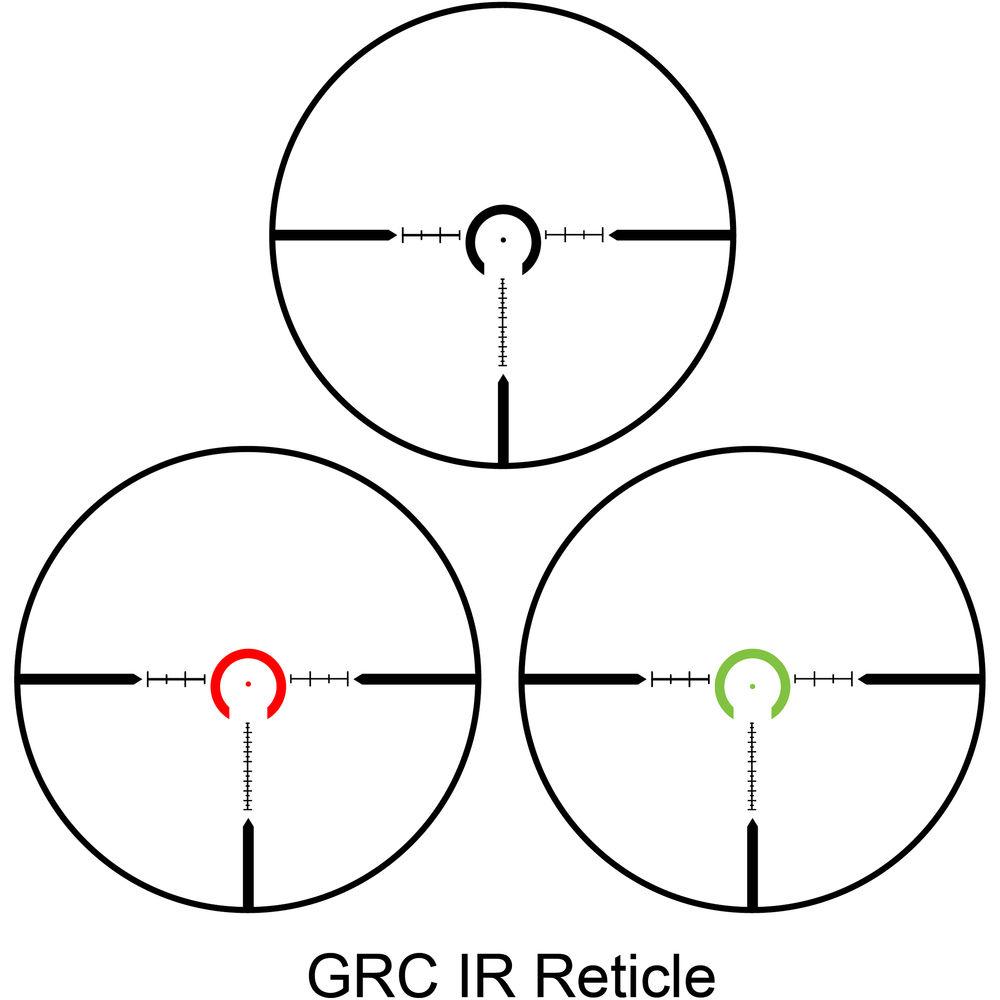

Product description Dominate the field using the Barska 1-6x24 Level HD Riflescope. This telescopic sight combines a compact and durable body with high-definition optical glass in a single package. Its 1-6x zoom optical system is also fully multi-coated to deliver bright and clear images with low glare. In the first focal plane of the device is the illuminated HRS MOA reticle. The reticle resembles a modified German #4 style, featuring three tapered posts in the lower half of the field and a complex central region, consisting of an illuminated horseshoe with a target dot and two lateral wings and an inverted tree of ballistic stadia. The horseshoe can be illuminated with red or green light of adjustable brightness. You can also obtain a completely black reticle pattern by turning off the illumination. The first focal plane location allows the reticle to scale up or down with your target's size proportionately as you zoom in or out, and serve accurate measurements, without requiring you to do any additional math.
To withstand the challenging situations that you might find yourself in, the housing is made of lightweight and durable aluminum, treated with a hard-anodized finish. It is waterproof, impact resistant, and fogproof by purging with argon. Other highlights include a 30mm maintube, a fast zoom eyepiece with a diopter, knurled lockable external windage and elevation turrets, and a brightness control knob. The turrets allow you to correct trajectories almost instantly without needing to deal with caps. - Optical Performance
-
- 1 - 6x zoom magnification
- 24mm objective diameter
- Fully multi-coated optics
- High-definition (HD) glass improves image clarity and sharpness
- 8 - 3.5mm exit pupil
- Use and Handling
-
- 1/2 MOA impact point correction
- Windage and elevation adjustments
- 3.9 - 3.5" eye relief
- Adjustable diopter
- Construction Details
-
- Lightweight and durable aluminum
- 30mm maintube diameter
- Exposed, graduated, lockable turrets
- Fast zoom eyepiece
- Waterproof and fogproof
- Argon purged
- Impact resistant
- HRS MOA Illuminated Reticle
-
- 1st focal plane
- Modified German #4 reticle style
- Three tapered posts
- Horseshoe with a target dot and lateral wings
- Ballistic and wind stadia under the horseshoe
- Adjustable red-green illumination
- Black, non-illuminated horseshoe pattern
UPC: 790272003549 In the Box Barska 1-6x24 Level HD Riflescope (HRS MOA Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Scope Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 1-6x24 Level HD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC13026 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Exit Pupil Diameter | 1x: 8 mm
6x: 3.5 mm | | Eye Relief | 3.5 to 3.9" / 88.9 to 99 mm | | | | Reticle Type | MOA Reticle (First Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.5" / 26.7 cm | | Weight | 16 oz / 453.7 g |
