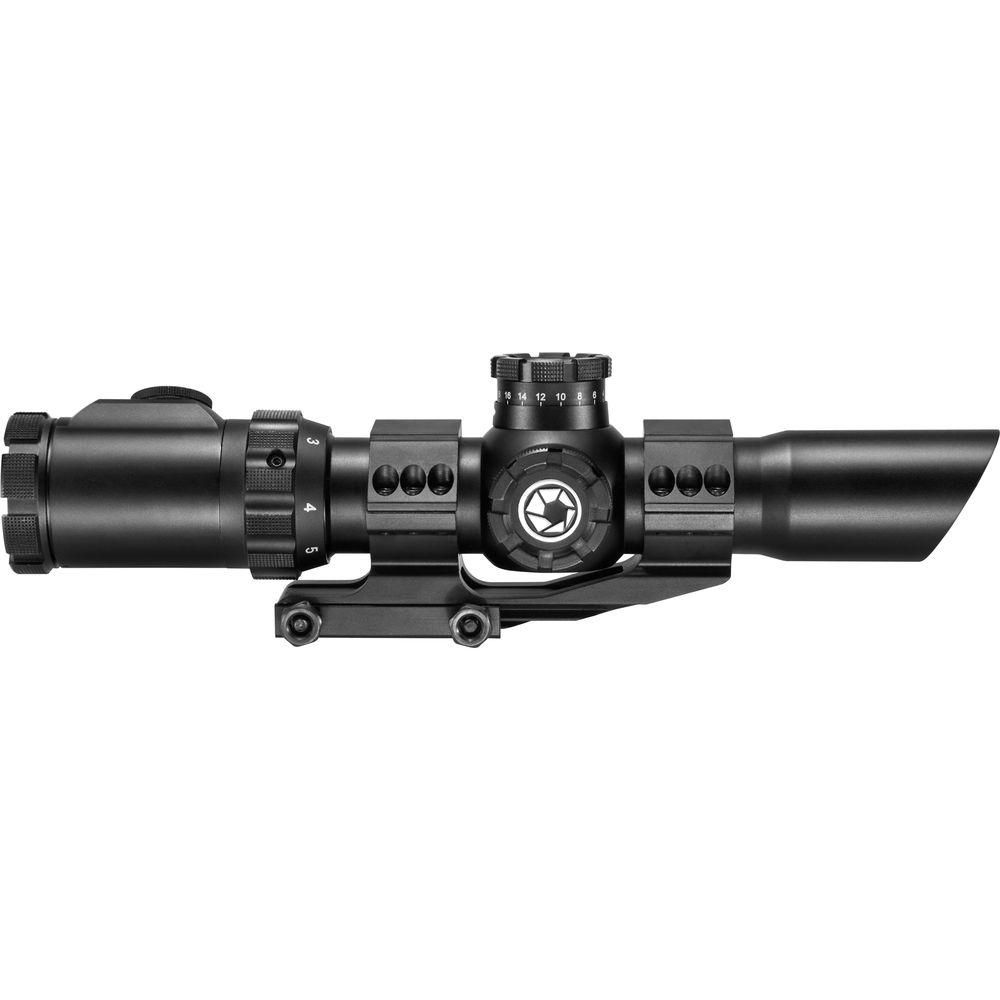

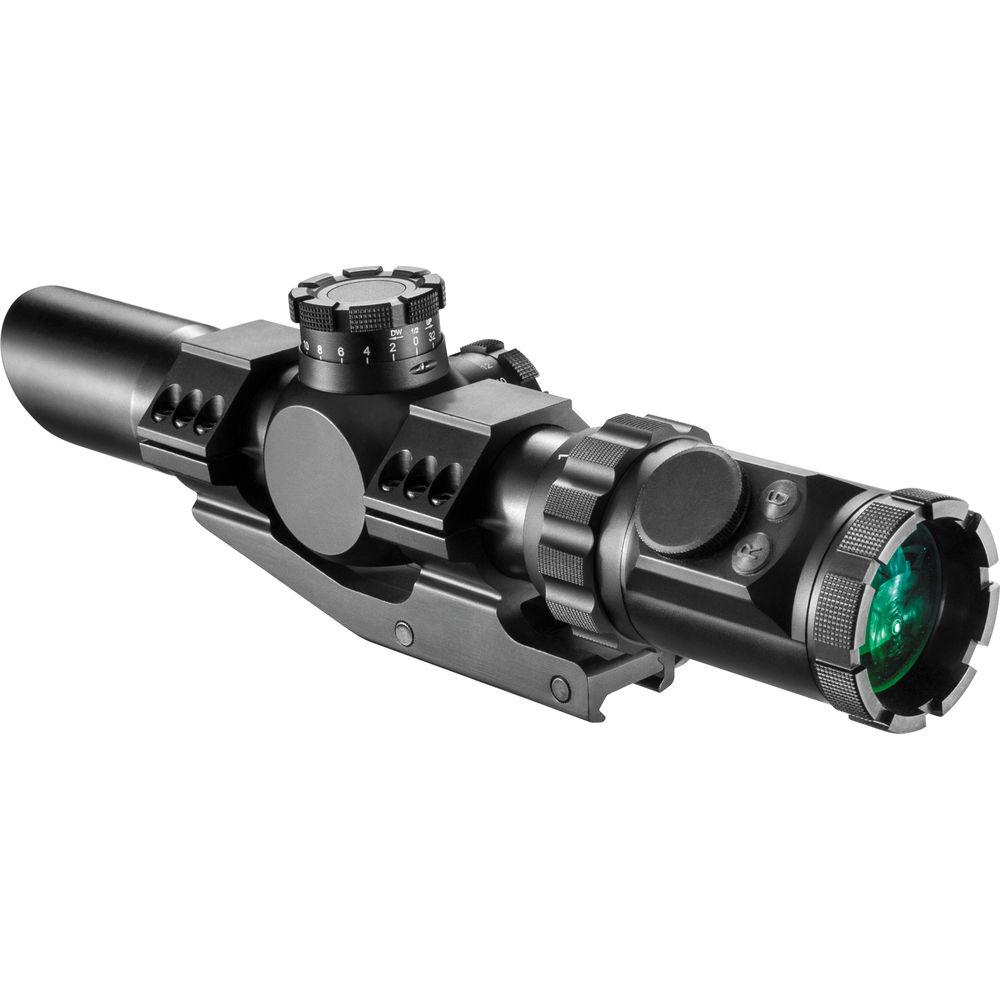

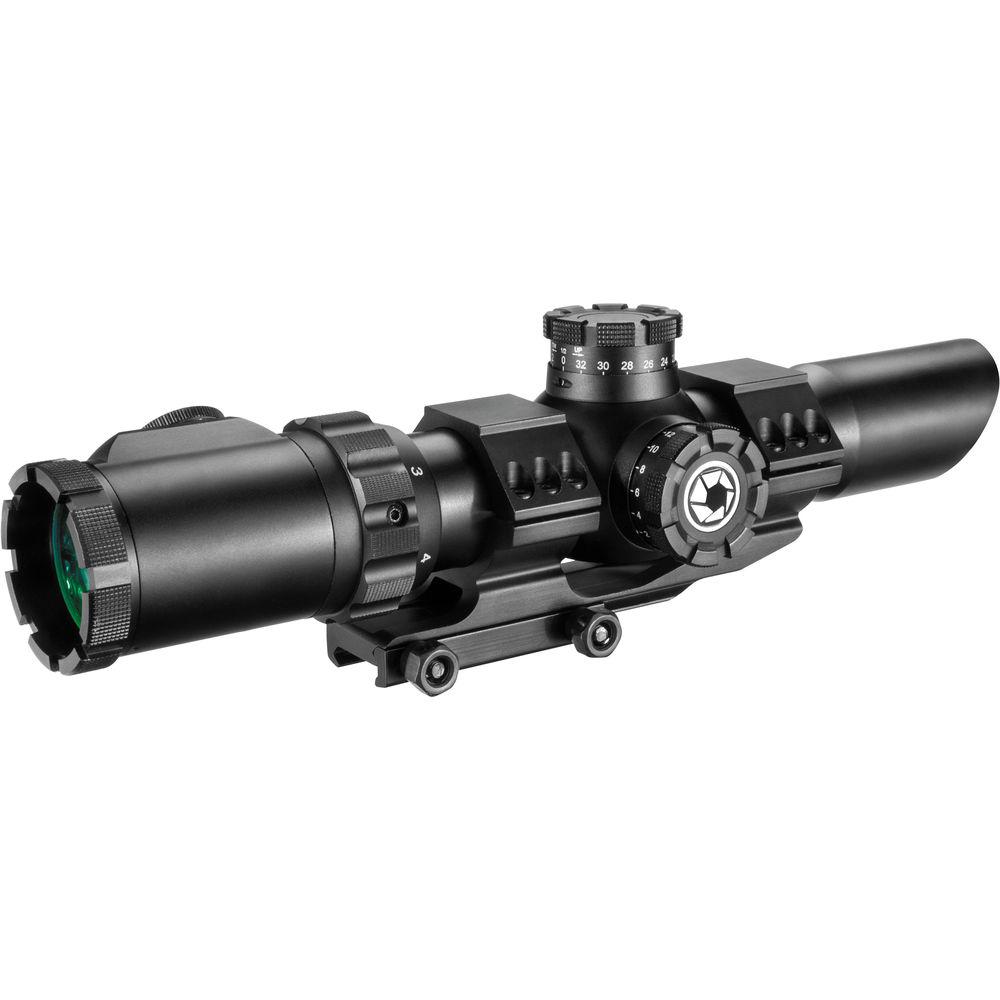

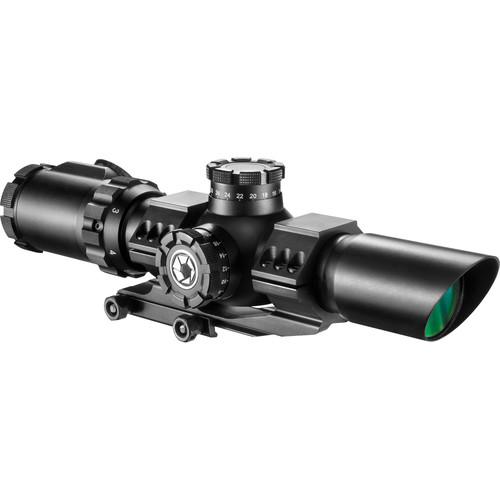

Product description Enhance your tactical training with the Barska 1-6x32 IR SWAT-AR Riflescope that was specifically designed for AR rifles such as the M4 and the AR-15. The scope's defining features are its red-green Mil-Dot illuminated reticle with adjustable brightness and an angled sunshade that reduces glare from the sun. The 1-6x magnification is ideal for both close combat encounters and zooming in at mid-range distances. With full multi-coatings for anti-reflection, the optics produce bright and clear views without ghost images. When you are training for tactical or sniper shooting, these coatings and smaller apertures like the 32mm objective give off less reflection and protect you from being detected.

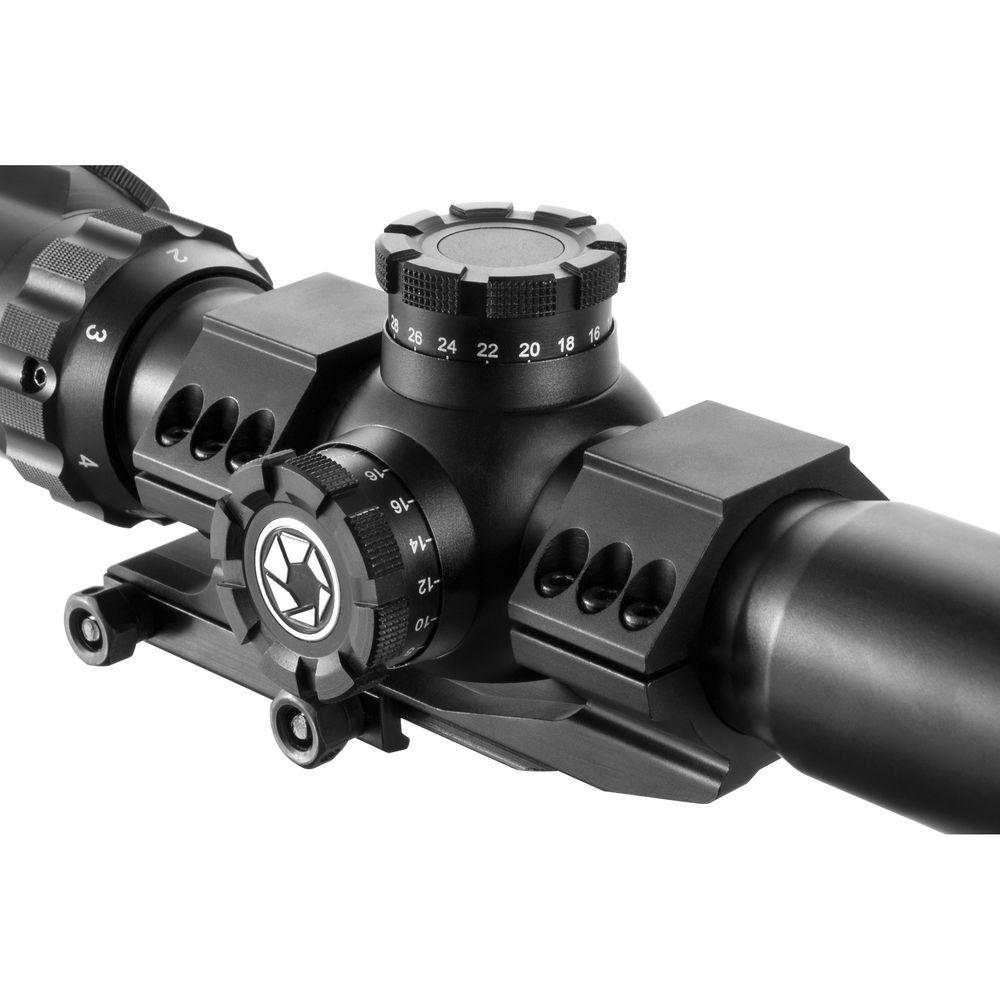

To further help you with accuracy in high winds or at longer ranges, the riflescope offers capped windage and elevation adjustments with 1/2 MOA per click increments and lockable turrets. The Quick On/Off pushbutton to control the reticle is located on the eyepiece and within easy reach.
Made from anodized aluminum, the housing is durable, lightweight, nitrogen-purged fogproof, and o-ring sealed waterproof. It features wide knurled adjustment rings and turrets, cantilever mount, and flip-up lens caps. The eyepiece features a coarse cogwheel knurling with wide and deep groves to allow one-finger zoom adjustment. - Reticle/
-

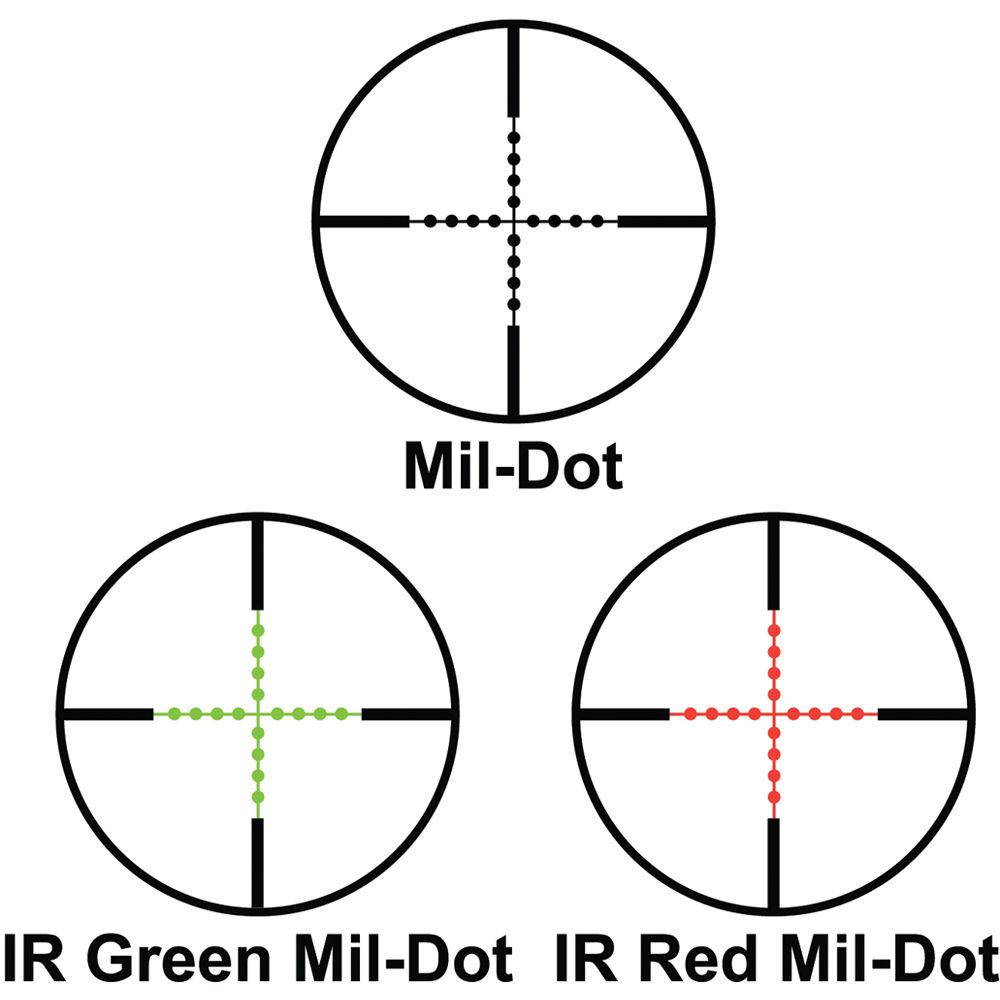

- Green-red Mil-Dot Reticle
- Adjustable illumination brightness

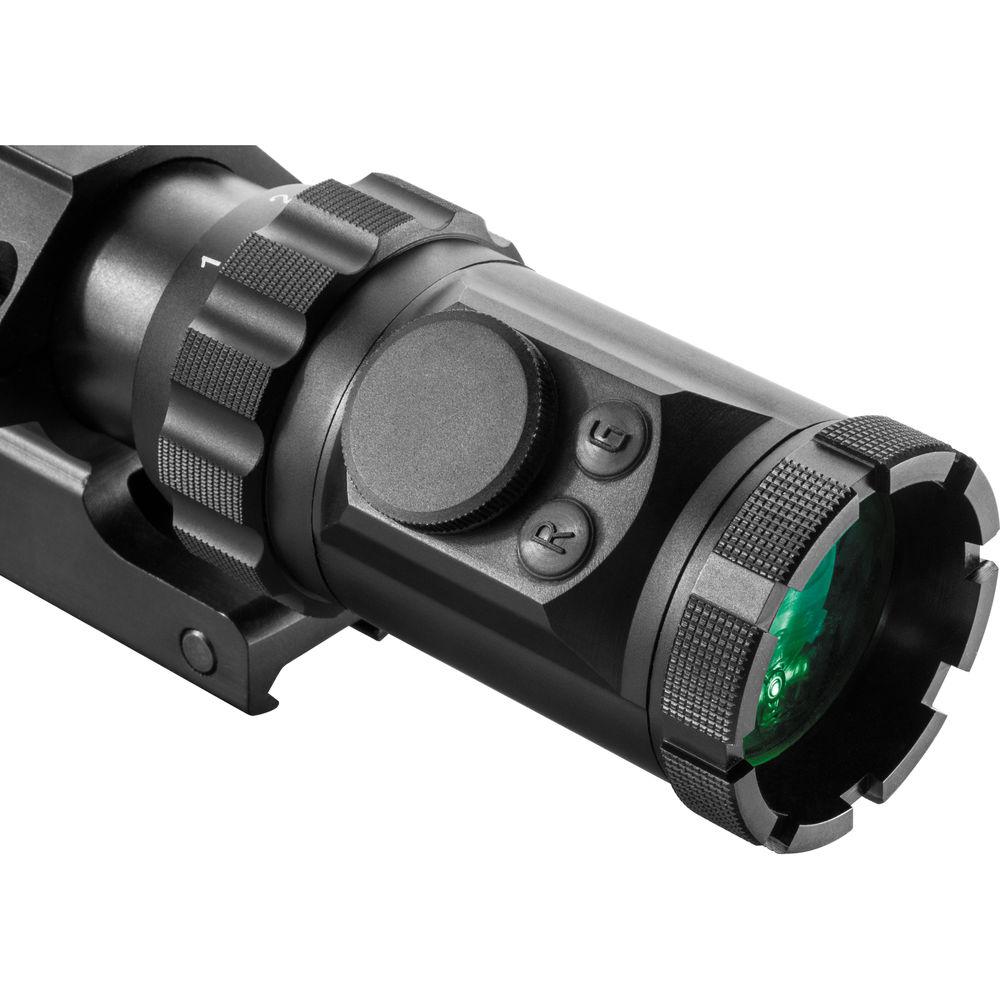

- Quick On/Off control button
- Optical Performance
-
- Fully multicoated optics
- 1-6 optical zoom magnification
- 32mm objective lens diameter
- Linear field of view range: 88-14.2' @ 100 yd
- Use/Handling
-
- Impact point correction is 1/2 MOA per click
- Lockable windage and elevation turrets
- Construction Derails
-
- 35mm main tube
- Aluminum housing with anodized finish
- Angled objective lens sunshade
- Knurled turrets and adjustment rings
- Cantilever mount
- Flip-up scope caps
- Nitrogen-purged fogproof
- Waterproof with o-ring seal
UPC: 790272984701 In the Box Barska 1-6x32 IR SWAT-AR Riflescope - Cantilever Picatinny/Weaver Mount
- 2 x Flip-Up Caps
- CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 1-6x32 IR SWAT-AR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12138 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 32 mm | | Field of View | 1x: 88' @ 100 yd / 26.8 m @ 100 m
6x: 14.2' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 1x: 22 mm
6x: 6 mm | | Eye Relief | 3.9 to 5" / 100 to 130 mm | | | | Reticle Type | MIL Dot Reticle | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.2" / 28.6 cm | | Weight | 29.6 oz / 839.1 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.6 x 3.6 x 3.6" |
