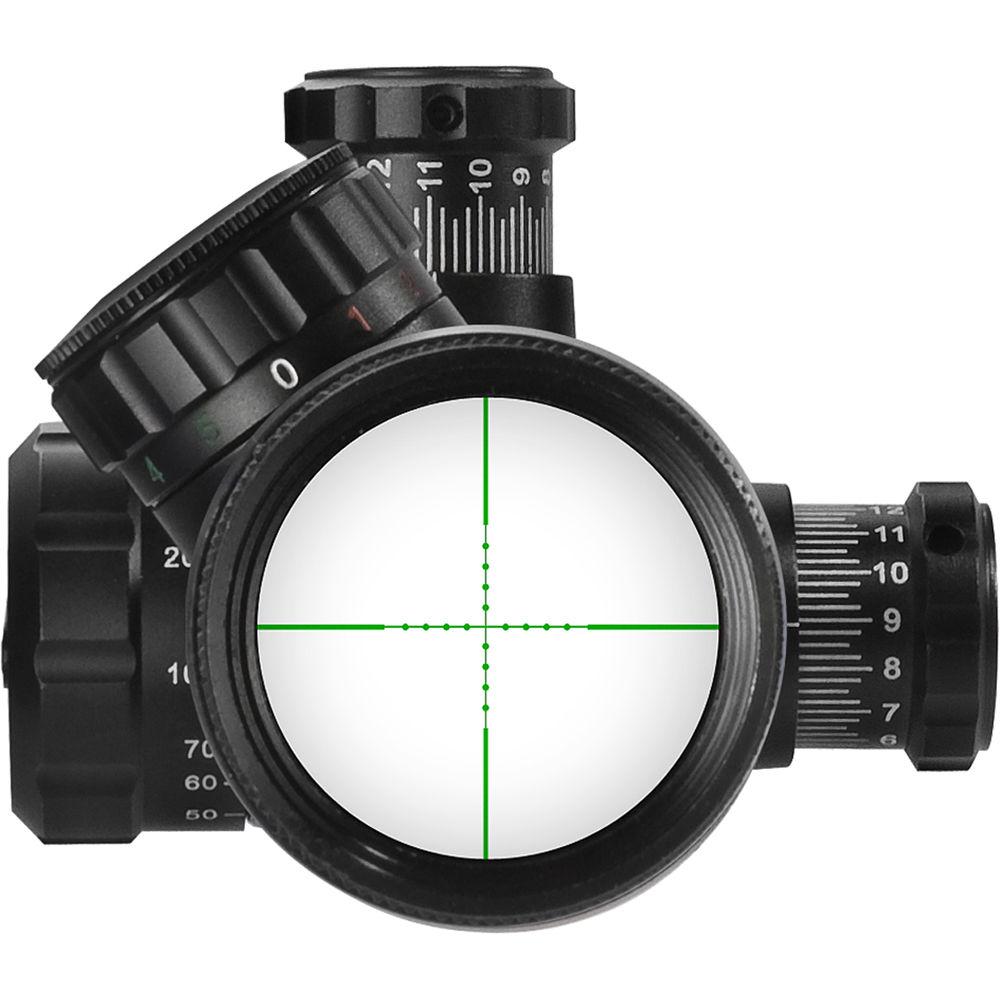

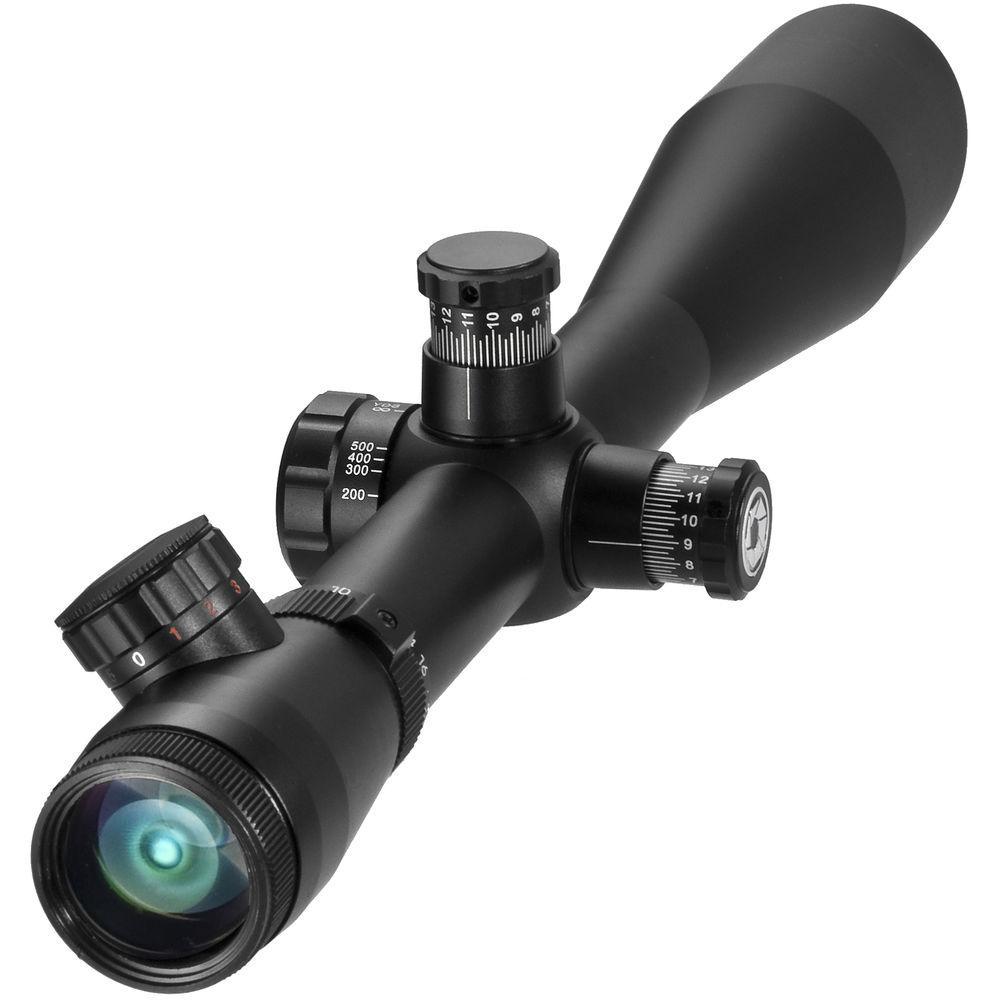

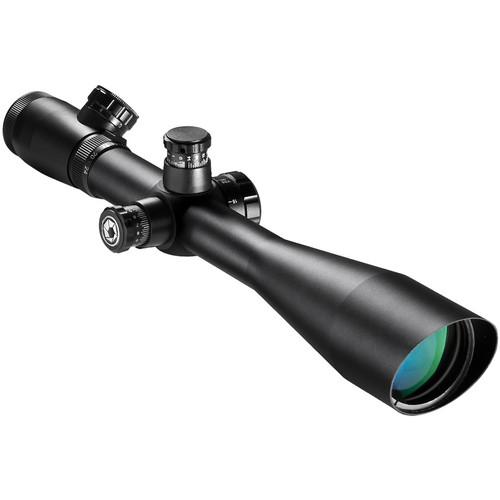

Product description Improve your target acquisition accuracy with the 10-40x50 IR 2nd Generation Sniper Riflescope from Barska. Among many highlights, this mid-to-long-range riflescope features fully multi-coated optics and an illuminated red-green Mil-Dot reticle. The wide 50mm objective lens is ideal for providing bright images in low-light conditions and high magnifications. While the optics provide bright and clear images of your targets, the reticle allows you to get a precise aim and to adjust illumination that is ideal for the time of day. You can quickly and easily zoom in and out of near and far targets with the 10-40x magnification. Additionally, the scope offers a 3.2" eye relief and a linear field of view of 10-2.5' at 100 yards.
The housing is made of a lightweight and durable aluminum with a matte black anodizing finish, and offers a waterproof and fogproof performance. It features a 30mm maintube diameter and finger-operated windage and elevation turrets. With adjustable windage and elevation and a 1/8 MOA impact point correction, you will be able to compensate for ballistic bullet drop and wind drift. Whether you hunt at dusk, dawn, or during the day, the built-in sunshade will help reduce glare and improve visibility. To provide a non-slip grip, all adjustment rings and turret caps are knurled. Also included with the scope are one CR-2032 battery, two flip-up lens covers, lens cloth, and two mounting rings. - Reticle
-

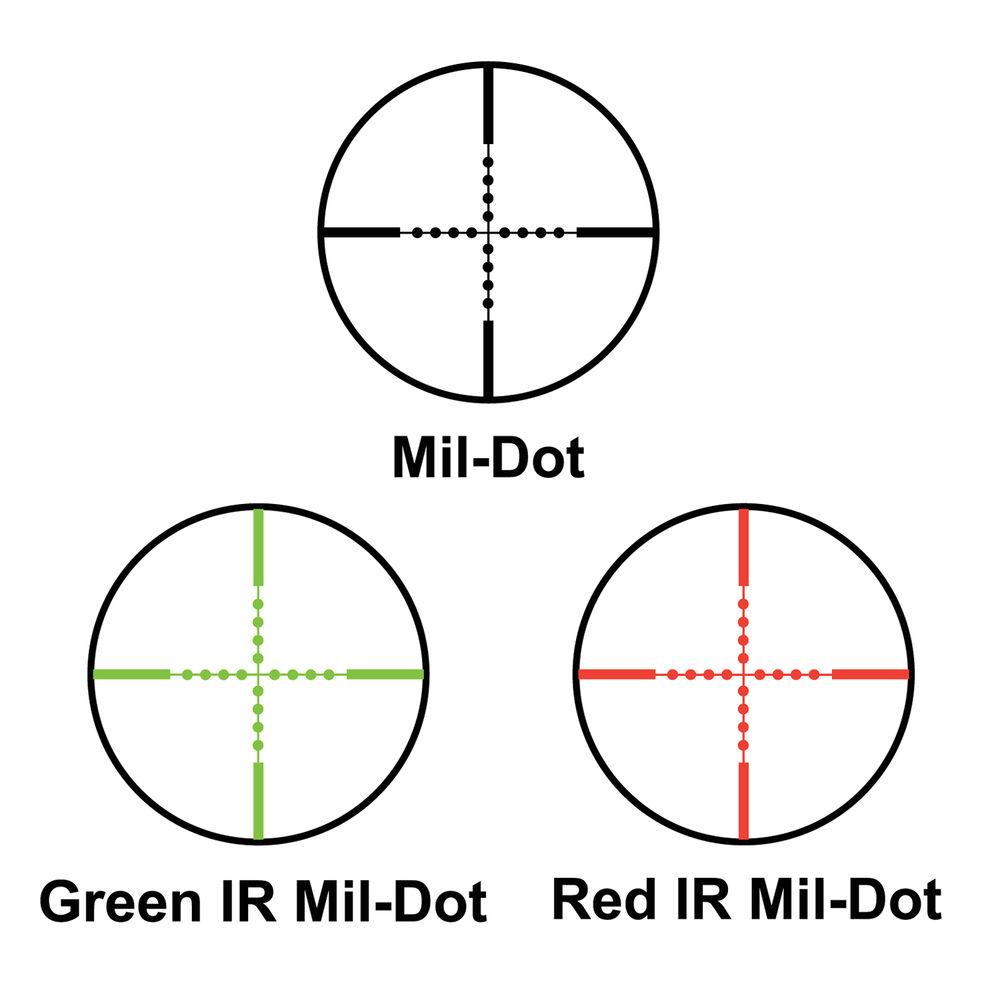

- Red-green Mil-Dot reticle
- 2nd focal plane
- Adjustable full-reticle illumination
- 5 brightness levels
- Side focus parallax adjustment
- Optical Performance
-
- Wide 50mm objective offers bright images in low-light conditions
- Multi-coated optics offer improve transmission, image brightness, and clarity
- 10-40x zoom magnification for mid-to-long range and precision targeting
- Use and Handling
-
- 1/8 MOA per click increments
- Windage and elevation adjustments
- Construction Details
-
- Aluminum housing
- Black matte finish
- 30mm maintube diameter
- Finger-operated turrets
- Eyepiece:
- Low-profile zoom lever
- 45° offset battery compartment/brightness knob
- Knurled rings and adjusters
- Built-in sniper edged sunshade
- Two mounting rings included
- Two lens covers included
- Waterproof and fogproof
UPC: 790272982813 In the Box Barska 10-40x50 IR 2nd Generation Sniper Riflescope (Red-Green Illuminated Mil-Dot Reticle) - CR-2032 Battery
- 2 x Mounting Rings
- 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 10-40x50 IR 2nd Generation Sniper Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC11674 Specs | | | Magnification | 10 to 40x | | Objective Lens Diameter | 50 mm | | Field of View | 10x: 10' @ 100 yd / 3 m @ 100 m
40x: 2.5' @ 100 yd / 0.8 m @ 100 m | | Exit Pupil Diameter | 10x: 5 mm
40x: 1.3 mm | | Eye Relief | 3.1" / 80 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/8 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 17.5" / 444 mm | | Weight | 29.6 oz / 840.1 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 19.1 x 4.1 x 3.7" |
