User Manual for Barska 10x42mm WP Air View Binocular Click to enlarge the picture
Contents of the user manual for the Barska 10x42mm WP Air View Binocular
- Product category: Binoculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Binoculars
 |
User manual for the Barska 10x42mm WP Air View Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

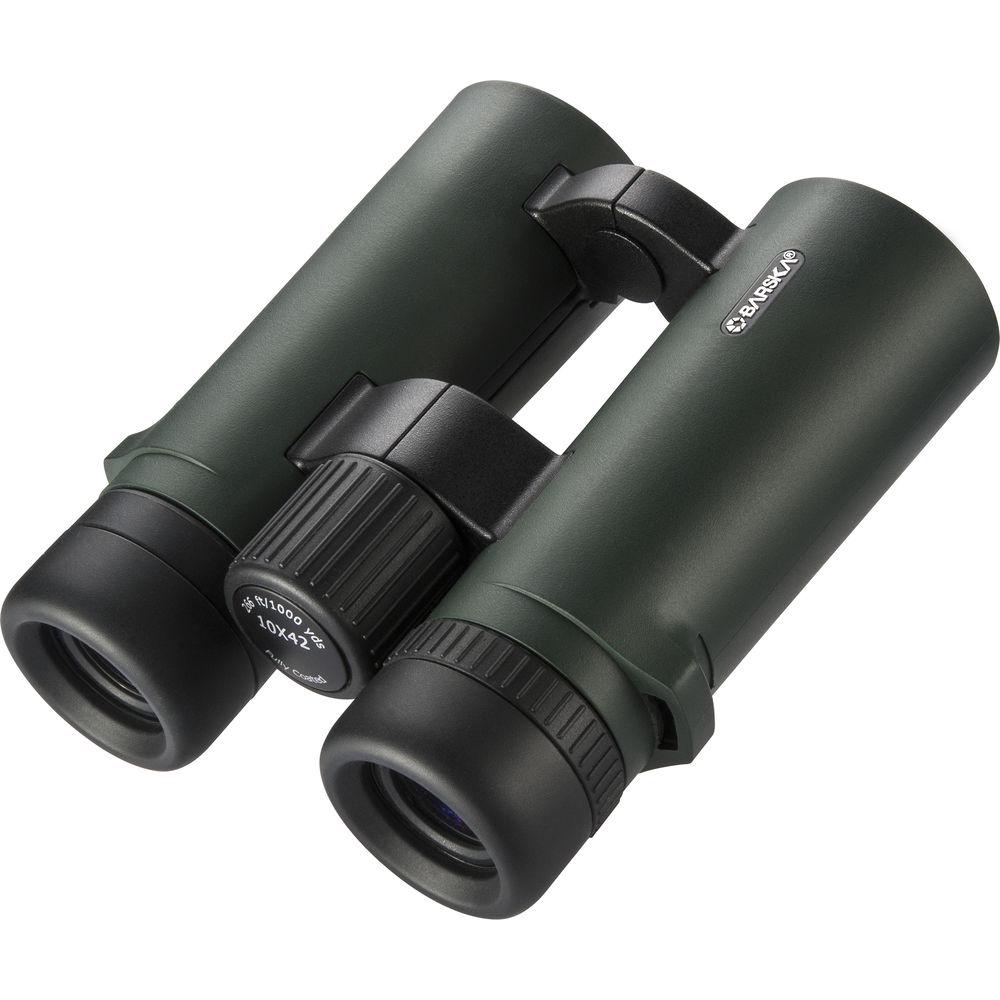

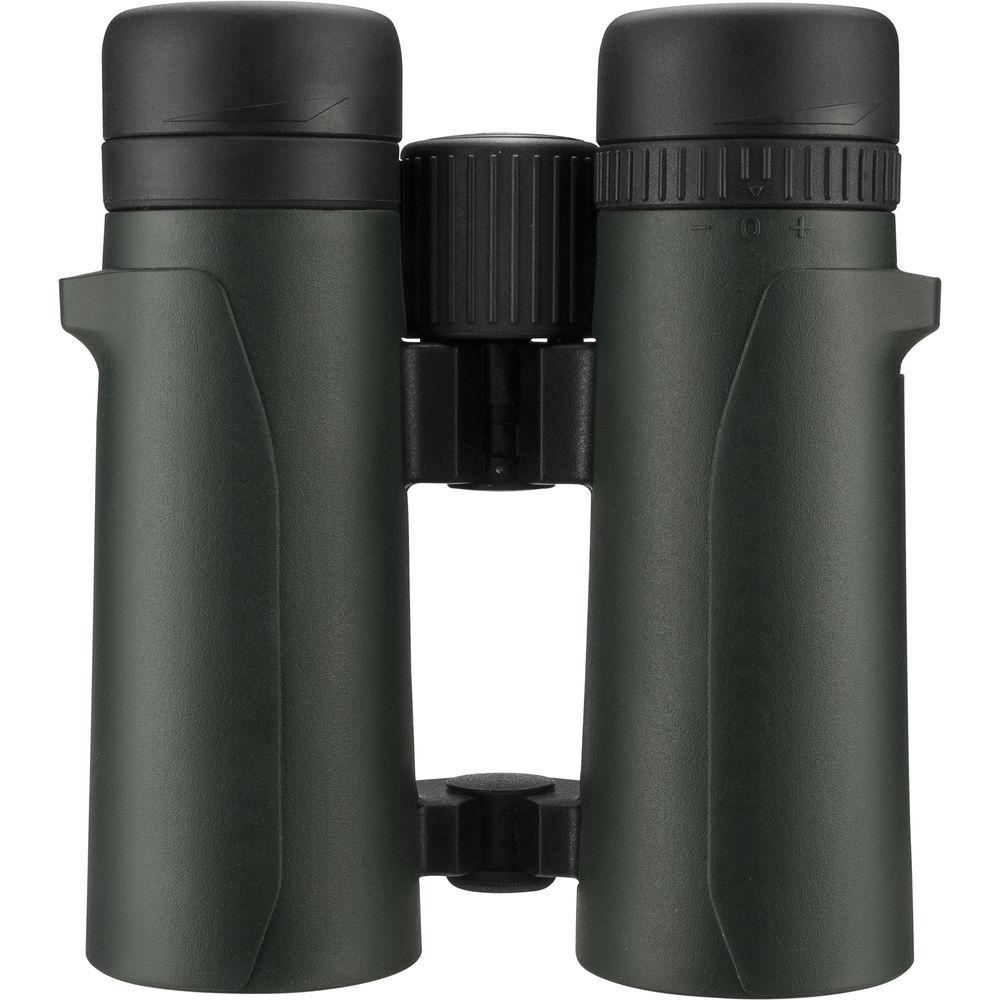

Product description The B&H Binocular Buying Guide Read More wsetxddctbrvabwq Representing the largest objectives in the series, Barska's 10x42mm WP Air View Binocular is designed for comfort and performance with a convenient combination of magnification and objective lens size to allow you to make detailed observation of distant subjects; with extended usability in low-light conditions such as at dawn or dusk, or under heavy canopies. Anti-reflection fully multi-coated optics complement the objective lens size to improve light transmission, color rendition, and overall image contrast. All these features work together with a wide viewing angle to provide you with an immersive observational experience.Ergonomic details such as an open-bridge/dual-hinge design allows for more surface area to improve grip security without sacrificing strength or stability, while the protective slip-resistant rubber armoring further improves the hold. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and to prevent internal fogging when moving through extreme temperature changes. If you're planning on glassing for extended periods the binocular can be mounted on a tripod using an optional adapter. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact BAK4 prisms
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, and contrast
- Wide 61° apparent field of view
- 319-foot field of view at 1000 yards
- Long 16.1mm eye relief
- Comfortable 4.2mm exit pupil
- Use and Handling
-
- Open-bridge/Dual-hinge configuration
- Large center focusing knob is easy to manipulate even in cold or wet conditions, or while wearing gloves
- Right-eye dioptric correction

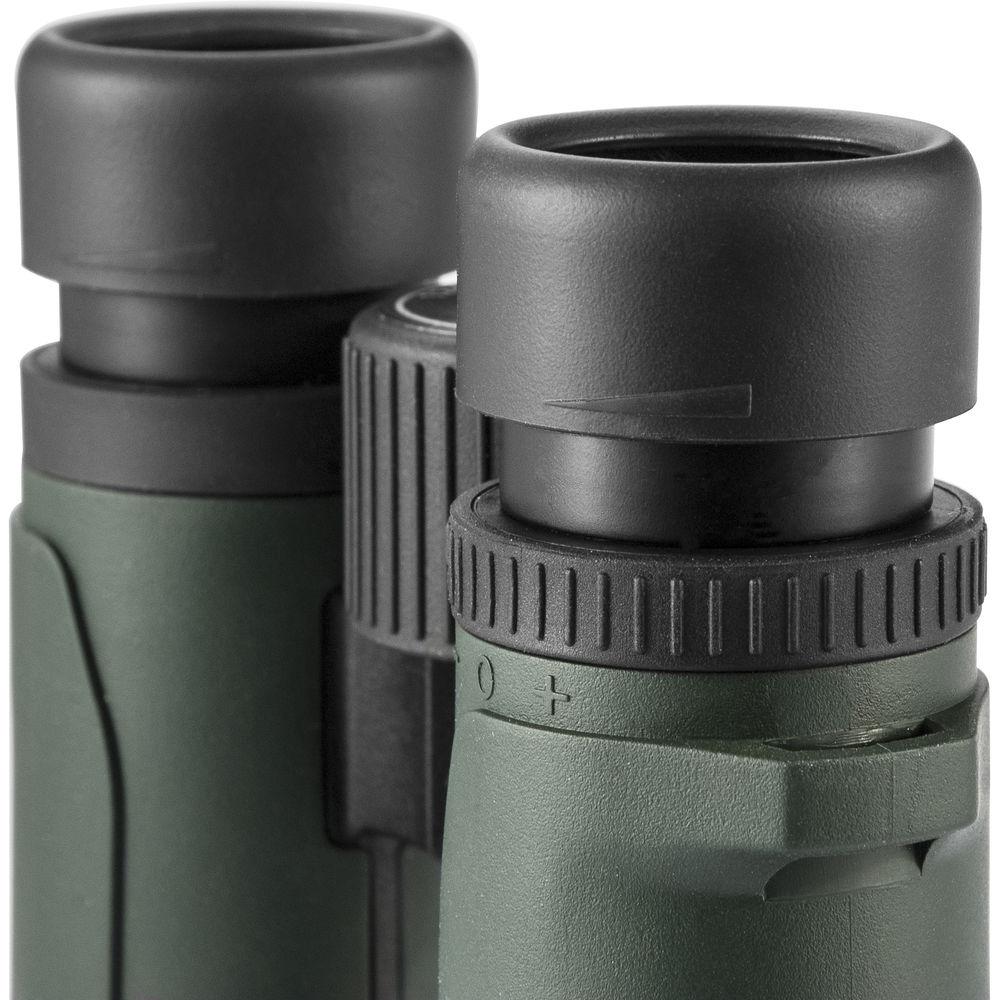

- Twist-up rubber eyecups for comfortable use with or without eyewear

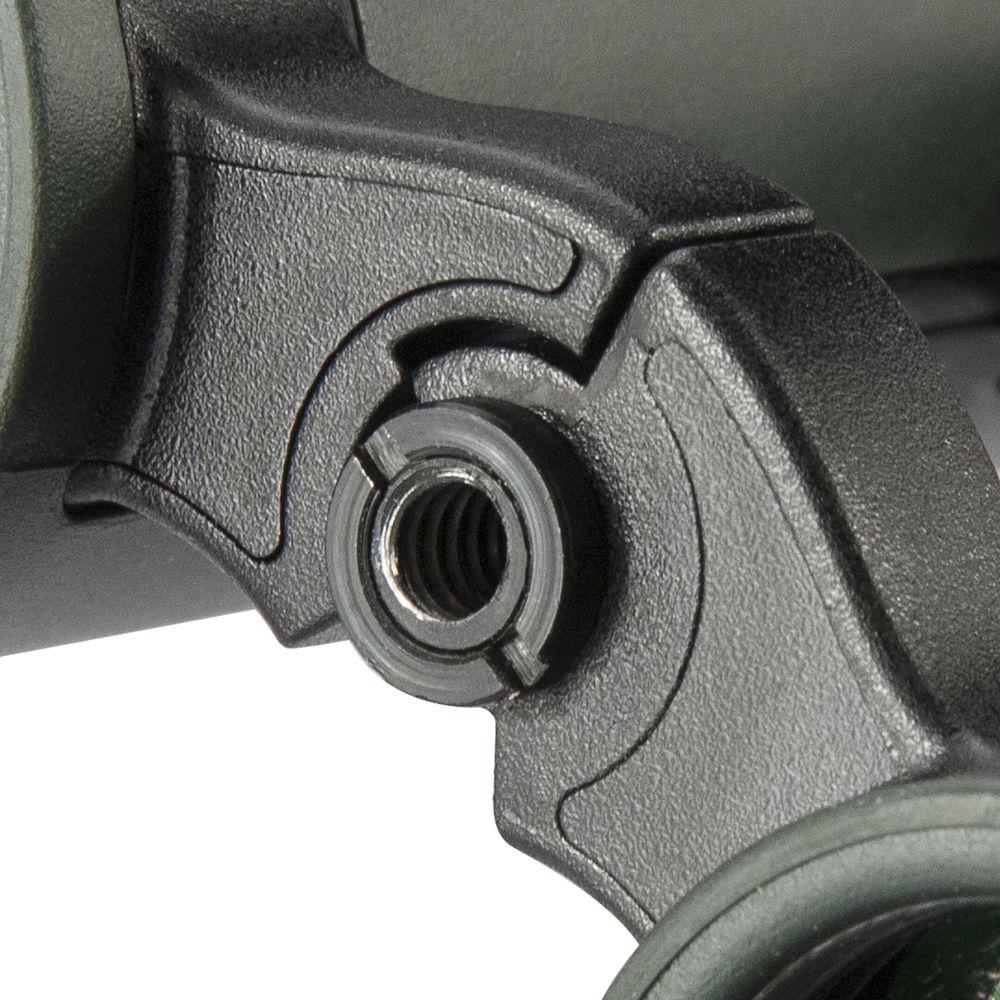

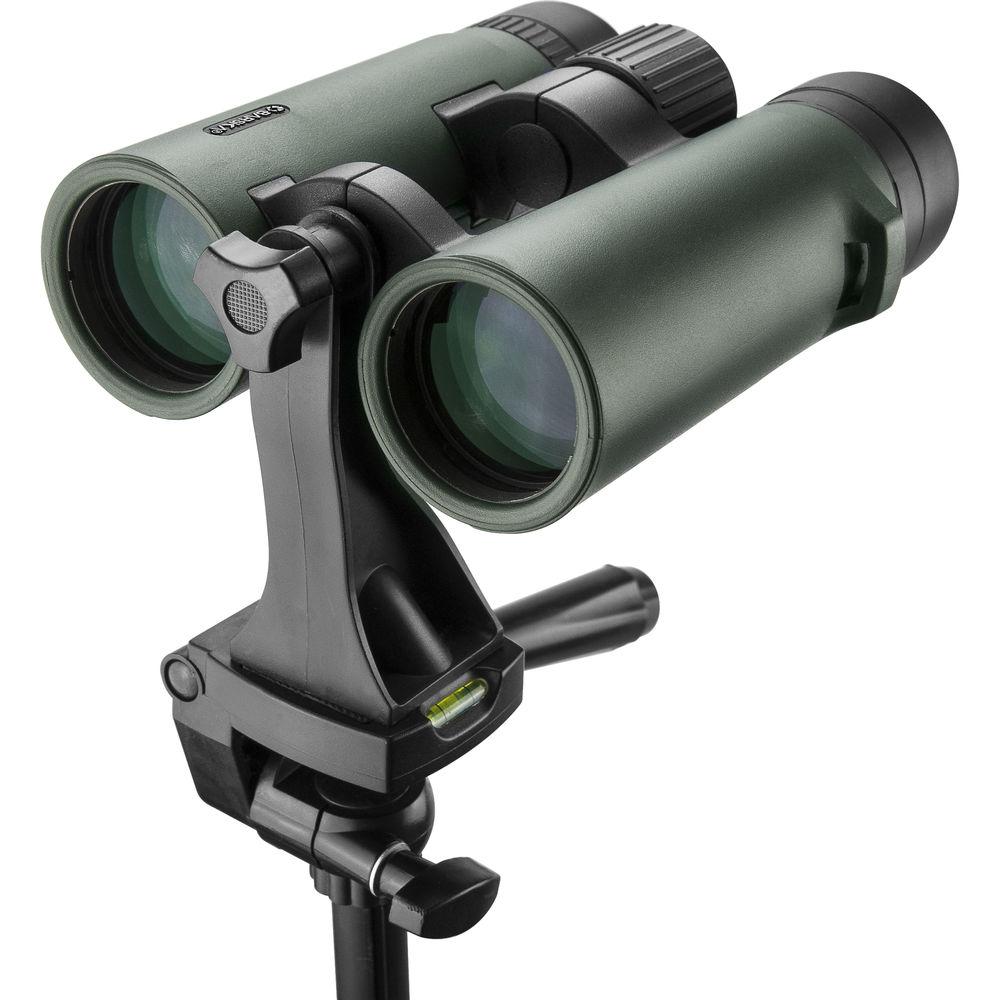

- Tripod mountable with optional adapter
- Long 16.1mm eye relief
- Comfortable 4.2mm exit pupil
- Construction Details
-
- Bridge design reduces weight without sacrificing strength, while providing additional surface area for hand grip
- Protective slip-resistant green rubber armoring
- Nitrogen-filled and O-ring sealed for water and fogproof performance in extreme weather conditions
- One-piece objective lens cover
- Weight: 20 ounces
UPC: 790272001415 In the Box Barska 10x42mm WP Air View Binocular (Green) Lens Cloth Neck Strap Carrying Case One-Piece Objective Lens Cover Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 10x42mm WP Air View Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB12528 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.1° (Actual) | | Field of View | 320.2' @ 1000 yd / 106.7 m @ 1000 m | | Minimum Focus Distance | 13.1' / 4 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.1 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.8 x 5.0 x 2.0" / 14.6 x 12.7 x 5.1 cm | | Weight | 20.0 oz / 567.0 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 7.8 x 6.6 x 2.9" |
