User Manual for Barska 12x42 WP Blackhawk Binocular Click to enlarge the picture
Contents of the user manual for the Barska 12x42 WP Blackhawk Binocular
- Product category: Binoculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Binoculars
 |
User manual for the Barska 12x42 WP Blackhawk Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

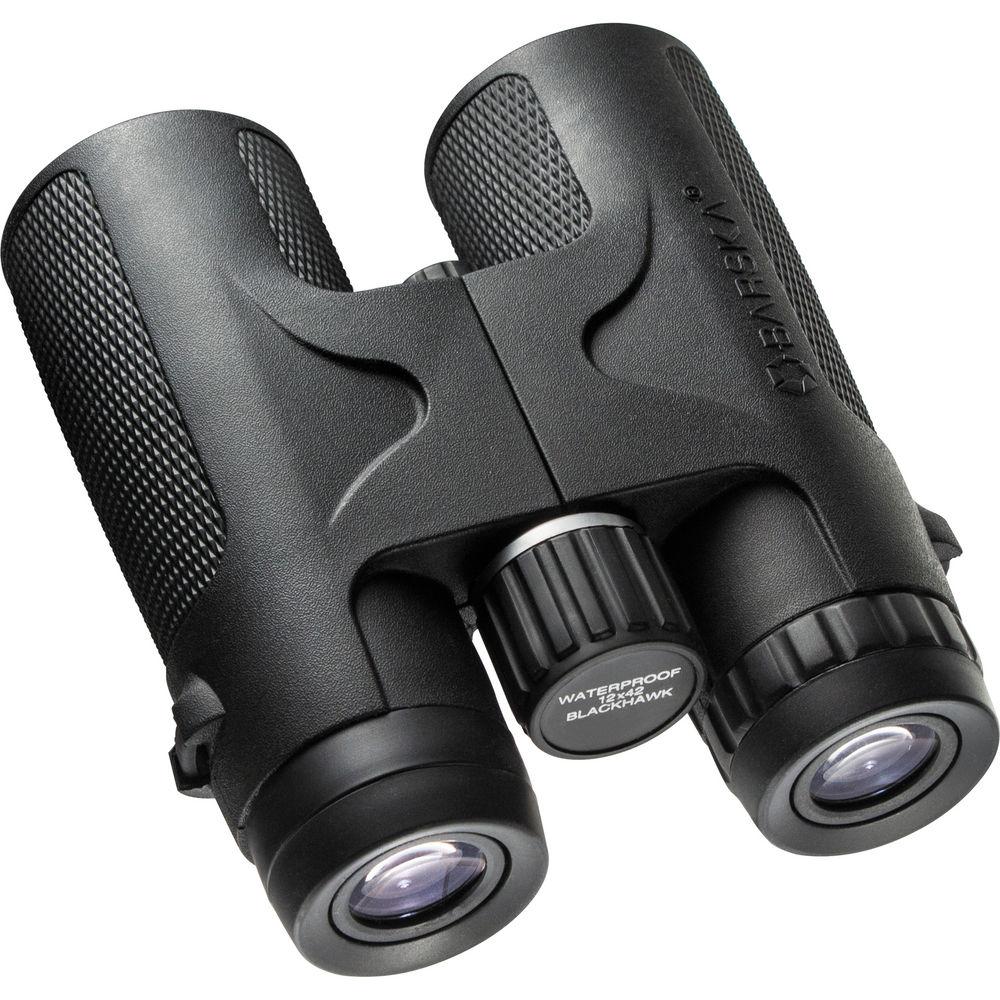

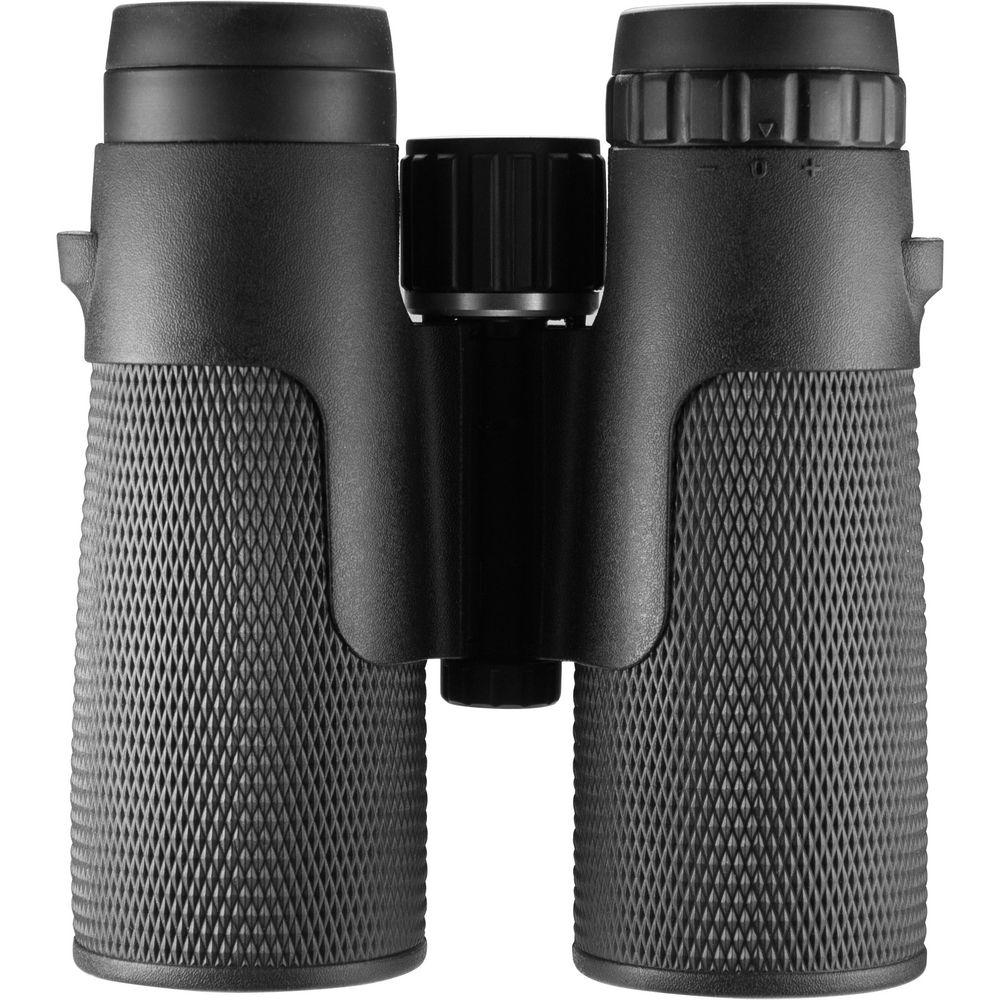

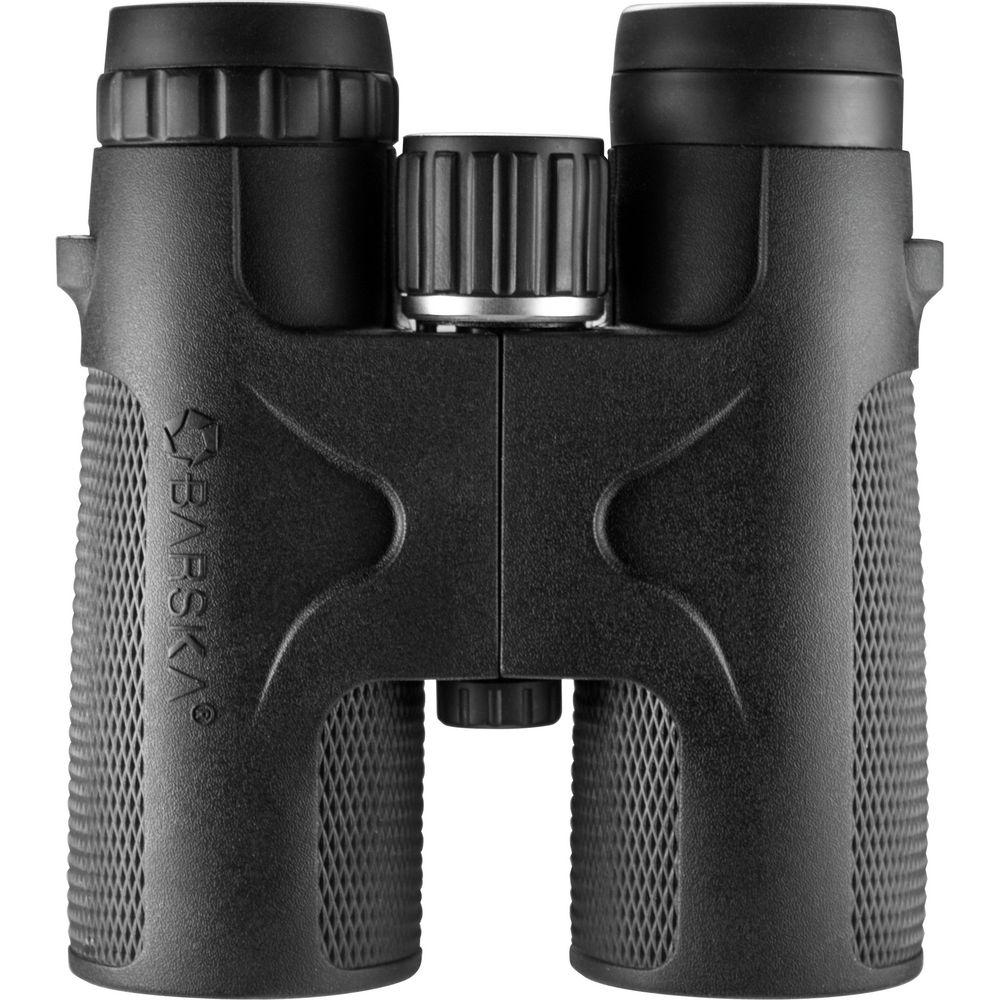

Product description The B&H Binocular Buying Guide Read More dttaxycdtavtbsxzfaybtdbysfsbeuvb The black 12x42 Blackhawk Binocular from Barska is engineered with a powerful magnification for long-distance viewing, and moderately sized objectives to extend its usability into the pre-dawn and twilight hours. Fully coated optics help to increase light transmission while enhancing image contrast and color rendition. This optical performance, when combined with a large viewing angle, provides an immersive observational experience for novices and advanced amateurs alike.Complementing the versatility of the Blackhawk's optics is a nitrogen-filled housing that delivers fogproof and waterproof performance in all weather conditions. Twist-up eyecups, non-slip rubber armoring, and comfortable 17mm eye relief make the Blackhawk easy and comfortable to use. With the higher 12x magnification, visible hand-shake will be more pronounced, and holding the binocular steady for long periods may cause fatigue. To help minimize shake and vibrations, it comes outfitted with a 1/4"-20 tripod mount so it can be used with a variety of optional support systems. - Optical Performance
-
- 12x magnification
- 42mm objectives
- Compact BAK4 roof prisms
- Fully coated optics limit light loss and enhance contrast and color rendition
- Wide 63° apparent viewing angle
- Comfortable 3.5mm exit pupil
- Long 17mm eye relief
- Use and Handling
-
- Closed-bridge configuration
- Large knurled center focus wheel
- Right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Nitrogen-filled and O-ring sealed chassis for water and fogproof performance
- Slip-resistant and protective black rubber armored body
- Diamond cut texture provides a more secure grip
- Weight: 25 ounces
UPC: 790272983650 In the Box Barska 12x42 WP Blackhawk Binocular (Black) Lens Cloth Neck Strap Carrying Case 2 x Ocular Lens Cover 2 x Objective Lens Cover Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 dttaxycdtavtbsxzfaybtdbysfsbeuvb A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 269.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 12x42 WP Blackhawk Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB11840 Specs | Prism Type | Roof | | Magnification | 12.0 x | | Objective Lens Diameter | 42 mm | | Angle of View | 5.3° (Actual) | | Field of View | 278.2' @ 1000 yd / 92.7 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 3.5 mm | | Eye Relief | 17.0 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.8" / 14.6 cm | | Weight | 25.0 oz / 708.8 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.5 x 6.1 x 3.3" |
