User Manual for Barska 16x70 WP Encounter Jumbo Binocular Click to enlarge the picture
Contents of the user manual for the Barska 16x70 WP Encounter Jumbo Binocular
- Product category: Binoculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Binoculars
 |
User manual for the Barska 16x70 WP Encounter Jumbo Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

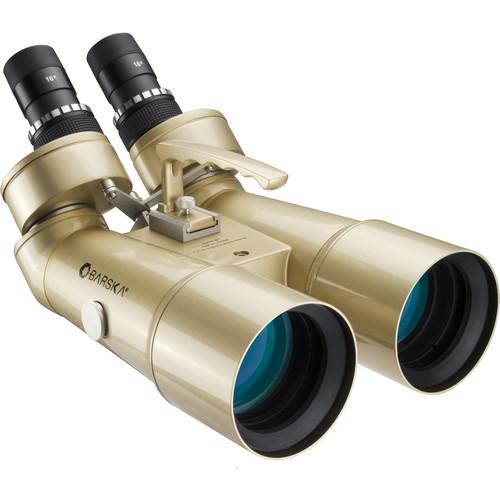

Product description The B&H Binocular Buying Guide Read More ubwedadawyvwrbusfcuayq Designed like tandem telescopes but with the familiar functioning of traditional binos, the Barska 16x70 WP Encounter Jumbo Binocular is ideal for wide-field astronomical and long-distance terrestrial viewing. Powerful twin 16x eyepieces are set at a 45° angle to put the head in a comfortable position when and individually focused to enable users with different eye prescriptions to achieve tack-sharp views, and fold-down rubber eyecups mold themselves to the eye socket to block stray peripheral light from interfering with the observational experience. To accommodate a variety of mounting options, the sides of the optical tubes have mounting holes for an array of manual, motorized, or GoTo yoke mounts; and a mounting hole on the bottom allows for a direct connection to a standard photo, video, or field tripod. Because of the size and weight of the binocular, a support system is recommended for celestial observing of the moon, comet hunting, or watching meteor showers; or tracking distant birds, animals, or ships.The housing is made of a lightweight and sturdy aluminum alloy with an elegant glossy champagne finish that will allow this Encounter binocular to become an interesting accent in any room while maintaining its powerful functionality. Not to be relegated to the indoors, the optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof, and extendable sun shades helps to improve views by blocking sun glare, or keeping rain and snow off the objective. A removable carry handle on the top ensures safe handling during set-up and break-down, and the included hard carrying case keeps the binocular safe during transport or storage. - Optical Performance
-
- Ideal for astronomical or long-range terrestrial viewing
- Powerful 16x magnification

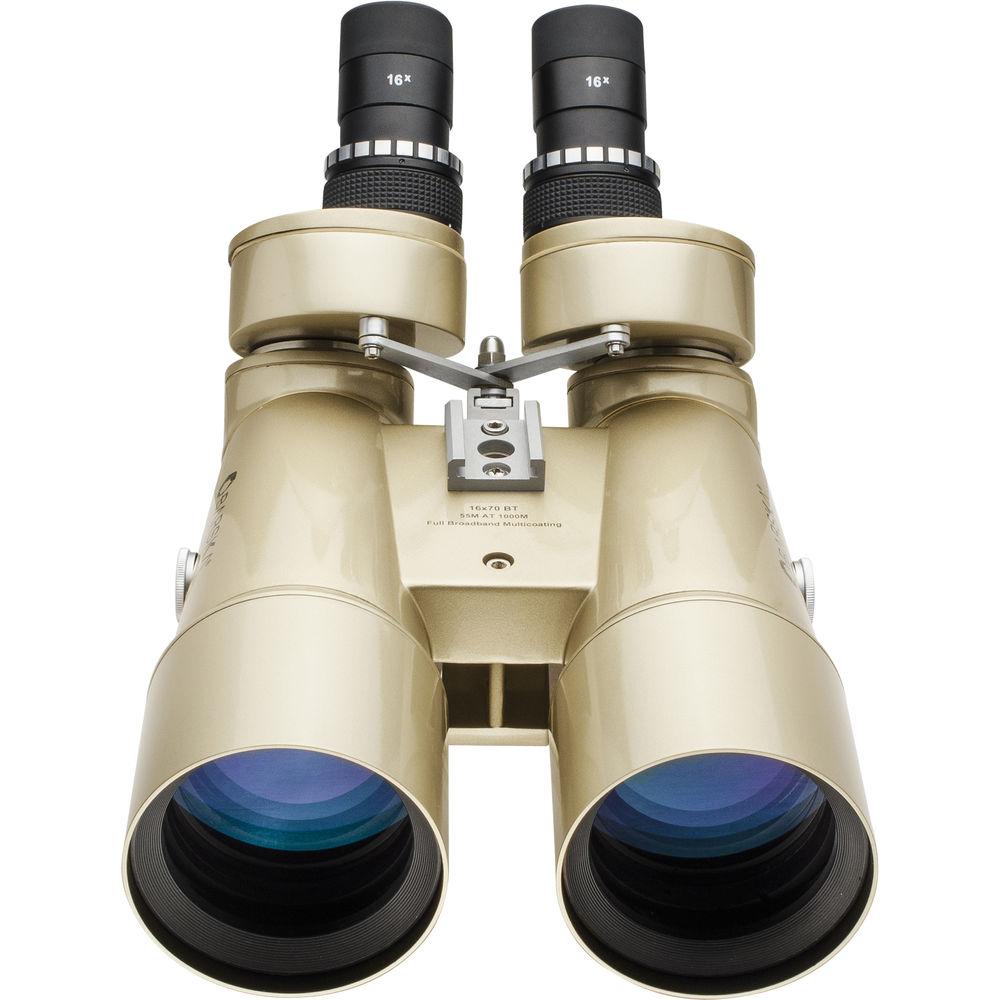

- Large 70mm objective lenses
- BAK4 Porro prism optical path
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, and overall image contrast
- 147' field of view at 1000 yards
- Use and Handling
-

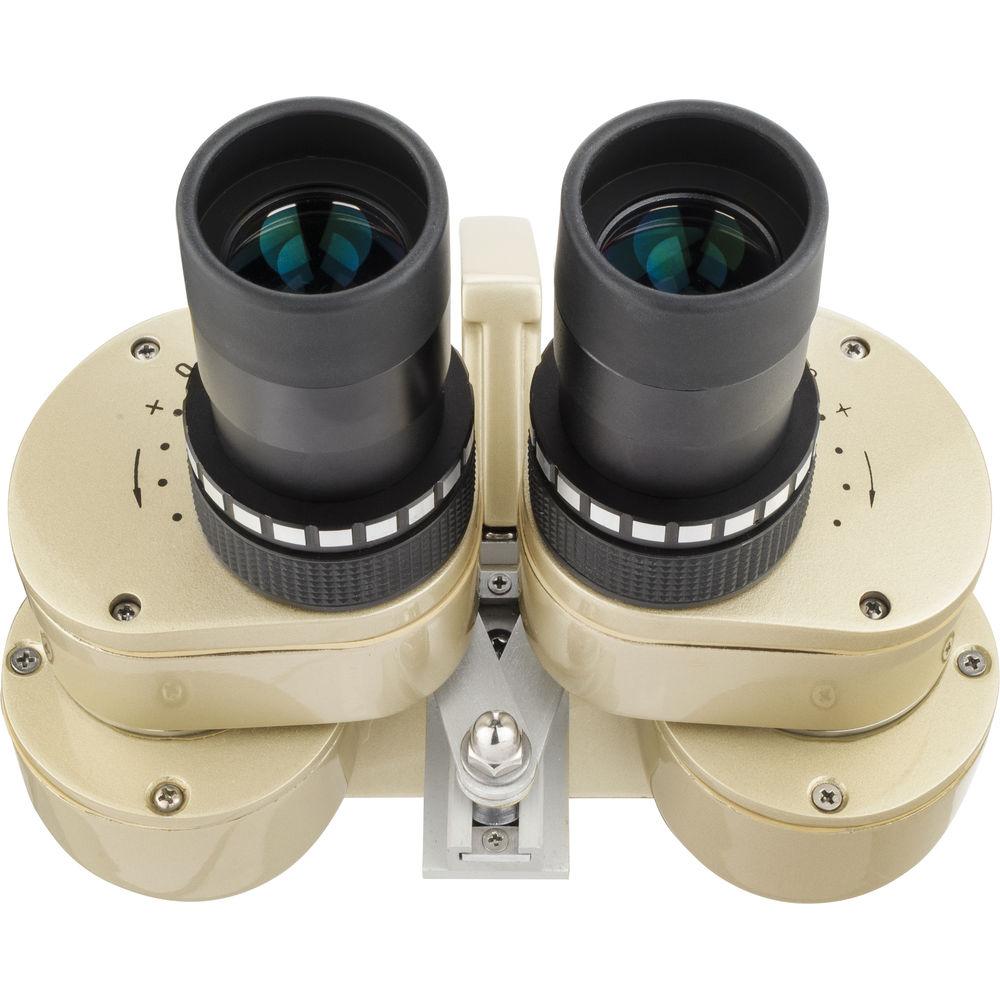

- Individual focus on each eyepiece

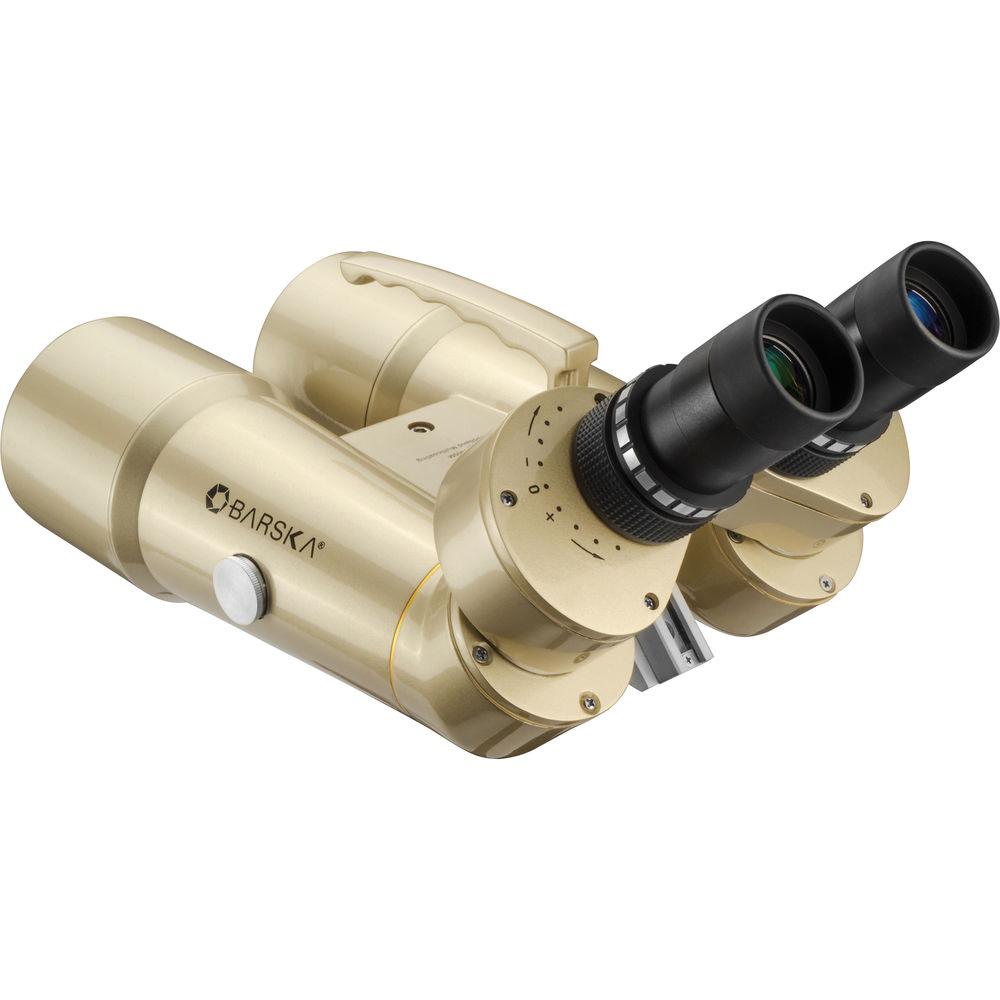

- Eyepieces set at 45° angle to optical tubes put head in a comfortable viewing position whether sitting or standing

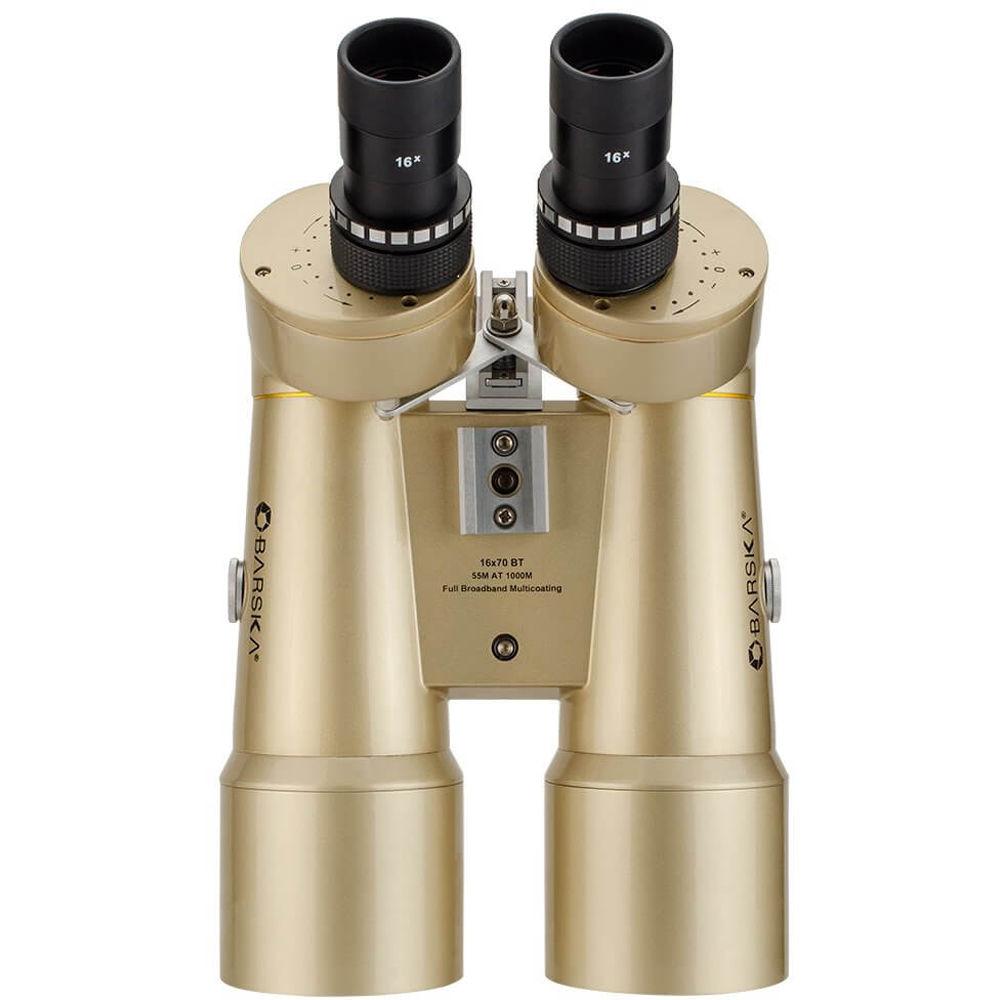

- 1/4"-20 yoke-mount fittings on sides of optical tubes
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Bottom 1/4"-20 tripod mount

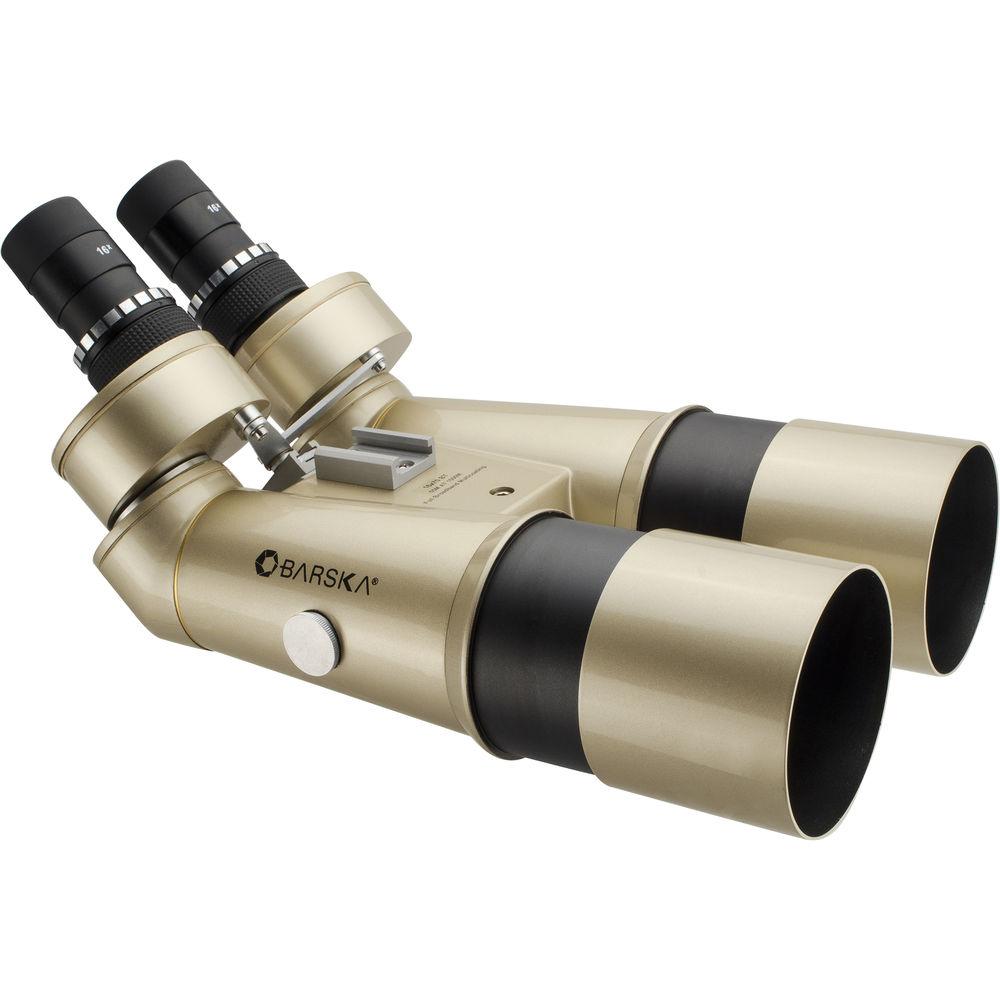

- Extendable sun shades blocks glare from peripheral light, and keeps rain or snow off objectives
- 4.4mm exit pupil and eye relief
- Construction Details
-
- Lightweight and durable aluminum alloy housing with glossy champagne finish
- Nitrogen-filled and O-ring sealed to be waterproof, and to prevent internal fogging when moving through extreme temperature changes

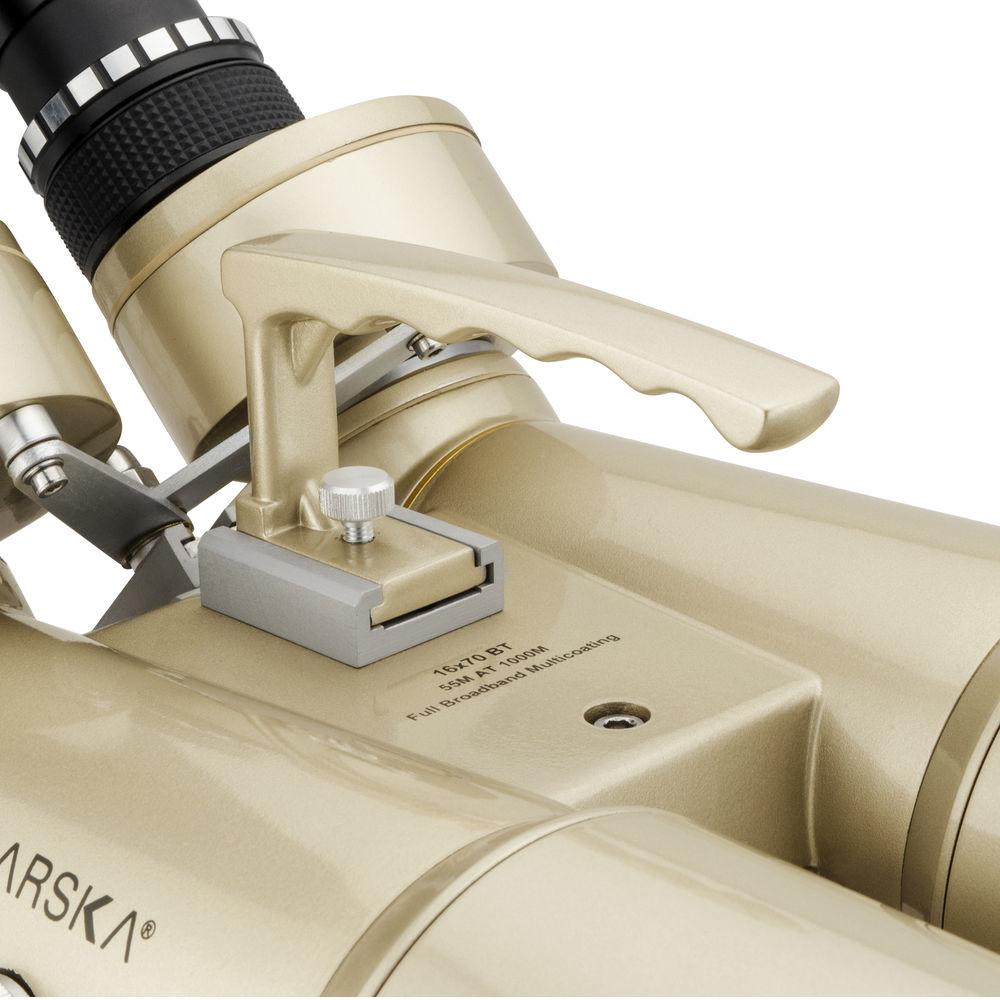

- Removable carry handle enables safe handling during set-up and break-down

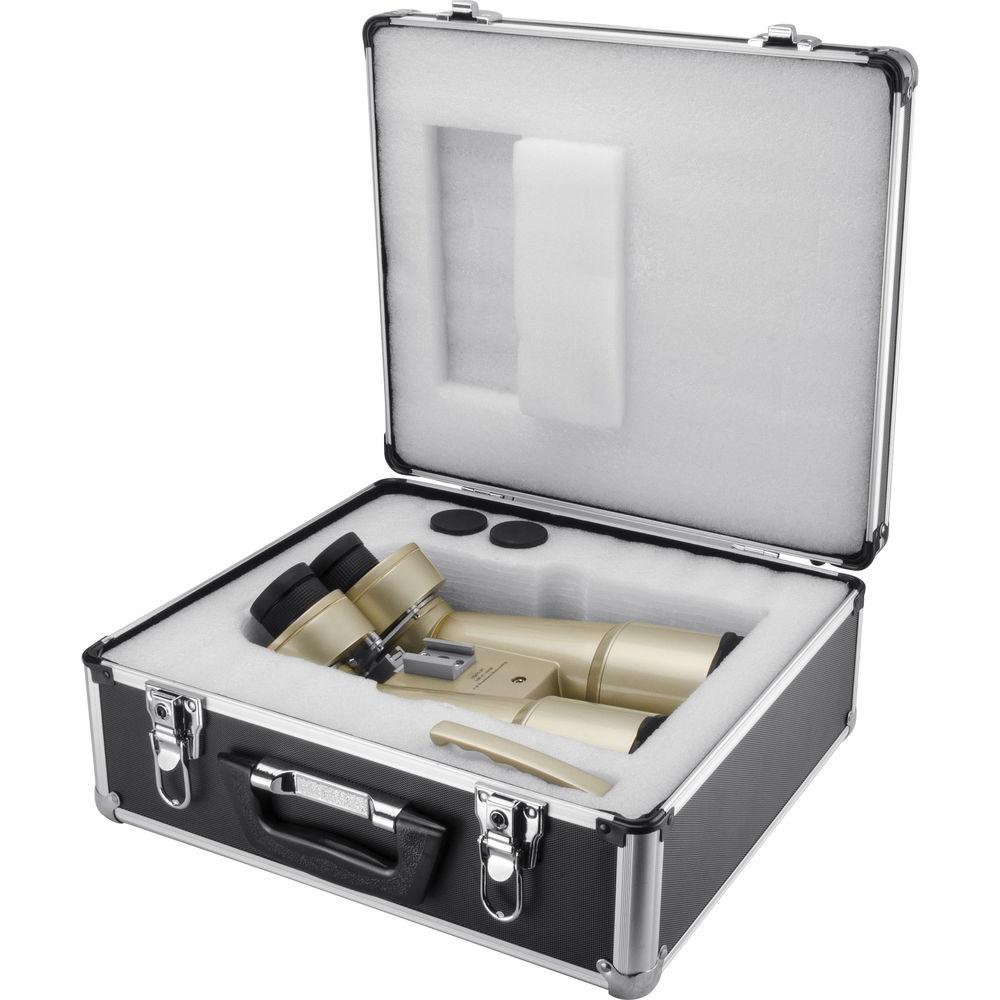

- Custom hard carrying case with rigid-foam lining
- Weight: 8.6 pounds
- Tripod with head or yoke-mount recommended for safe handling
UPC: 790272002665 In the Box Barska 16x70 WP Encounter Jumbo Binocular (Glossy Champagne) Lens Cloth Carry Handle Foam-Lined Hard Case Limited 1-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 ubwedadawyvwrbusfcuayq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 16x70 WP Encounter Jumbo Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB12766 Specs | Prism Type | Porro | | Magnification | 16 x | | Objective Lens Diameter | 70 mm | | Angle of View | 2.8° (Actual) | | Field of View | 147.0' @ 1000 yd / 49.0 m @ 1000 m | | Minimum Focus Distance | 82' / 25 m | | Exit Pupil Diameter | 4.4 mm | | Eye Relief | 4.4 mm | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | Yes | | Weight | 8.6 lb / 3.9 kg |
