User Manual for Barska 2-7x32 IR Blackhawk Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 2-7x32 IR Blackhawk Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 2-7x32 IR Blackhawk Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

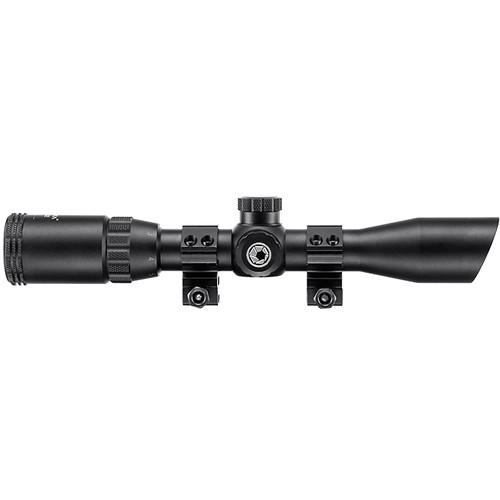

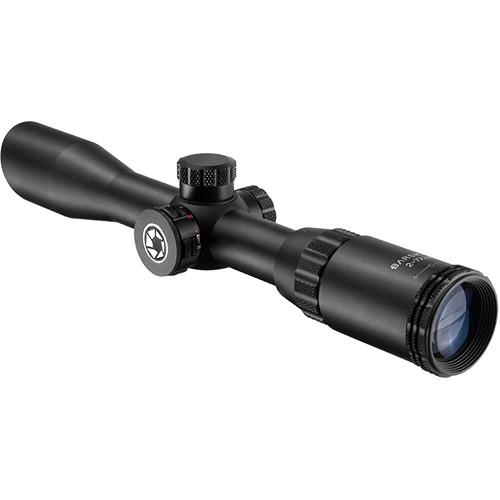

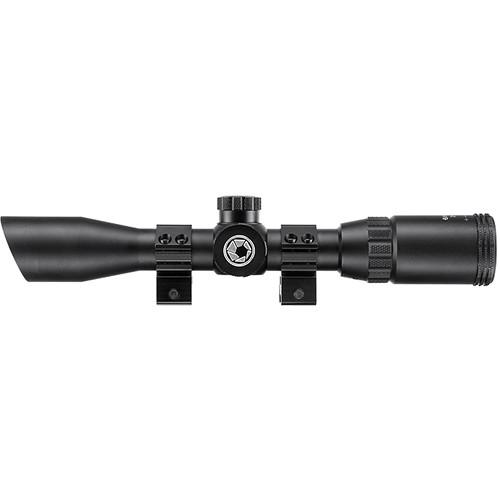

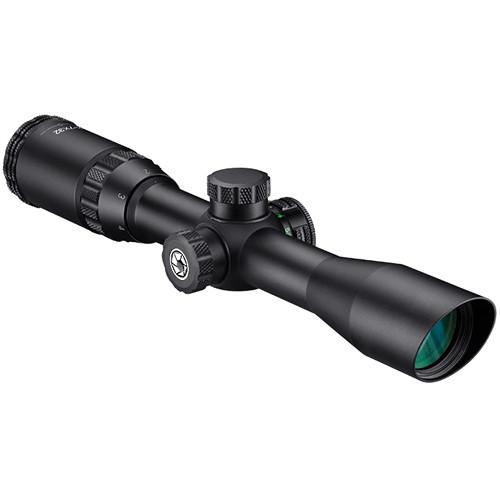

Product description Target your game with the 2-7x32 IR Blackhawk Riflescope from Barska. Among many highlights, this riflescope features fully multi-coated optics and an illuminated red-green Mil-Dot reticle. While the optics provide bright and clear images of your targets, the reticle allows you to get a precise aim and to adjust illumination that is ideal for the time of day. You can quickly and easily zoom in and out of near and far targets with the 2-7x magnification. Additionally, the scope offers a generous 4.4" eye relief and a linear field of view of 49-14' at 100 yd.
The housing is made of lightweight and durable aluminum with a matte black anodizing finish and offers a waterproof and fogproof performance. It features a 1" maintube diameter and capped finger-operated windage and elevation turrets. With adjustable windage and elevation and a 1/4 MOA impact point correction, you will be able to compensate for ballistic bullet drop and wind drift. Whether you hunt at dusk, dawn, or during the day, the built-in sunshade will help reduce glare and improve visibility. To provide a non-slip grip, all adjustment rings and turret caps are heavily knurled. Also included with the scope are one CR-2032 battery, two flip-up lens covers, and two mounting rings. - Reticle
-

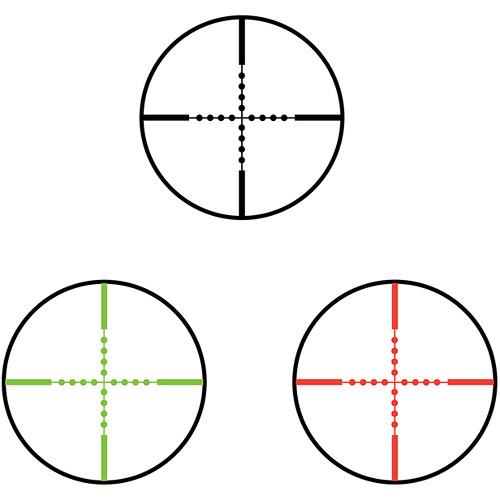

- Red-green Mil-Dot reticle
- 2nd focal plane
- Adjustable illumination
- 5 brightness levels
- Optical Performance
-
- Fully multi-coated lenses
- 2-7x zoom magnification
- 32mm objective aperture
- 49-14" at 100 yd linear field of view
- 4.4" maximum eye relief
- 8-15mm exit pupil
- Use and Handling
-
- 1/4 MOA per click increments
- Windage and elevation adjustments
- Construction Details
-
- Aluminum housing
- Black matte finish
- 1" maintube diameter

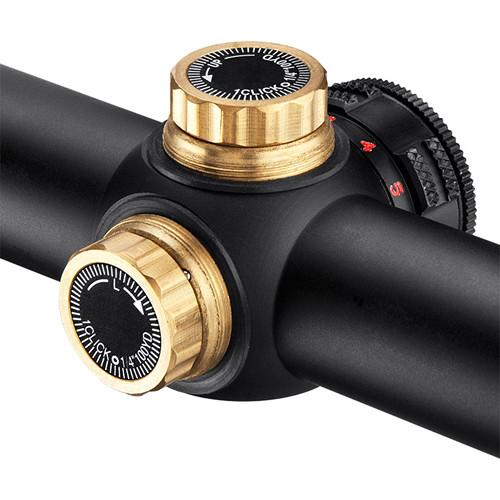

- Capped finger-operated turrets
- Heavily knurled rings and adjusters
- Built-in sniper edged sunshade
- Flip-up lens covers
- Waterproof and fogproof
- Two mounting rings included
UPC: 790272001064 In the Box Barska 2-7x32 IR Blackhawk Riflescope (Red-Green Illuminated Mil-Dot Reticle) - 2 x Flip-Up Lens Covers
- 2 x Mounting Rings
- CR-2032 Lithium Battery
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 2-7x32 IR Blackhawk Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12449 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 49' @ 100 yd / 15 m @ 100 m
7x: 14' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 2x: 15 mm
7x: 8 mm | | Eye Relief | 4.3 to 4.4" / 109 to 12 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 11.4" / 28.9 cm | | Weight | 12.4 oz / 351.5 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 13.6 x 5.9 x 1.8" |
