Barska 3 - 12x40 AO Airgun

Search your instruction manual in PDF to download

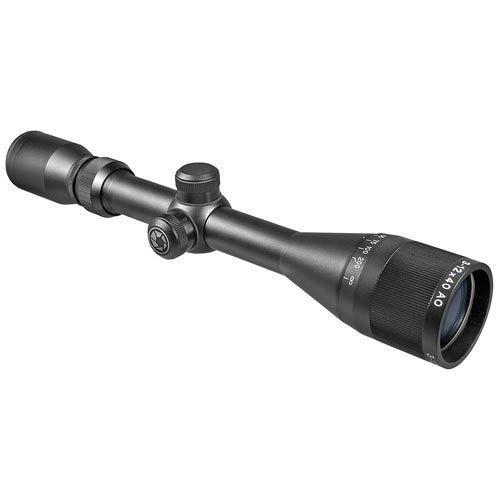

User Manual for Barska 3 - 12x40 AO Airgun Reverse Recoil Riflescope

Click to enlarge the picture
Barska 3 - 12x40 AO Airgun Reverse Recoil Riflescope Contents of the user manual for the Barska 3 - 12x40 AO Airgun
  • Product category: Riflescopes Barska
  • Brand: Barska
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Barska Riflescopes

User manual for the Barska 3 - 12x40 AO Airgun contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Barska product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!



Product description

Specifically designed to withstand reverse recoil, the Barska 3 - 12x40 AO Airgun Reverse Recoil Riflescope is an ideal choice for use with airguns. This sight will dramatically improve the accuracy of your shooting with its 3 - 12x magnification, bright and fully coated optics, and a long 4.2" eye relief. Its 40mm objective lens will gather enough visible light to allow you to see clearly in most lighting conditions, even at dusk or dawn. To improve aiming precision, the scope also provides a 30/30 reticle that provides four bold posts and a thin crosshair. To compensate for ballistics and winds, the scope has capped windage and elevation adjustment turrets with 1/4 MOA clicks. The waterproof and fogproof aluminum housing features a 1" maintube and a zoom eyepiece. Additionally, to avoid parallax error while aiming, it incorporates a parallax corrector on the objective bell with a range from 15 yards to infinity.
    Optical Performance
    • 3 - 12x zoom magnification
    • 40mm objective diameter performs well in most lighting conditions
    • Fully coated optics improve transmission and reduce glare
    • Field of view: 35 - 9' at 100 yards linear
      Reticle
      • 30/30 Reticle
      • 2nd focal plane
      • Four bold posts with a crosshair
        Use and Handling
        • 1/4 MOA impact point correction
        • Windage and elevation adjustments
        • 13.3 - 3.3mm exit pupil
        • Long 4.2" eye relief
          Construction Details
          • Aluminum housing
          • 1" maintube diameter
          • Optimized for reverse recoil associate with air guns
          • Capped windage and elevation turrets
          • Adjustable objective parallax corrector
          • Waterproof and fogproof
          UPC: 790272002139 In the Box Barska 3 - 12x40 AO Airgun Reverse Recoil Riflescope (30/30 Reticle, Black Matte)
        • 2 x Scope Caps
        • Lens Cloth
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Barska 3 - 12x40 AO Airgun Reverse Recoil Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Barska AC12676 Specs

Magnification 3 to 12x
Objective Lens Diameter 40 mm
Field of View 3x: 35' @ 100 yd / 11.6 m @ 100 m
12x: 9' @ 100 yd / 3 m @ 100 m
Exit Pupil Diameter 3x: 13.3 mm
12x: 3.3 mm
Eye Relief 4.2" / 106.7 mm
Reticle Type 30/30 Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Parallax Correction Yes, 15 yd / 13.7 m to Infinity
Water Resistance Waterproof
Fogproof Yes
Maintube Diameter 1"
Battery None
Dimensions Length: 13.7" / 34.8 cm
Weight 18.1 oz / 513.1 g
Package Weight 1.55 lb
Box Dimensions (LxWxH) 15.2 x 3.4 x 3.2"
