User Manual for Barska 3-12x50 Huntmaster Pro Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 3-12x50 Huntmaster Pro Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 3-12x50 Huntmaster Pro Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

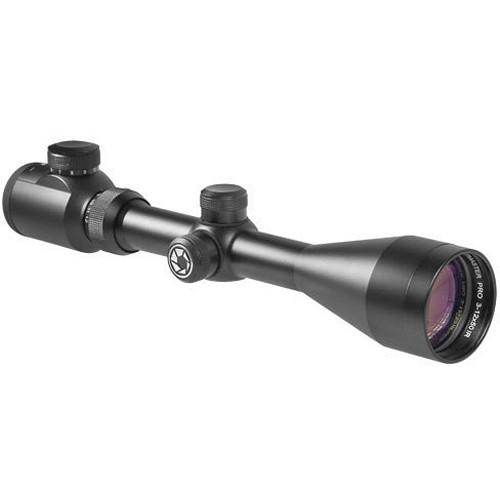

Product description Designed for low-light conditions, distance, and precision shooting, the 3-12x50 Huntmaster Pro Riflescope from Barska offers an optical system with high transmission multi-coated optics and an Illuminated 30/30 Cross Reticle that is located in the second focal plane. The reticle is powered by the included CR-2032 battery and features four thick posts and an illuminated red crosshair. With medium-to-long-range magnification and a wide 50mm aperture, you will be able to easily zoom on near and far targets in any lighting conditions. To aid in correcting for ballistic drop and wind-drift, the capped windage and elevation turrets offer 1/4 MOA impact point correction.

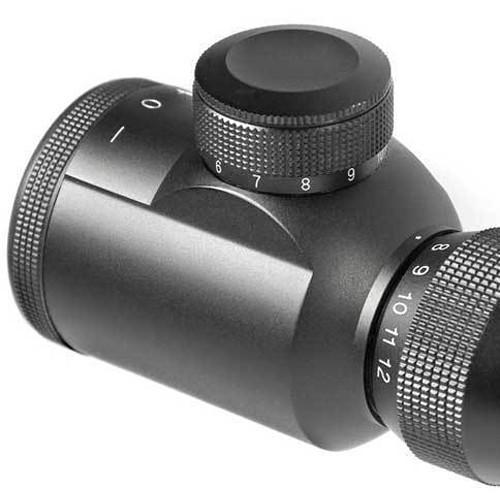

The single-piece aluminum housing features a 1" main tube and offers waterproof, fogproof, and impact-resistant performance. With its fast-focus eyepiece and a knurled adjustment ring, you can be sure to get precise focus quickly. Illuminated 30/30 IR Cross Reticle -
- 2nd focal plane
- Four thick posts
- Illuminated red crosshair
Optical Performance -
- Magnification of 3-12x for medium-to-long range
- 50mm objective lens enables usage in low-light conditions
- Multi-coated optics improve transmission
- 35-10' at 100 yd linear field of view
Use and Handling -
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Eye relief of 2.7"
- Diopter adjustment
Construction Details -
- 1" main tube
- Aluminum with matte black finish
- Fast-focus eyepiece
- Fogproof, waterproof, and shock-resistant
UPC: 790272976492 In the Box Barska 3-12x50 Huntmaster Pro Riflescope (Illuminated 30/30 Duplex Reticle) - CR-2032 Lithium Battery
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-12x50 Huntmaster Pro Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10056 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 35' @ 100 yd / 11.6 m @ 100 m
12x: 10' @ 100 yd / 3.3 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
12x: 4.2 mm | | Eye Relief | 2.7" / 69 mm | | | | Reticle Type | 30/30 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 33 cm | | Weight | 21.3 oz / 603.8 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 15.3 x 3.2 x 2.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
