User Manual for Barska 3.2-10x40 SWAT Sniper Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 3.2-10x40 SWAT Sniper Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 3.2-10x40 SWAT Sniper Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

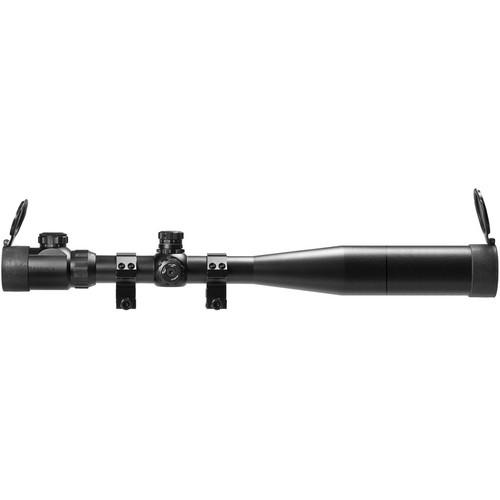

Product description The 3.2-10x40 SWAT Sniper Riflescope (Black Matte) from Barska presents a full set of features at an unbelievable price. It sports a center-lit, illuminated, military dot, glass-etched reticle with a fast focus eyebell and an included CR2032 lithium battery. Lockable, easy-grip, side adjustable parallax turret, windage and elevation turrets along with fully multi-coated optics makes this 3rd generation SWAT sniper scope an unbeatable value. The turrets have a ¼ MOA click value. The scope offers a 30mm single-tube construction with a rear mounted click stop rheostat providing eleven brightness settings and a fast access zoom magnification ring. Shockproof, high-impact design and CO2 dry nitrogen purged with o-ring seals, provide rugged, all-weather protection. Black matte finish, ⅝" high see-through rings, a 5" sun-shade and flip-up lens covers complete this riflescope. It's ideal for varmint and long-range shooting and it's backed by Barska's Limited Lifetime Warranty. - Fast focus eyebell for focusing the reticle
- ⅝" high see-through rings to mount the scope
- 30 mm single tube construction for rugged durability
- 5" sunshade to protect against sun glare, dust and rain
- Flip-up lens covers to protect the lenses from dirt or dust
- 11 adjustable reticle brightness settings on the top of the ocular
- Shockproof high impact rated design to withstand repeated abuse
- Side turret-mounted parallax adjustment to adjust for head movement
- Fast access zoom ring allows immediate close-up or back-off magnification
- Re-zeroing of windage and elevation turret scales for the rare cases when needed

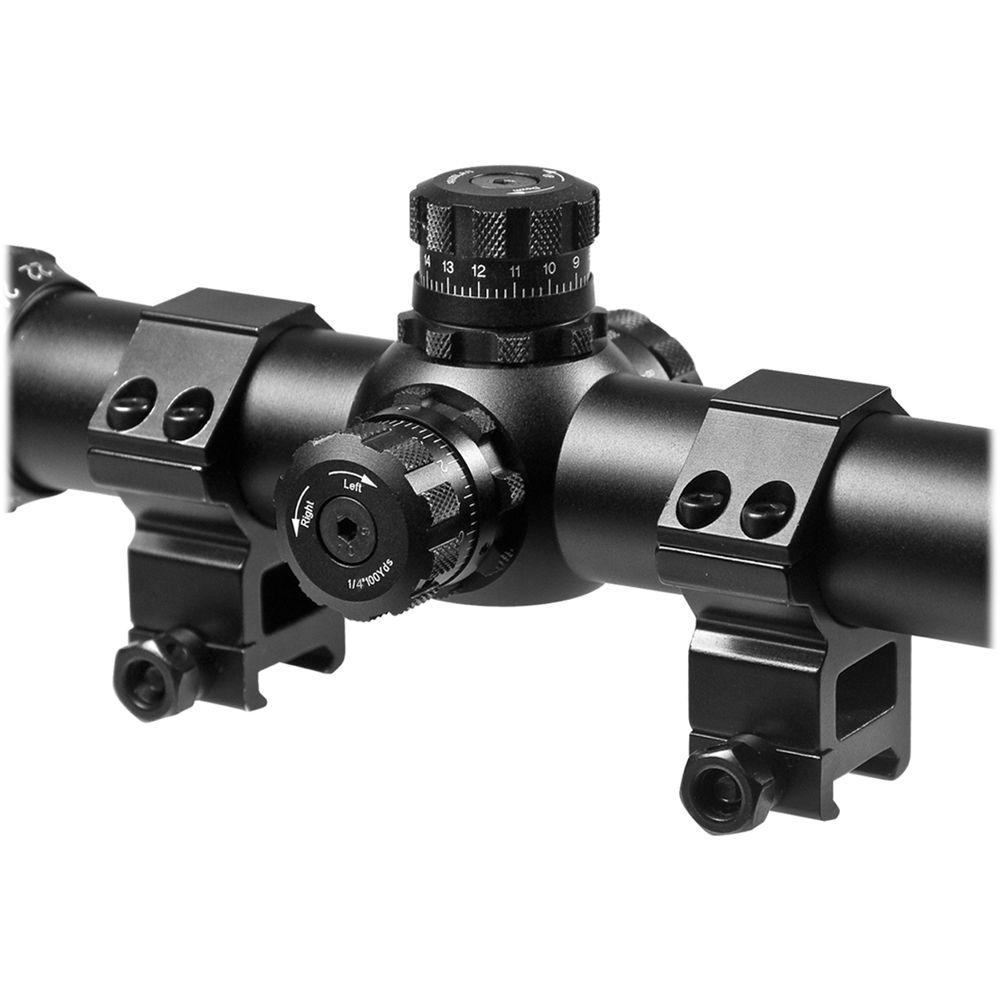

- Lockable easy-grip target-style windage and elevation affords convenient adjustments
- Illuminated Mil-Dot glass-etched reticle powered by an included CR2032 lithium battery
- CO2 dry nitrogen purged and o-ring sealed for complete waterproof and fogproof protection
- Fully multicoated optics means multiple layers on all air to glass surfaces for a brighter, higher-contrast image with less eyestrain

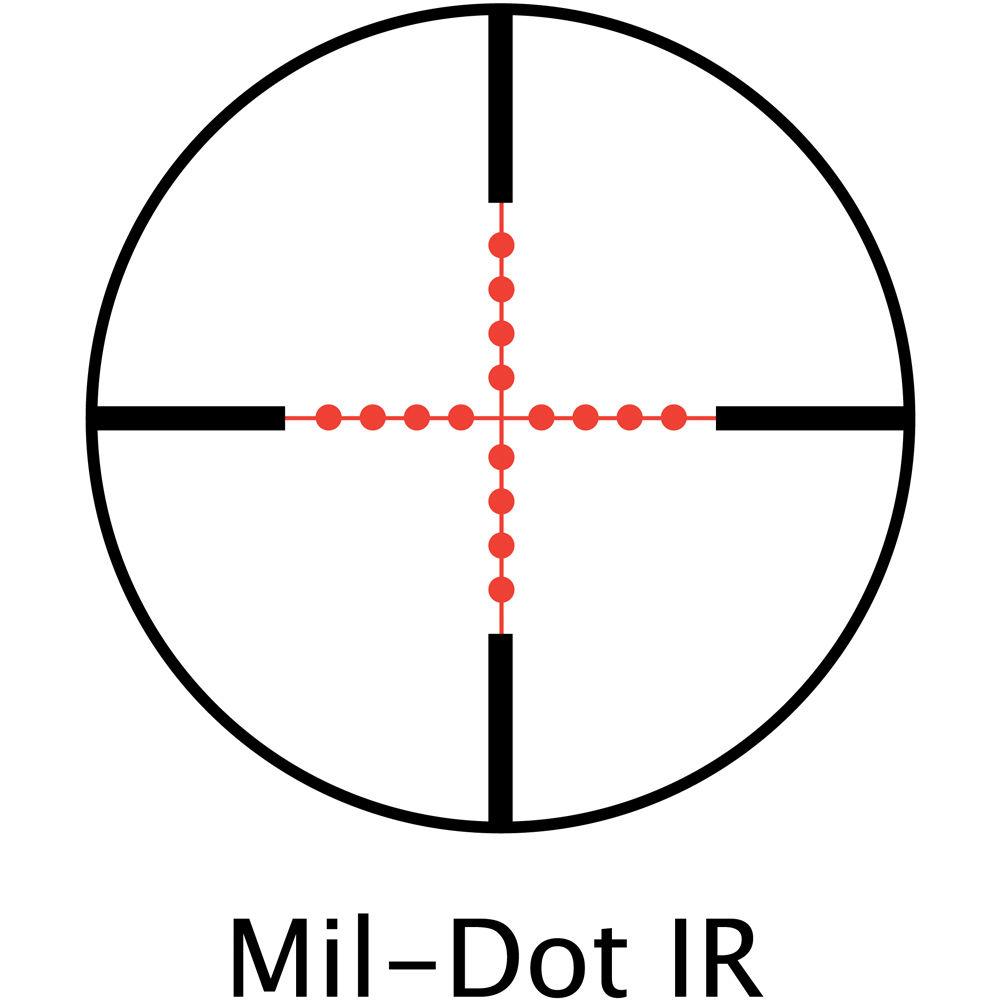

- The Mil-Dot reticle is the standard reticle used by the US Army and Marine Corps that enables long range distance calculations. A series of dots upon the cross hairs gives the shooter the ability to judge bullet drop and the proper hold over for accurate long range shot placement
UPC: 790272978540 In the Box Barska 3.2-10x40 SWAT Sniper Riflescope (Black Matte) Lens Cloth 5" Sun-Shade 2 x ⅝" Mounting Rings 2 x Flip-Up Scope Caps CR2032 Lithium Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3.2-10x40 SWAT Sniper Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10814 Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 40 mm | | Field of View | 3.5x: 29.3' @ 100 yd / 9.7 m @ 100 m
10x: 9.4' @ 100 yd / 3.1 m @ 100 m | | Exit Pupil Diameter | 3.5x: 11.4 mm
10x: 4 mm | | Eye Relief | 3.3" / 84 mm | | | | Reticle Type | MIL Dot Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15" / 36.1 cm | | Weight | 24.2 oz / 686.1 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 18.0 x 7.9 x 4.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
