User Manual for Barska 3-9x40 Huntmaster Pro Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 3-9x40 Huntmaster Pro Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
|
User manual for the Barska 3-9x40 Huntmaster Pro Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

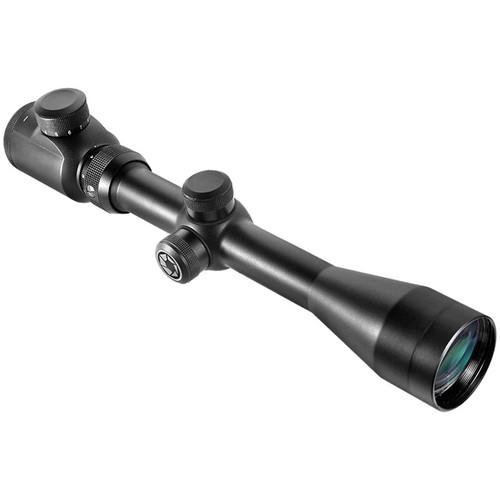

Product description The 3-9x40 Huntmaster Pro Riflescope (Black Matte) from Barska features a center-lit illuminated cross 30/30 reticle. Parallax-free at 100 yards, with a fast focus eyebell for focusing the reticle and multi-coated optics makes this a high-value bang-for-the-buck riflescope. The Huntmaster Pro offers a 1" single-tube construction with a rear mounted click stop rheostat providing eleven brightness settings. Monotube construction provides high recoil capability. Its windage and elevation turrets have a ¼ MOA click value. Black matte finish and scope caps complete this riflescope for low-light and dark background hunting conditions and it's backed by Barska's Limited Lifetime Warranty. - Parallax-free at 100 yards
- Waterproof, fogproof and shockproof
- Fast focus eyebell for focusing the reticle
- Large objective lens for increased light transmission
- Fully coated optics furnish increased clarity and less aberration
- 1" monotube construction provides increased strength and durability
- Premium quality performance optics enhances resolution, brightness and contrast
- Adjustable reticle brightness settings on the top of the ocular. Side windage & elevation adjustments
- Center-lit illuminated crosshairs powered by included CR2032 lithium battery. Eleven (11) adjustable brightness settings
- The 30/30 Illuminated Cross reticle features a familiar 4-post and cross hair configuration. Medium length and weight posts guide your eye to the center of the sight picture. Where the stadia intersect to indicate the exact point of aim is an illuminated crosshairs
UPC: 790272981106 In the Box Barska 3-9x40 Huntmaster Pro Riflescope (Black Matte) Lens Cloth 2 x Scope Caps CR2032 Lithium Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-9x40 Huntmaster Pro Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC11310 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 41' @ 100 yd / 13.6 m @ 100 m
9x: 15' @ 100 yd / 5 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | 30/30 Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 32.9 cm | | Weight | 7.1 oz / 201.3 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 15.3 x 3.1 x 2.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
