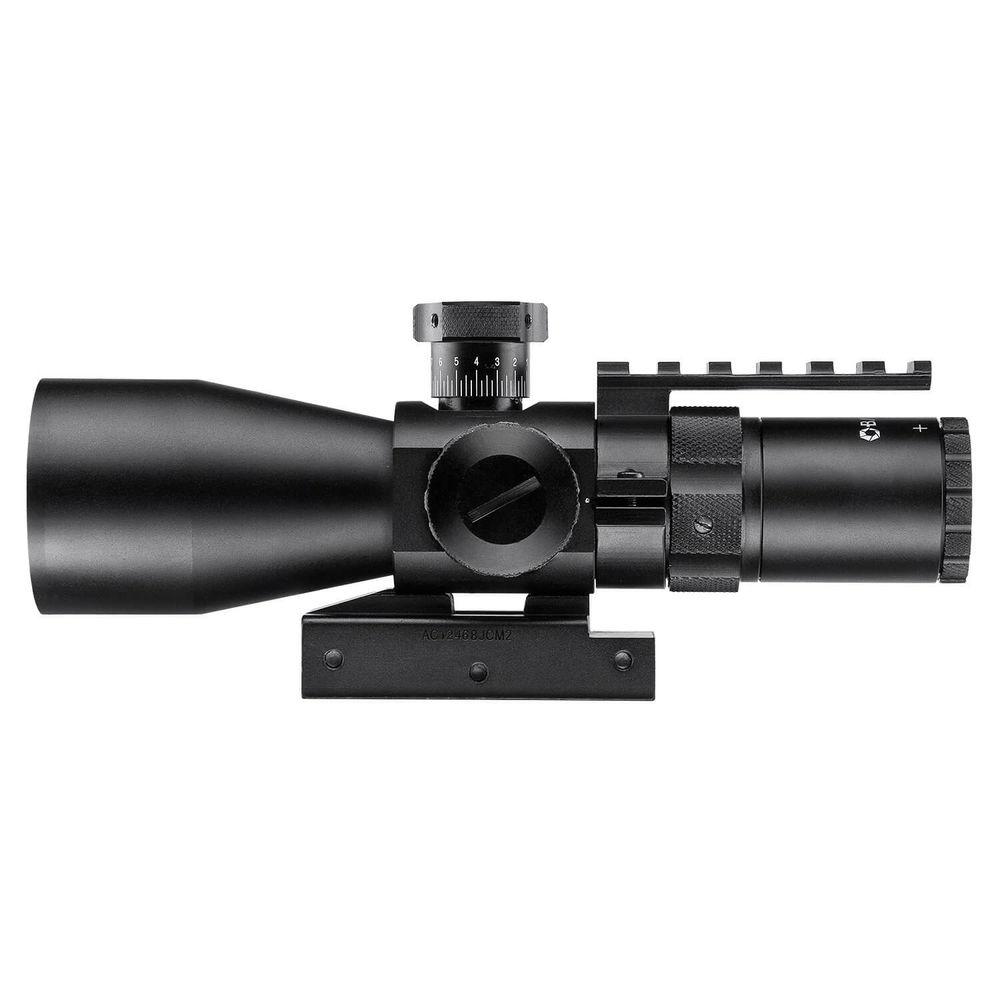

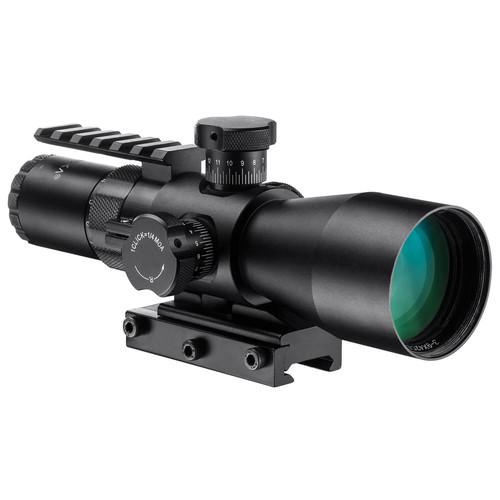

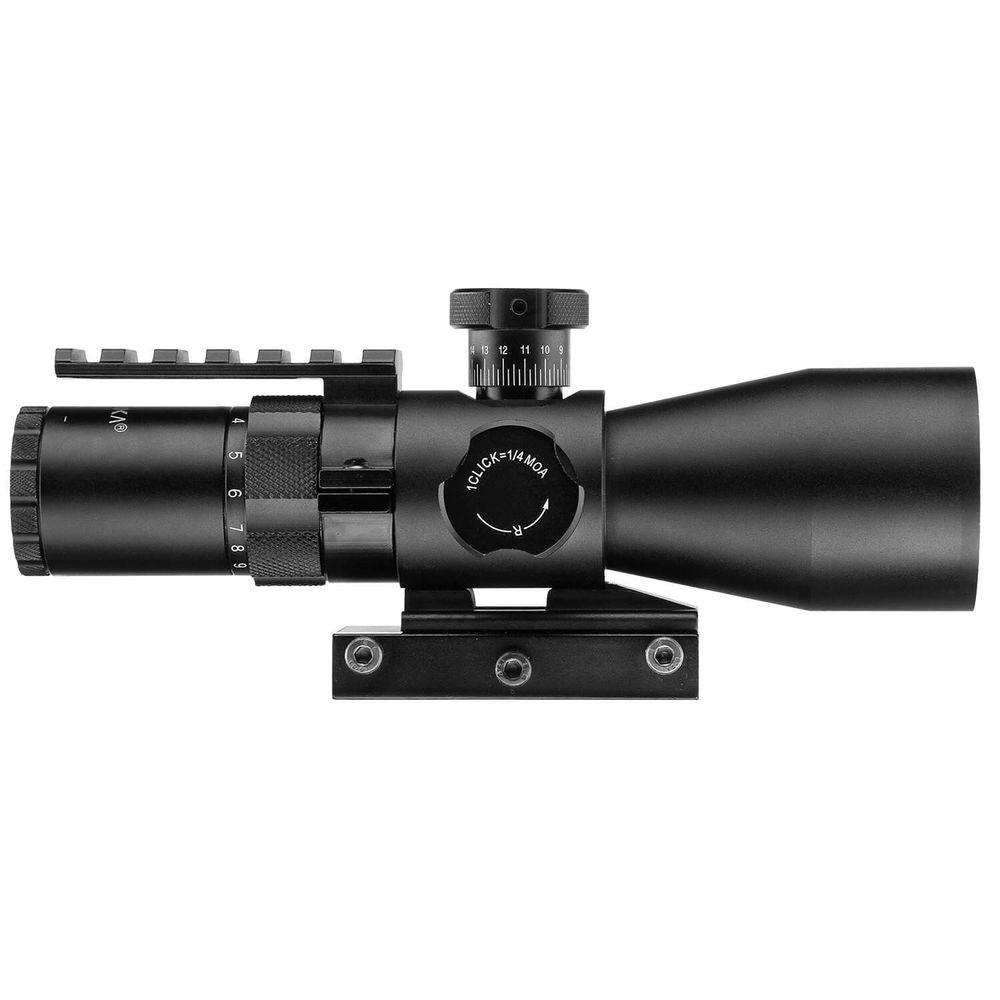

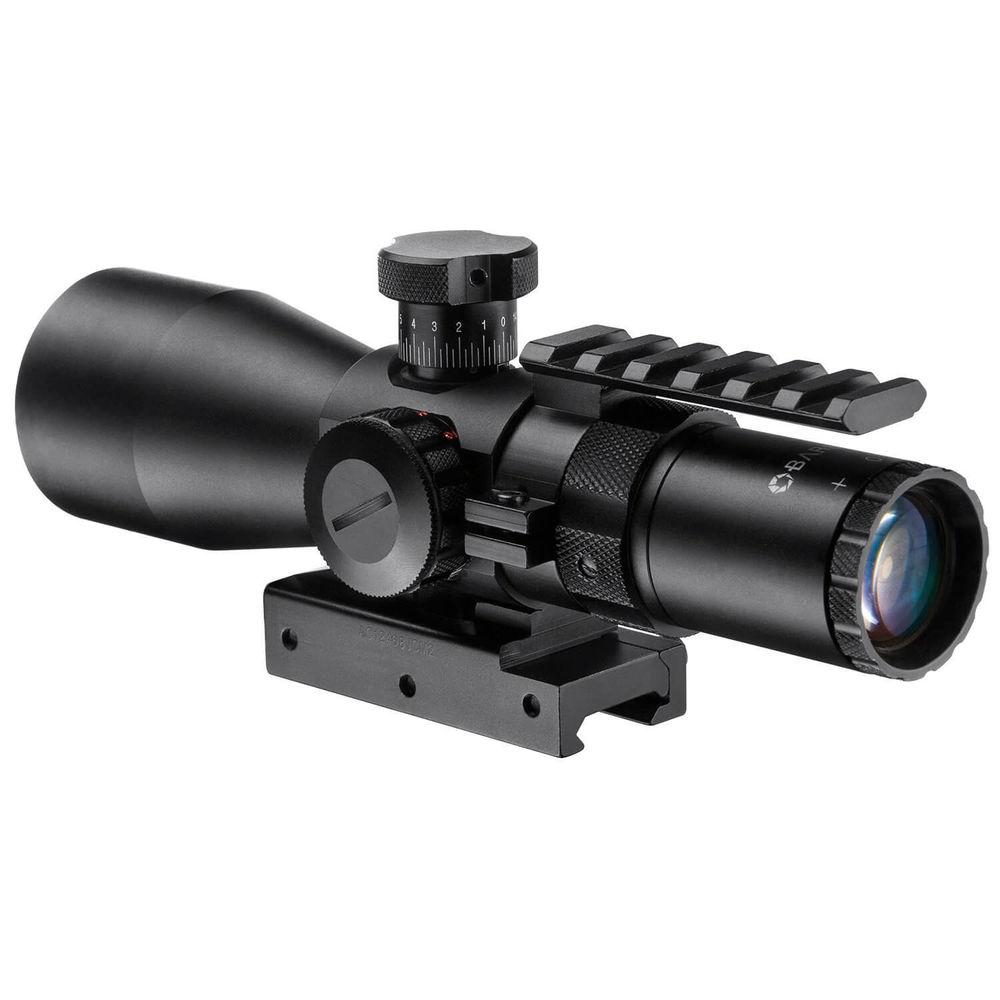

Product description Barksa's 3-9x42 Contour Riflescope is a compact tactical scope with an accessory rail for a secondary optic or another device. The optical system offers a generous 3-9x zoom, bright and clear fully multi-coated optics, and a 37.8 - 11.5' at 100 yards field of view. A wider 42mm objective aperture offers great light-gathering capacity and enables you to see well in most lighting conditions, like dusk or dawn. To help you with accurate target acquisition, placed in the 2nd focal plane (FP) is the Mil-Dot illuminated reticle, which features four bold posts and a crosshair with milling dots. It is fully illuminated in red or green, depending on the time of the day or your preference, and offers adjustable brightness levels. To reduce parallax error while you aim, the scope has a parallax-free point at 100 yd. For ballistics and wind compensations, you have windage and elevation adjustments with a gear that allows 1/4 MOA increments.
To withstand the rigors of any weather or environmental conditions, the housing is crafted from light and durable aluminum and has a 1" main tube. It is waterproof, fogproof, and impact resistant. All adjusters and knobs, which are oversized, are heavily knurled for a slip-free grip. The tactical-style windage and elevation turrets are taller than average to ensure effortless turning and offer clearly visible graduations. For a quick and easy assembly right out of the box, the scope ships with a built-in Picatinny mount, two flip-up lens covers, and one CR-2032 battery. - Optical Performance
-
- 3 - 9x zoom magnification
- Fully multi-coated optics improve clarity and brightness and reduce glare
- 42mm objective lens provides good visibility in most lighting conditions
- 37.9 - 11.5' @ 100 yard linear field of view
- 3.3" maximum eye relief
- 8.1 - 4.1 mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Powered by a single CR-2032 battery
- Construction
-
- 1" main tube
- Compact aluminum construction
- Tactical finger-operated turrets with graduations and quick re-zero
- Built-in short rail for a secondary sight or accessories
- Knurled zoom ring and adjustment knobs
- Picatinny style rail mount
- Waterproof and fogproof

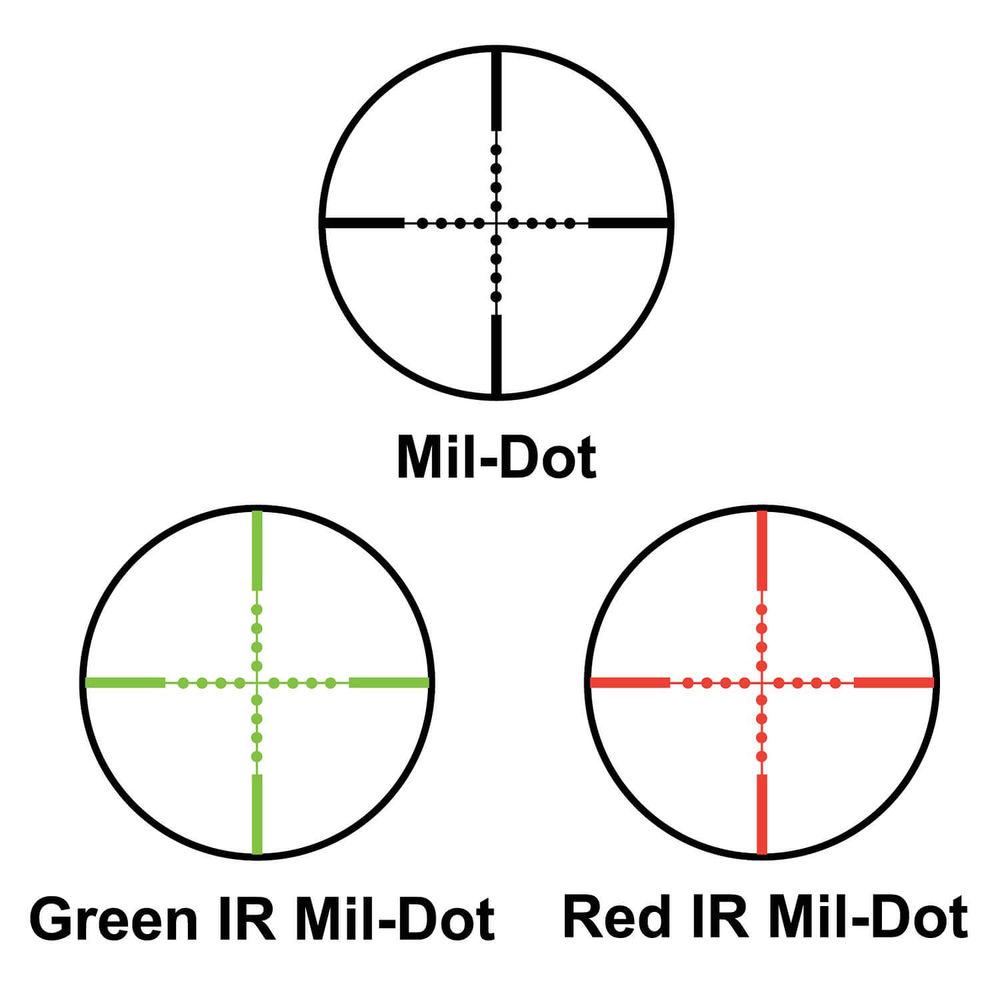

- Reticle
-
- Mil-Dot reticle
- 2nd focal plane
- Four bold posts and a crosshair with milling dots
- Full-field red and green illumination
- Adjustable illumination brightness
- Black non-illuminated reticle pattern
UPC: 790272001118 In the Box Barska 3-9x42 Contour Riflescope (Red-Green Mil-Dot Illuminated Reticle, Black Matte) - CR-2032 Battery
- 2 x Flip-Up Lens Cap
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-9x42 Contour Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12468 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 37.9' @ 100 yd / 12.6 m @ 100 m
9x: 11.5' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 3x: 8.1 mm
9x: 4.1 mm | | Eye Relief | 1.7 to 3.3" / 43.2 to 83.8 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 8" / 20.3 cm | | Weight | 16 oz / 453.6 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.4 x 3.45 x 3.25" |
