User Manual for Barska 3-9x42 Contour Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 3-9x42 Contour Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
|
User manual for the Barska 3-9x42 Contour Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

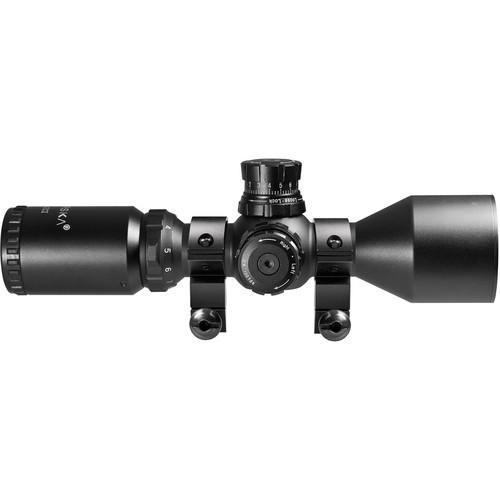

Product description Barska's 3-9x42 Contour Riflescope features bright, fully coated lenses, and 3-9x magnification. Thanks to its 42mm objective aperture, the scope makes a good companion in most lighting conditions, like dusk or dawn. Also noteworthy is the 2nd focal plane Mil-Dot Reticle, which provides four heavy posts and a crosshair with heavy dot-shaped marks. Its illumination offers adjustable brightness and a choice of a red or green color to accommodate your preferences or lighting conditions. To compensate for ballistics and winds, the scope provides 40 MOA windage and elevation adjustments with 1/4 MOA click values.
The aluminum housing offers a waterproof, fogproof, and shock-resistant performance. It features a 1" diameter maintube, and tactical-style lockable finger-operated windage and elevation turrets. All the rings and adjusters have knurling for a non-slip grip and easy tuning. This riflescope also includes two Picatinny/Weaver mounting rings, a CR-2032 battery, two lens caps, and a lens cloth. - Illuminated Mil-Dot reticle
-
- 2nd focal plane
- Four heavy posts
- Thin crosshair with ranging dots
- Red or green adjustable illumination
- Optical Performance
-
- 42mm objective
- Fully coated optics
- 3-9x magnification
- Long eye relief
- Use and Handling
-
- 1/4 MOA impact point correction
- 40 MOA windage and elevation adjustments
- Construction Details
-
- 1" maintube diameter
- Anodized aluminum housing
- Tall finger-operated lockable turrets
- Picatinny/Weaver mounting rings included
- Fogproof and waterproof
- Two lens caps included
UPC: 790272981618 In the Box Barska 3-9x42 Contour Riflescope (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR-2032 Battery
- 2 x Picatinny/Weaver Rings
- Lens Cloth
- 2 x Lens Caps
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-9x42 Contour Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC11422 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 18.6' @ 100 yd / 6.2 m @ 100 m
9x: 6.7' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.6 mm | | Eye Relief | 4.3 to 5.4" / 109 to 137.2 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 9" / 22.9 cm | | Weight | 17.5 oz / 496 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.3 x 3.5 x 3.4" |
