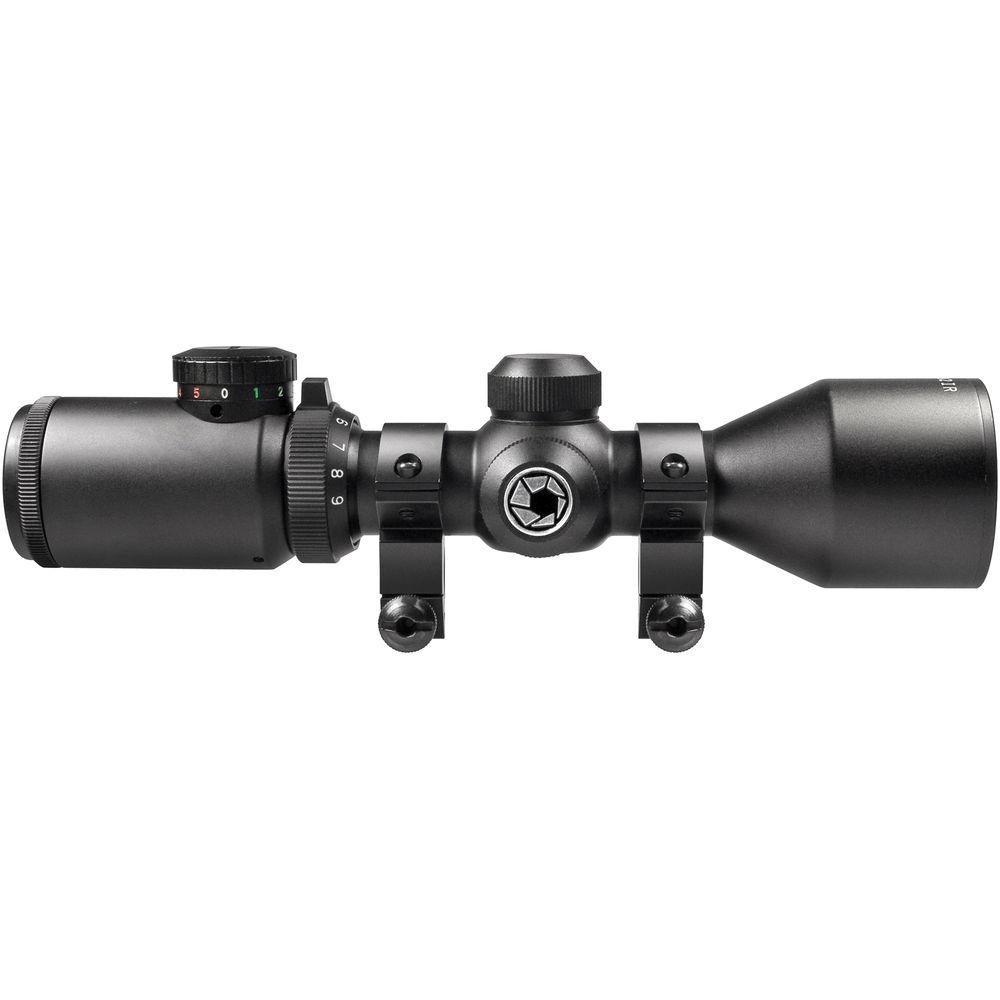

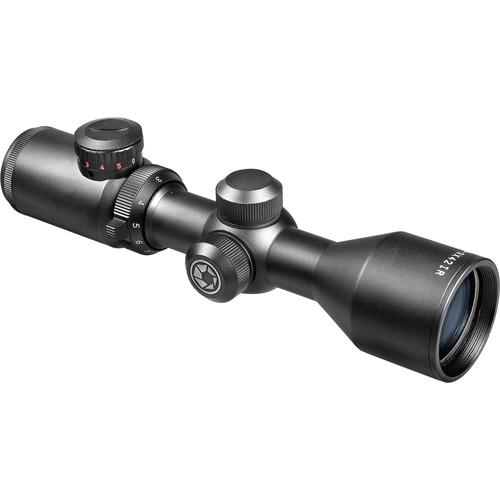

Product description The 3-9x42 Contour Riflescope (Black Matte) from Barska combines performance and innovation in a compact scope without sacrificing dependability, durability or workmanship. Offering low magnification with reasonable eye relief, this riflescope is ideal for AR-15, M-16, crossbows, pistols, and more. Engineered with rigid shockproof construction, the Contour can even handle the demands of shotguns and other high recoil weapons. This 3-9x42 Contour is accompanied with two ⅞" Picatinny base mounting rings. It has an illuminated 30/30 reticle and fully coated optics. The reticle color is user switchable; illuminated green, illuminated red or standard black. The illuminated colors have 5 brightness intensity settings each. The windage and elevation turrets have ¼ MOA click value adjustments. The Contour is waterproof, fogproof and shockproof and compact in size with low magnification. This is a very versatile riflescope for a very wide variety of shooting activities. And it is backed by Barska's Limited Lifetime Warranty. - Side windage & elevation adjustment turrets
- Shockproof, waterproof and fogproof protection
- Two ⅞" Picatinny base mounting rings included
- 1" single tube construction for rugged, long-lasting durability
- Five adjustable reticle brightness settings on the top of the ocular
- Illuminated red or green crosshairs powered by included CR2032 lithium battery
- Fully-coated lenses increase light transmission with an anti-reflective layer of coating on all air-to-glass lens surfaces

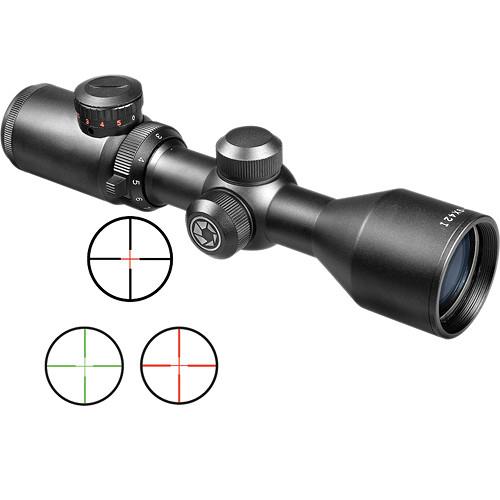

- The Illuminated 30/30 reticle features a familiar 4 post and cross hair configuration. Medium length and weight posts guide the eye to the center of the sight picture where the stadia intersect to indicate the exact point of aim. All 4 posts are user-defined red or green illuminated
UPC: 790272977215 In the Box Barska 3-9x42 Contour Riflescope (Black Matte) Lens Cloth 2 x Scope Caps 2 x Mounting Rings CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-9x42 Contour Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10552 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 36.7' @ 100 yd / 12.9 m @ 100 m
9x: 12.5' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | 30/30 Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 9.1" / 231 mm | | Weight | 16 oz / 453.6 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 10.4 x 3.5 x 3.4" |
