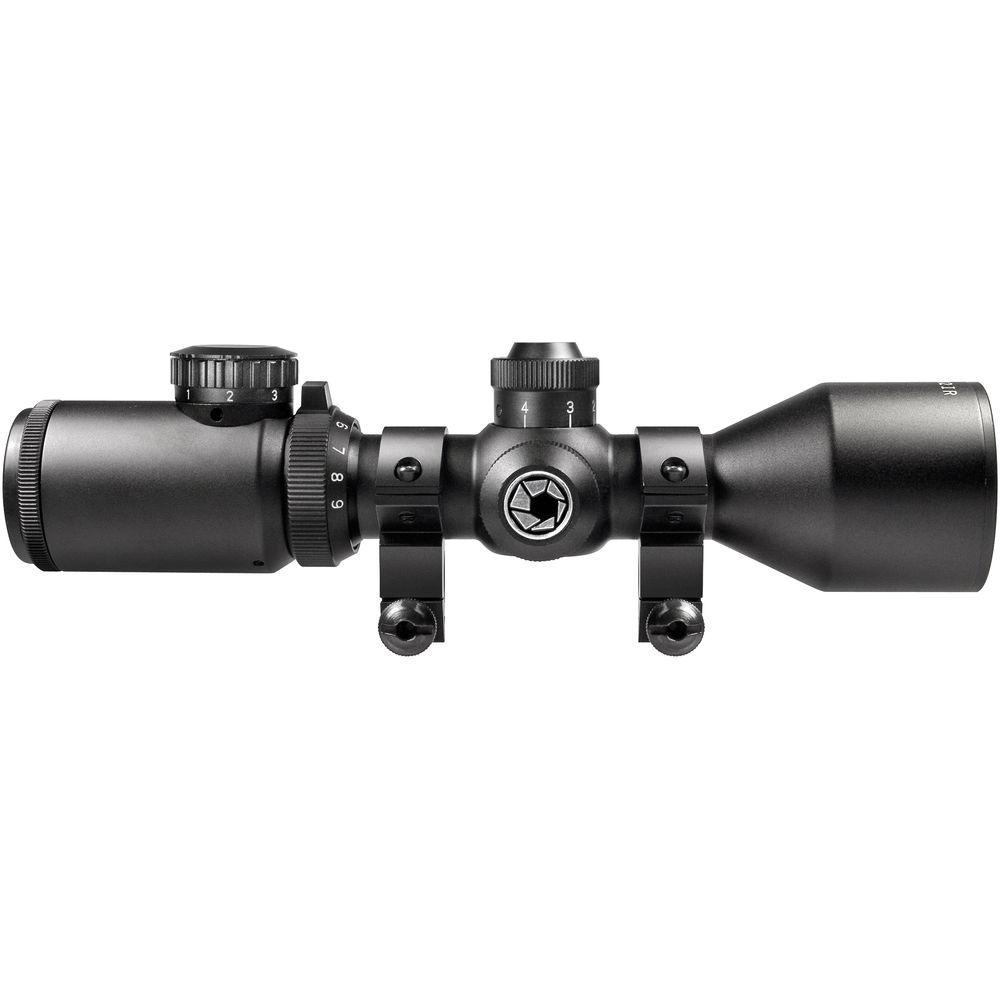

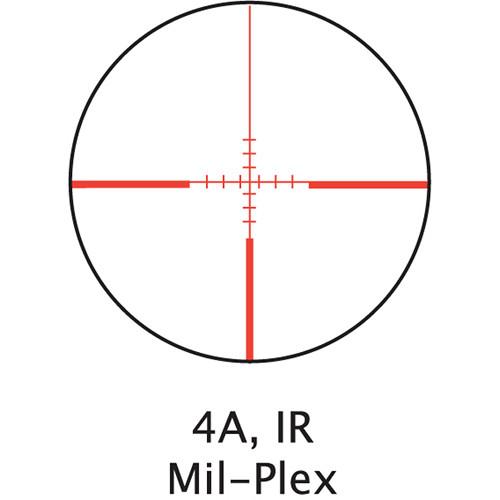

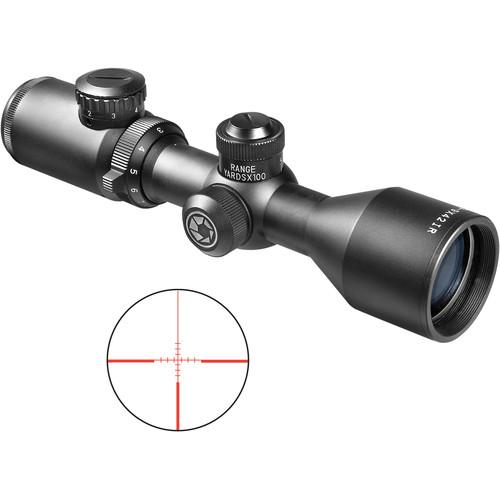

Product description Designed as a versatile optic for AR15s, M16s, crossbows, and pistols, the Barska 3-9x42 IR Contour Riflescope combines solid optical performance with a German #4-inspired IR 4A Mil-Plex Reticle. While the optics feature bright, fully coated lenses, 3-9x magnification, and a versatile 42mm objective, the 2nd focal plane reticle offers full-pattern bright red illumination, four tapered posts, and a thin crosshair with bar-shaped marks. To compensate for ballistics and wind, the scope provides a 40 MOA windage and elevation range with 1/4 MOA increments.
The aluminum housing offers waterproof, fogproof, and shock-resistant performance. It features a 1" diameter maintube, short sunshade, and capped windage and elevation turrets. The eyepiece carries a medium-sized zoom lever and an oversized reticle brightness knob with a rheostat and a battery compartment inside. This riflescope also includes two Weaver mounting rings, two lens caps, a CR-2032 battery, and a lens cloth. - Reticle
-
- IR 4A Mil-Plex reticle
- 2nd focal plane
- Red full-reticle illumination
- Four tapered posts
- Thin crosshair with bar marks
- Optical Performance
-
- 42mm objective
- Fully coated optics
- 3-9x magnification
- 4" eye relief
- Use and Handling
-
- 1/4 MOA impact point correction
- 40 MOA windage and elevation adjustments
- Construction Details
-
- 1" maintube diameter
- Anodized aluminum housing
- Integrated short sunshade
- Medium zoom lever on eyepiece
- Two Weaver mounting rings included
- Two lens caps included
- Capped turrets
- Nitrogen-filled, fogproof and Waterproof
UPC: 790272977635 In the Box Barska 3-9x42 IR Contour Riflescope (Illuminated IR 4A Mil-Plex Reticle, Black Matte) - CR-2032 Battery
- 2 x Weaver Rings
- 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3-9x42 IR Contour Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10634 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 36.7' @ 100 yd / 11.3 m @ 100 m
9x: 12.5' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.6 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | MIL Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 9.8" / 24.9 cm | | Weight | 16 oz / 453.6 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.2 x 3.4 x 3.2" |
