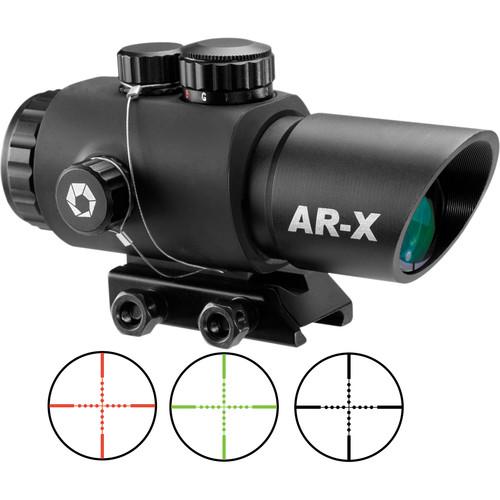

User Manual for Barska 3x30mm AR-X Red-Green Prism Scope Click to enlarge the picture
Contents of the user manual for the Barska 3x30mm AR-X Red-Green Prism Scope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
|
User manual for the Barska 3x30mm AR-X Red-Green Prism Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|
Product description Gain tactical edge with the AR-X 3x30mm Red-Green Prism Scope from Barska. The sight features are its red-green Mil-Dot illuminated reticle, which offers parallax-free aiming at 100 yards, adjustable reticle brightness, and a built-in angled sunshade that reduces glare from the sun and protects the objective lens from debris and rain. While the multiple anti-reflection coatings produce bright and clear views without ghost images, the roof prism configuration reduces the overall length of the sight, which enables it to be attached to short rails and used as a secondary sight. For ballistics and wind compensation, the device offers windage and elevation adjustment with 1/4 MOA per click increments.
Made from aluminum with a rubber covering, the durable and lightweight housing offers a water-resistant, fogproof, and shock-resistant performance. The wide adjustment rings and turrets are knurled for a non-slip grip, and the windage and elevation caps have retaining cables. For attachment to rails, the sight has a built-in Weaver mount. Also included are a CR-1620 battery, flip-up lens caps, and a lens cloth. - Reticle
-
- Mil-Dot reticle
- Red and green illuminated patterns
- Black non-illuminated pattern
- Fully-illuminated reticle pattern:
- Four thick posts
- Thin crosshair
- Heavy ranging dots
- 5 illumination levels
- Parallax-free performance at 100 yd
- Optical Features
-
- Roof prism
- 3x magnification
- 30mm objective diameter
- Multi-coated optics
- Linear field of view: 39.4' @ 100 yd
- Use and Handling
-
- Windage and elevation adjustment
- 1/4 MOA per click Impact Point Correction
- Construction Details
-
- Aluminum with rubber armor
- Knurled adjustment rings
- Retaining cables on turret caps
- Built-in angled sunshade
- Flip-up lens caps
- Weaver rail mount
- Water-resistant and fogproof
- Shock-resistant
UPC: 790272984749 In the Box Barska 3x30mm AR-X Red-Green Prism Scope (Illuminated Mil-Dot Reticle, Matte Black) - CR-1620 Battery
- 2 x Flip-Up Lens Caps
- Lens Cloth
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 3x30mm AR-X Red-Green Prism Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12146 Specs | | | Magnification | 3x | | Objective Lens Diameter | 30 mm | | Field of View | 39.4' @ 100 yd / 12 m @ 100 m | | Eye Relief | 2.8" / 70 mm | | | | Reticle Type | IR MIL Dot Reticle | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Water Resistant | | Fogproof | Yes | | | | Battery | 1 x CR1620 | | Dimensions | Length: 5.5" / 14 cm | | Weight | 16 oz / 454 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.4 x 3.7 x 3.4" |
