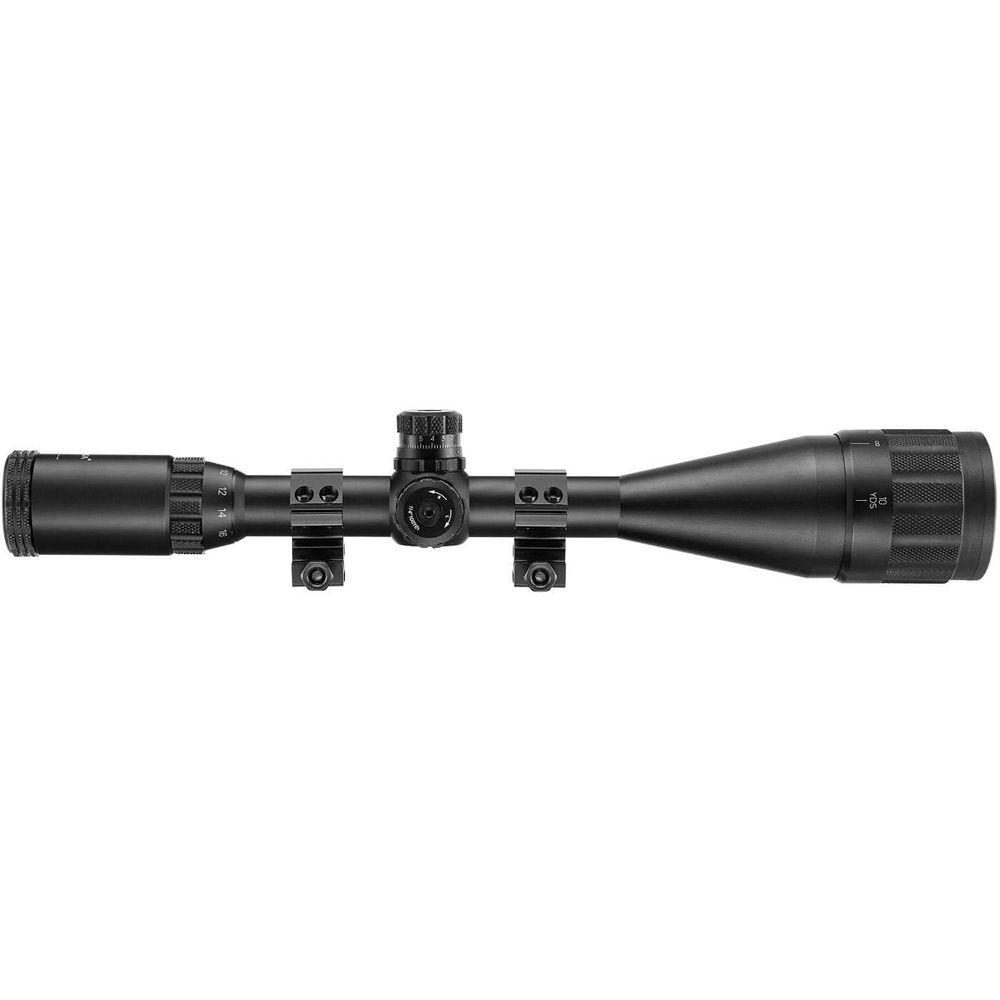

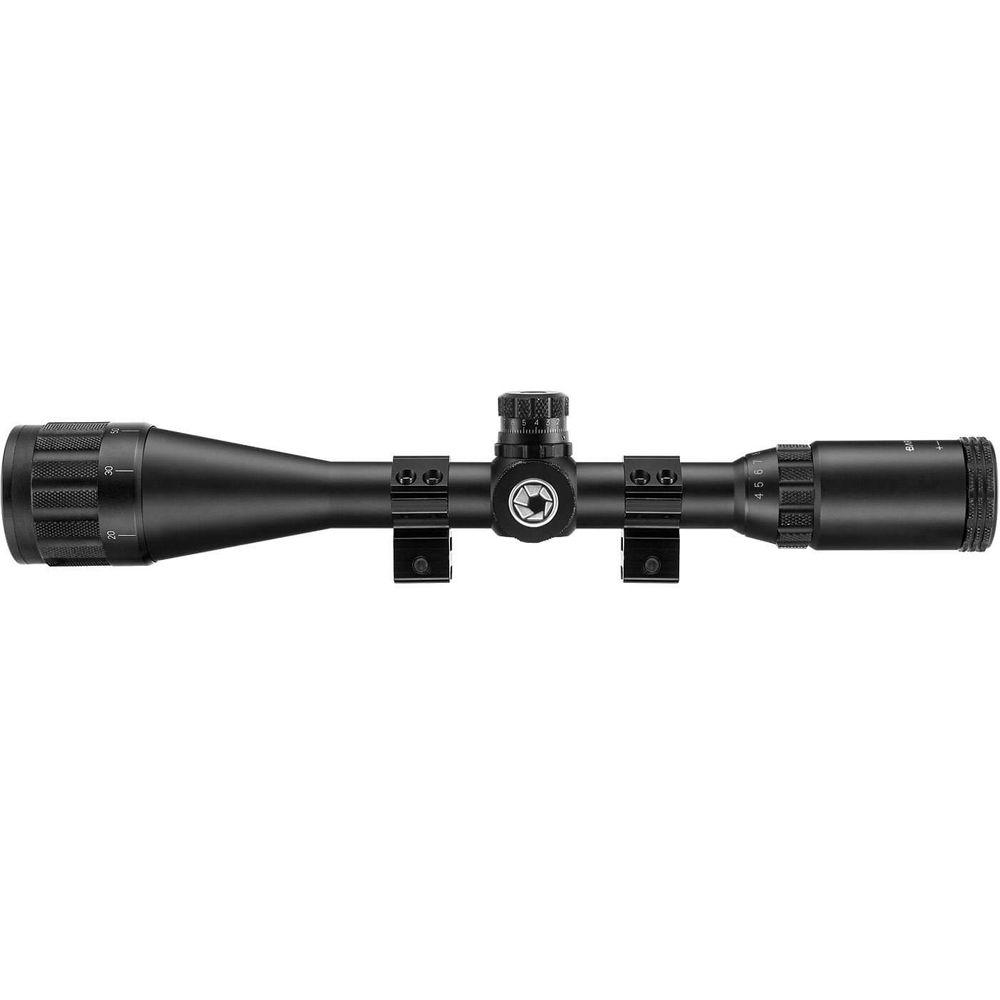

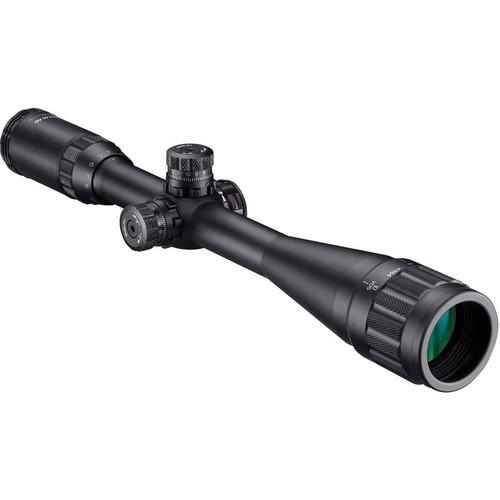

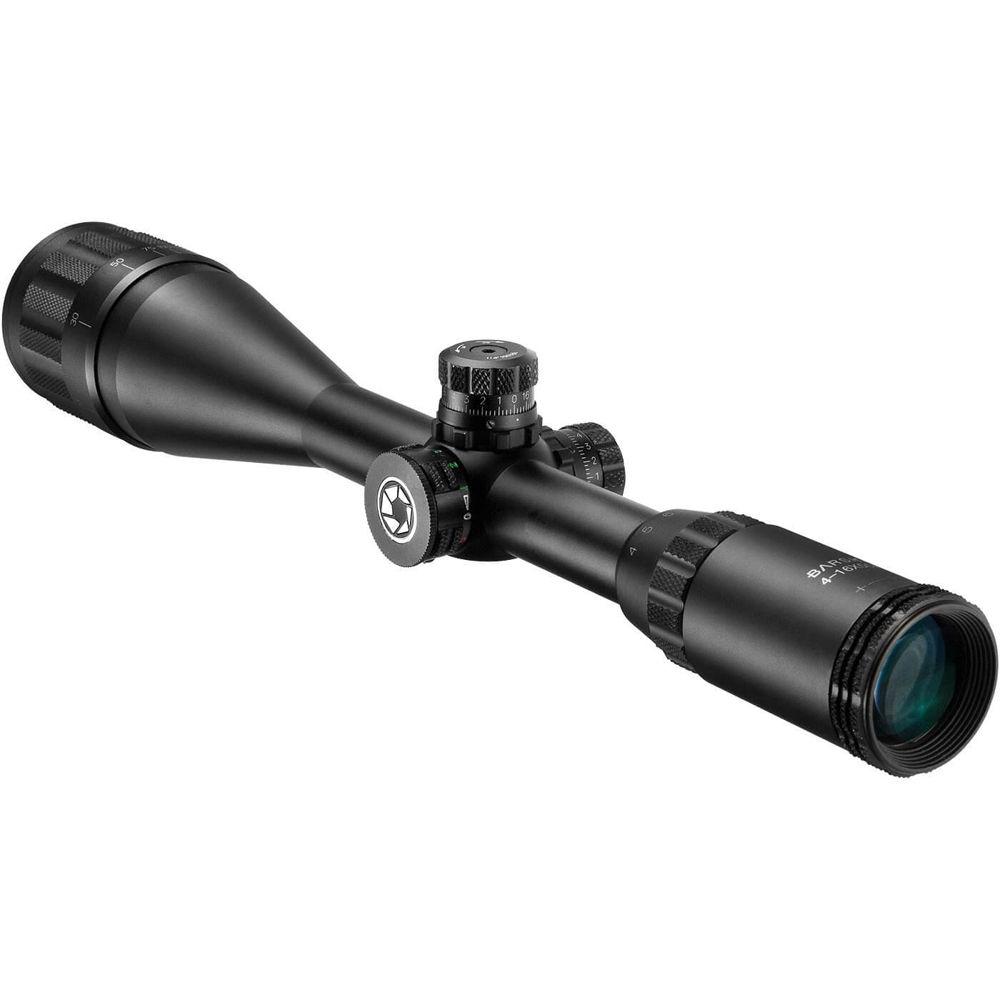

Product description Barska's 4-16x40 AO IR Blackhawk Riflescope is designed for accuracy, durability, and ease of use. The optical system offers a generous zoom from 4x to 16x, clear and bright fully multi-coated optics, a wider 40mm objective, and 24.8 - 6.2' (at 100 yd) field of view, and its aiming enhancements provide an illuminated Mil-Dot reticle and an adjustable objective (AO) parallax corrector. Placed in the 2nd focal plane, the reticle features four bold posts and a crosshair with milling dots. It is fully illuminated in red or green, depending on the time of the day or your preference, and offers five brightness levels. To reduce parallax error while you aim, the scope is outfitted with an adjustable objective corrector with a parallax free range from 10 yd to infinity. For ballistics and wind compensations, you have windage and elevation adjustments with a gear that allows 1/4 MOA increments.
To withstand the rigors of any weather or environmental conditions, the housing is crafted from light and durable aluminum and has a 1" maintube. It is waterproof, fogproof, and impact resistant. All adjusters and knobs are heavily knurled for a slip-free grip. The tactical-style windage and elevation turrets are taller than average to ensure effortless turning and offer clearly visible graduations. For quick and easy assembly right out of the box, the scope ships with mounting rings, two flip-up lens covers, and one CR-2032 battery. - Optical Performance
-
- 4 - 16x zoom magnification
- Fully multi-coated optics improve clarity, brightness, and reduce glare
- 40mm objective lens provides good visibility in most lighting conditions
- 24.8 - 6.2' @ 100 yd linear field of view
- 3.3" maximum eye relief
- 10.0 - 2.5 mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Construction
-
- 1" maintube
- Aluminum construction

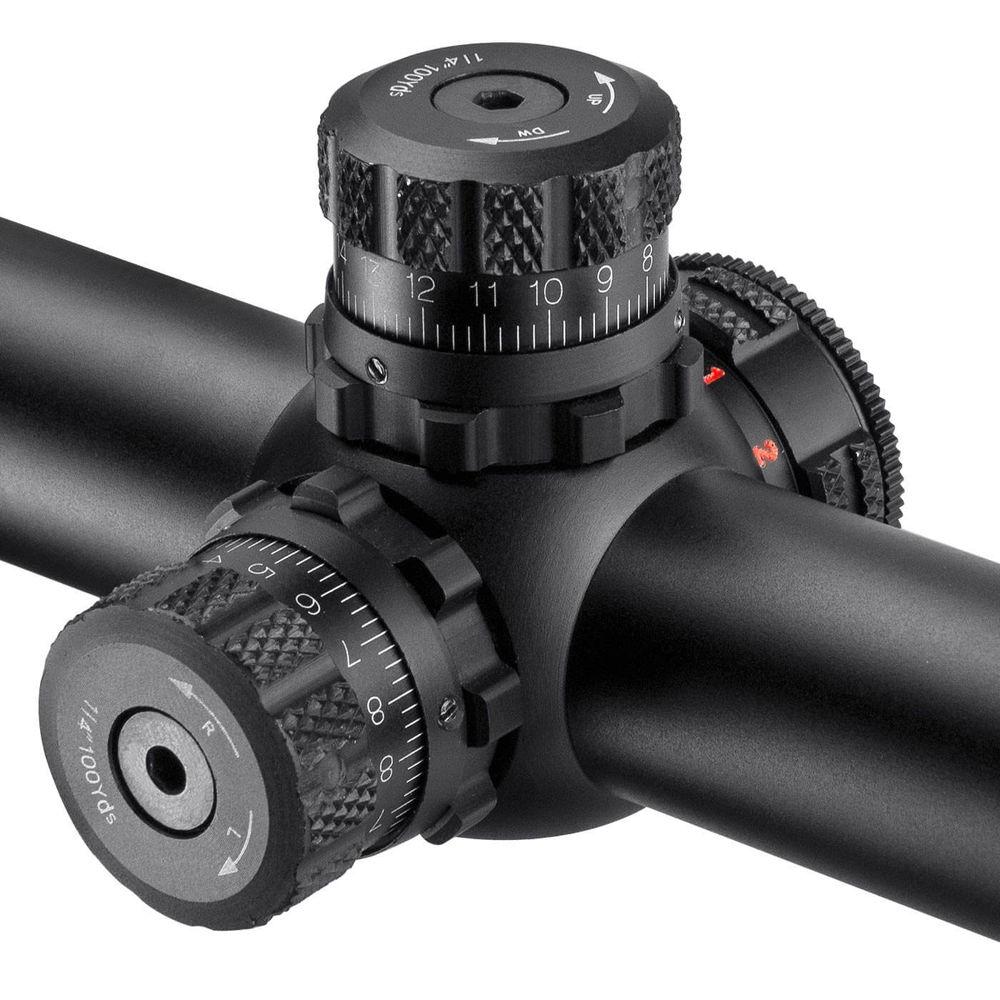

- Tactical finger-operated turrets with graduations
- AO - Adjustable objective ring for parallax corrections
- Knurled zoom ring and adjustment knobs
- Mounting rings and flip-up lens covers included
- Waterproof and fogproof

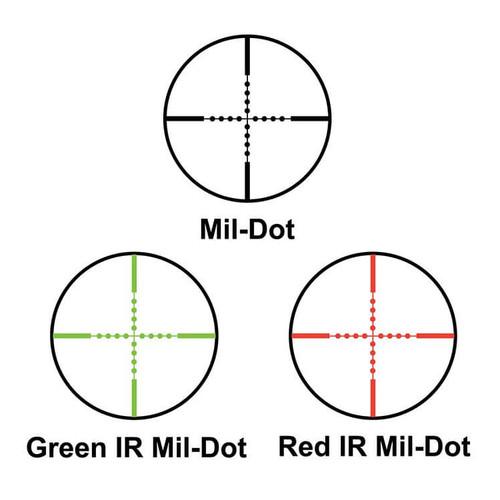

- Reticle
-
- Mil-Dot reticle
- 2nd focal plane
- Four bold posts and a crosshair with milling dots
- Full-field red and green illumination
- Adjustable illumination brightness with 5 brightness levels
- Black non-illuminated reticle pattern
- Powered by a single CR-2032 battery
UPC: 790272001088 In the Box Barska 4-16x40 AO IR Blackhawk Riflescope (Red-Green Illuminated Mil-Dot Reticle, Matte Black) - CR-2032 Lithium Battery
- 2 x Flip-Up Lens Cover
- 2 x Scope Ring
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 4-16x40 AO IR Blackhawk Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12453 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 24.8' @ 100 yd / 8.3 m @ 100 m
16x: 6.2' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
16x: 2.5 mm | | Eye Relief | 3.1 to 3.3" / 78.7 to 83.8 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 14.8" / 37.6 cm | | Weight | 17.6 oz / 499 g |
