User Manual for Barska 4-16x40 Point Black Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 4-16x40 Point Black Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 4-16x40 Point Black Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

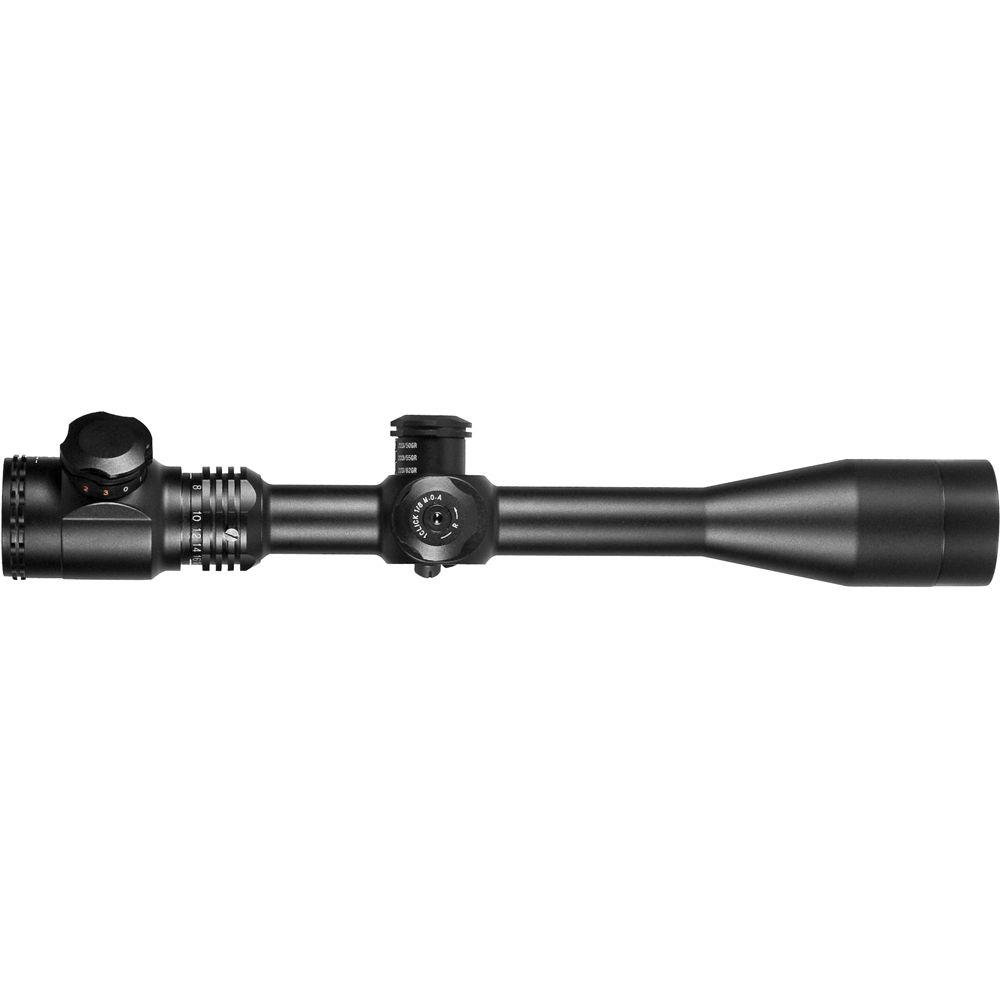

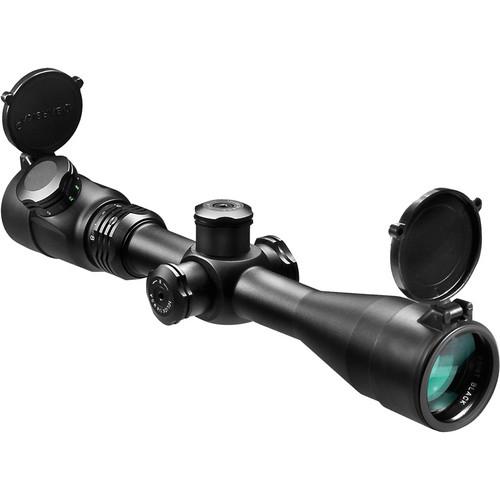

Product description The 4-16x40 Point Black Riflescope (Black Matte) from Barska features bullet-drop technology specifically designed for .223 caliber shooting. The scope's elevation turret is calculated to compensate for the elliptical drop of the .223 with either a 50, 55 or 62 grain bullet. A multi-grain bullet drop compensation chart (B.D.C) is engraved on the elevation turret. The Point Black riflescope can be combined with varmint rifles, bolt action rifles, semiautomatic rifles, AR-15 / M-16 assault rifles, Mini-14, ranch rifles and any of the large selection of firearms that chamber the high velocity .223 bullet. The Point Black has a black matte finish, a 1" single-tube construction, is provisioned with an illuminated, user-selectable green, blue or red 3G glass etched reticle and a fast focus eyebell. It boasts a generous 3.9 inches of eye relief. The click value adjustment of the windage and elevation turrets is ⅛ MOA. Barska's proprietary Accu-Lock technology locks the inner tube of the scope providing continuous accuracy over time. Fully multicoated optics for brighter viewing, an adjustable side parallax correction turret, easy-grip target-style windage and elevation turrets, an included CR2032 battery and flip-up scope caps give this riflescope offering a plethora of features at a very acceptable price. And, it is backed by Barska's Limited Lifetime Warranty. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure that a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - ⅛ MOA click value for the easy-grip windage & elevation high turrets
- 1" single-tube construction provides increased strength and durability
- Adjustable side parallax correction allows continuous accuracy and precision
- High impact rated shockproof for heavy duty use in rugged shooting environments
- CO2 dry nitrogen purged and o-ring sealed waterproof and fogproof in all types of weather
- Three multi-grain .223 BDC elevation turret calibrations for 50GR, 55GR and 62GR bullets
- Adjustable rheostat settings allow the brightness of the reticle to be controlled by the user
- Fully multicoated optics: multiple layers on all air to glass surfaces for a brighter, higher-contrasted image with less eyestrain

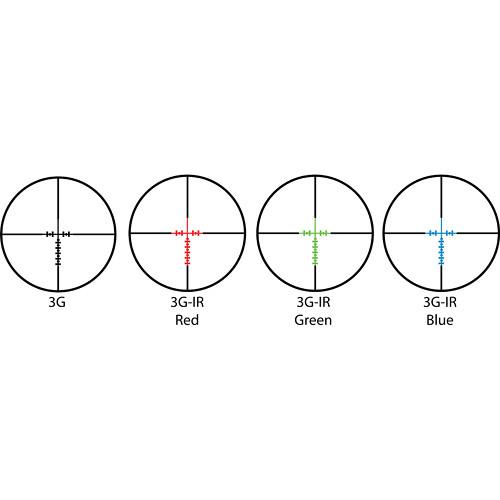

- The Illuminated G3 reticle features 4 medium weight posts and a floating center cross hair configuration. The bottom of the vertical light weight cross hair and the two horizontals are hash marked for bullet drop and ranging. The reticle color is user-defined as green, blue, red or black without the illumination
UPC: 790272981458 In the Box Barska 4-16x40 Point Black Riflescope (Black Matte) Lens Cloth 2 x Flip-Up Scope Caps CR2032 Lithium Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 4-16x40 Point Black Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC11390 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 17.3' @ 100 yd / 5.7 m @ 100 m
16x: 4.2' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
16x: 2.5 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | 3G Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/8 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.8 cm | | Weight | 21.2 oz / 600 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 15.5 x 4.7 x 3.3" |
