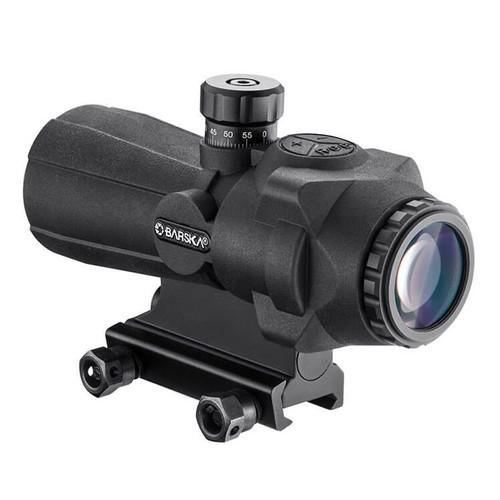

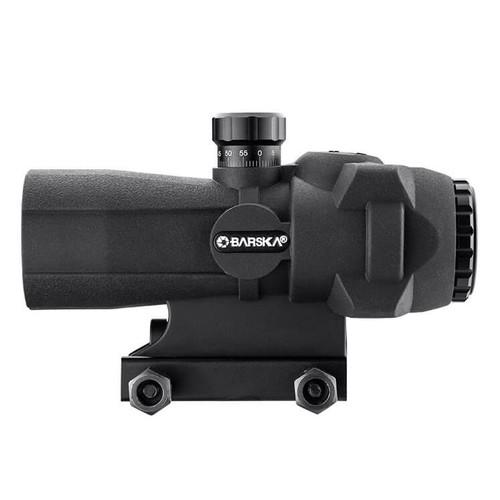

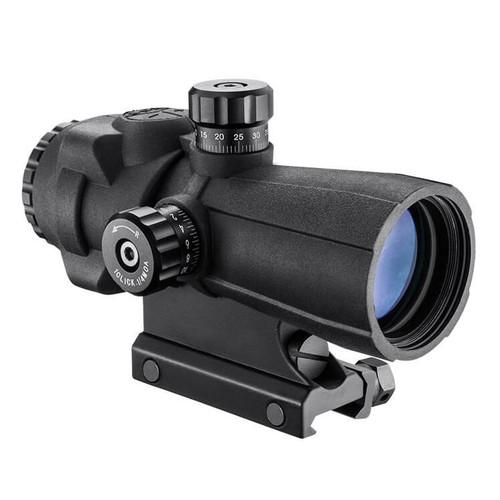

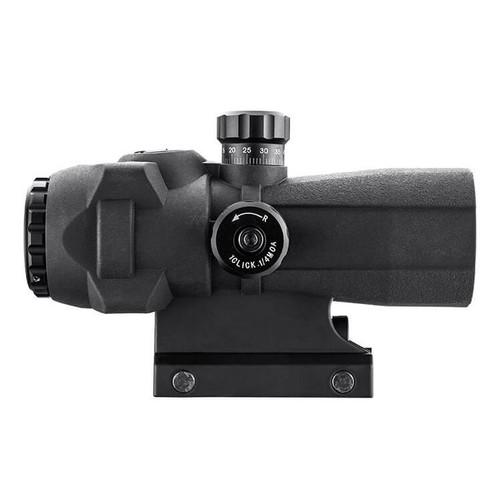

Product description Gain tactical advantage with the Barska AR-X PRO 4x32 Prism Scope. The sight features a Cross Dot reticle with adjustable brightness and an illuminated center dot. The dot illumination is available in three colors – red, green, and blue – to accommodate your personal preference or visibility in different lighting conditions. To deliver bright and clear images, the optics have multiple anti-reflection coatings. With 4x magnification, you will get a notable close-up view on faraway targets as well as precision aim in close-quarter situations. The scope also offers adjustable windage and elevation and exposed finger-operated turrets with a 1/4 MOA impact point correction.
The sight's aluminum housing features a protective rubberized coating, offers waterproof and fogproof performance, and can be mounted on a Picatinny or Weaver rail. The rubberized armoring and knurled knobs provide a sure grip. - Optical Performance
-
- Multi-coated lenses
- 4x magnification
- 32mm objective diameter
- Linear field of view: 28.8" at 100 yards
- Eye relief: 2.8"
- Exit pupil: 8mm
- Use and Handling
-
- 1/4 MOA impact point correction
- Windage and elevation adjustments
- Rubberized ergonomic control menu pad on top
- Construction Details
-
- Aluminum housing
- Rubberized coating protects from impact
- Graduated knurled finger-operated windage and elevation adjustments
- Waterproof and fogproof
- Picatinny/Weaver mount

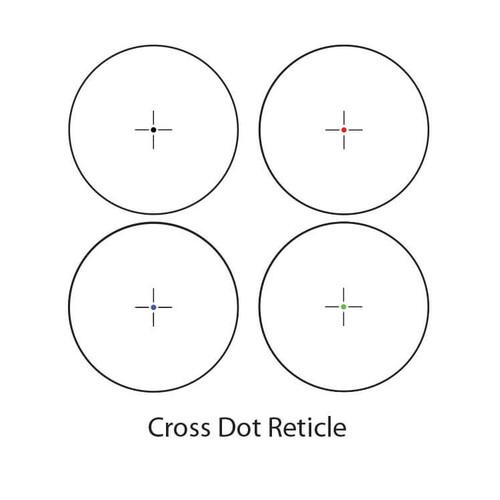

- Reticle
-
- Cross Dot reticle
- Four short thin posts
- Red, green, or blue center dot illumination
- Adjustable brightness
UPC: 790272002238 In the Box Barska 4x32mm AR-X PRO Prism Scope (Cross Dot Illuminated Reticle, Matte Black) - AAA Battery
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 4x32mm AR-X PRO Prism Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12694 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 28.8' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 2.8" / 70 mm | | | | Reticle Type | Cross-Dot Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x AAA | | Dimensions | Length: 5.5" / 14 cm | | Weight | 17.6 oz / 499 g |
