User Manual for Barska 5x40 AR-X Pro Prism Scope Click to enlarge the picture
Contents of the user manual for the Barska 5x40 AR-X Pro Prism Scope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 5x40 AR-X Pro Prism Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

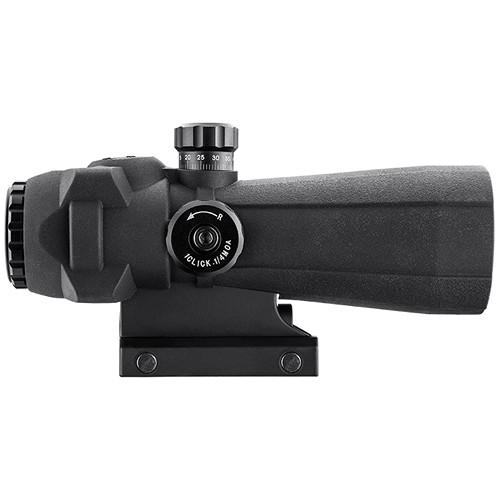

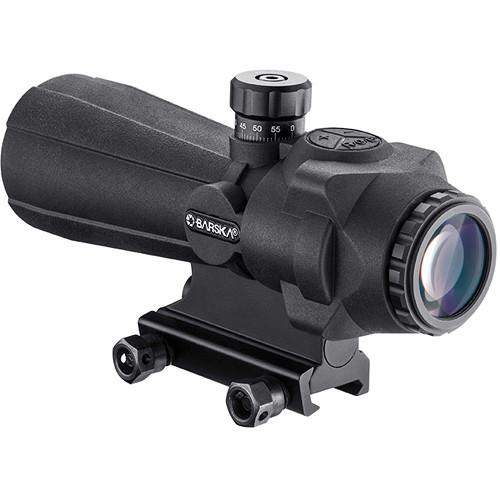

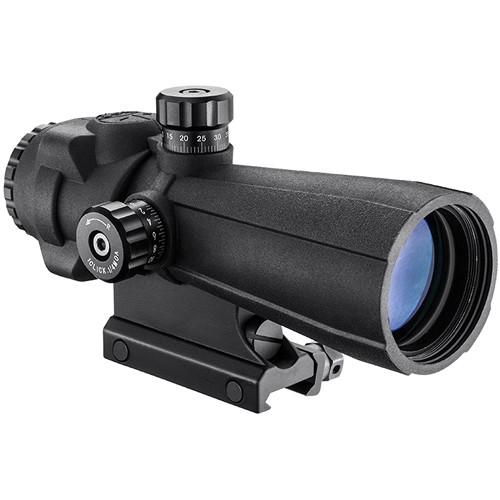

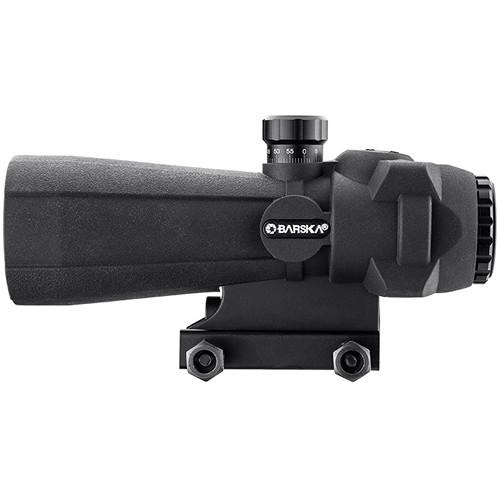

Product description Gain tactical advantage with the Barska AR-X PRO 5x40 Prism Scope. The sight features a Mil-Dot reticle with adjustable brightness and an illuminated center dot. The dot illumination offers three colors: red, green, and blue to accommodate your personal preference or visibility in different lighting conditions. To deliver bright and clear images, optics have multiple anti-reflection coatings. With 5x magnification, you will get a notable close-up on faraway targets as well as a precision aim in close quarter combat situations. The optic also offers adjustable windage and elevation and exposed finger-operated turrets with a 1/4 MOA impact point correction.
The sight's aluminum housing features a protective rubberized housing, offers a waterproof and fogproof performance, and can be mounted on a Picatinny or a Weaver rail. The rubberized armoring and knurled knobs provide a sure grip. - Reticle
-

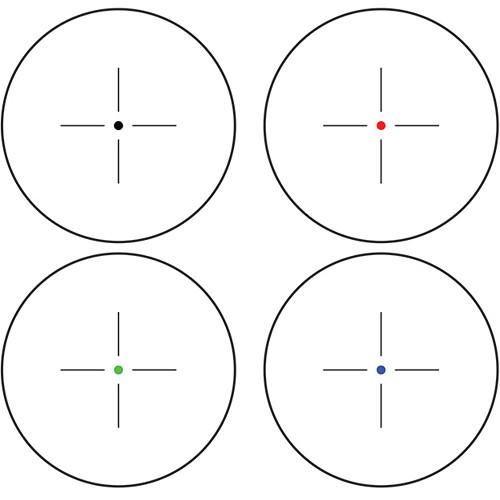

- Illuminated Cross-Dot
- Red, green, or blue center dot illumination
- Adjustable brightness
- Optical Performance
-
- Multi-coated lenses
- 5x magnification
- 40mm objective diameter
- Linear field of view: 28.8' at 100 yards
- Eye relief is 2.76"
- Exit pupil is 8mm
- Use and Handling
-
- 1/4 MOA impact point correction
- Adjustable windage and elevation
- Rubberized control button on top
- Construction Details
-
- Aluminum housing
- Rubberized coating
- Exposed finger-operated turrets with scales
- Knurled adjusters and rings
- Picatinny/Weaver mount
- Waterproof and fogproof
UPC: 790272002245 In the Box Barska 5x40 AR-X Pro Prism Scope (Red-Green-Blue Illuminated Cross-Dot Reticle, Black) - AAA Battery
- Allen Wrench
- Cleaning Cloth
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 5x40 AR-X Pro Prism Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12696 Specs | | | Magnification | 5x | | Objective Lens Diameter | 40 mm | | Field of View | 28.8' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 2.8" / 70 mm | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x AAA | | Dimensions | Length: 6.5" / 165.1 mm | | Weight | 19.2 oz / 544.3 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
