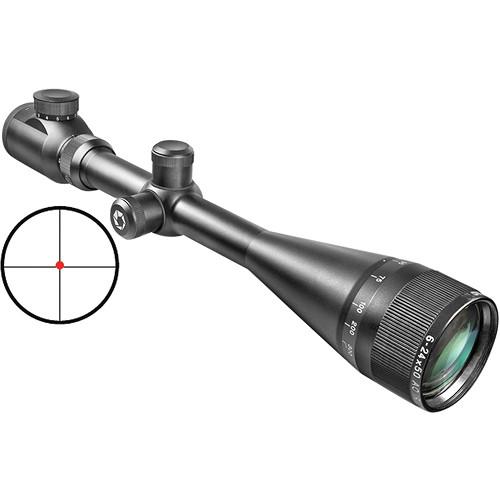

User Manual for Barska 6-24x50 Excavator Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 6-24x50 Excavator Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
|
User manual for the Barska 6-24x50 Excavator Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|
Product description Optimized for big game, the medium-to-long-range 6-24x50 Excavator Riflescope is designed to excel in low-light conditions and distance shooting. The optical system features high transmission multi-coated optics and a wide 50mm objective lens for providing the brightest possible images at dusk or down. The riflescope also features an IR Target Reticle with four thin posts and an illuminated bright red center dot. The illumination system features variable brightness with eleven settings. To correct for parallax error when aiming for precision shots, this optic provides an adjustable objective with a range from 25 yd to infinity. For ballistic drop and wind-drift, the capped windage and elevation turrets offer 1/8 MOA impact point correction and a 50 MOA total range.
The anodized aluminum housing has a 1" maintube and delivers a waterproof, fogproof, and shock-resistant performance. Other highlights of construction are knurled knobs and rings for a comfortable and non-slip grip and a fast focus eyepiece with reticle brightness knob. Also included are a 3" sunshade, CR-2032 battery, two Weaver mounting rings, two flip-up lens caps, and a lens cloth. Reticle -
- IR Target Dot reticle
- 2nd focal plane
- Four thin posts
- Thin crosshair
- Parallax correction:
- Adjustable objective
- 25 yd to infinity
Optical Performance -
- Multi-coated optics improve transmission
- Magnification of 6-24x for medium-to-long range
- 50mm objective lens for low-light conditions
- Field of view: 15-4.2' at 100 yd
- Long eye relief of 3.6"
Use and Handling -
- 1/8 MOA impact point correction
- 50 MOA windage and elevation adjustments
Construction Details -
- 1" maintube
- Anodized aluminum body
- Knurled adjustment rings
- AO - adjustable objective corrects parallax
- Flip-up lens caps included
- Waterproof and fogproof
- Shock-resistant
UPC: 790272977239 In the Box Barska 6-24x50 Excavator Riflescope (Illuminated IR Target Dot Reticle, Matte Black) - 2 x Weaver Rings
- CR-2032 Battery
- 2 x Flip-Up Lens Caps
- 3" Sunshade
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 6-24x50 Excavator Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10556 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 15' @ 100 yd / 5 m @ 100 m
24x: 4.2' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 3.6" / 91 mm | | | | Reticle Type | IR Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 33 cm | | Weight | 21.1 oz / 598.2 g | | | | Package Weight | 2.64 lb | | Box Dimensions (LxWxH) | 18.0 x 7.9 x 4.65" |
