User Manual for Barska 6-24x60 IR SWAT Sniper Scope Click to enlarge the picture
Contents of the user manual for the Barska 6-24x60 IR SWAT Sniper Scope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 6-24x60 IR SWAT Sniper Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

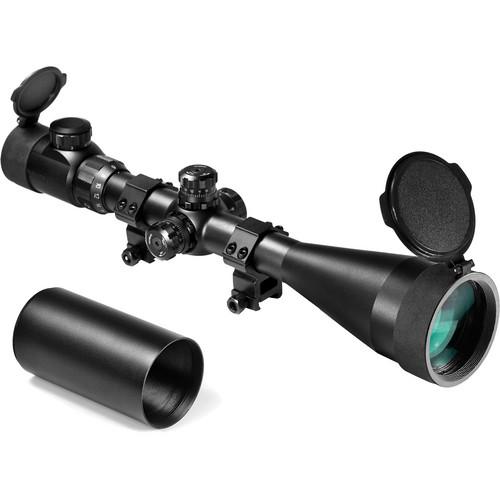

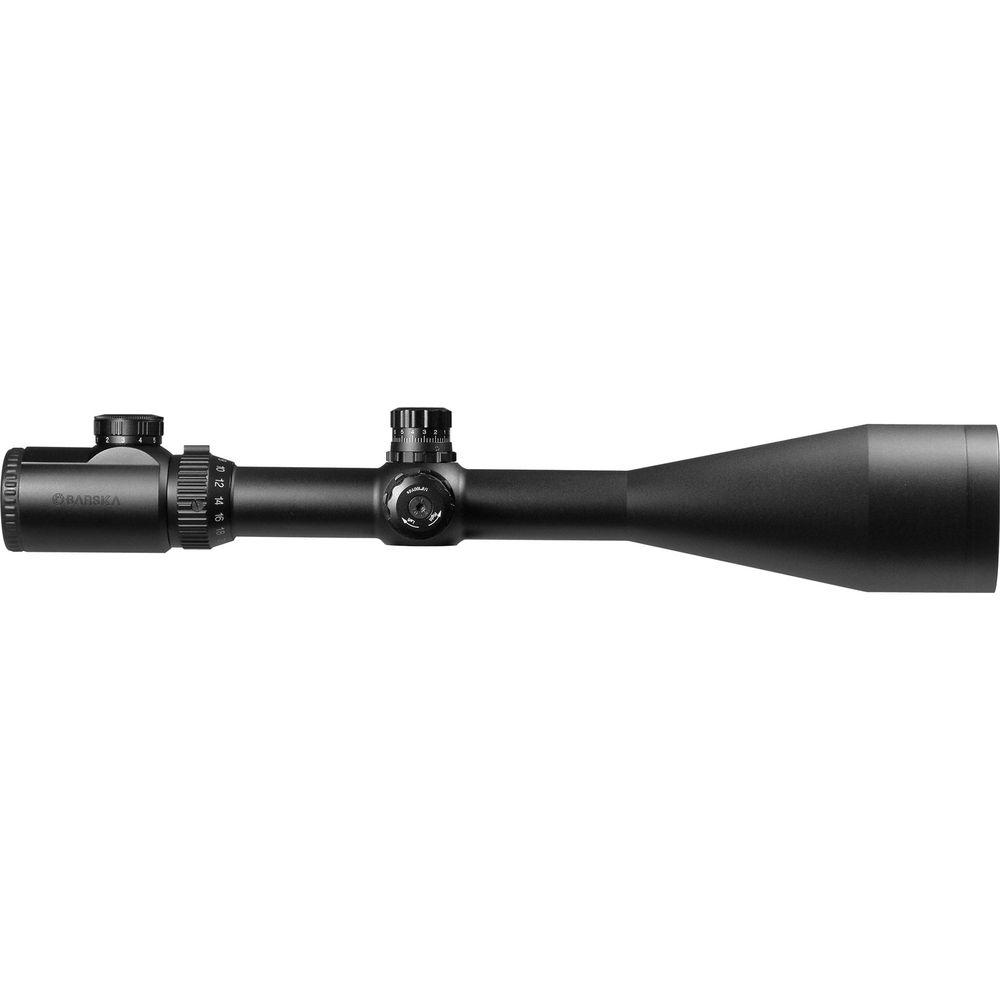

Product description Gain tactical advantage in the battlefield with the Barska 6-24x60 IR SWAT Sniper Scope. The device is well-suited for making high precision and distant shots, and features high transmission fully multi-coated optics. With medium-to-long-range magnification and an extra-wide 60mm aperture, you will get bright images of targets in low-light conditions at high zoom. Also noteworthy is a 2nd focal plane Mil-Dot Reticle with illuminated crosshair and ranging dots. It features four long and heavy posts and a thin crosshair with dot-shaped marks. To correct for parallax error when aiming for precision shots, this optic provides a side focus parallax dial with a range from 20 yd to infinity. For ballistic drop and wind-drift, the capped windage and elevation turrets offer 1/8 MOA impact point correction and a 60 MOA total range.
The anodized aluminum housing has a 30mm maintube and delivers a waterproof, fogproof, and shock-resistant performance. All the knobs and rings are heavily knurled for a comfortable and non-slip grip. Also included are, two Weaver rings, 5" sunshade, one CR-2032 battery, two flip-up lens caps, and a lens cloth. Reticle -

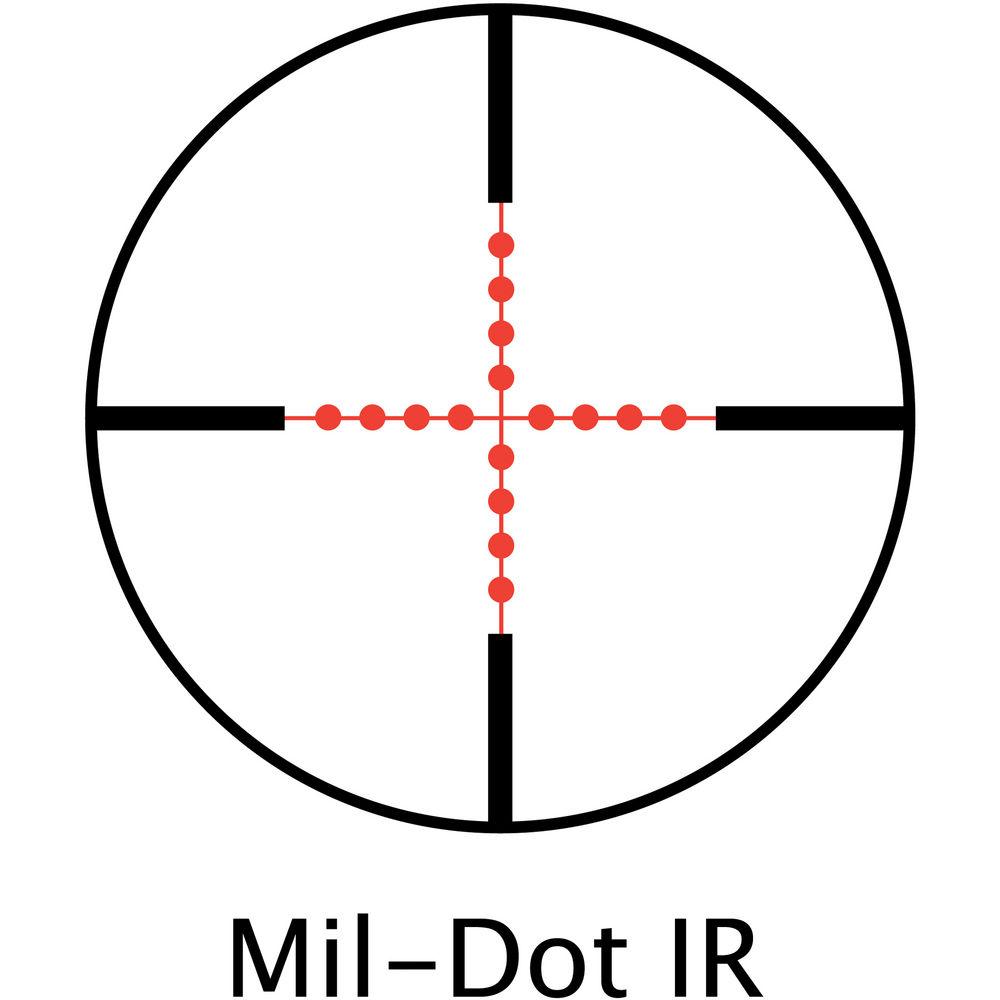

- Red-illuminated Mil-Dot reticle
- 2nd focal plane
- Four heavy posts
- Thin crosshair with ranging dots
- Parallax correction:
- Side focus parallax knob
- 20 yd to infinity range
Optical Performance -
- 60mm extra-wide objective improves brightness at high zoom and low-light conditions
- Fully multi-coated optics improve transmission
- Magnification of 6-24x for a medium-to-long range
- Field of view: 15-4.2' at 100 yd
- Long eye relief of 3.5"
Use and Handling -
- 1/8 MOA impact point correction
- 60 MOA windage and elevation adjustments
Construction Details -
- 30mm maintube
- Anodized aluminum body

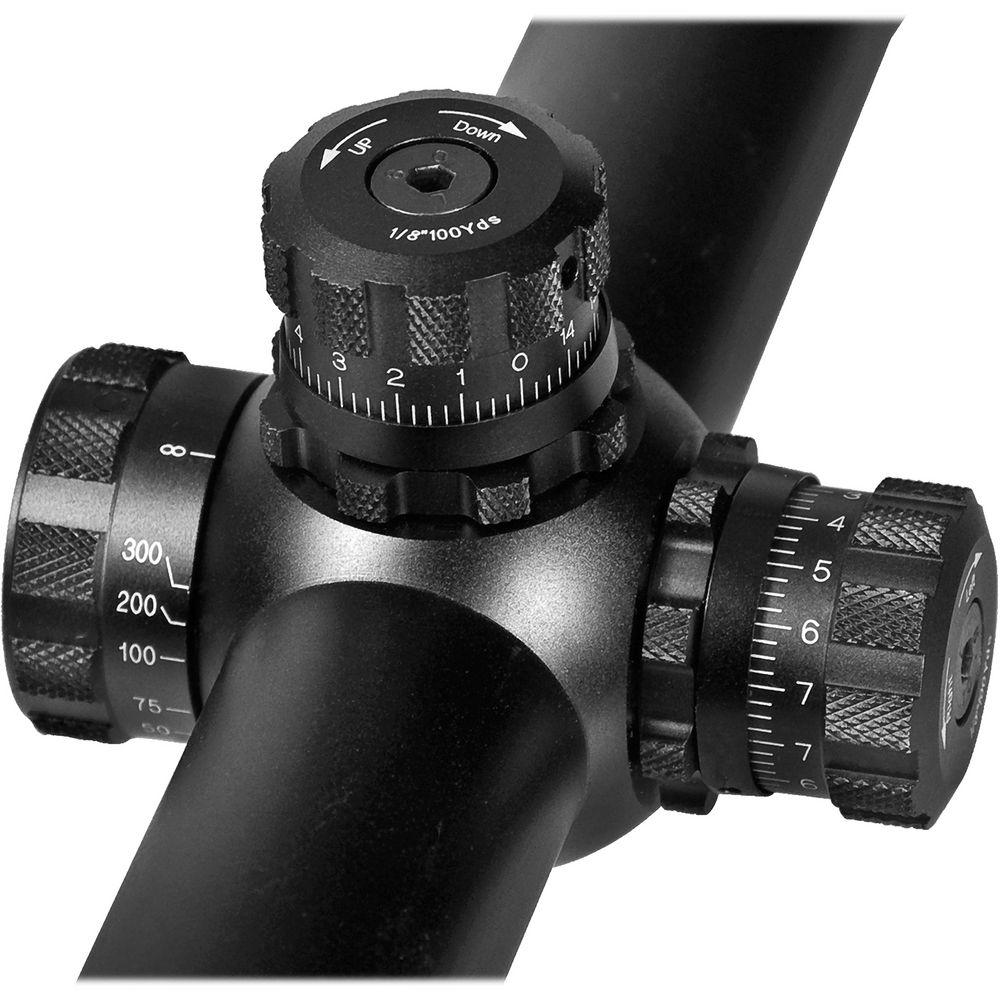

- Lockable windage and elevation turrets
- Knurled adjustment rings
- Side focus parallax knob
- Flip-up lens caps included
- 5" Sunshade included

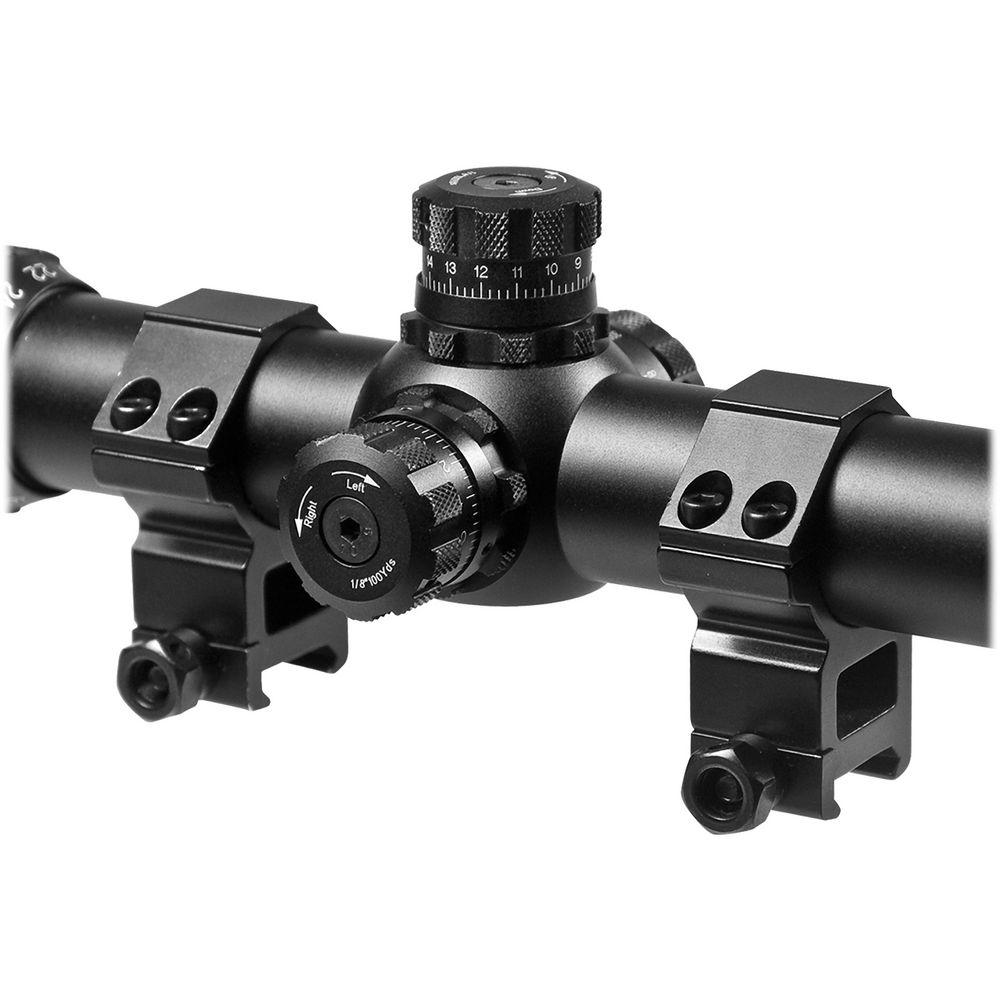

- Two Weaver rings included
- Waterproof and fogproof
- Shock-resistant
UPC: 790272977970 In the Box Barska 6-24x60 IR SWAT Sniper Scope (Mil-Dot Illuminated Reticle, Matte Black) - 2 x Weaver Rings
- CR-2032 Battery
- 5" Sunshade
- 2 x Flip-Up Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 6-24x60 IR SWAT Sniper Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC10700 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 60 mm | | Field of View | 6x: 17.5' @ 100 yd / 5 m @ 100 m
24x: 4.2' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 6x: 10 mm
24x: 2.5 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 20 yd / 18.3 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.8" / 40 cm | | Weight | 28.9 oz / 819.3 g | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 18.6 x 7.8 x 4.6" |
