User Manual for Barska 6-36x52 IR SWAT-AR Riflescope Click to enlarge the picture
Contents of the user manual for the Barska 6-36x52 IR SWAT-AR Riflescope
- Product category: Riflescopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Riflescopes
 |
User manual for the Barska 6-36x52 IR SWAT-AR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

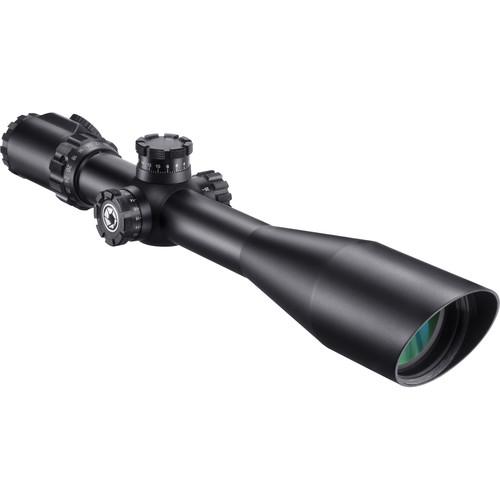

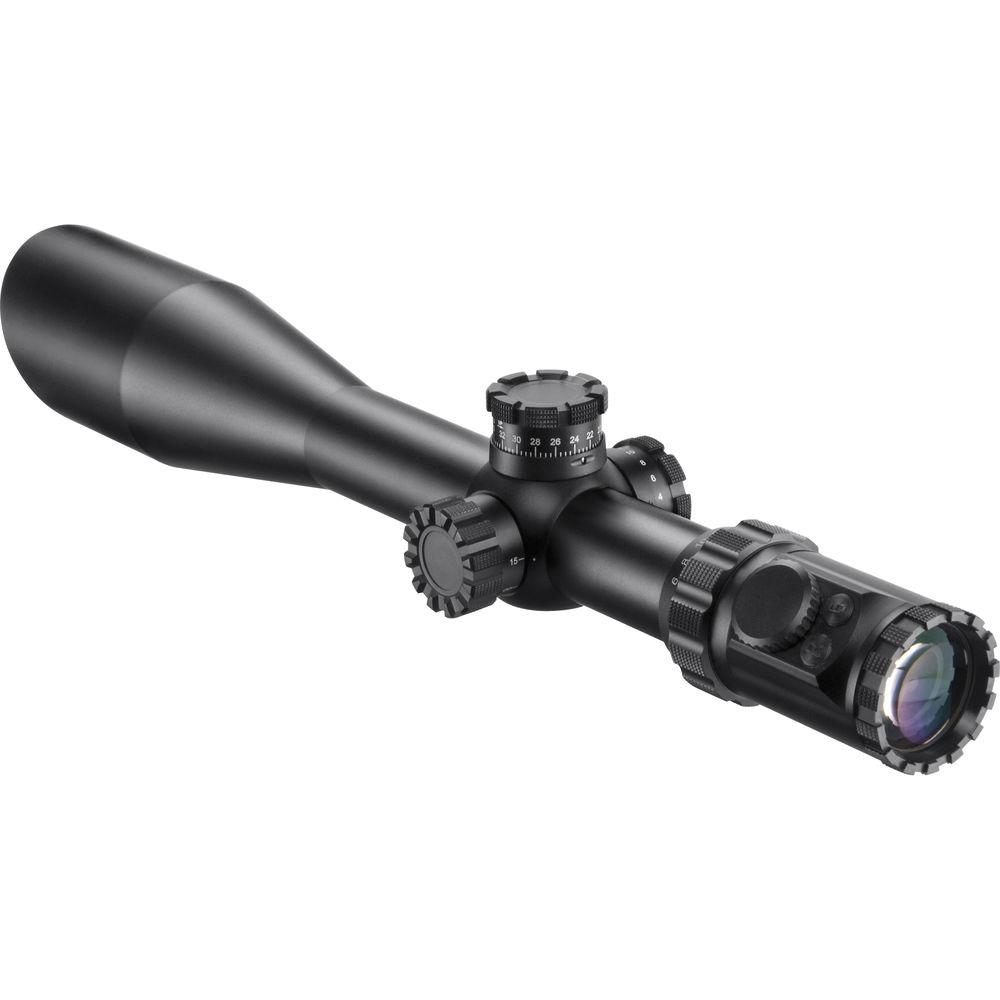

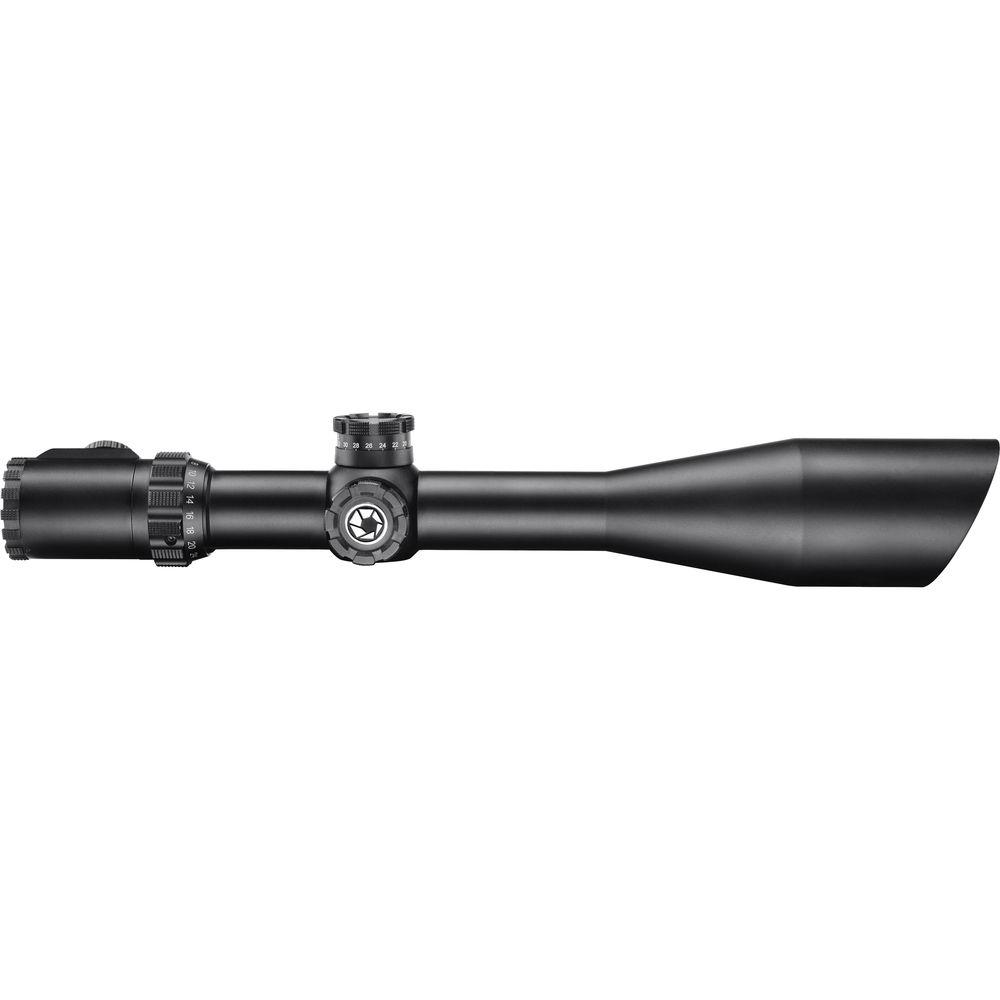

Product description Gain tactical advantage in the battlefield with the Barska 6-36x52 IR SWAT-AR Riflescope. The device is well-suited for making high precision and distant shots, and features high transmission fully multi-coated optics. With medium-to-long-range magnification and an extra-wide 52mm aperture, you will get bright images of targets in low-light conditions at high zoom. Also noteworthy is a 2nd focal plane Mil-Dot Reticle with red or green illuminated crosshair and ranging dots. It features four long and heavy posts, and a thin crosshair with mil-dot stadia markings. To correct for parallax error when aiming for precision shots, this optic provides a side focus parallax dial with a range from 15 yd to infinity. For ballistic drop and wind-drift, the capped windage and elevation turrets offer 1/8 MOA impact point correction.
The anodized aluminum housing has a 35mm maintube and delivers a waterproof, fogproof, and shock-resistant performance. All the knobs and rings are heavily knurled for a comfortable and non-slip grip. To reduce glare from direct sunlight and to guard the objective from falling rain and snow, the objective bell features a built-in angled sunshade. Also included are a cantilever Picatinny/Weaver rail mount, one CR-2032 battery, two flip-up lens caps, and a lens cloth. Reticle -

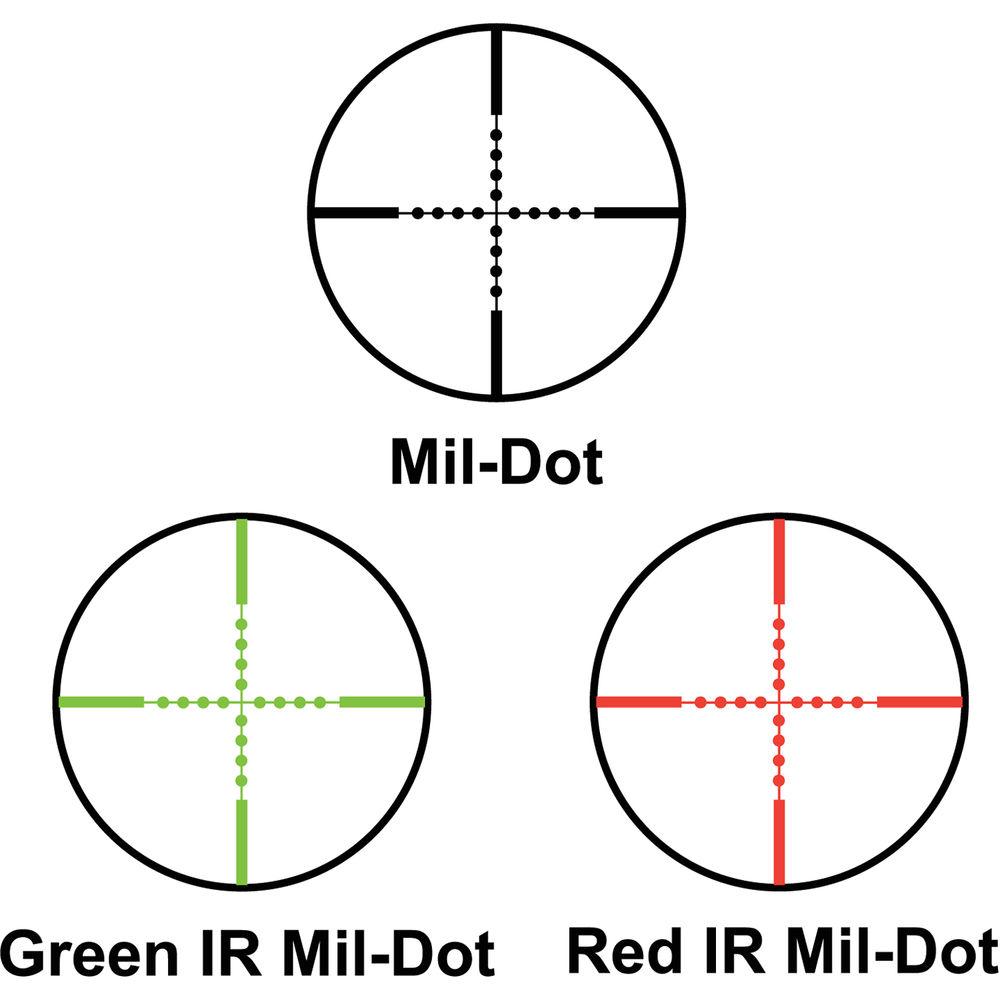

- Red-illuminated Mil-Dot reticle
- 2nd focal plane
- Four heavy posts
- Thin crosshair with ranging dots
- Parallax correction:
- Side focus parallax knob
- 15 yd to infinity range
Optical Performance -
- 52mm extra-wide objective improves brightness at high zoom and low-light conditions
- Fully multi-coated optics improve transmission
- Magnification of 6-36x for a medium-to-long range
- Field of view: 45-9' at 100 yd
- Long eye relief of 5.2-3.6"
Use and Handling -
- Adjustable windage and elevation adjustments
- 1/8 MOA impact point correction
Construction Details -
- 35mm maintube
- Anodized aluminum body
- Lockable windage and elevation turrets
- Knurled adjustment rings
- Side focus parallax knob
- Flip-up lens caps included
- Built-in angled sunshade

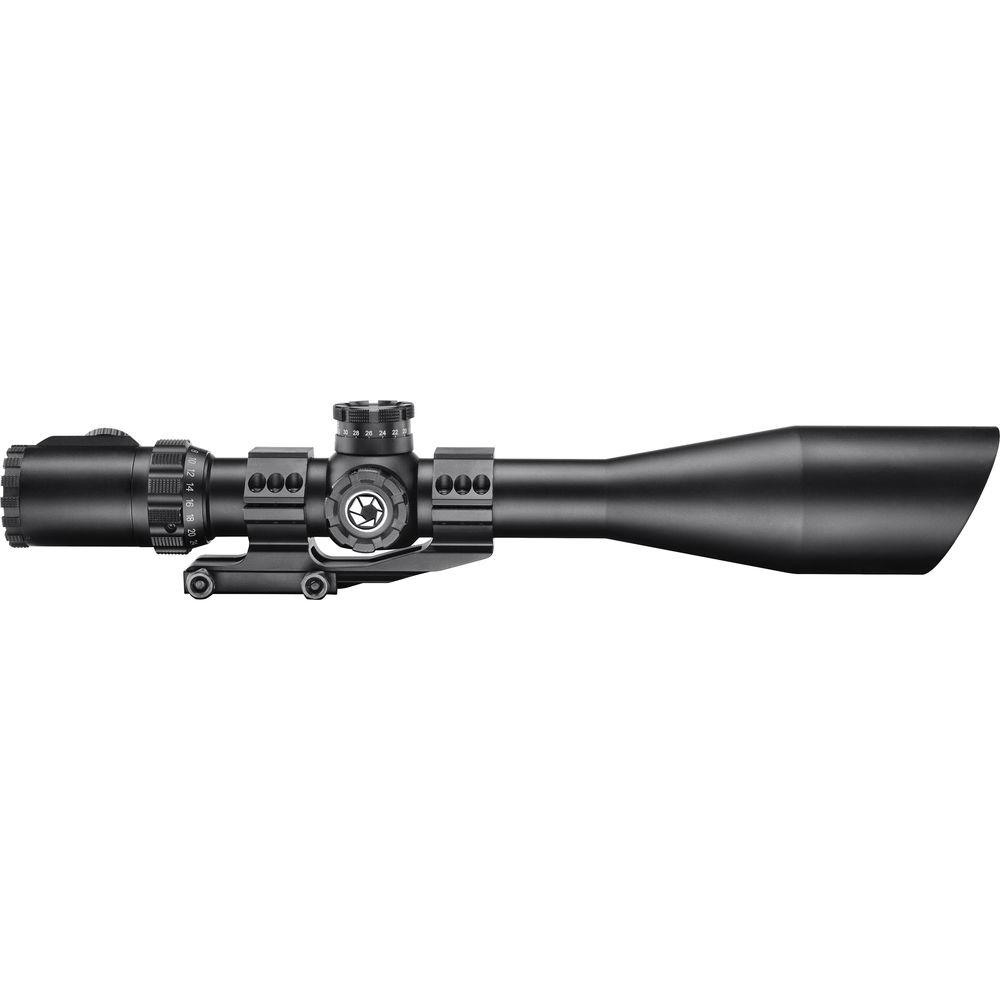

- Dual ring cantilever Picatinny/Weaver mount
- Waterproof and fogproof
- Shock-resistant
UPC: 790272984718 In the Box Barska 6-36x52 IR SWAT-AR Riflescope (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR-2032 Battery
- Flip-Up Lens Covers

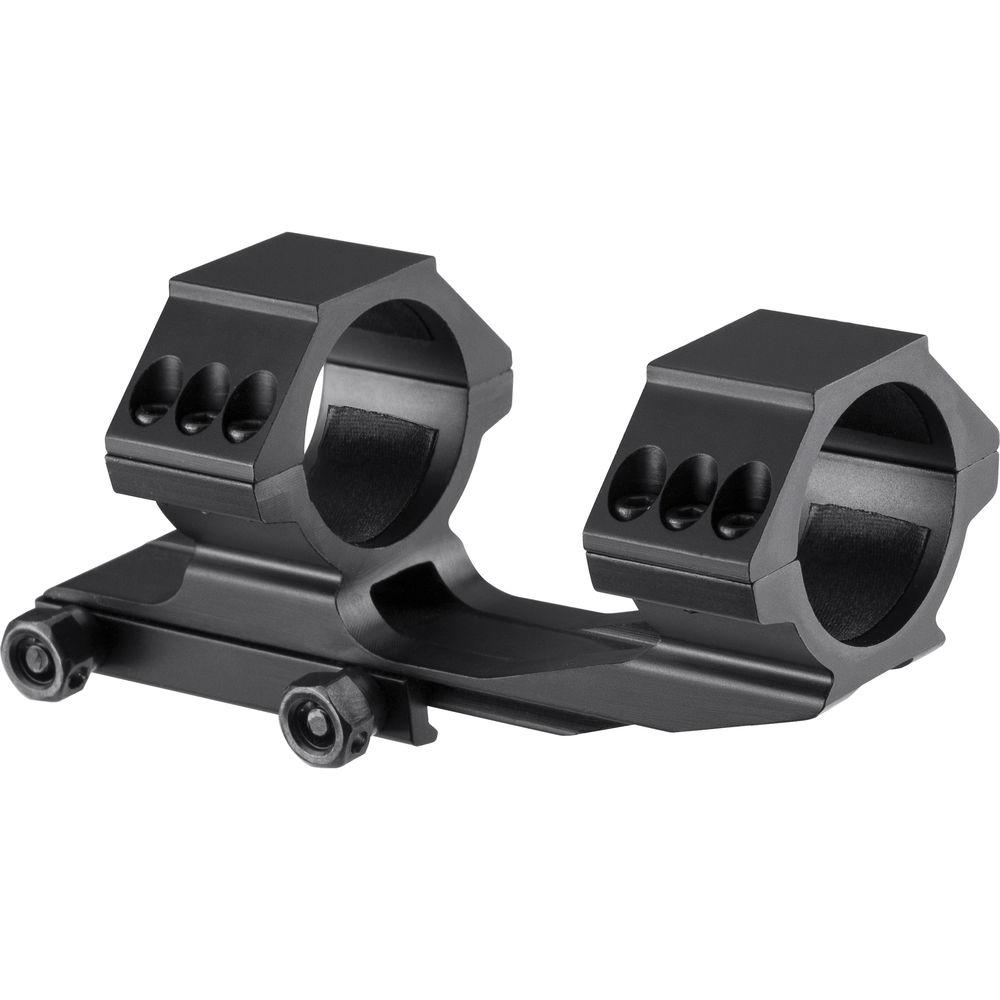

- Dual Cantilever Ring Mount
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 6-36x52 IR SWAT-AR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AC12140 Specs | | | Magnification | 6 to 36x | | Objective Lens Diameter | 52 mm | | Field of View | 6x: 45' @ 100 yd / 15 m @ 100 m
36x: 9' @ 100 yd / 3 m @ 100 m | | Exit Pupil Diameter | 6x: 2.1 mm
36x: 1.2 mm | | Eye Relief | 3.6 to 5.2" / 91 to 132.1 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/8 MOA per Click | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 17" / 43.2 cm | | Weight | 35.2 oz / 998 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 18.2 x 4.1 x 4.0" |
