User Manual for Barska 7x50 WP Deep Sea Binocular Click to enlarge the picture
Contents of the user manual for the Barska 7x50 WP Deep Sea Binocular
- Product category: Binoculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Binoculars
 |
User manual for the Barska 7x50 WP Deep Sea Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

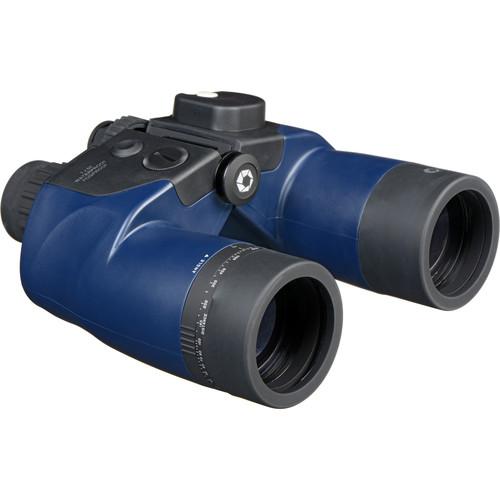

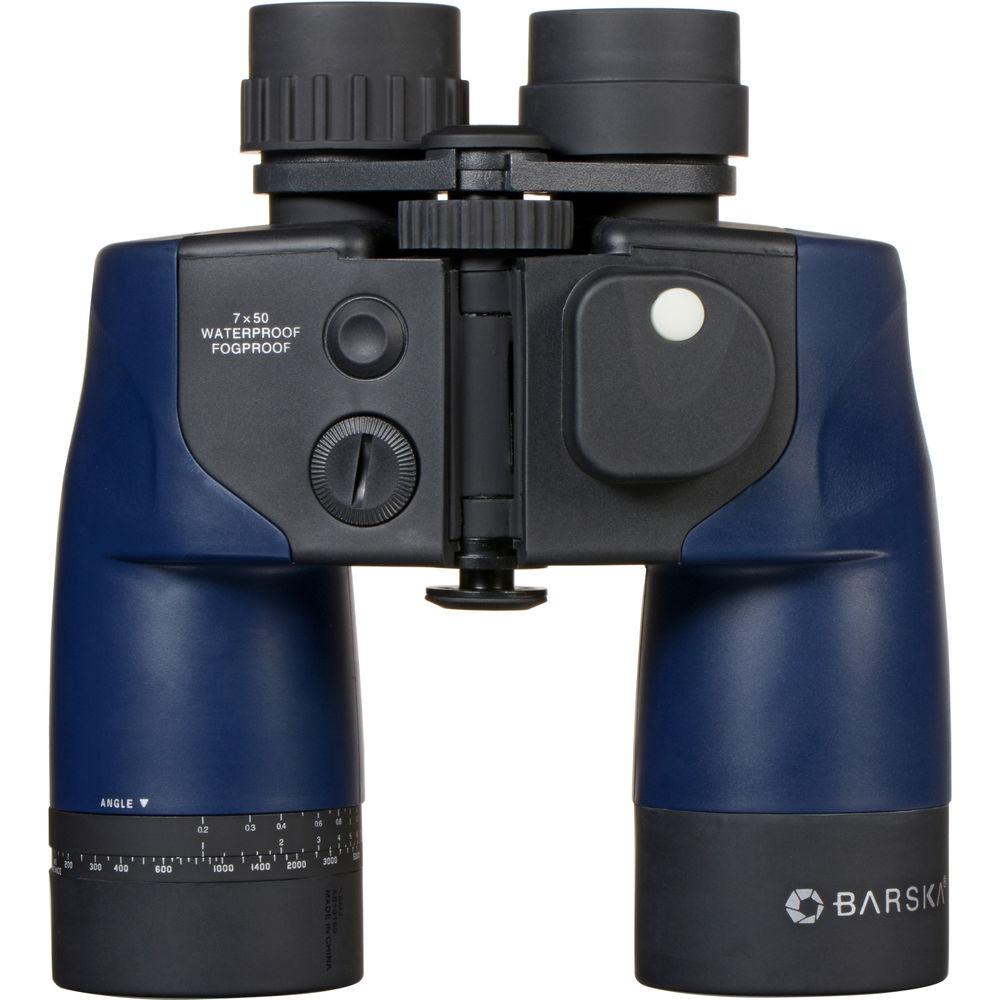

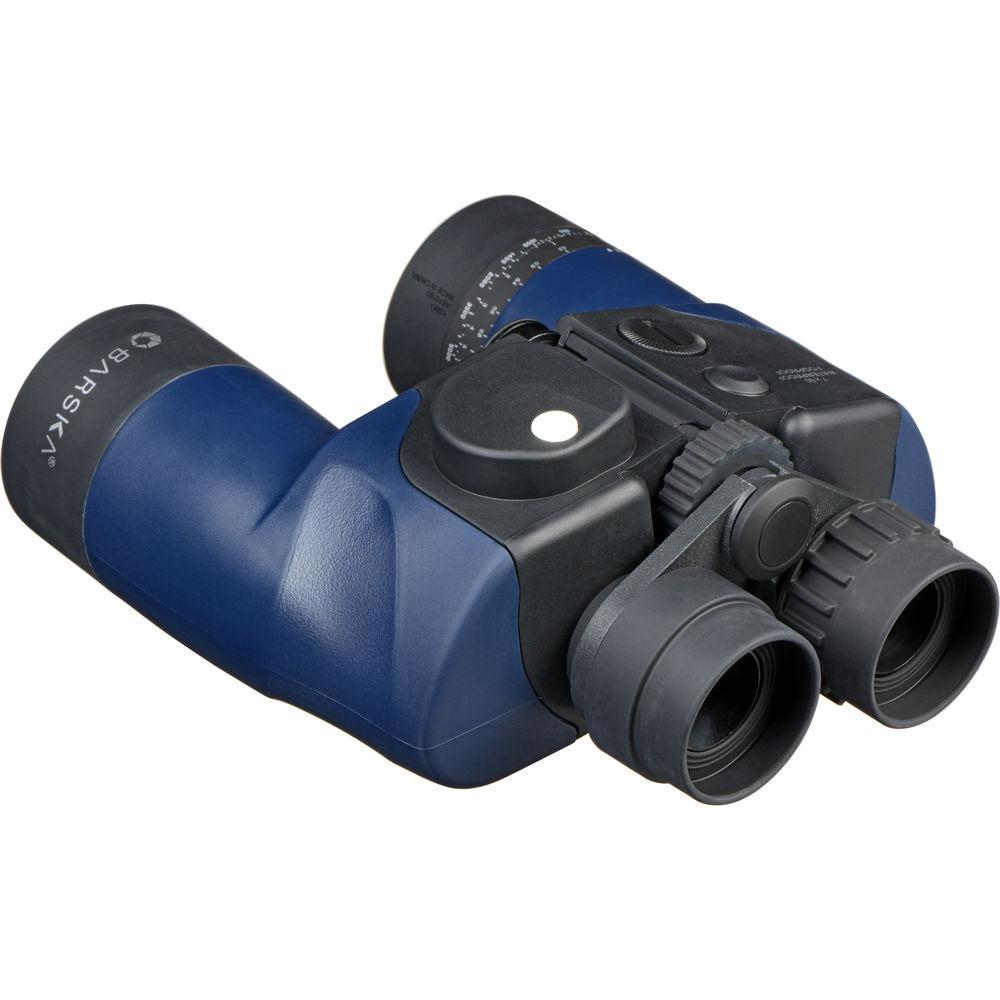

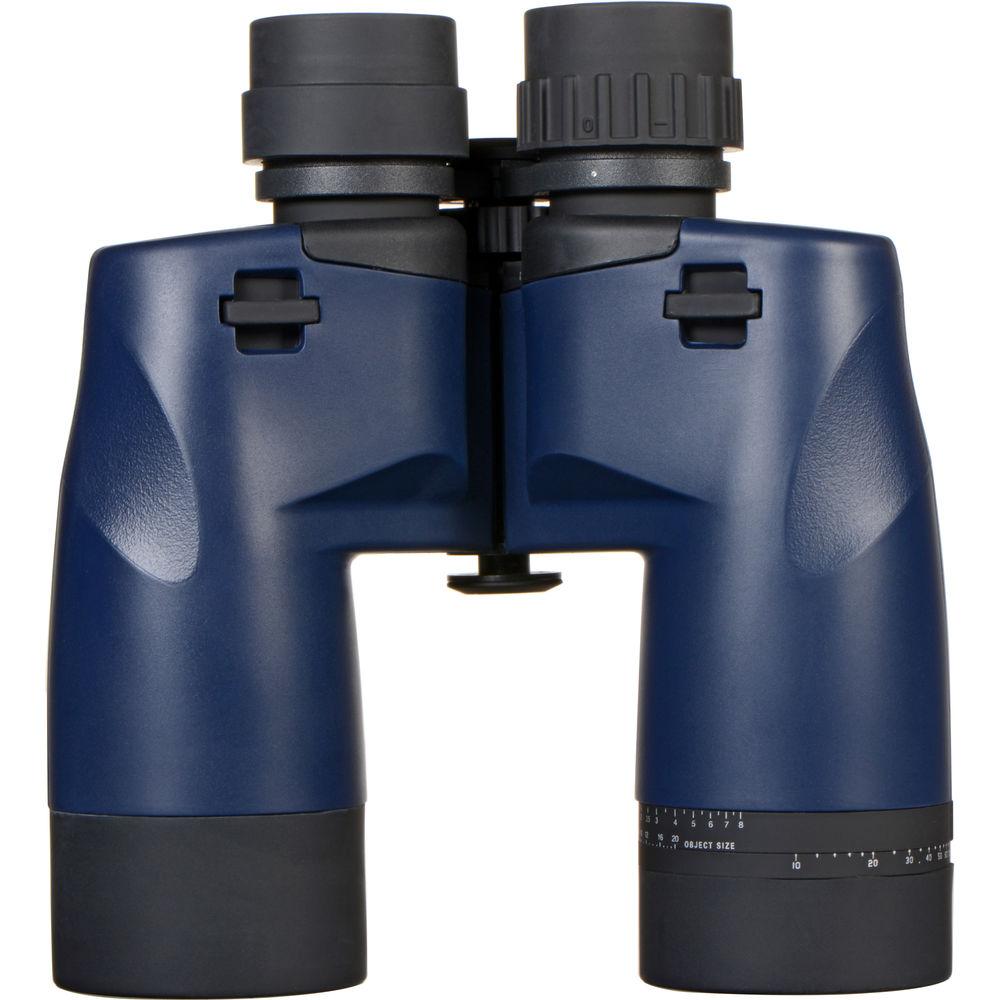

Product description The B&H Binocular Buying Guide Read More The 7x50 WP Deep Sea Binocular from Barska is designed specifically for the marine and boating enthusiast. The 7x50 configuration is a popular, easily manageable binocular size that permits a steady image even on rough or rolling water. This optic is outfitted with traditional Porro prisms that produce a rich depth of field, and blue-tinted anti-reflection lens coatings which help to reduce glare while preserving your ability to accurately see colors. The large objectives push the ability to use them in low-light conditions which are complemented by the large exit pupil that ensure your entire pupil is covered even when it dilates in the dark.A rangefinder reticle and electronic compass are built into the housing so you can get your bearings and estimate object size and distance easily. A rotating scale on the right objective bell eliminates the need to do calculations for ranging and sizing, making these determinations quick and easy. The reticle and compass are illuminated, and the compass is designed to only work in the Northern hemisphere. - Optical Performance
-
- 7x magnification
- Large 50mm objectives
- BAK4 Porro prism optical path
- Fully multi-coated optics improve light transmission, color rendition, and contrast
- Blue lens tint enhance color recognition and helps to reduce glare
- Low magnification and large objectives reduces disorientation in rough sees
- Wide 7.1mm exit pupil allows for clear viewing even in low light conditions
- Long 27.4mm eye relief
- 350' field of view at 1000 yards
- Rangefinder and Compass
-
- In-view rangefinder reticle and compass
- Rangefinder:
- Horizontal and vertical stadia set at 0.5 mrad increments
- Use stadia to determine size of objects
- Combine stadia measurements with rotating scale on right objective bell to determine range to object
- Compass
- In-view degree readings under rangefinder
- Full 360° range
- Northern hemisphere use only, it will not operate in the Southern hemisphere
- Illuminated reticle operates using two included LR43 batteries
- Use and Handling
-
- Textured center focusing wheel
- Right eye dioptric correction
- 56-72mm interpupillary adjustment range
- Measurement scale printed on bridge allows for easy resetting
- Rubber eyecups
- Seal against eye socket and blocks side light leakage
- Fold down for use with sunglasses or eyeglasses
- Construction Details
-
- Nitrogen-filled, water and fogproof
- Slip-resistant and protective rubber armoring
- Finger grooves and textured grips provide more secure handling
- Tethered objective lens covers
- High-visibility flotation neck strap
UPC: 790272976188 In the Box Barska 7x50 WP Deep Sea Binocular - Lens Cloth
- Neck Strap
- Carrying Case
- 2 x Ocular Lens Covers
- 2 x Objective Lens Covers
- 2 x LR43 1.5V Batteries
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 269.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 7x50 WP Deep Sea Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB10160 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.7° (Actual) | | Field of View | 351.7' @ 1000 yd / 117.2 m @ 1000 m | | Minimum Focus Distance | 143.8' / 43.8 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 27.4 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 8.8 x 8.7 x 3.4" / 22.4 x 22.0 x 8.7 cm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 4.4" |
