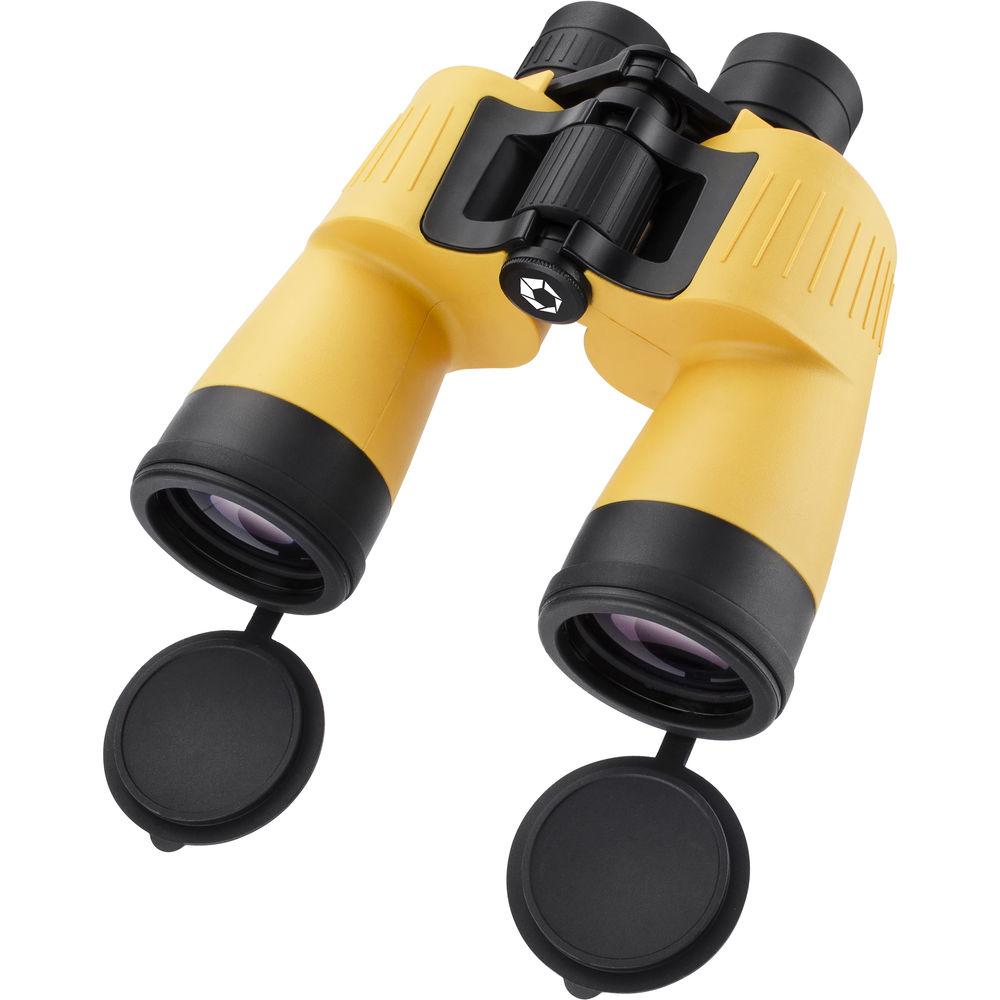

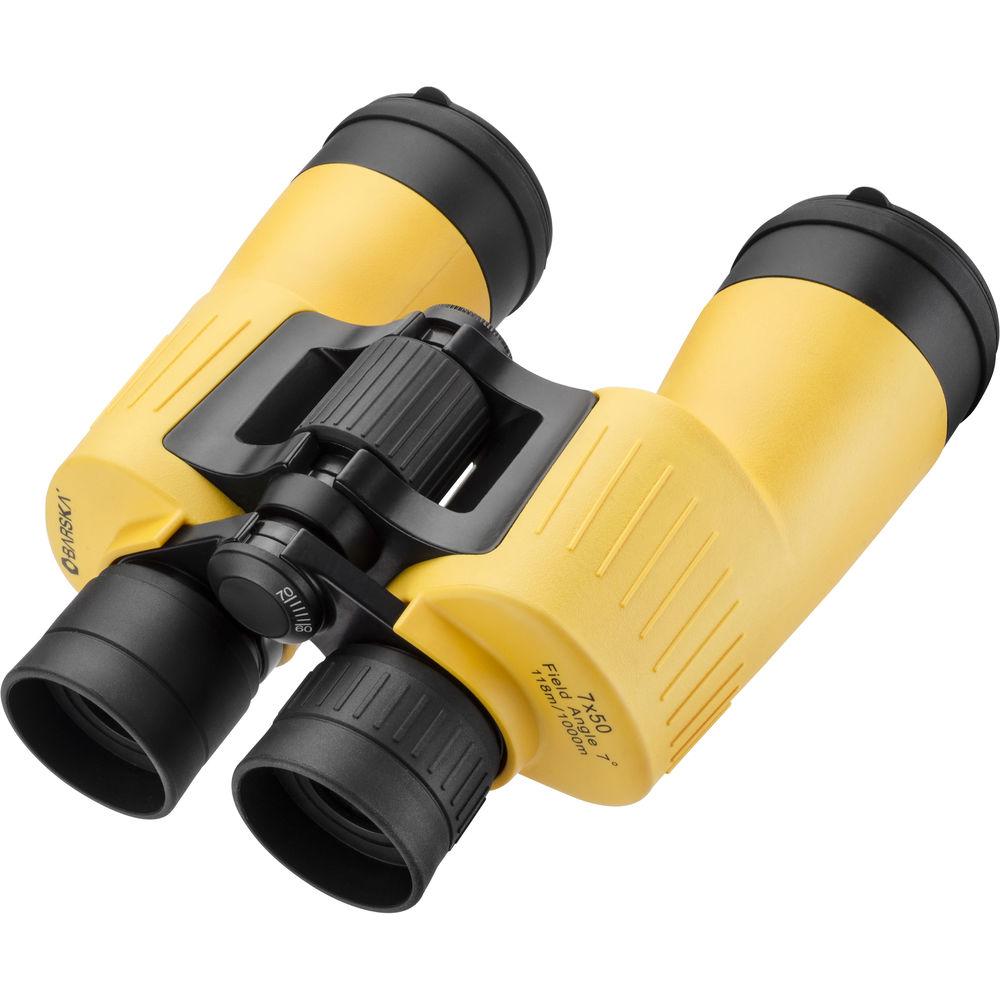

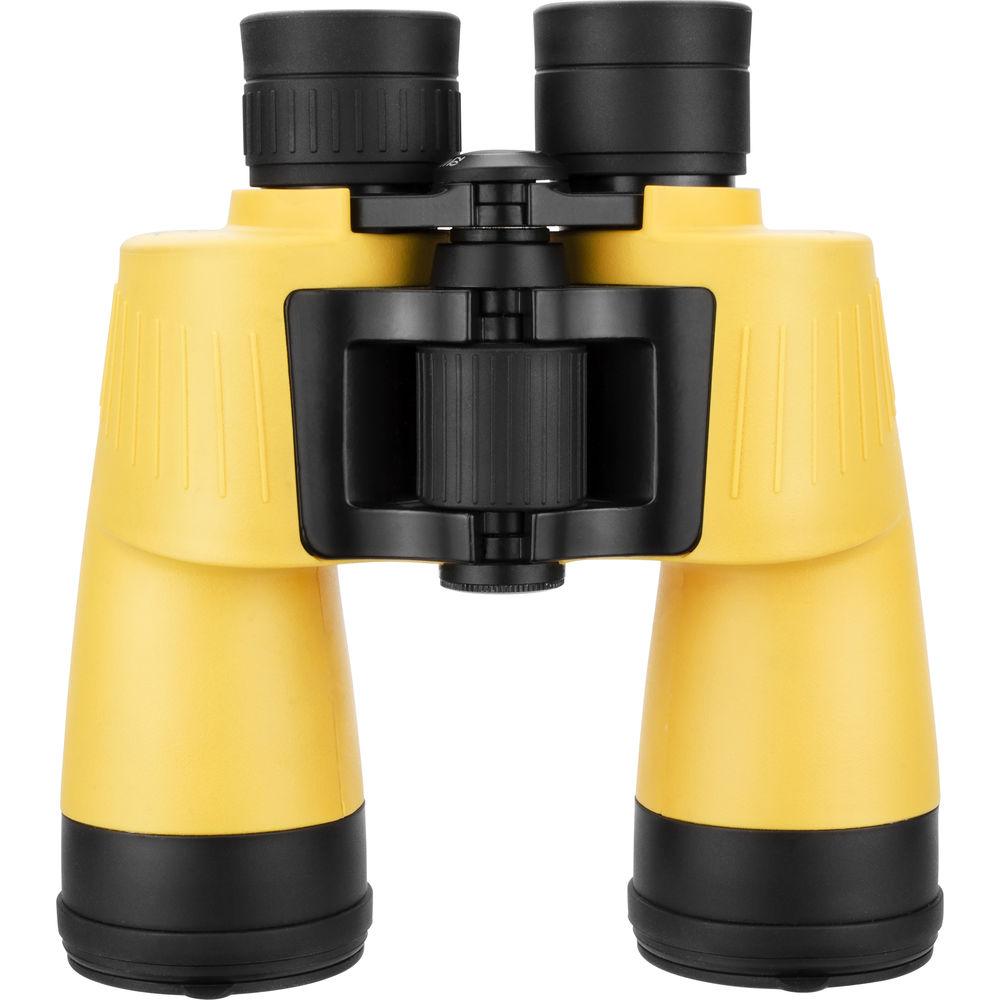

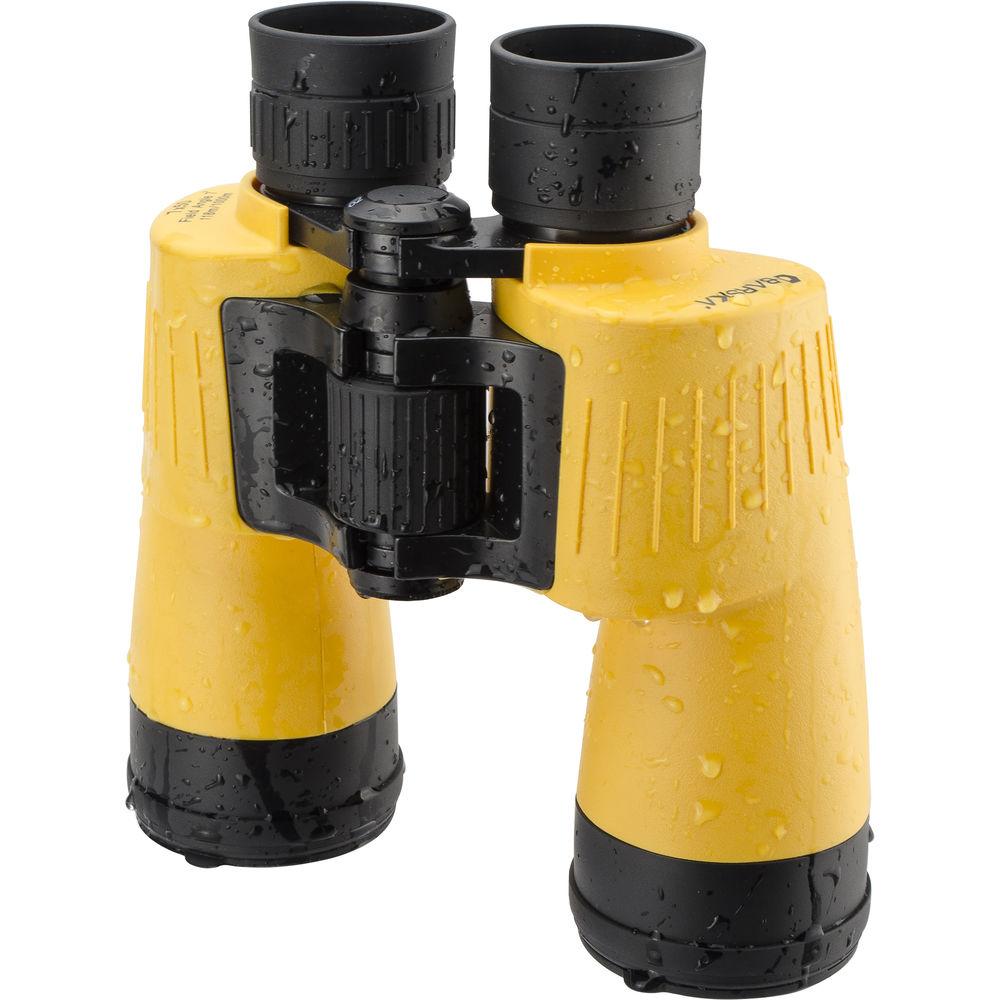

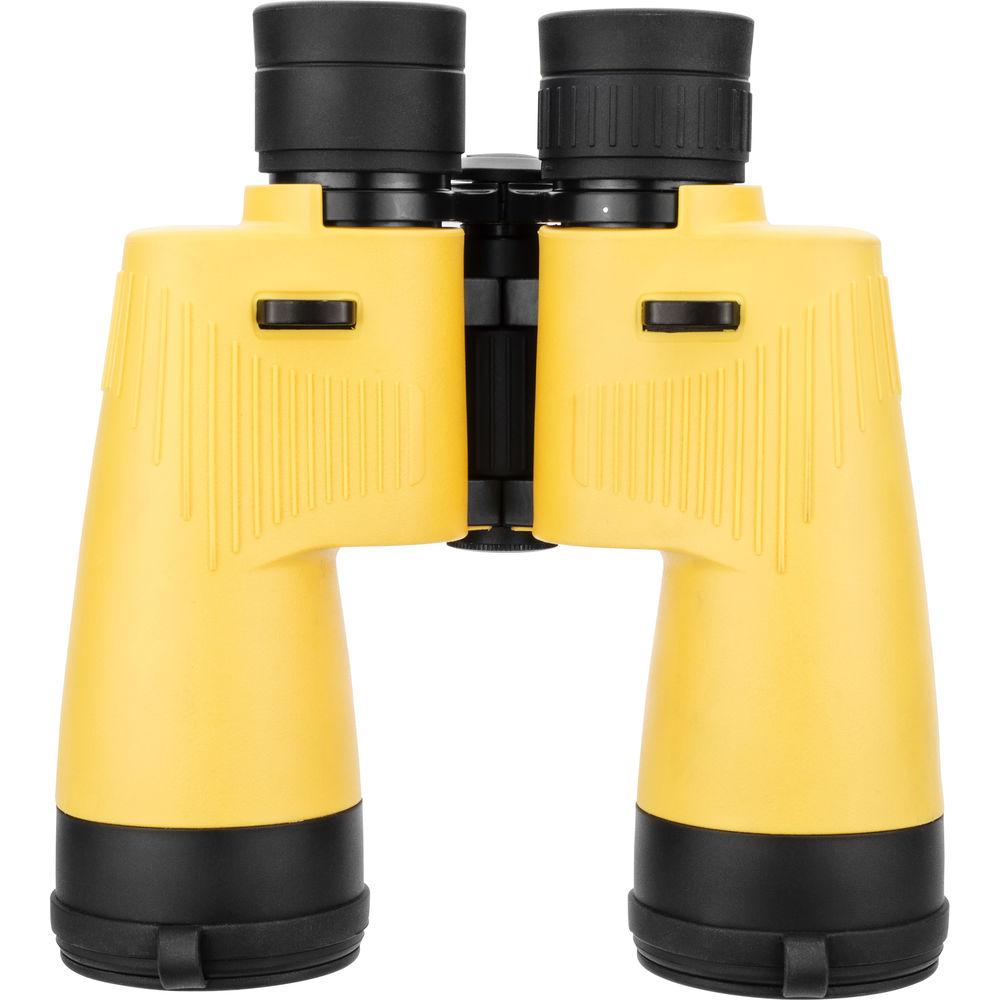

Product description The B&H Binocular Buying Guide Read More Outfitted with an ideal combination of features for comfortable use on rolling seas, the Barska 7x50 WP Floatmaster Floating Binocular employs a moderate magnification and wide objectives to produce a spacious field of view and exit pupil that helps to reduce the disorientation commonly experienced when looking through binoculars on a rolling boat deck. The objectives and exit pupil also boost low-light performance to extend the optic's usability from dawn to dusk or under heavy cloud cover. Complementing these features is an excessively long eye relief that pulls the binocular away from the user to help prevent the eyepieces from impacting the head or eyes if the boat pitches or rolls unexpectedly.Engineered for life on the water, the chassis is wrapped in a highly-visible yellow armor that offers a slip-resistant grip when it's wet or cold. The optical tubes are nitrogen-filled and O-ring sealed to provide waterproof performance and to prevent internal fogging when moving through extreme temperature changes. In the event that a rogue wave causes the Floatmaster to go overboard, it lives up to its name by being completely buoyant under most conditions. For long glassing sessions and to avoid fatigue, the binocular can be mounted on most photo, video, or field tripods using an optional adapter. - Optical Performance
-
- 7x magnification
- Large 50mm objective lenses
- Traditional BAK4 Porro prism optical path
- Anti-reflection fully multi-coated optics improve light transmission, color, and contrast
- 367-foot field of view at 1000 yards
- Exceptionally long 23mm eye relief
- Wide 7.1mm exit pupil completely covers fully-dilated eyes in low-light to provide a full view without vignetting
- Use and Handling
-
- Large knurled center focusing wheel
- Right-eye dioptric correction
- 60-70mm interpupillary distance adjustment
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Buoyant if dropped in water
- High-visibility, slip-resistant protective yellow rubber armoring
- Nitrogen-filled and O-ring sealed to be waterproof and to prevent internal fogging when moving through extreme temperature changes
- Tethered objective lens caps
- Weight: 36.5 ounces
UPC: 790272002504 In the Box Barska 7x50 WP Floatmaster Floating Binocular (Yellow) Lens Cloth Neck Strap Carrying Case 2 x Tethered Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 ubwedadawyvwrbusfcuayq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 ubwedadawyvwrbusfcuayq A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 7x50 WP Floatmaster Floating Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB12738 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.5' @ 1000 yd / 122.5 m @ 1000 m | | Minimum Focus Distance | 15' / 4.6 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 23.0 mm | | Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 8.0 x 7.8 x 2.8" / 20.3 x 19.7 x 7.0 cm | | Weight | 36.5 oz / 1034.8 g | | | | Package Weight | 3.03 lb | | Box Dimensions (LxWxH) | 8.95 x 8.6 x 3.55" |
