User Manual for Barska 8-24x50 Gladiator Zoom Binocular Click to enlarge the picture
Contents of the user manual for the Barska 8-24x50 Gladiator Zoom Binocular
- Product category: Binoculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Binoculars
|
User manual for the Barska 8-24x50 Gladiator Zoom Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

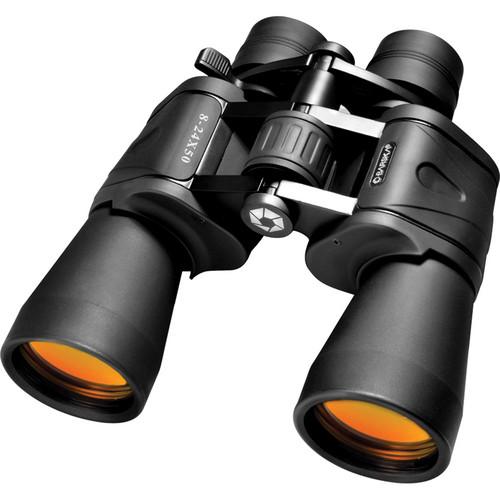

Product description The B&H Binocular Buying Guide Read More The 8-24x50 Gladiator Zoom Binocular from Barska is designed for long distance terrestrial and astronomical viewing. The versatile variable magnification range allows the viewer to scan a large field of view and then zoom in on the selected object to make detailed observations. An ergonomically-placed zoom lever allows users to make fast magnification changes while viewing through the eyepieces with a simple movement of their right thumb. The large objectives and ruby multi-coatings draw in copious amounts of light to push the low-light capabilities of the optic, while a large exit pupil at low magnification ensures complete coverage of the user's pupil when it gets fully dilated as light fades. Fold-down eyecups enable comfortable viewing with or without eyewear, and rubber armoring provide a slip-resistant grip. To reduce arm fatigue from holding them, for long duration glassing sessions, or to keep the binocular steady at high magnifications, they can be tripod mounted using an optional adapter. - Optical Performance
-
- Wide 8-24x zoom magnification range
- Large 50mm objective lenses
- Traditional BK7 Porro prism design
- Anti-reflection multi-coated optics limit light loss and enhance contrast and color rendition
- Red (ruby) lens tint helps to improve image contrast and boosts the appearance of objects against blue and green backgrounds
- 225-foot field of view at 1000 yards at 8x power
- Large 6.25mm exit pupil, at 8x, helps to avoid vignetting at low-light when pupils become dilated
- Long 20mm eye relief
- Use and Handling
-
- Convenient ergonomically-placed zoom lever is easy to manipulate with right thumb while looking through binocular
- Zoom indicators on right ocular clearly shows selected magnification for repeatability
- Large center focusing wheel
- Right-eye dioptric correction
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Construction Details
-
- Non-reflective matte-black finish
- Protective rubber armoring provides a slip-resistant grip
- Tripod mountable with optional adapter
- Weight: 31.75 ounces
UPC: 790272980512 In the Box Barska 8-24x50 Gladiator Zoom Binocular Lens Cloth 2 x Objective Lens Covers Neck Strap Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 brbcvaut Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 269.6kbbrbcvaut Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska 8-24x50 Gladiator Zoom Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AB11180 Specs | Prism Type | Porro | | Magnification | 8 to 24x | | Objective Lens Diameter | 50 mm | | Angle of View | 8x: 4.3° (Actual) | | Field of View | 8x: 225.7' @ 1000 yd / 75.2 m @ 1000 m | | Minimum Focus Distance | 21.3' / 6.5 m | | Exit Pupil Diameter | 8x: 6.25 mm
24x: 2.1 mm | | Eye Relief | 8x: 20 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Weight | 31.75 oz / 900.11 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 3.15" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
