User Manual for Barska AY12226 4.0MP Digital Microscope with LCD Screen Click to enlarge the picture
Contents of the user manual for the Barska AY12226 4.0MP Digital Microscope with
- Product category: Microscopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Microscopes
 |
User manual for the Barska AY12226 4.0MP Digital Microscope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

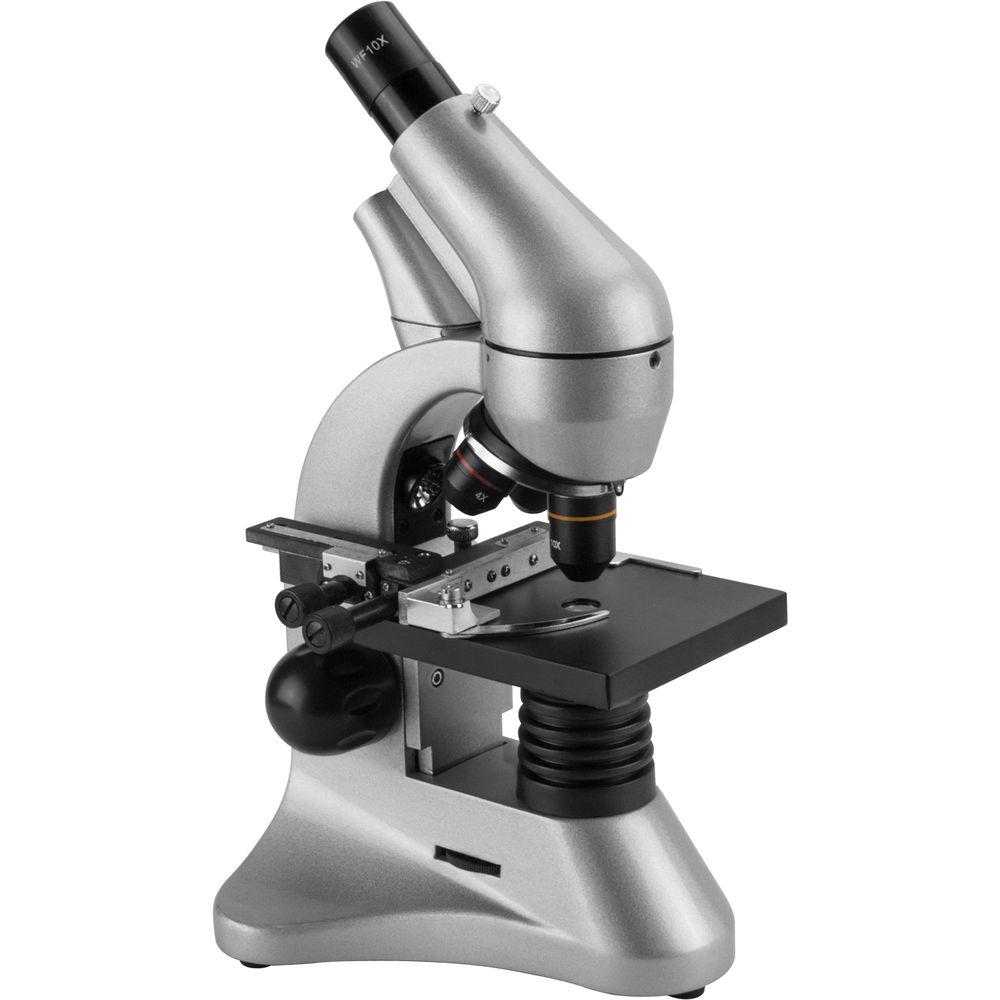

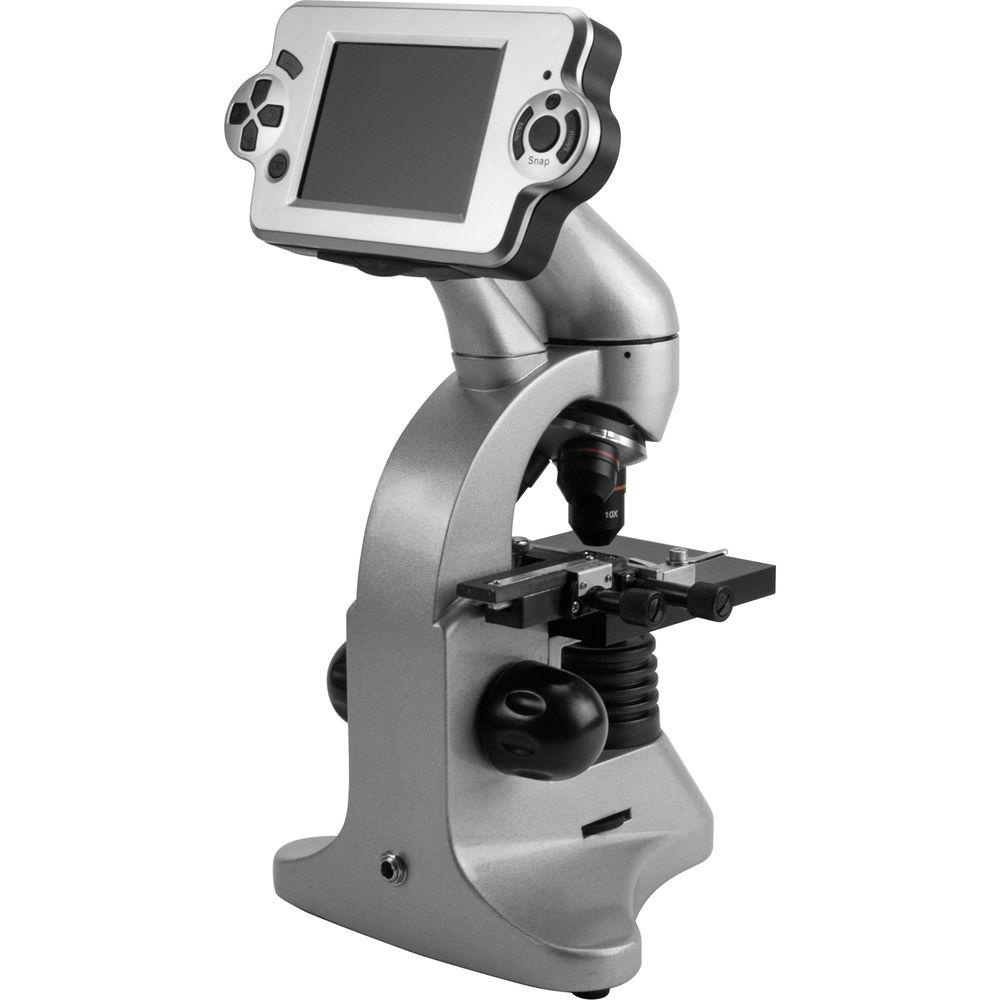

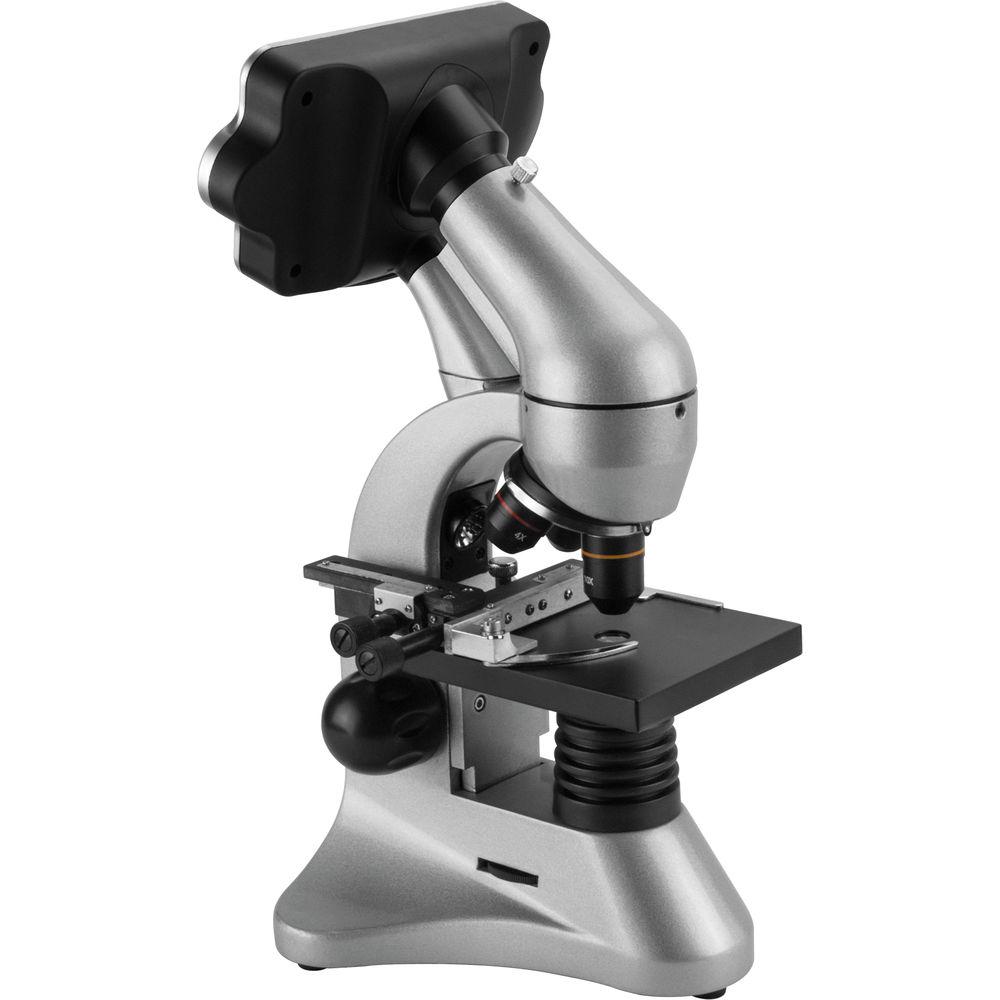

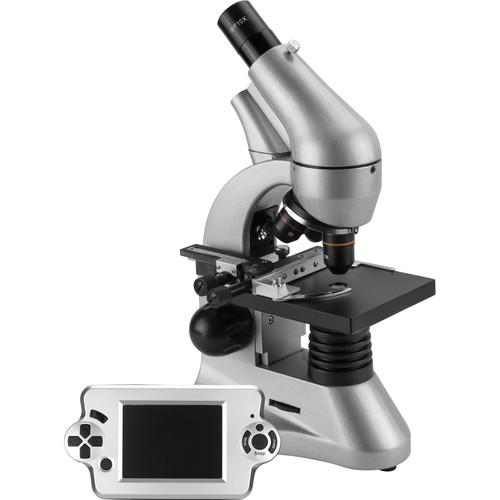

Product description Make discoveries with Barksa's 4.0MP Digital Microscope with LCD Screen. This versatile microscope offers the benefits of both viewing through the 10x wide-field eyepiece or on-screen viewing via the 3.5" color LDC display. The rotating optical port is inclined 45° for comfortable viewing and allows interchanging the eyepiece with the display module easily. You can study your specimens with up to 400x total optical magnification, using the color-coded objectives on the rotating turret. You can also monitor and record your findings (images and videos) using the 4.0MP digital imager inside the LCD module. The module features a 3.5" color display,a touch control panel, an external SD card slot, and a Mini-USB charging and relay port. In addition, the module has a built-in memory of 128MB for saving your data and an internal rechargeable battery for cordless operation of the LCD monitor.
For proper illumination, contrast, and emphasized spectral components, the scope provides adjustable side and bottom LED illumination, and a 5-position color filter wheel. The feel of a real scientific microscope kicks in when you use the vertical working distance adjustment together with the precision Vernier X-Y position controls to zoom in on an ideal spot of your sample. To ensure years of service and to provide stability while you conduct your studies, the frame and the mechanical stage feature durable metal construction. - Imager, LCD & Memory
-
- 4.0MP imaging sensor
- Captures images up to 4023 x 3024
- Records videos at 24 fps
- Digital zoom: 8x

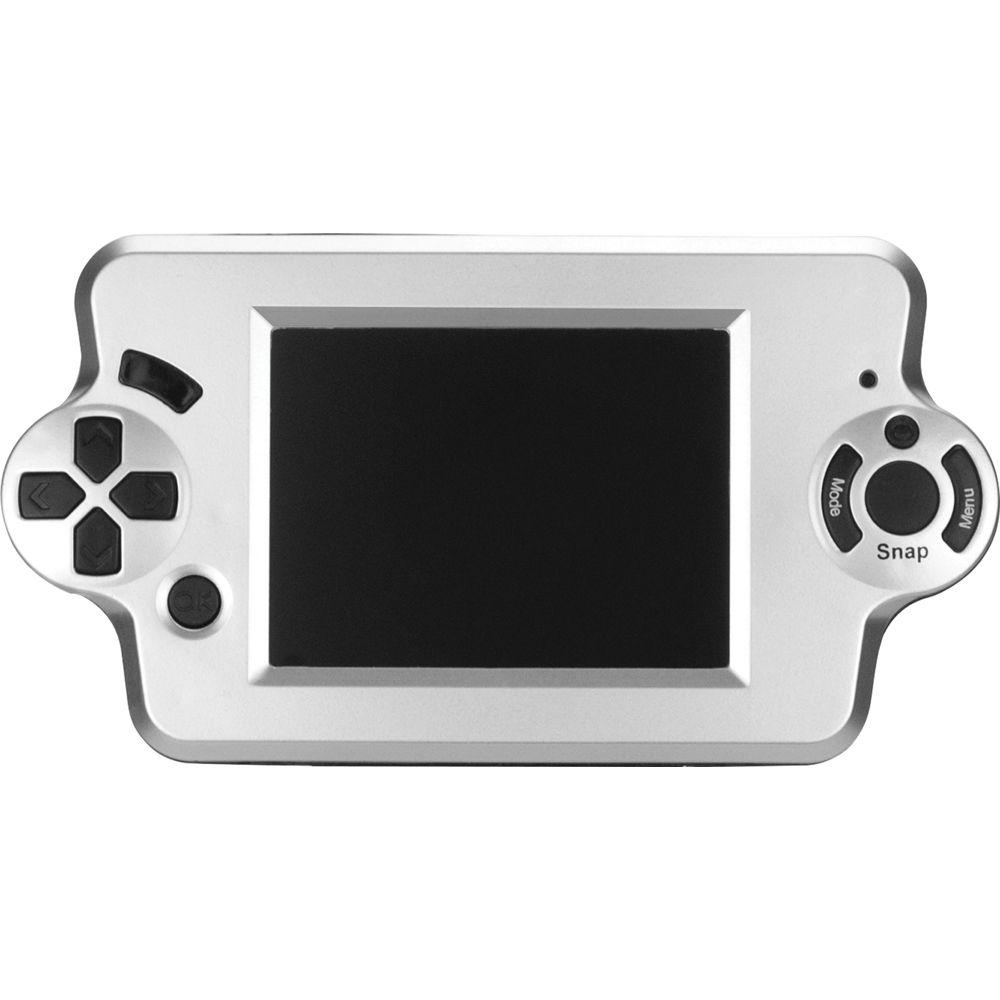

- 3.5" color LCD display
- 128MB of internal memory
- SD/MMC external memory slot
- Optical System, Illumination, & Focusing
-
- 4x, 10x, and 40x color-coded objectives
- 40x, 100x, and 400x magnification using 10x WF eyepiece
- 16x, 40x, and 160x magnification on LCD display
- Bottom and side adjustable LED illumination
- Two coaxial coarse focus knobs
- Adjustable working distance
- Mechanical Stage
-
- 3.5 x 3.5" metal stage
- Vernier X-Y position controls
- Metal specimen bracket
- 5-position color filter wheel
- Construction
-
- Rotating head
- Durable metal frame
- 45° inclined viewing
- Secure optical port for eyepiece or LCD display
- 3-piece rotating nose turret

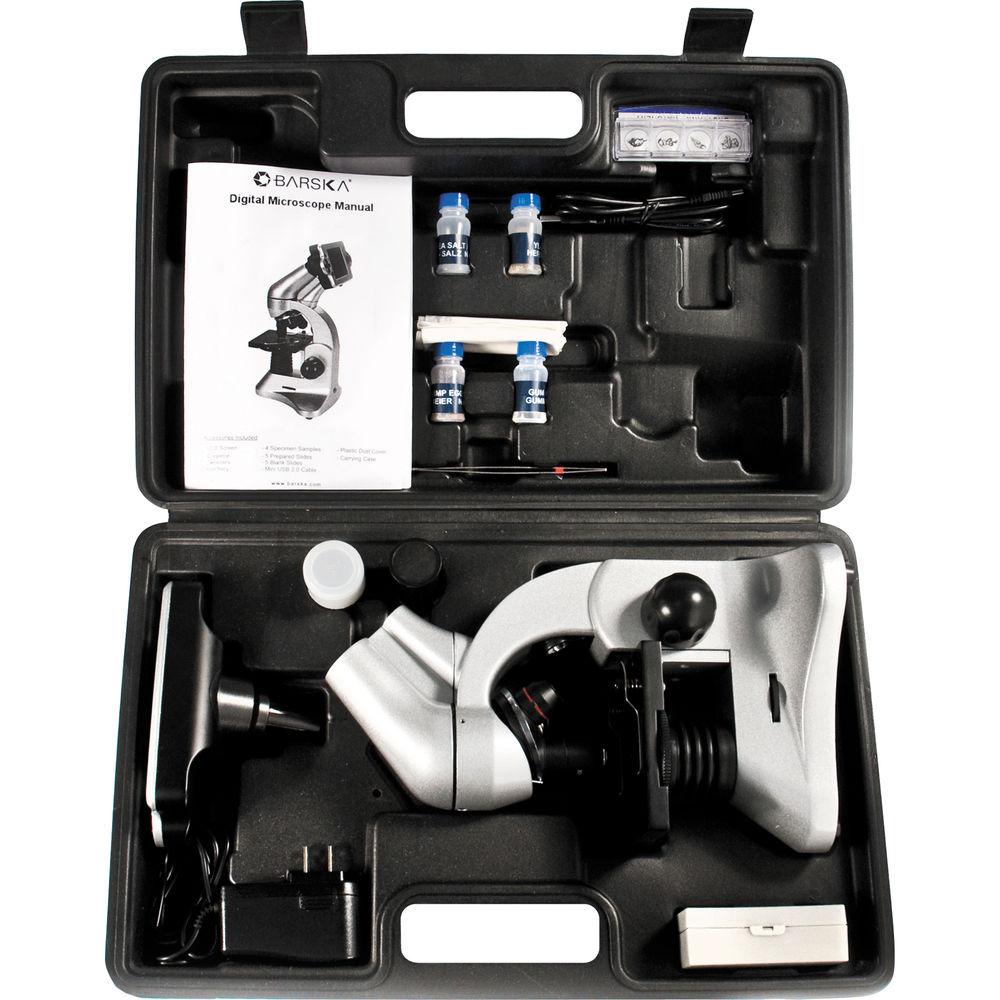

UPC: 790272000074 In the Box Barska AY12226 4.0MP Digital Microscope with LCD Screen (Silver) - AC Adapter for Microscope
- Mini-USB Cable for Display Module
- 10x WF Eyepiece
- 3.5" LCD Display Module
- 4 x Specimen Slides
- 5 x Blank Slides
- 5 x Prepared Slides
- Hatchery Kit
- Tweezers
- Dust Cover

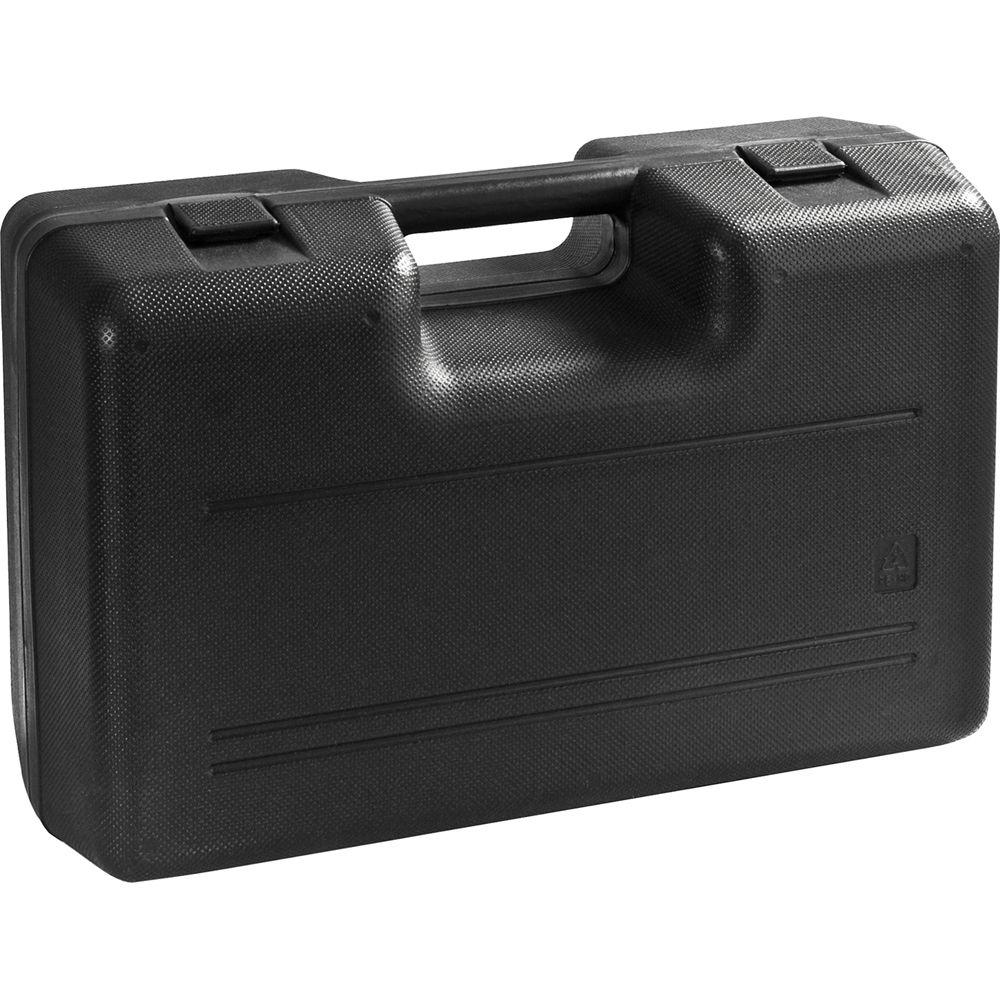

- Hard Carrying Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska AY12226 4.0MP Digital Microscope with LCD Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AY12226 Specs | Microscope Type | Compound | | Head | Monocular | | Objective(s) | 4x, 10x, 40x | | Eyepiece | 10x, wide-field | | Magnification | Eyepiece: 40x, 100x, 400x
LCD: 16x, 40x, 160x | | Focus | Coarse | | Working Distance | Adjustable | | Light Source | LED, side and bottom | | Specimen Stage | Mechanical
X-Y Vernier controls
Specimen brackets | | Imager | 4.0 MP
Resolution: 4023 x 3024, 640 x 480
Video: 24 fps | | LCD Module | 3.5", color
Mini-USB port
Internal Memory: 128 MB
External Memory: SD card slot | | Material of Construction | Frame: Metal
Stage: Metal | | Dimensions | Microscope: 14.0 x 6.0 x 4.5" / 35.6 x 15.2 x 11.4 cm
Stage: 3.5 x 3.5" / 90 x 90 mm | | Weight | 3.5 lb / 1.59 kg | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 15.7 x 10.25 x 6.55" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
