User Manual for Barska AY13070 Monocular Compound Microscope Click to enlarge the picture
Contents of the user manual for the Barska AY13070 Monocular Compound Microscope
- Product category: Microscopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Microscopes
 |
User manual for the Barska AY13070 Monocular Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

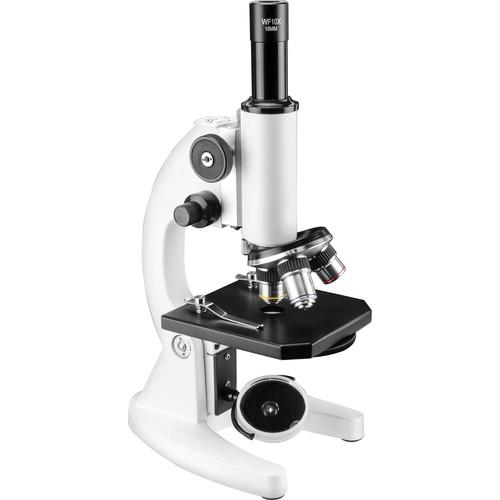

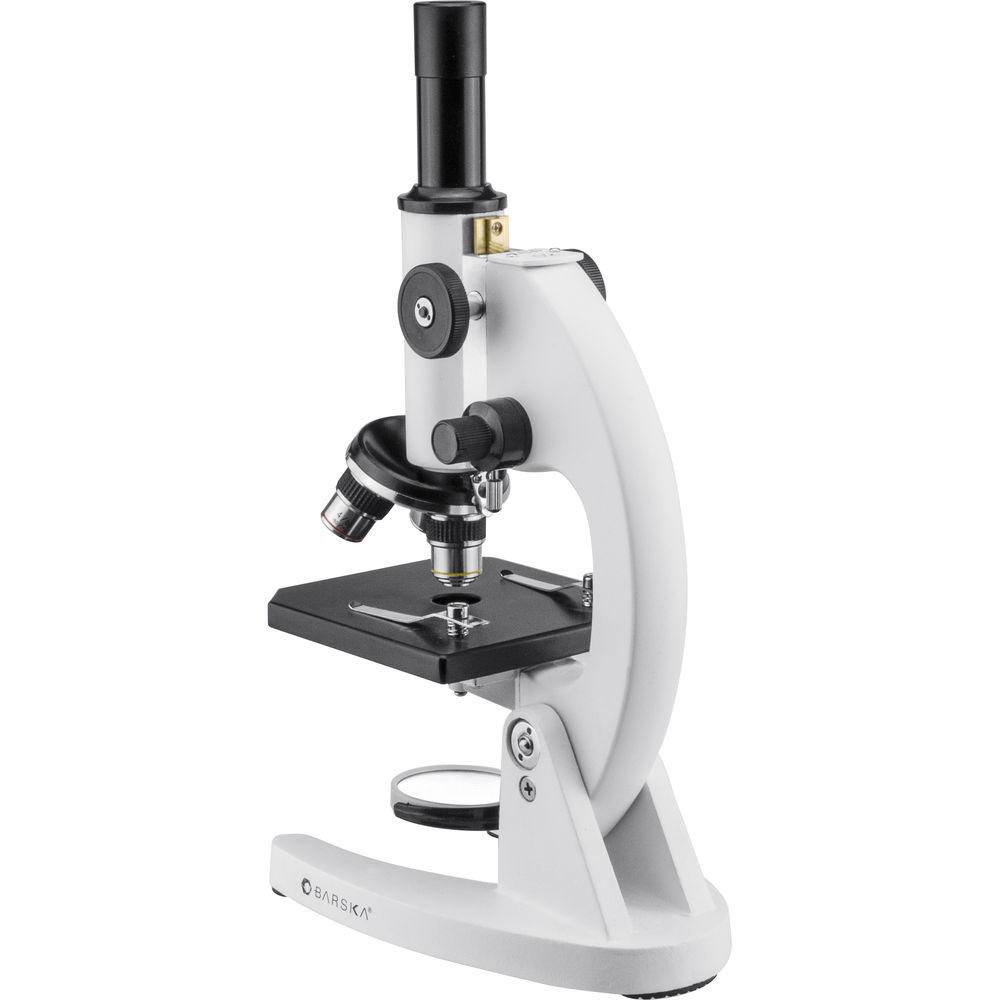

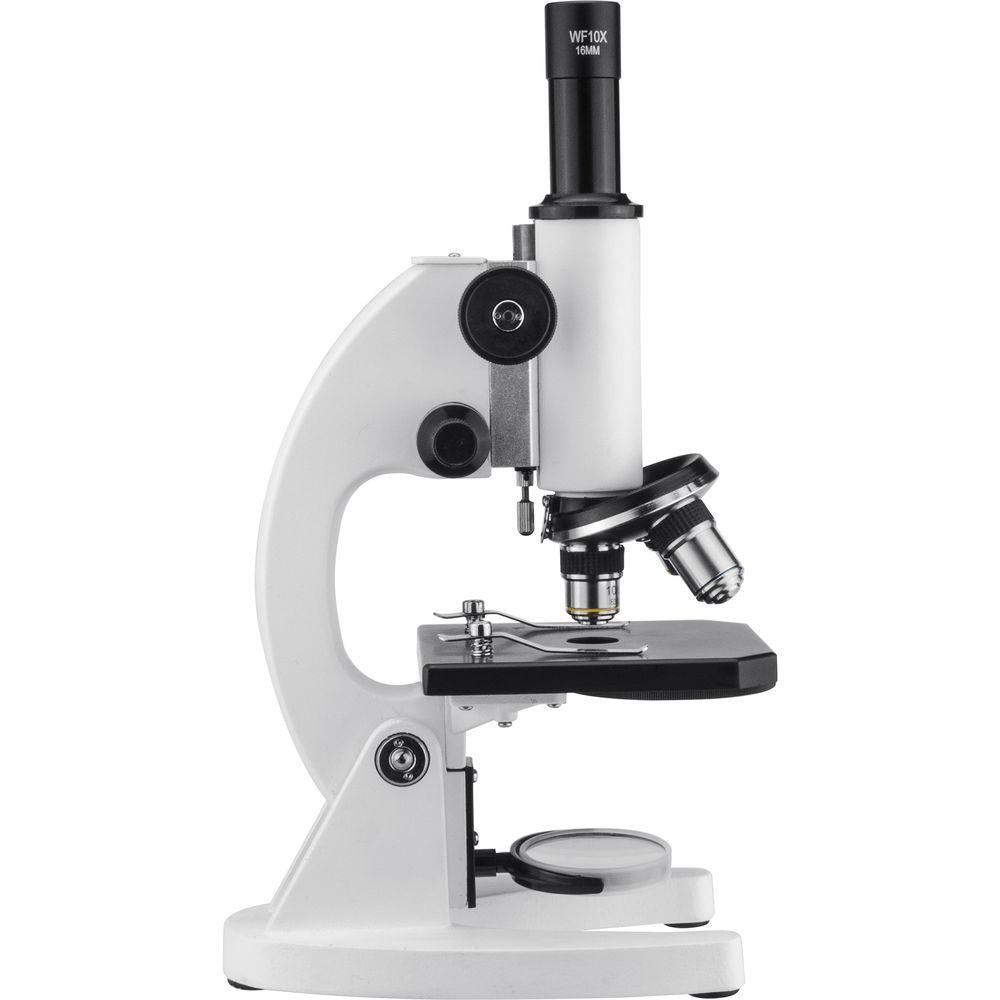

Product description Use the mirror-illuminated Barska Monocular Compound Microscope to conduct your explorations of the microworld. This cordless microscope uses a concave adjustable mirror as a bottom-transmitted illuminator and does not need any power source or batteries, which makes it easier to use in the lab or in the field. However, if you want to increase the brightness of your samples, you can use optional light sources as incidental illuminators. The 10x widefield eyepiece is vertically oriented but can be inclined to 45 degrees by adjusting the whole body of the microscope. This simple but handy device features three objectives on a rotating nosepiece (4x, 10x, and 40x) and can produce up to 400x magnification. You can secure your samples on a square (4.7 x 4.3") stage using two spring-loaded clips, adjust working distance, and use fine and coarse focusing to obtain sharp images. For controlling brightness and contrast, the stage has a rotating wheel with five fixed iris diaphragms. For precision and durability, the frame is made of aluminum and copper parts, while the base is made of iron. - Optics & Illumination
-

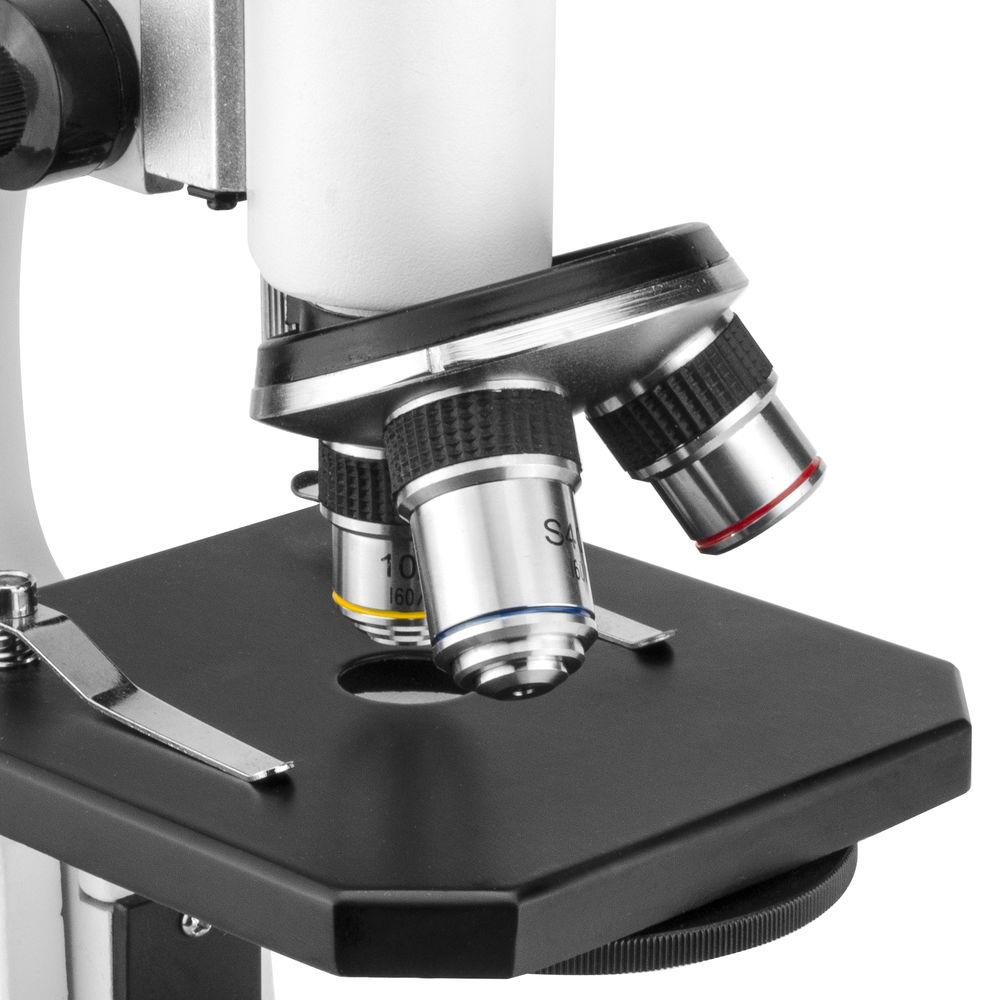

- 4x, 10x, and 40x objectives
- 10x, 16mm widefield eyepiece

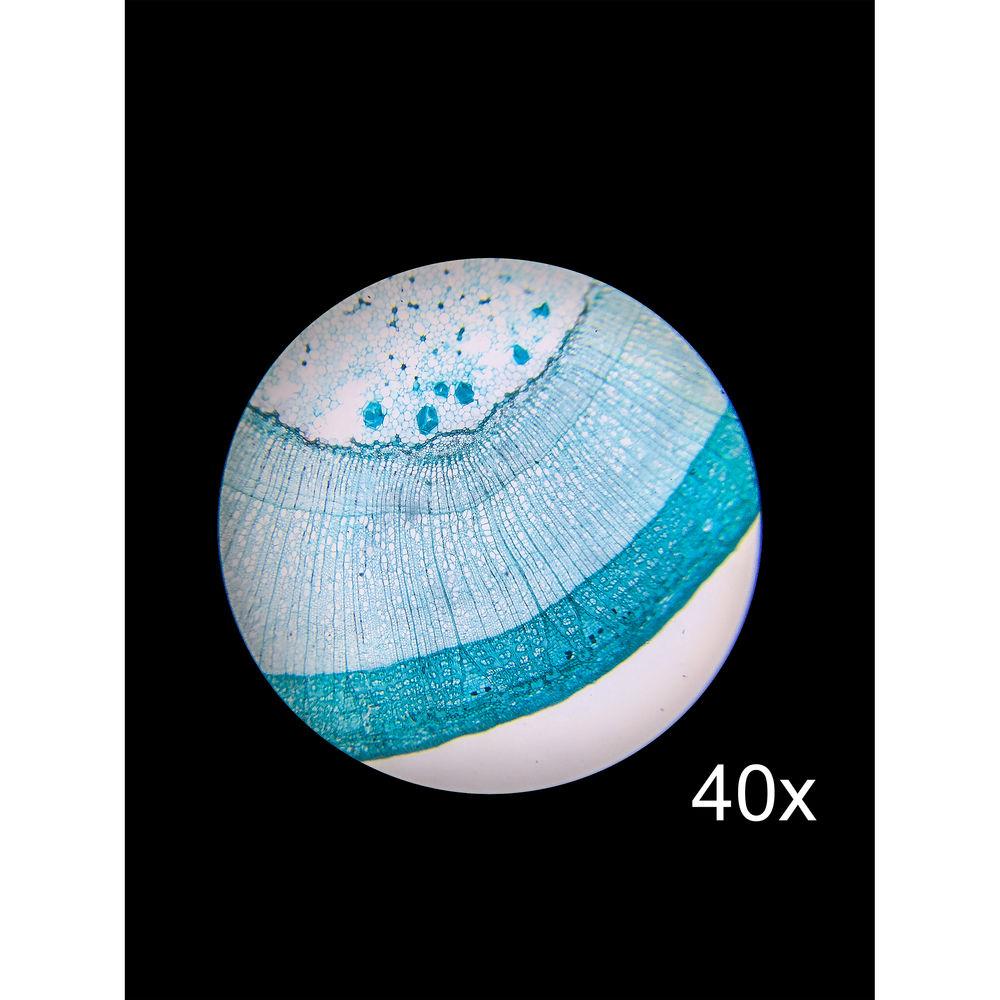

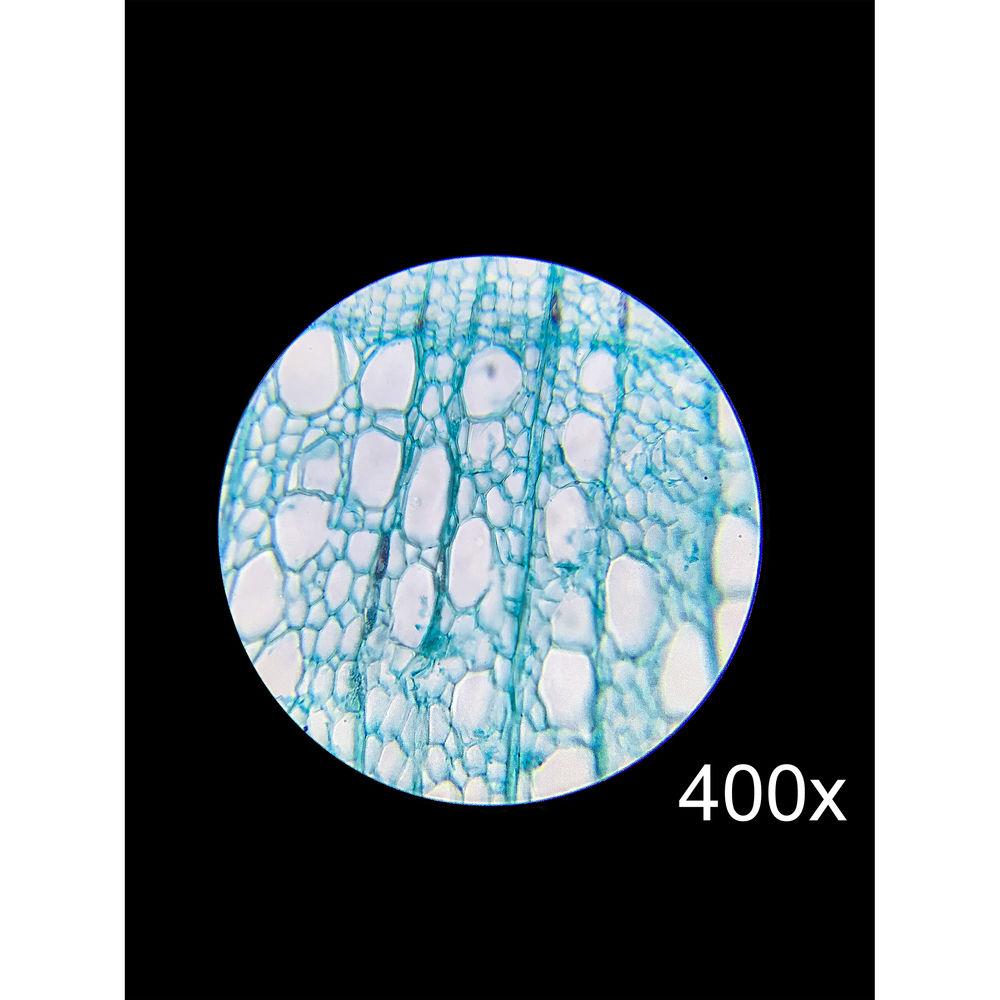

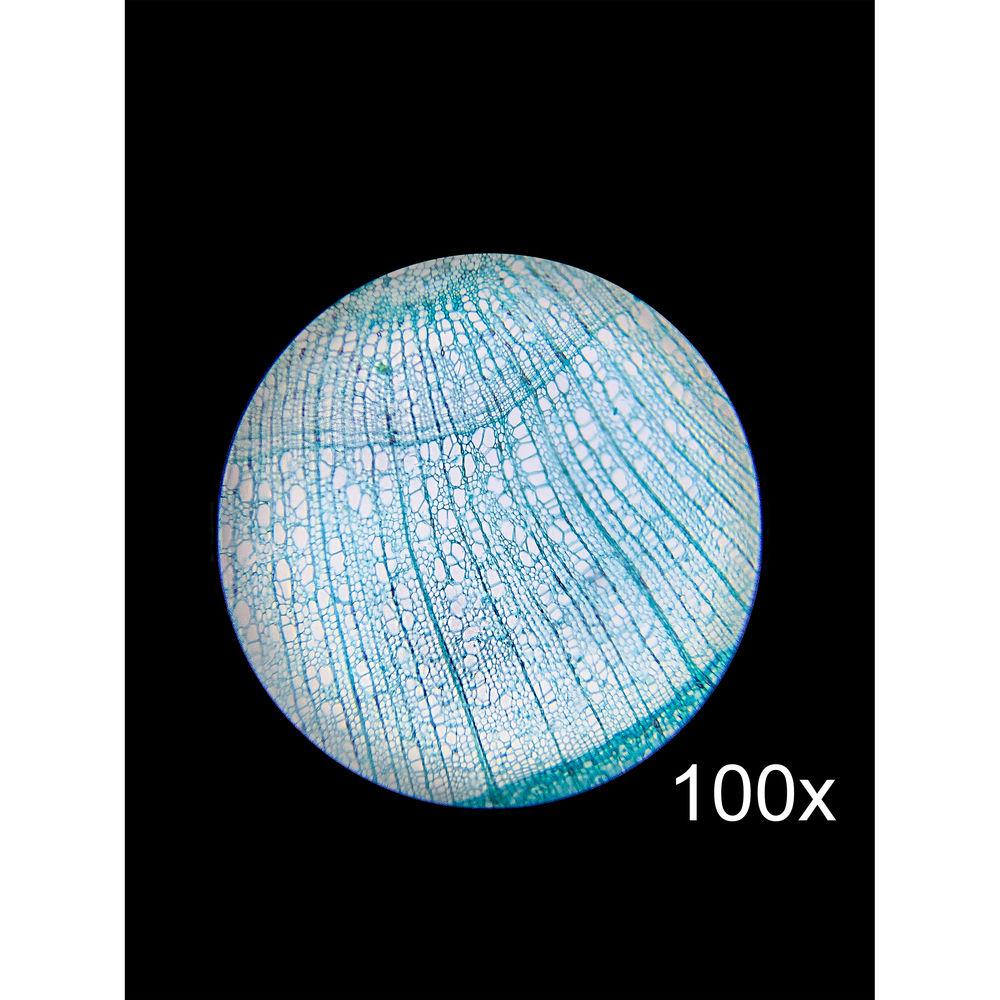

- Total magnification: 40x, 100x, and 400x
- Adjustable concave mirror provides bottom-transmitted illumination
- Built-in wheel with five fixed iris diaphragms can be used to control brightness and contrast
- Use and Handling
-
- Coarse and fine focusing
- Adjustable work distance
- Vertical-viewing monocular can be angled to 45°
- Rotating nosepiece
- Stage
-
- 4.7 x 4.3" square stage
- Two spring-loaded clips
- Construction Details
-
- Iron base
- Aluminum and copper frame
- Arched back can serve as a handle
UPC: 790272003709 In the Box Barska AY13070 Monocular Compound Microscope (Gray) - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska AY13070 Monocular Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AY13070 Specs | Microscope Type | Compound | | Head | Straight Monocular | | Nosepiece | 3-Position Nosepiece | | | | Optical Magnification | 40x, 100x, 400x | | Objective | 4x, 10x, 40x | | Eyepiece | 10x Wide Field | | Focusing | Coarse, Fine | | | | Illumination Type | Bottom: Mirror | | | | Dimensions | L: 7.0 x W: 4.8 x H: 13.3" / L: 17.8 x W: 12.2 x H: 33.8 cm (Microscope)
L: 4.7 x W: 4.3" / L: 12.0 x W: 11.0 cm (Specimen Stage) | | Weight | 5 lb / 2.3 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
