User Manual for Barska AY13180 Binocular Stereo Microscope Click to enlarge the picture
Contents of the user manual for the Barska AY13180 Binocular Stereo Microscope
- Product category: Microscopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Microscopes
 |
User manual for the Barska AY13180 Binocular Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

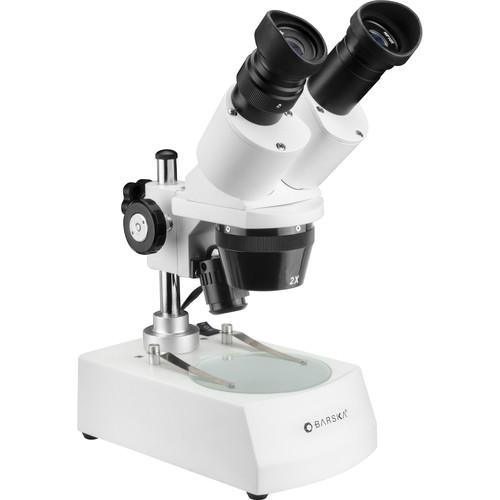

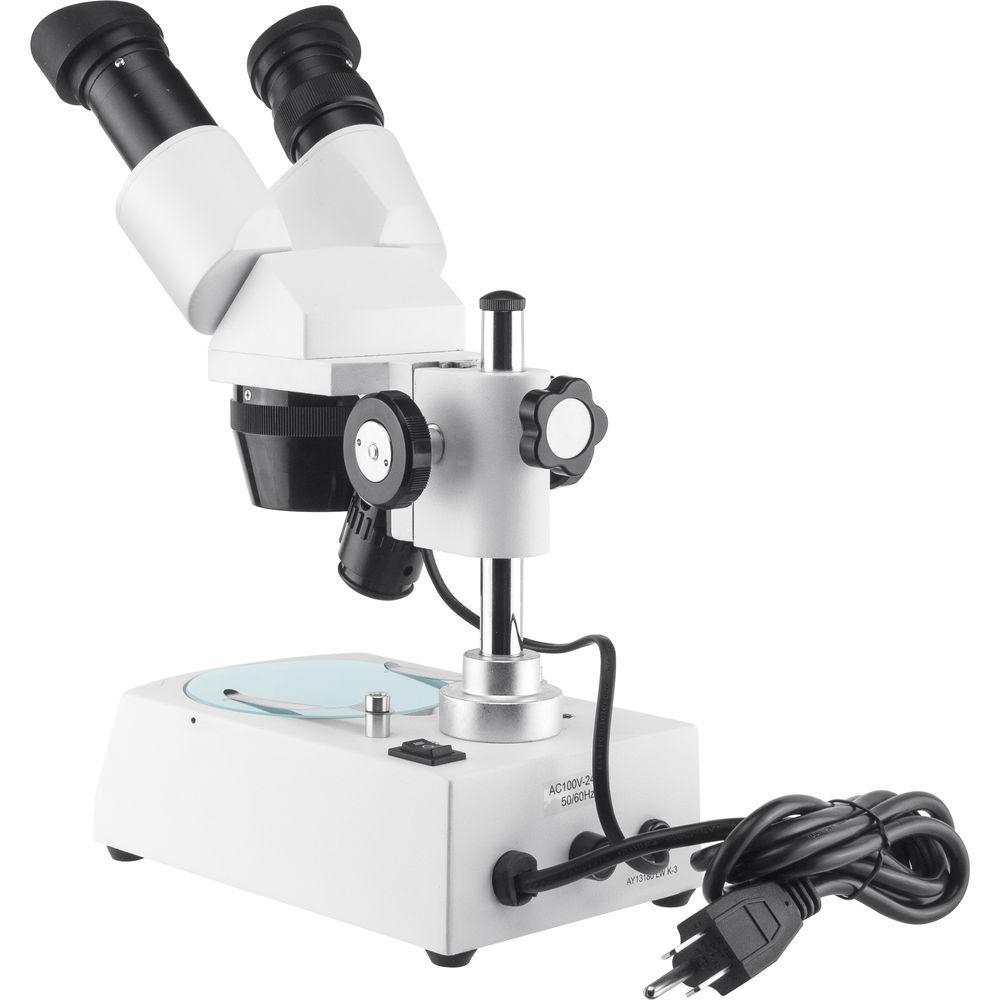

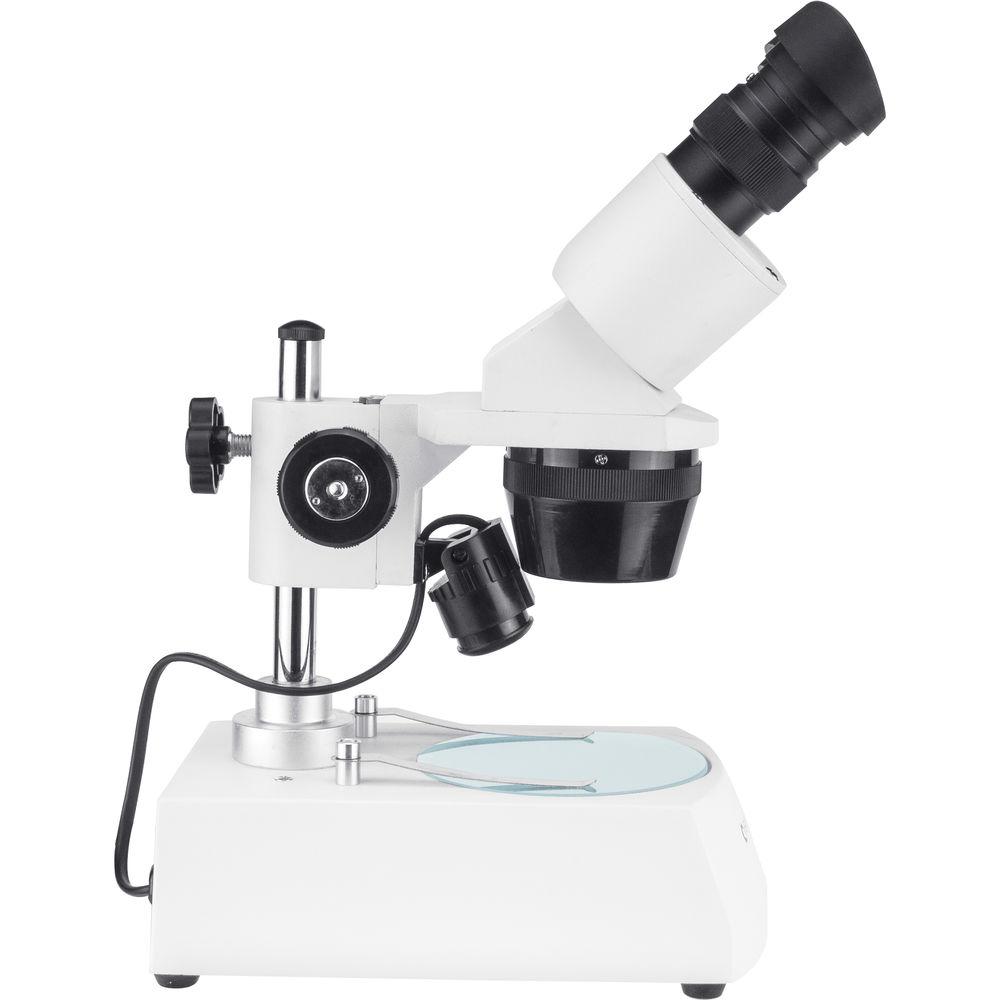

Product description Enhance your professional pursuits or hobbies using the Barksa AY13180 Binocular Stereo Microscope. This tool provides two independent optical paths (one for each eye) for stereoscopic viewing with 20-40x zoom magnification that is ideal for studying minerals, gems, insects, electronic boards, fabrics, or collectibles. The scope offers 45°-inclined viewing, which ensures an ergonomic and comfortable position for your head. Its two 10x widefield eyepieces with winged rubber eyecups have a diopter adjustment to compensate for the different optical strength between the eyes. To help you with optimal working distance for your tasks, the device has a pillar-type configuration, where the stereo head can slide up and down on the metal post and be secured with a locking knob. This configuration allows you plenty of space for placing larger samples under the objective lens. For optimizing image brightness and contrast, you have at your disposal top and bottom halogen illuminators. This scope's electrical power circuit is designed in such a way that it can be powered by a 100 - 240V source.

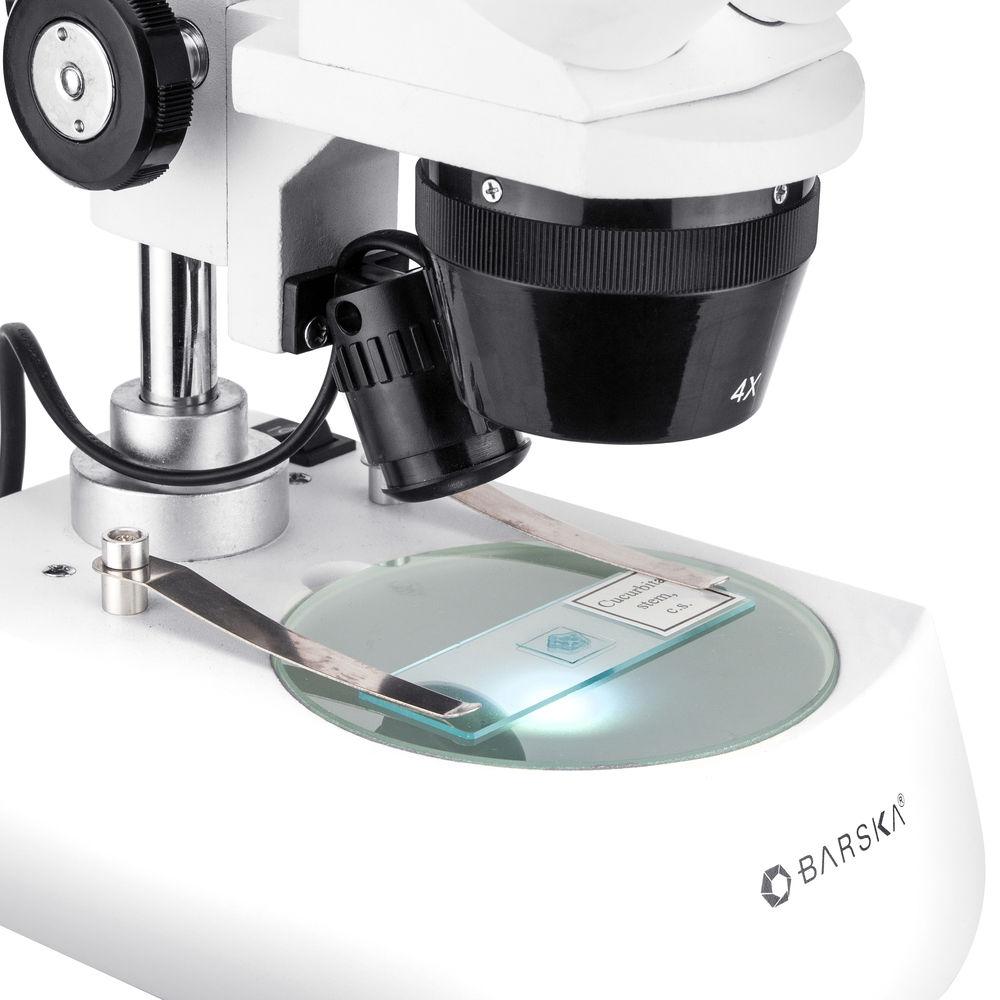

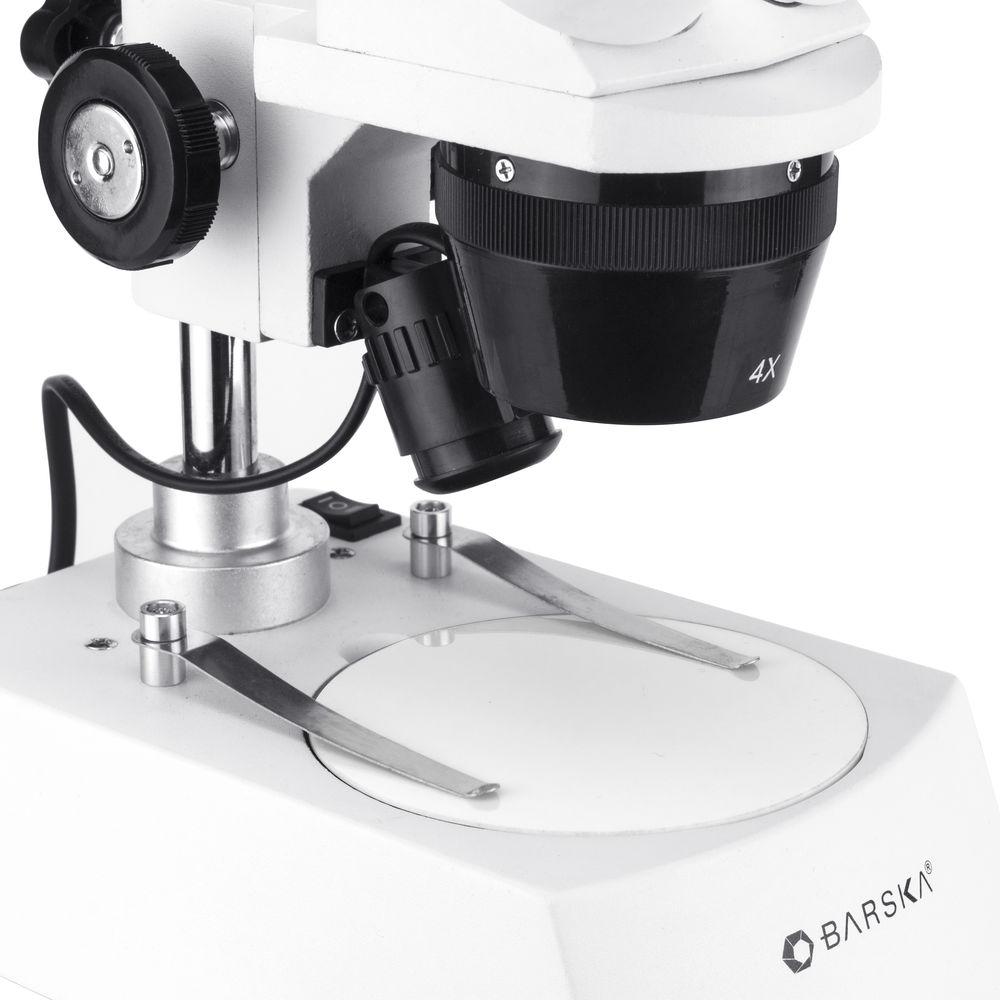

The housing is made of metal to ensure durability, precision, and repeatability of adjustments. It features oversized knurled adjustment knobs. The wide, flat base can be used with any of the three included round plates (white, black, and transparent glass) to achieve proper sample illumination. It also features two pre-loaded clips for securing your slides or specimens. - Optical Performance & Illumination
-
- Stereo viewing
- 2 - 4x objective

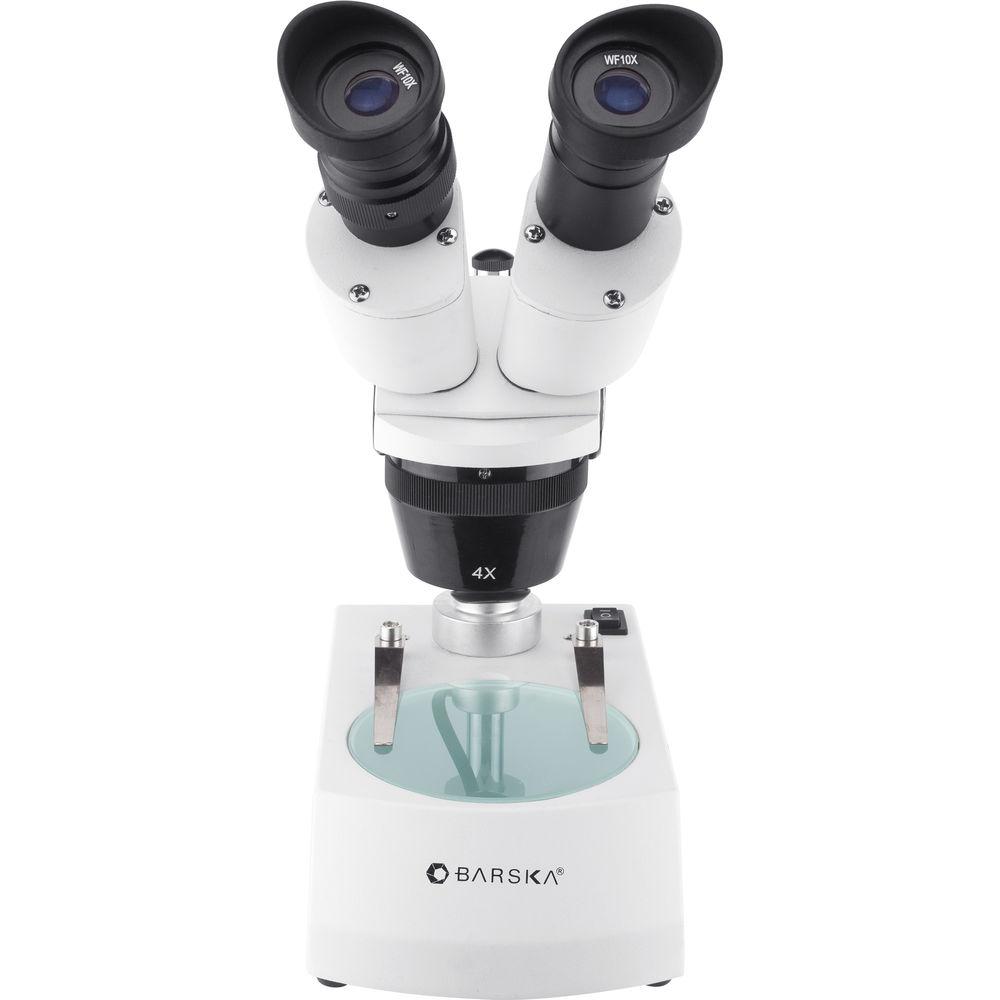

- Two widefield 10x eyepieces
- 20 - 40x total magnification
- Top and bottom halogen illumination
- Use and Handling
-
- Head rotates 360°
- Adjustable locking work distance
- Adjustable interpupillary distance: 55 - 75mm
- Diopter correction
- Coaxial coarse focusing
- 120 - 240V power requirement
- Stage
-
- Wide stationary base
- Three round plates: white, black, and transparent glass
- Two metal slide clips
- Construction Details
-
- Metal frame
- Pillar-style back
- Wide base
- Winged rubber eyecups on eyepieces
UPC: 790272004133 In the Box Barska AY13180 Binocular Stereo Microscope (Gray) - Spare Light Bulb
- Spare Fuse
- Power Cord

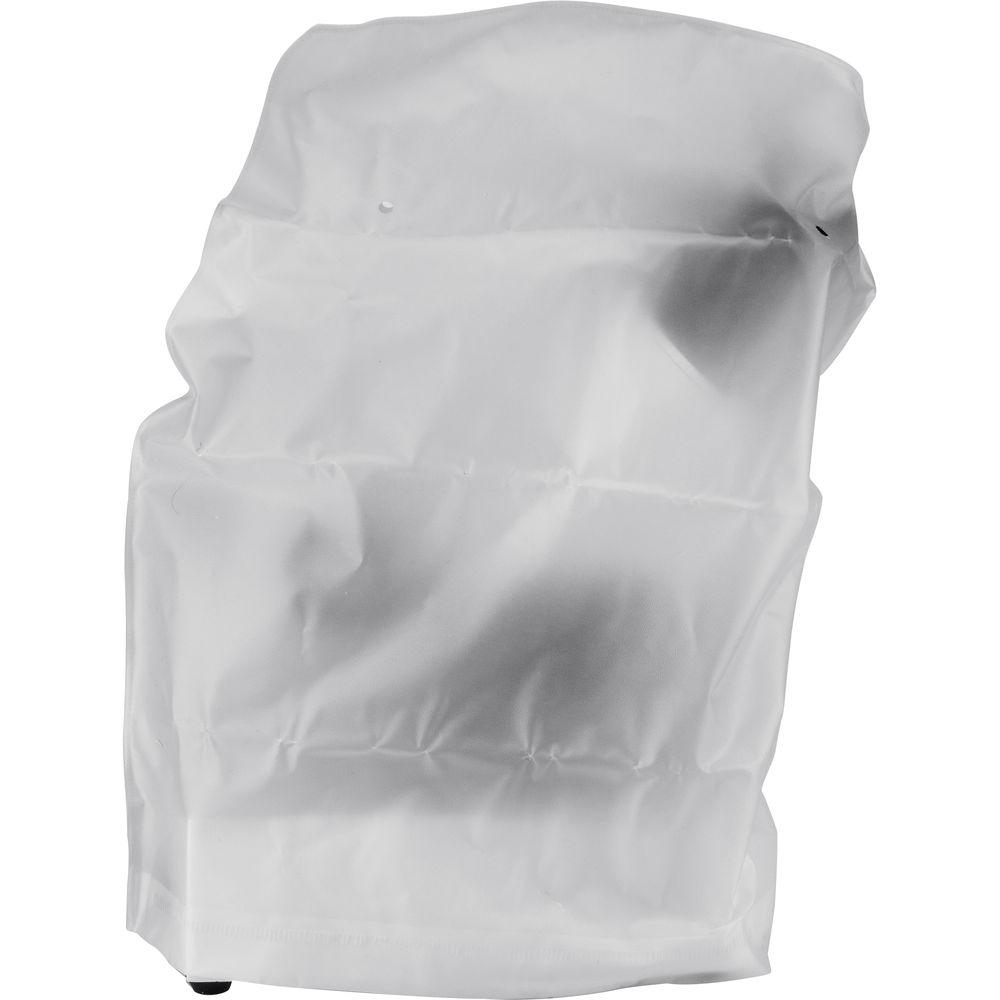

- Dust Cover
- 3 x Base Plates
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska AY13180 Binocular Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AY13180 Specs | Microscope Type | Compound | | Head | Inclined Binocular | | | | Optical Magnification | 20x to 40x | | Objective | 2x to 4x | | Eyepiece | 10x Wide Field | | Focusing | Coarse | | | | Illumination Type | 2 x Halogen (12 V, 10 W) | | | | Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | Not Specified by Manufacturer | | Weight | 3.5 lb / 1.6 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Barska AY13180 Binocular Stereo Microscope
| Subject: recently purchased used Barska stereo microscope | | Date: 24.06.2021 01:31:11 | Name: James Lake | I recently purchased a refurbished used Barska stereo microscope. It arrived without an instruction manual. I have extra eye pieces but it isn't clear how to exchange them. Can you kindly send me the instruction as a PDF file. Can you also kindly send me instructions on how to change the eye pieces? Finally, can you suggest accessories that I should purchase?
Thank you for your kind help, James | | Post reply |
