User Manual for Barska Blackhawk ED 20-60x60mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Barska Blackhawk ED 20-60x60mm Spotting Scope
- Product category: Spotting Scopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Spotting Scopes
|
User manual for the Barska Blackhawk ED 20-60x60mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

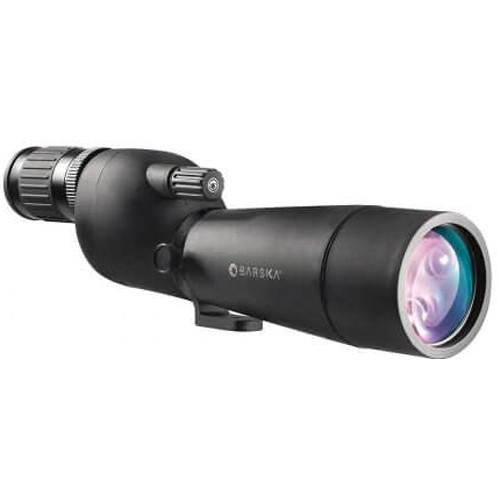

Product description A Guide to Birding with Spotting Scopes Read More areyzwcyrycestxxavtyawzsdctycv Designed to provide a power and performance at the range or in the field, the straight-through viewing Barska Blackhawk ED 20-60x60mm Spotting Scope is built with extra-low dispersion (ED) glass, a BK7 Porro prism, and anti-reflection fully multi-coated optics.The glass, prism, and coatings ensure accurate color rendition with improved clarity and contrast, while the large 60mm objective lens draws in copious amounts of light to boost its performance in low and challenging conditions while ensuring the views remain bright and clear when viewing subjects at long distances with the magnification dialed all the way up. Its broad zoom range allows you to more easily scan the landscape for targets at the low 20x with the ability to quickly dial up the power to 60x and make detailed observations of distant subjects.The chassis is sealed to be water and fogproof even in extreme weather conditions. The straight-through viewing configuration makes finding and tracking subjects faster and easier versus angled designs. A 1/4"-20 mount makes it compatible with many tripods, quick release plates, and other popular support systems like window mounts, and Barska includes a compact tabletop tripod to get you observing right out of the box. A hard carrying case is also provided to protect your spotter during transport and storage, with a second lightweight soft case to make it easy to carry in the field. - Optical Performance
-
- Powerful 20-60x zoom eyepiece allows you to make observations at low power with the ability to zoom in for detailed views
- Large 60mm objective lens helps to boost performance in low and challenging light, and ensures views remain bright and clear when observing distant subjects on maximum zoom
- BK7 Porro prism light path helps to deliver a rich depth of field for a more lifelike viewing experience
- Extra-low dispersion glass virtually eliminates chromatic aberrations to reduce color fringing and halos
- Anti-reflection fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images with accurate color and improved resolution
- 91-foot field of view at 1000 yards at 20x power, 45-foot at 60x
- Use and Handling
-
- The eyepiece is set in-line with the optical tube to make finding subjects faster and tracking moving targets easier
- Slip-resistant focusing knob is easy to manipulate in cold or wet weather, or while wearing gloves
- Fold-down rubber eyecup for comfortable use with or without eyewear
- Long 15.4-16.5mm eye relief reduces eye strain for easier viewing, especially during long glassing sessions
- 3mm exit pupil at 20x magnification
- Construction Details
-
- Matte black armor protects the optical tube from impacts and bumps
- Optical tube is sealed to be waterproof and resistant to internal fogging in extreme conditions
- Standard 1/4"-20 mount is compatible with most quick release plates, heads, and photo/video/field tripods and other support systems
- Includes a compact tabletop tripod outfitted with a simple-to-use pan/tilt head
- Hard carrying case protects the spotting scope and tripod during transport and storage
- Lightweight soft case holds the spotting scope and tripod for easier carrying to the range or in the field
UPC: 790272984053 In the Box Barska Blackhawk ED 20-60x60mm Spotting Scope (Straight Viewing) Lens Cloth Tabletop Tripod Soft Carrying Case Hard Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska Blackhawk ED 20-60x60mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska Blackhawk Specs | | | Viewing Angle | Straight | | Prism Type | Porro (BK7) | | | | Magnification | 20 to 60x | | Objective Lens Diameter | 60 mm | | Field of View | 20x: 91.0' @ 1000 yd / 30.2 m @ 1000 m
60x: 45.0' @ 1000 yd / 14.9 m @ 1000 m | | Minimum Focus Distance | 15.0' / 4.6 m | | Exit Pupil Diameter | 20x: 3 mm
60x: 1 mm | | Eye Relief | 15.4 to 16.5 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 Female | | Dimensions | L: 14.9" / L: 37.8 cm | | Weight | 45.8 oz / 1297.3 g |
