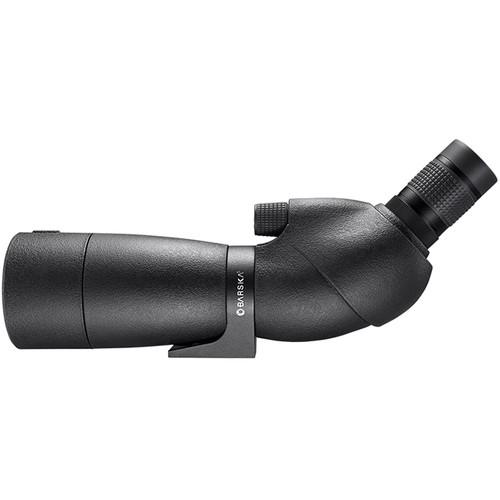

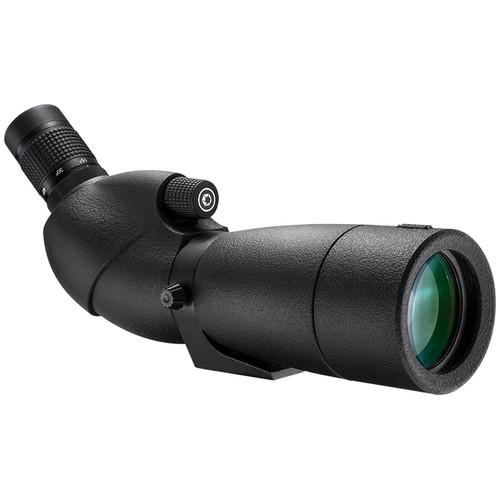

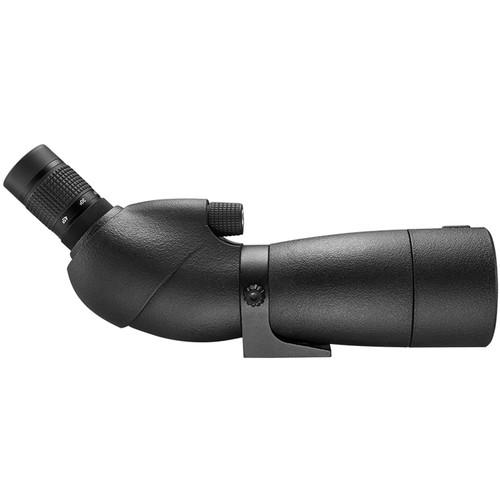

Product description A Guide to Birding with Spotting Scopes Read More This angled-viewing Level 20-60x65 WP Spotting Scope from Barska makes the ideal companion at the range, in the field, or on the trail. At the low 20x magnification, it can be used for taking in expansive views and finding your subjects, while dialing it up to 60x gives you the capability of making detailed observations—even at long distances. The scope's large 65mm objective, combined with fully multi-coated optics, draws in copious amounts of light, giving it competent low-light performance such as at dawn or dusk, or when trying to pick game out from under heavily-canopied forests. With its eyepiece set at a 45° angle relative to the optical tube, your head and neck are in a comfortable position whether you're standing, sitting, or lying prone.To withstand the rigors of a life lived outdoors, the housing is nitrogen filled and O-ring sealed to be water and fogproof—even in extreme conditions. The exterior is wrapped in a protective rubber armor that is textured to provide a slip-resistant grip when setting up and breaking down. To further protect the scope on the trail, Barska includes a soft stay-on/view-through case. An extendable shade slides out to reduce glare on sunny days to improve image quality and helps to keep rain or snow off the objective if the weather turns. Helping to get you observing faster, also included is a tabletop tripod with a pan/tilt head. - Optical Performance
-
- 20-60x zoom magnification
- Large 65mm objective lens
- BAK4 Porro prism
- Anti-reflection fully multi-coated optics increase light transmission, improve color rendition and contrast
- Neutral-tone green lens tint further enhances color rendition
- 72.5-30.5' field of view at 1000 yards
- Use and Handling
-

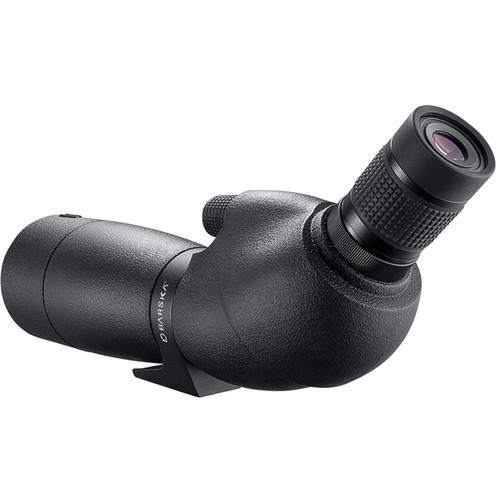

- 45° angled eyepiece provides a comfortable viewing position whether standing, sitting, or lying prone
- Center focusing knob for easy access with either hand
- Rotating and locking tripod collar allows eyepiece to be set at appropriate angle
- Standard 1/4"-20 tripod mount
- Long 17-15mm eye relief
- 3.1-1.1mm exit pupil
- Construction Details
-
- Rugged armoring protects against knocks and impacts
- Nitrogen filled and O-ring sealed, providing water and fogproof performance

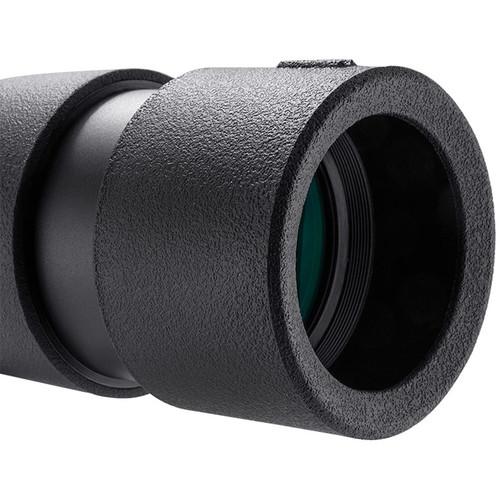

- Extendable sunshade helps to reduce glare for better viewing and keeps snow and rain off in inclement weather

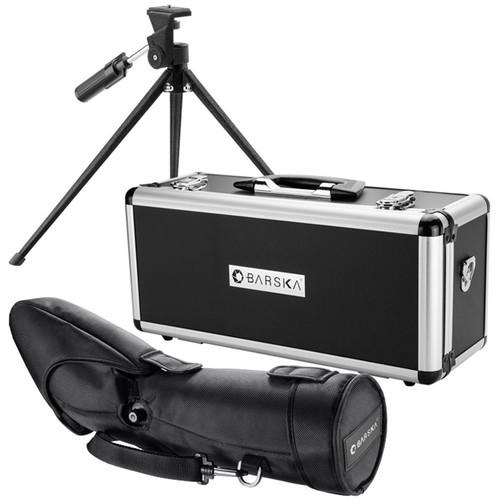

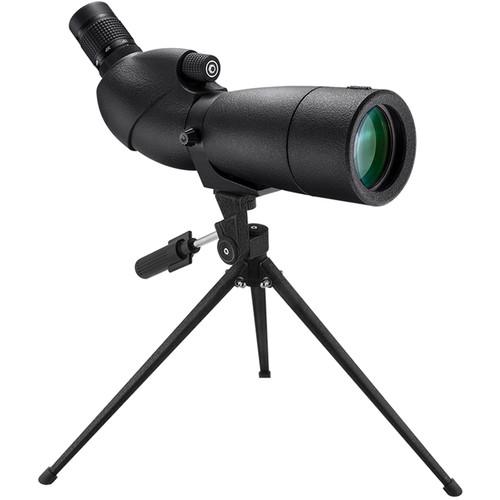

- Pan/tilt head with locking handle and tabletop tripod included
- Stay-on view-through soft nylon case protects optic 24/7
- Hard carrying case for safe storage and transport
UPC: 790272001163 In the Box Barska Level 20-60x65 WP Spotting Scope (Angled Viewing, Black) Hard Carrying Case Soft View-Through Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska Level 20-60x65 WP Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AD12356 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 65 mm | | Field of View | 20x: 72.5' @ 1000 yd / 22.0 m @ 1000 m
60x: 30.5' @ 1000 yd / 9.2 m @ 1000 m | | Minimum Focus Distance | 29.5' / 9.0 m | | Exit Pupil Diameter | 20x: 3.1 mm
60x: 1 mm | | Eye Relief | 17.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.8" / L: 40.0 cm | | Weight | 39.2 oz / 1.1 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 16.5 x 8.5 x 6.3" |
