User Manual for Barska Level 20-60x65 WP Spotting Scope Click to enlarge the picture
Contents of the user manual for the Barska Level 20-60x65 WP Spotting Scope
- Product category: Spotting Scopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Spotting Scopes
 |
User manual for the Barska Level 20-60x65 WP Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

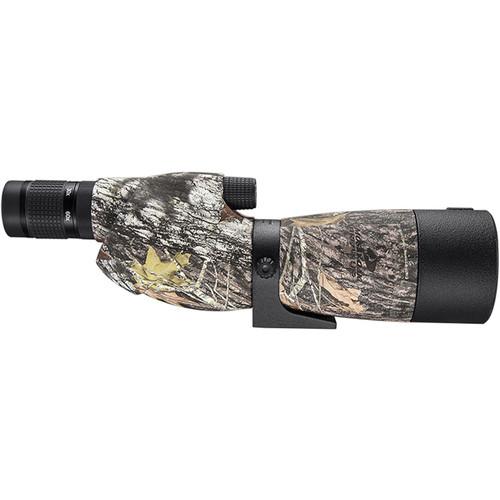

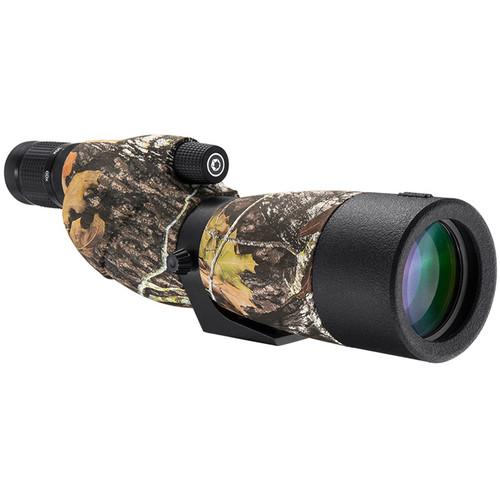

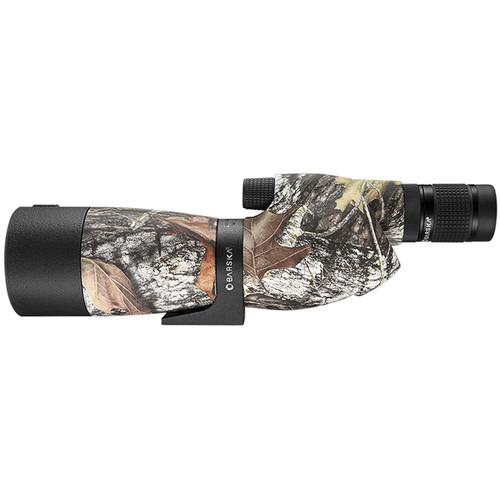

Product description A Guide to Birding with Spotting Scopes Read More This straight-viewing Level 20-60x65 WP Spotting Scope in Mossy Oak camouflage from Barska makes the ideal companion at the range, in the field, or on the trail. At the low 20x magnification, it can be used for taking in expansive views and finding your subjects, while dialing it up to 60x gives you the capability of making detailed observations—even at long distances. The scope's large 65mm objective, combined with fully multi-coated optics, draws in copious amounts of light, giving it competent low-light performance such as at dawn or dusk, or when trying to pick game out from under heavily-canopied forests. With its eyepiece set in-line with the orientation of the optical tube, finding and tracking subjects is faster and easier versus an angled configuration eyepiece.To withstand the rigors of a life lived outdoors, the housing is nitrogen filled and O-ring sealed to be water and fogproof—even in extreme conditions. The exterior is wrapped in a protective rubber armor that is textured to provide a slip-resistant grip when setting up and breaking down. To further protect the scope on the trail, Barska includes a soft stay-on/view-through case. An extendable shade slides out to reduce glare on sunny days to improve image quality and helps to keep rain or snow off the objective if the weather turns. Helping to get you observing faster, also included is a tabletop tripod with a pan/tilt head. - Optical Performance
-
- 20-60x
- 65mm objective lens
- BAK4 Porro prisms
- Anti-reflection fully multi-coated optics increase light transmission and contrast and improve color rendition
- 66-28' field of view at 1000 yards
- Use and Handling
-
- Straight viewing allows for faster and easier target acquisition and tracking
- Centered focusing wheel provides easy access with either hand
- Rotating and locking tripod collar enables precise eyepiece placement

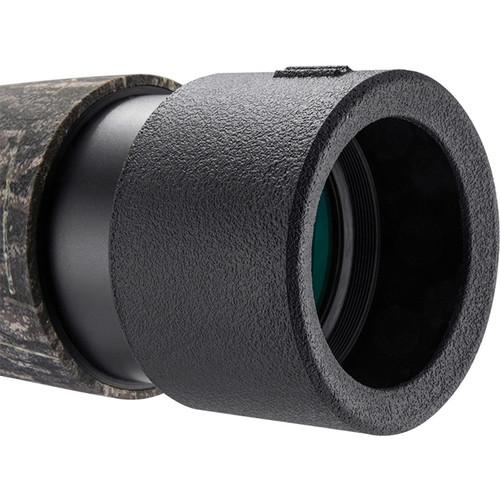

- Extendable sunshade
- Reduces glare on sunny days
- Keeps rain and snow off objective in inclement weather

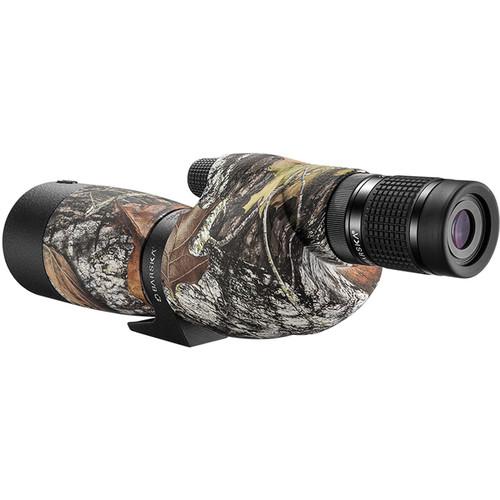

- Twist-up eyecup for comfortable use with or without eyewear
- 17-15mm eye relief
- 3.25-1.1mm exit pupil
- Construction Details
-
- Nitrogen filled for water and fogproof performance
- Textured Mossy Oak camouflage rubber armoring protects from bumps and impacts and provides slip-resistant handling

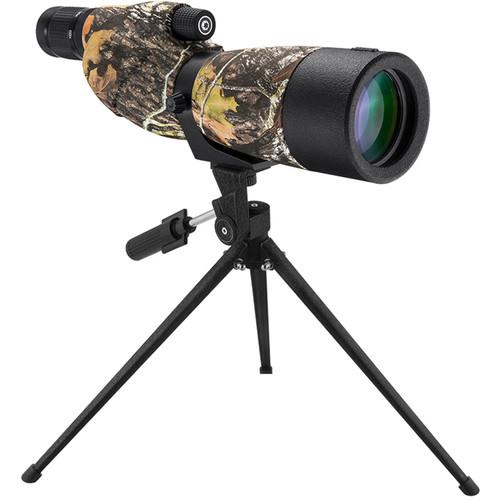

- Folding tabletop tripod with pan/tilt head included
- Soft stay-on/view-through nylon case provides 24/7 protection
- Hard carrying case holds scope, head, and tripod for safe and secure transport and storage

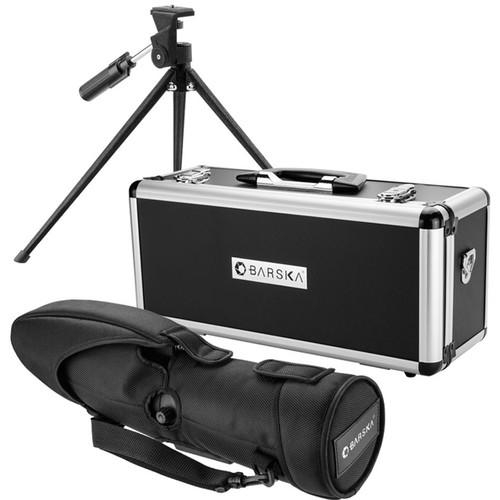

UPC: 790272001170 In the Box Barska Level 20-60x65 WP Spotting Scope (Straight Viewing, Mossy Oak Camo) Pan/Tilt Head Tabletop Tripod Hard Carrying Case Soft Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska Level 20-60x65 WP Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska AD12358 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 65 mm | | Field of View | 20x: 66.0' @ 1000 yd / 24.0 m @ 1000 m
60x: 27.8' @ 1000 yd / 9.3 m @ 1000 m | | Minimum Focus Distance | 29.5' / 9.0 m | | Exit Pupil Diameter | 20x: 3.25 mm
60x: 1.1 mm | | Eye Relief | 17.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.2" / L: 36.2 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 16.6 x 8.3 x 6.4" |
