User Manual for Barska Naturescape WP 20-60x60 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Barska Naturescape WP 20-60x60 Spotting Scope
- Product category: Spotting Scopes Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Spotting Scopes
 |
User manual for the Barska Naturescape WP 20-60x60 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

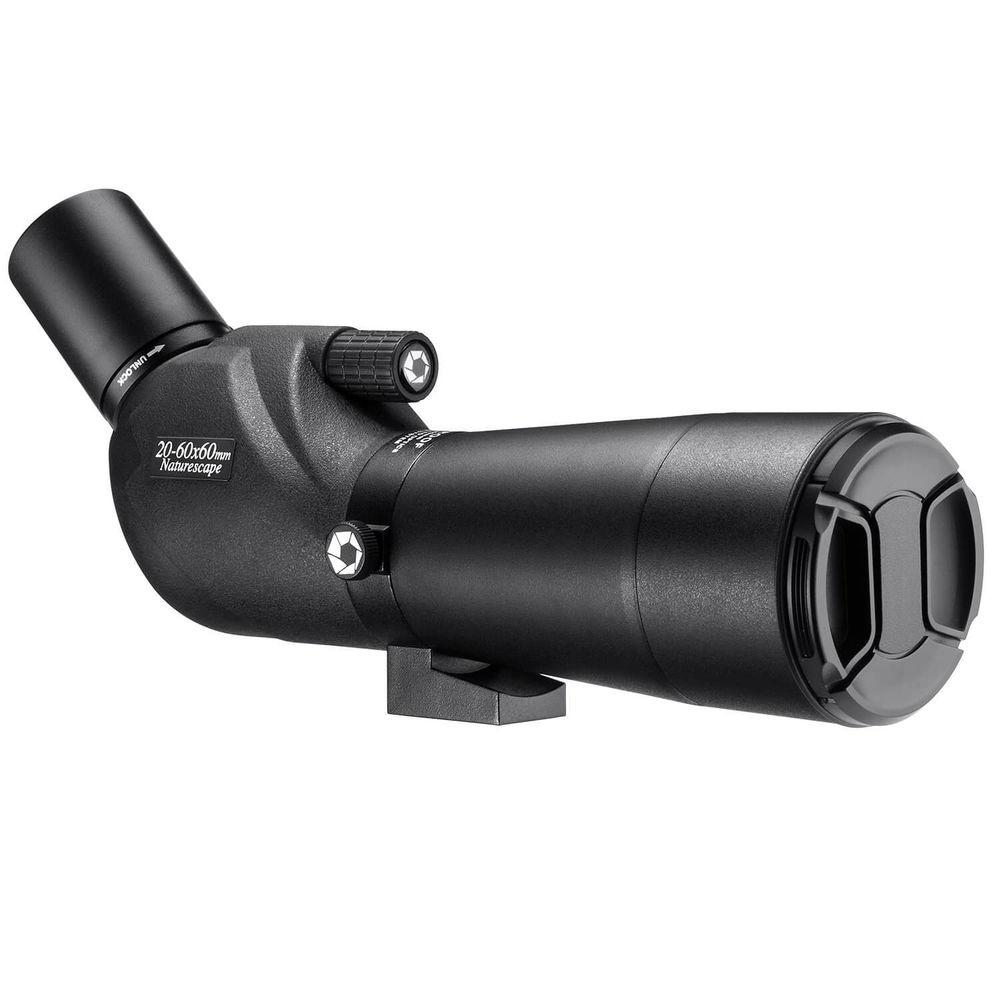

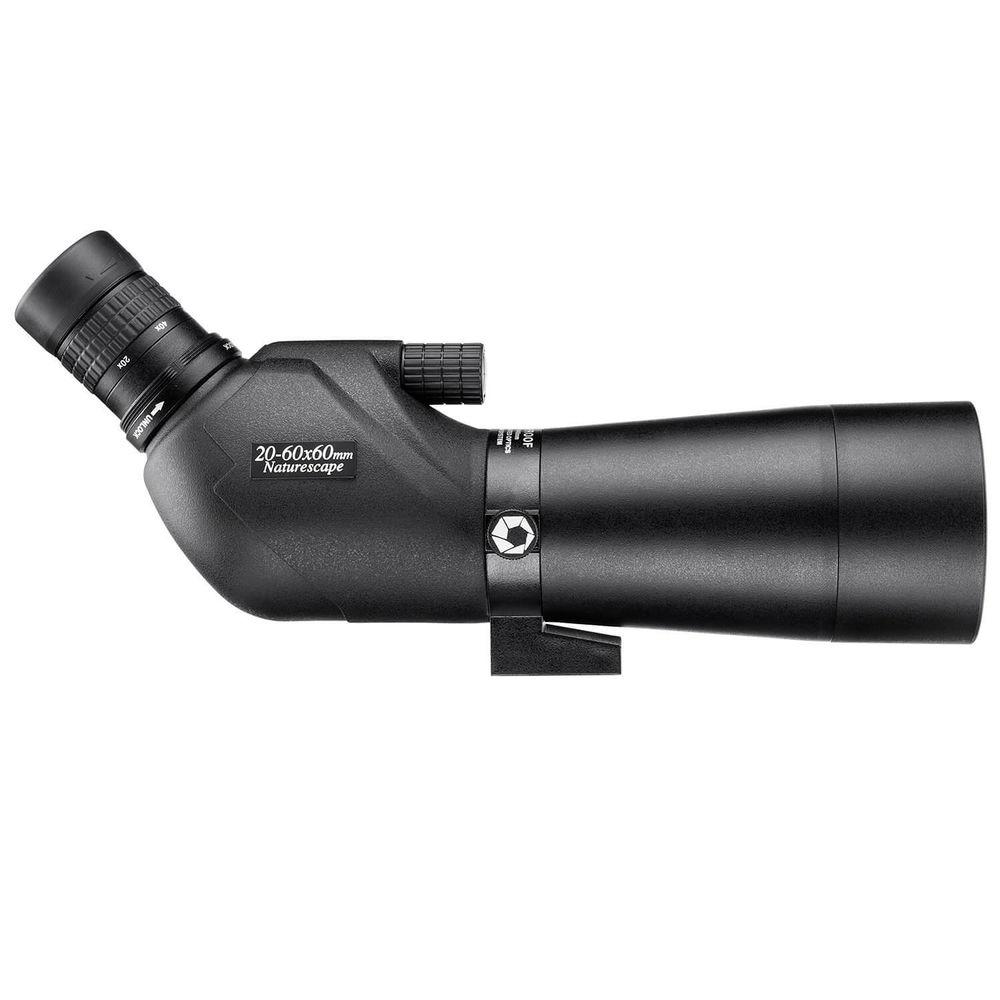

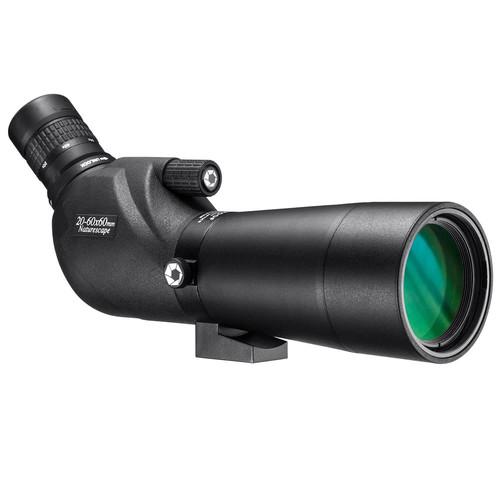

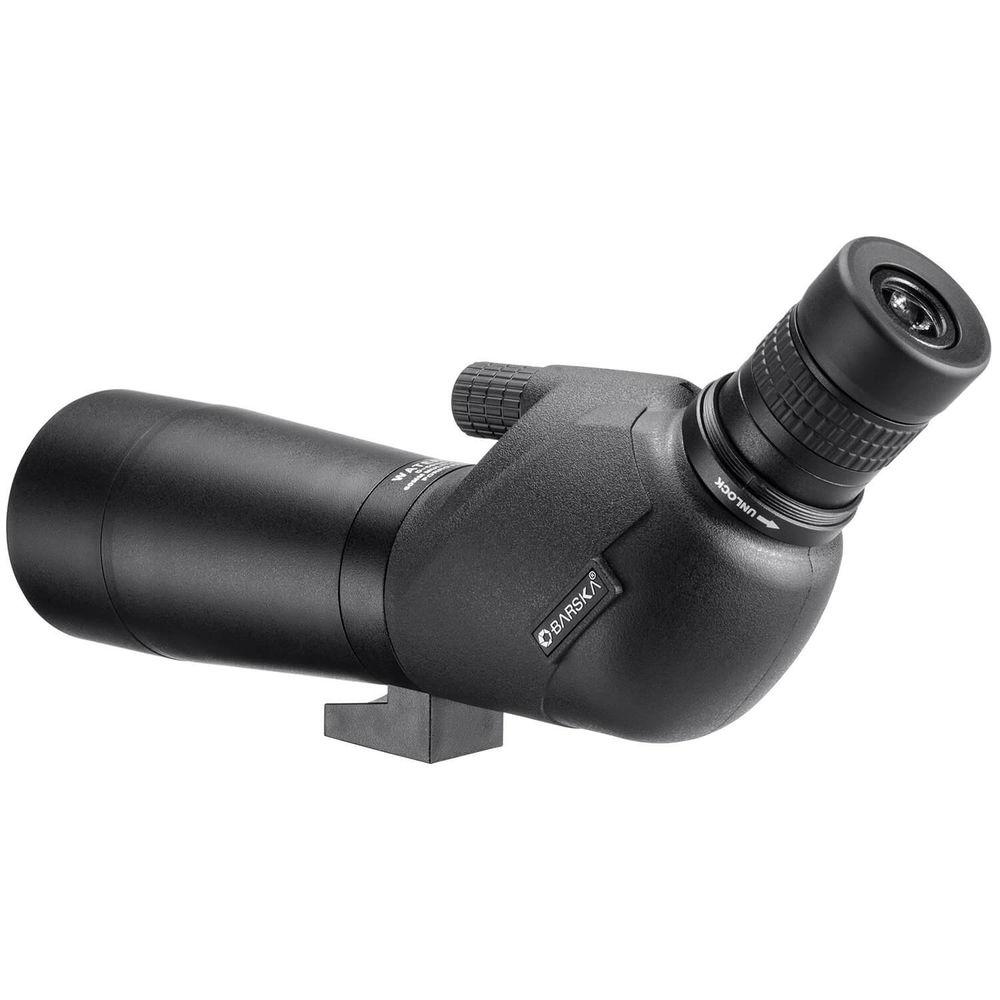

Product description A Guide to Birding with Spotting Scopes Read More The Barska Naturescape WP 20-60x60 Spotting Scope is an ideal companion for birders, hunters, and nature enthusiasts who require a versatile, powerful, and portable optic on the trail or at the range. Outfitted with a wide zoom range that provides expansive views at low power with the ability to make detailed observations of distant subjects at its highest magnification, this spotter has anti-reflection fully multi-coated optics to improve light transmission, color rendition, and contrast to produce an immersive observational experience.Its eyepiece is set a 45° angle to the optical tube, which places your head in a comfortable viewing position whether standing, sitting, or lying prone. A textured zoom collar and focus knob ensure easy handling in cold and wet weather or while wearing gloves. Included with the spotter is a soft stay-on/view-through case for optimum mobility and additional protection from drops or impacts and a tabletop tripod with pan/tilt head to give you a complete support system right out of the box. - Optical Performance
-
- 20-60x zoom magnification
- 60mm objective lens
- BK7 Porro prism optical path
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, and overall image contrast
- 121-58' field of view at 1000 yards
- Use and Handling
-

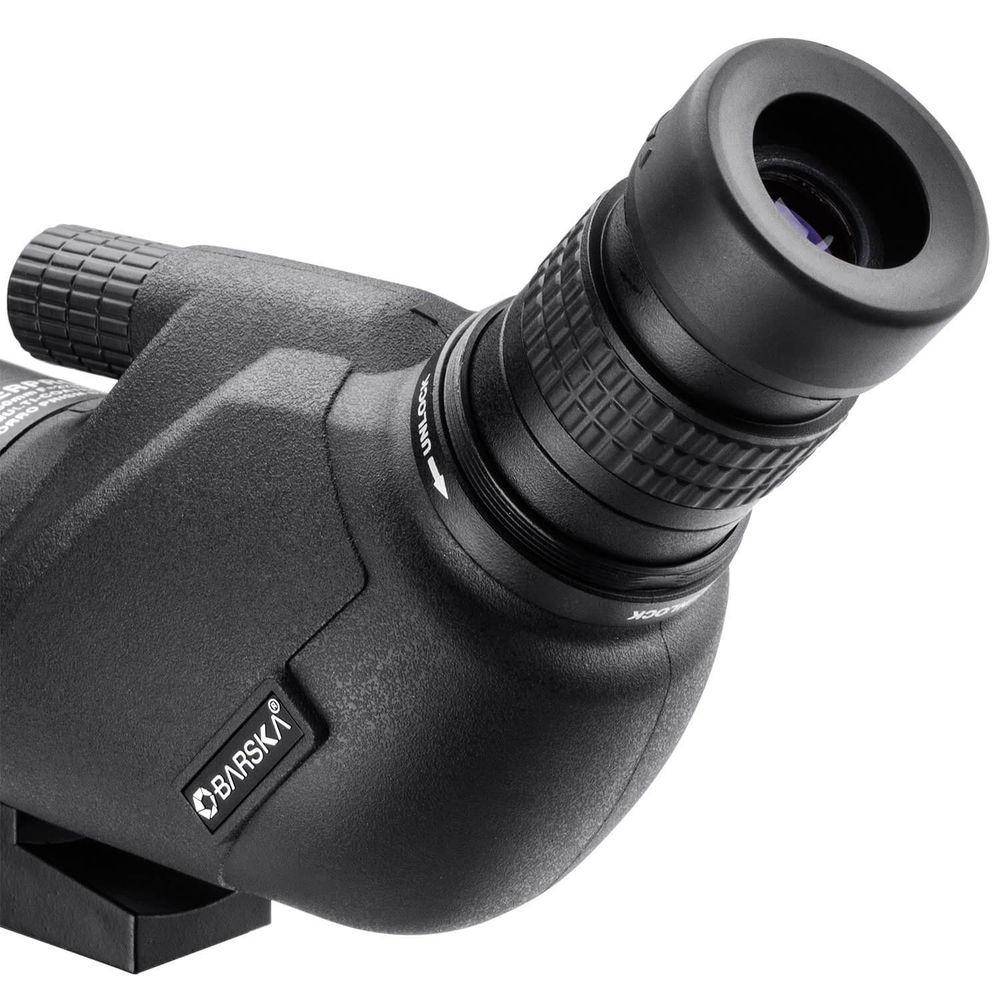

- Eyepiece set at 45° angle to optical tube to put head in a comfortable viewing position whether sitting, standing, or lying prone
- Large single-speed focus knob
- Textured zoom collar and focus knob make it easy to manipulate in cold or wet conditions or while wearing gloves
- Dioptric correction for precise focusing

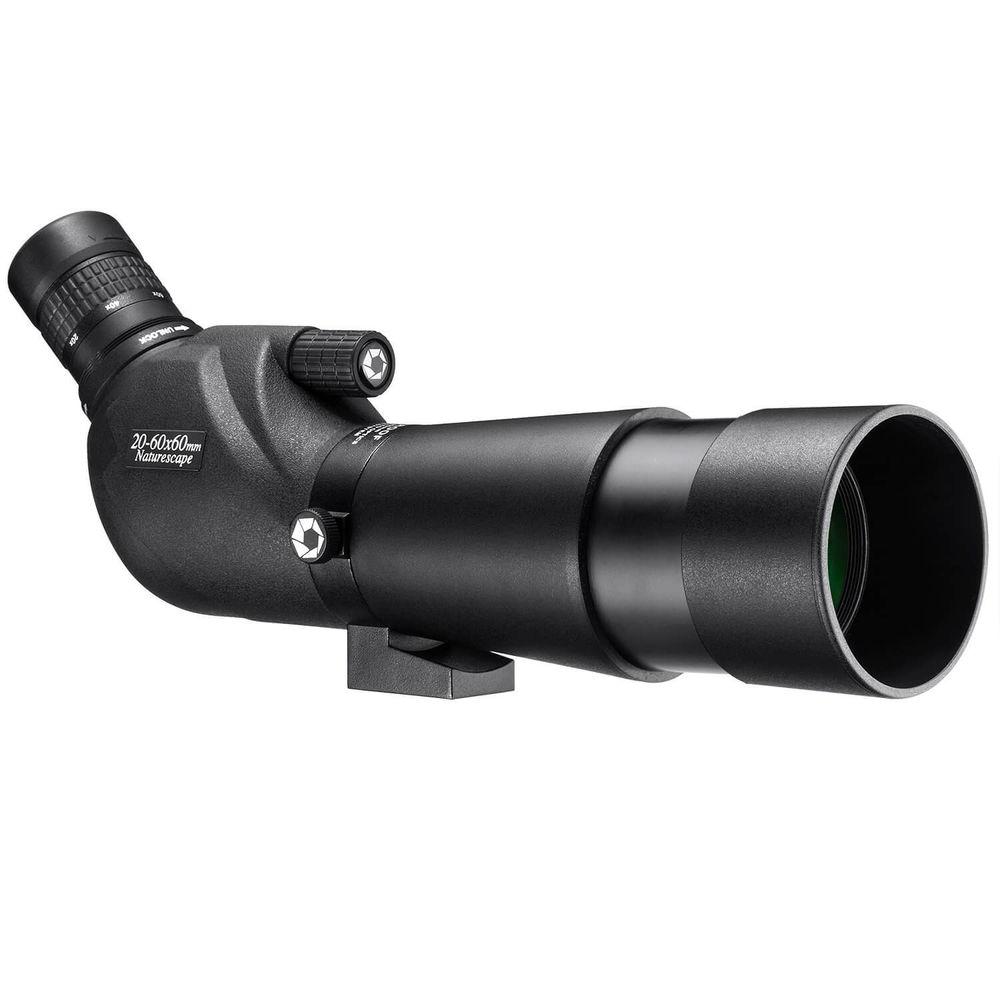

- Extendable sunshade reduces glare and flares and keeps rain or snow off objective
- Long 17-14mm eye relief
- 3-1mm exit pupil
- Construction Details
-
- Textured rubber armoring protects against drops and impacts while providing slip-resistant handling
- Nitrogen filled and O-ring sealed to be waterproof and prevent internal fogging when moving through extreme temperature changes

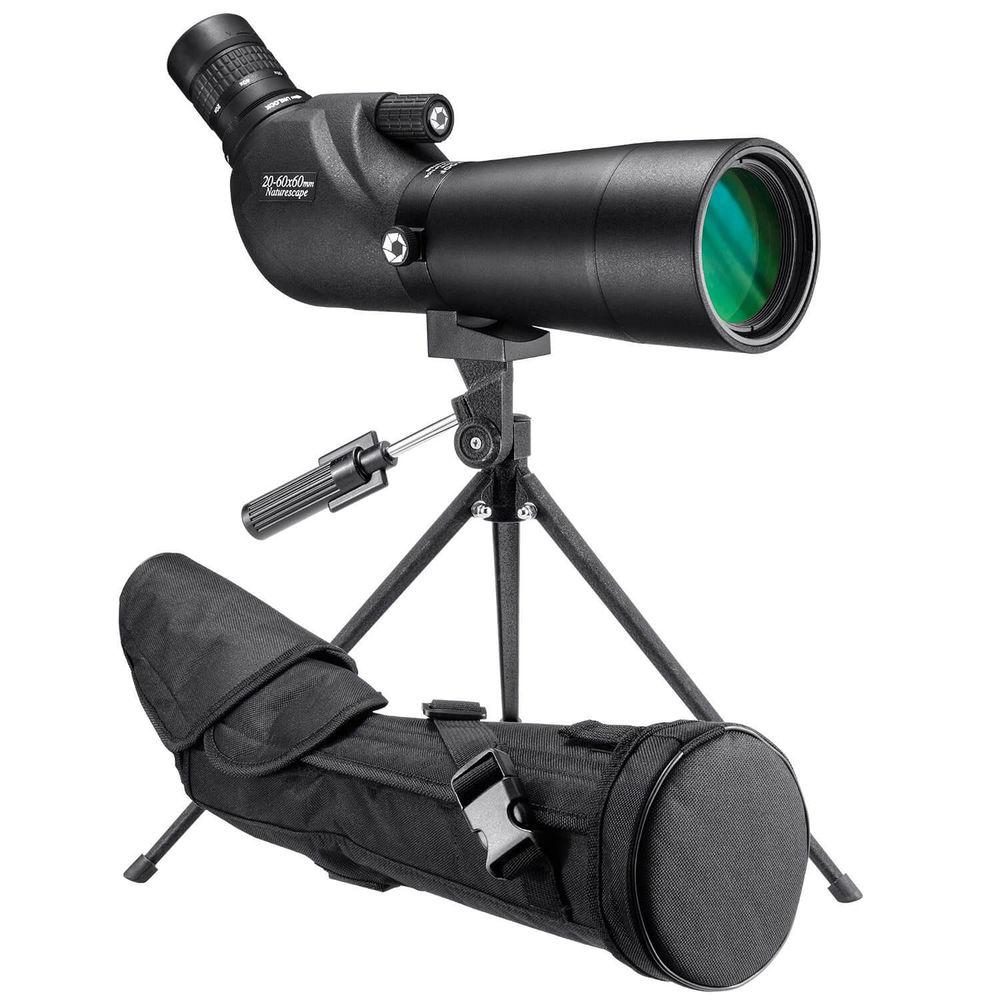

- Stay-on/view-through soft case adds protection and makes setup and breakdown faster
- Folding tabletop tripod provides a simple and effective support system
- Pan/tilt head with control handle makes finding and tracking subjects faster and easier
- Weight: 30 ounces
UPC: 790272002177 In the Box Barska Naturescape WP 20-60x60 Spotting Scope (Angled Viewing) Soft Case Pan Head Tabletop Tripod Eyepiece Cap Objective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska Naturescape WP 20-60x60 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska Naturescape Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 60 mm | | Field of View | 20x: 120.6' @ 1000 yd / 40.2 m @ 1000 m
60x: 57.6' @ 1000 yd / 19.2 m @ 1000 m | | Minimum Focus Distance | 15.0' / 4.6 m | | Exit Pupil Diameter | 20x: 3 mm
60x: 1 mm | | Eye Relief | 17.0 to 14.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 13.4 x H: 6.5 x W: 3.5" / L: 34.0 x H: 16.5 x W: 9.0 cm | | Weight | 30.0 oz / 850.5 g |
