User Manual for Barska NVX100 Digital Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Barska NVX100 Digital Night Vision Monocular
- Product category: NV Monoculars & Multi-Systems Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska NV Monoculars & Multi-Systems
 |
User manual for the Barska NVX100 Digital Night Vision Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

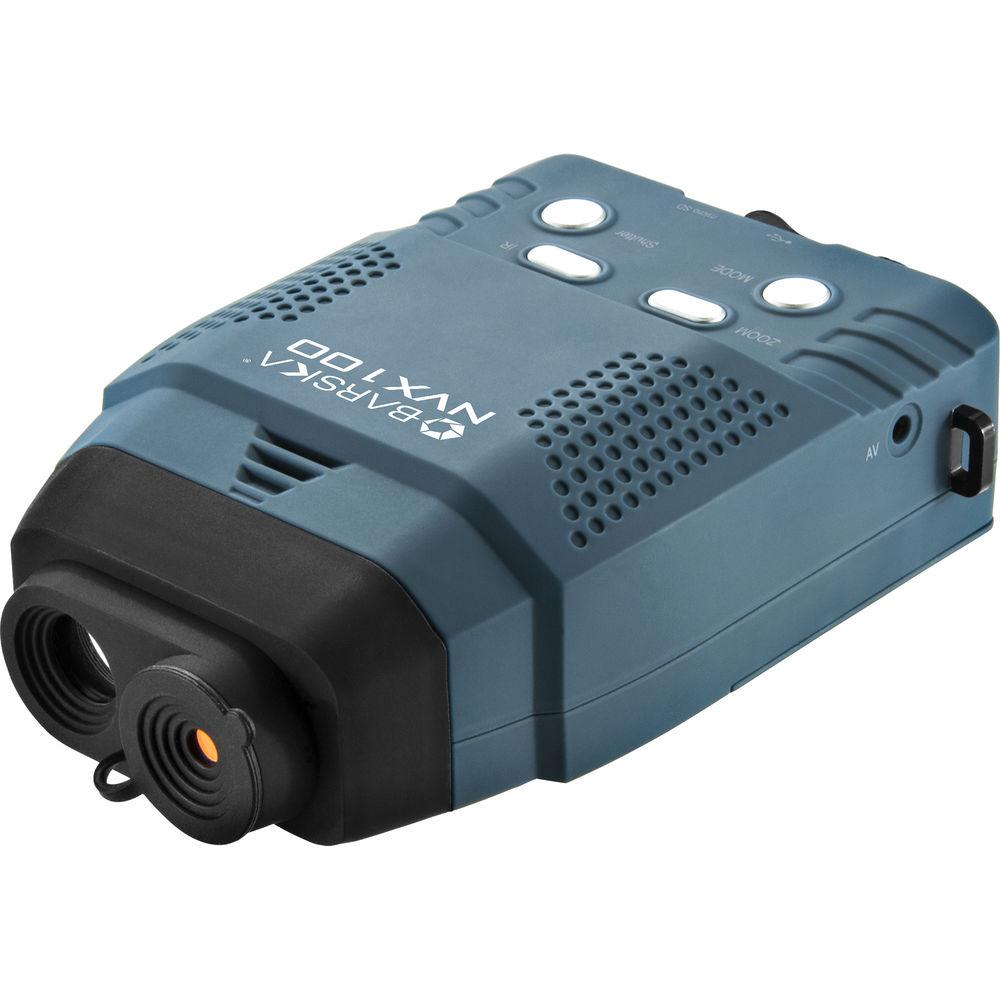

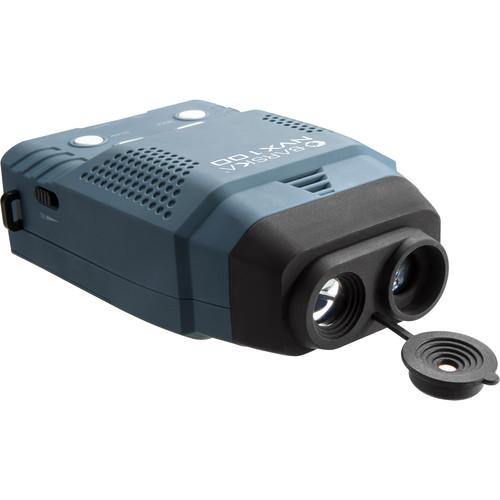

Product description Explore the night with the NVX100 Digital Night Vision Monocular from Barska. The monocular is ultra-compact and just begs to be taken with you wherever you go. It features a bright-light resistant 1/5" CMOS digital image sensor, 3x optical magnification, 2x digital zoom, a 14.5mm objective, and a built-in infrared LED illuminator for operation in total darkness. The mighty LED produces an 850nm beam with output power of up 3W and enables you to see as far as 328' out at night.

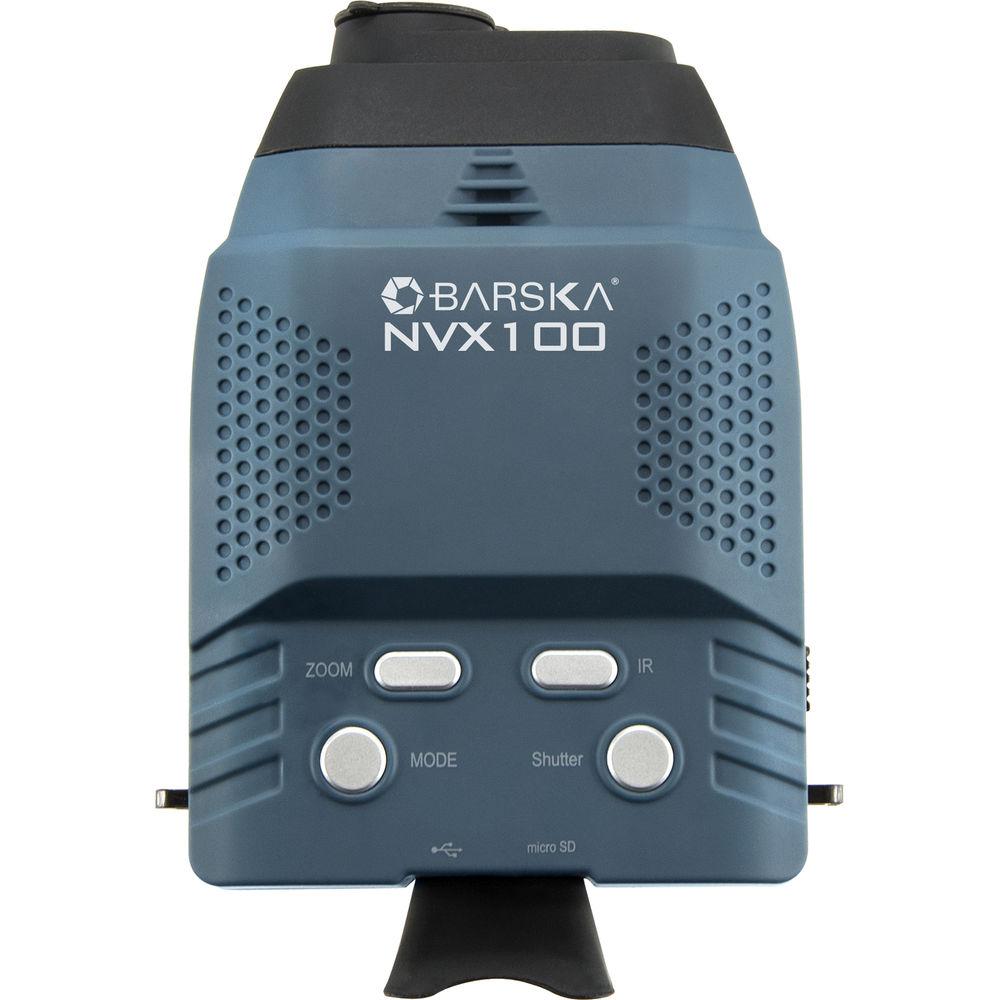

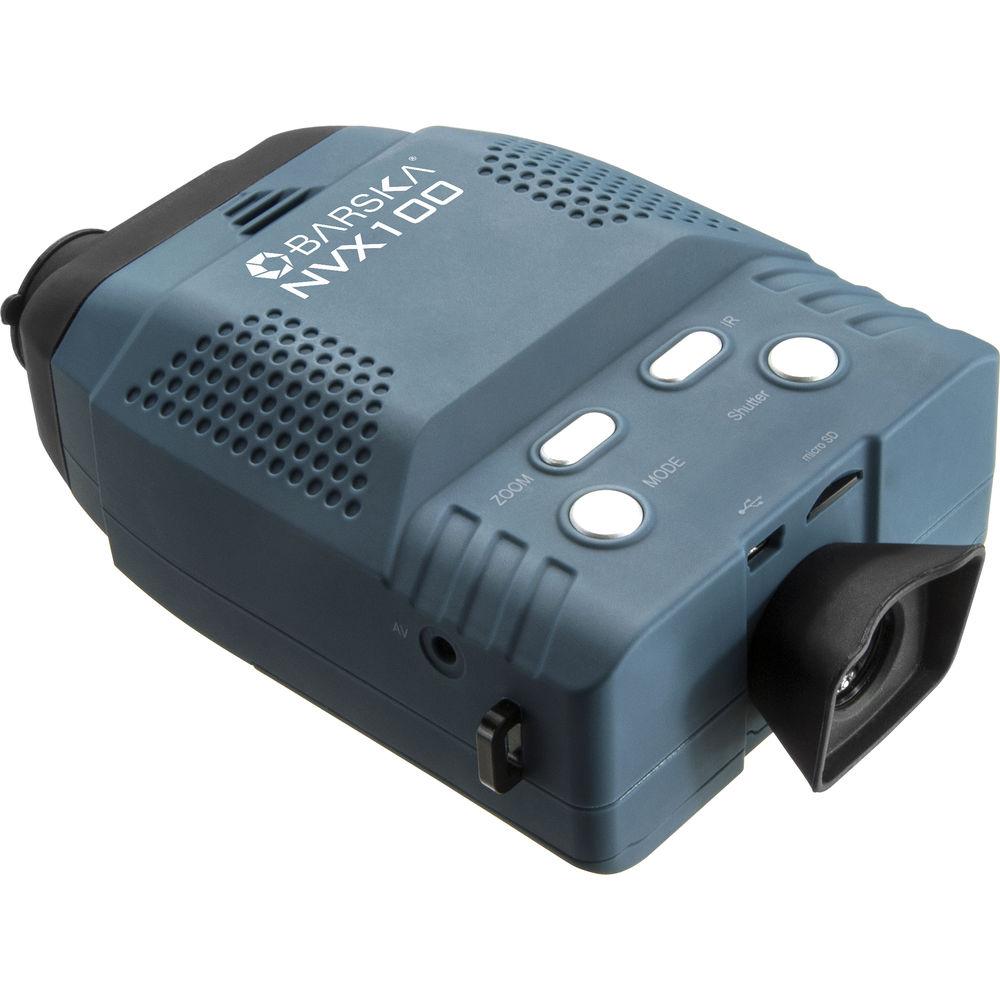

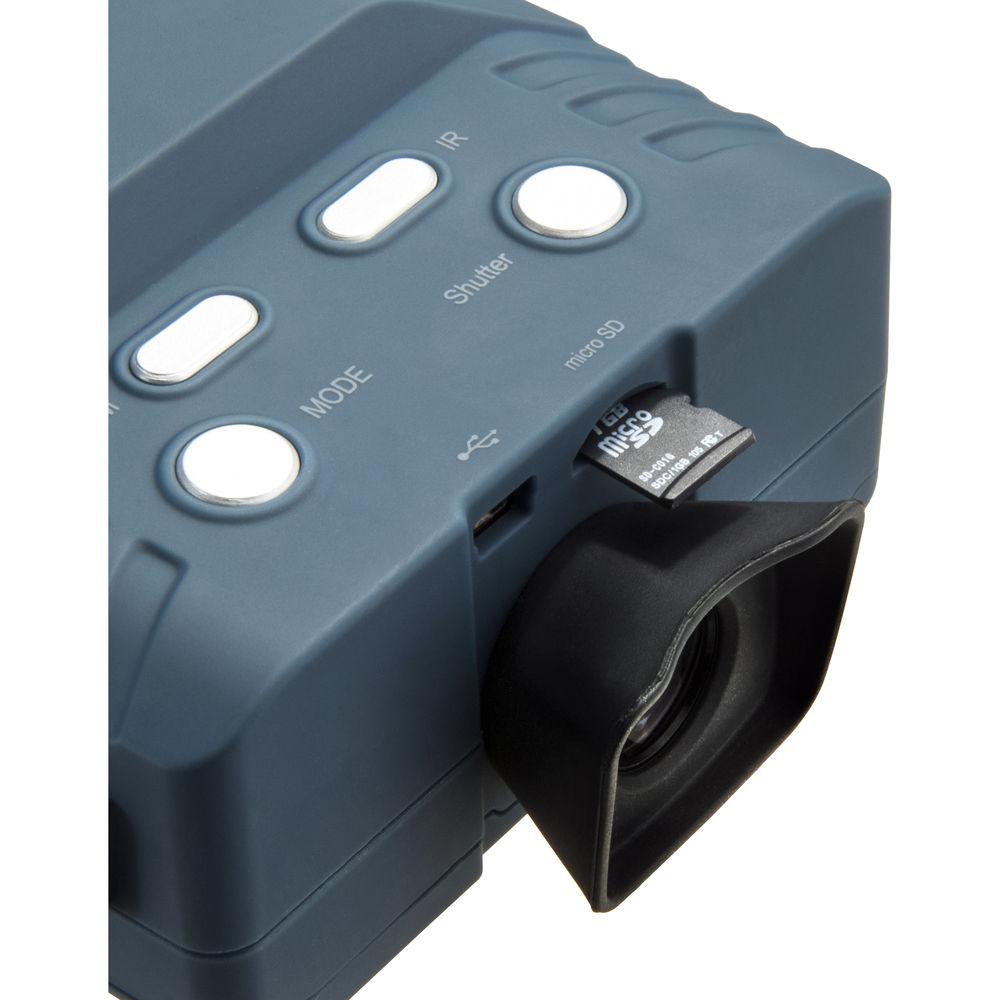

With this monocular, you will be able to observe night scenery, take images, and record videos. The menu buttons are located on the top and under your fingertips when you hold the monocular. The input/output panel offers a 4.5-6V power port, a mini-USB port, and a video-out port. Another highlight of this device is the ability to save your photos and videos on the included 1GB microSD memory card.
The contoured housing with rubberized covering offers a comfortable grip and an impact-resistant performance. The monocular also features an included hand strap to allow an easy and secure one-handed operation. The eyepiece also has a rubber eyecup for comfortable viewing. If you plan to make your observations for extended periods of time, you can mount it on a tripod to give your hands a rest and to ensure jitter-free viewing and recording. Also included are an AV cable, a mini-USB cable, and a soft carrying case. - Image Sensor
-
- 1/5" CMOS sensor
- 640 x 480 resolution
- Provides resistance to bright light
- Allows to takes pictures and videos
- Video recording format: H.264
- Mini-USB port
- Video-out port
- NTSC/PAL formats
- MicroSD card
- Optics & Illumination
-
- Total magnification of 6x
- 14.5mm objective lens diameter and F-number 1.1
- Built-in 850mw infrared LED illuminator
- Allows use in total darkness
- 3W maximum output power
- Use and Handling
-
- Runtime of 2-5 hours
- 4.5-6V power requirement
- Construction
-
- Contoured housing with rubberized covering
- Included hand strap provides a secure and comfortable grip
- Menu buttons for easy one-handed operation
- Input/output panel with rubber cover

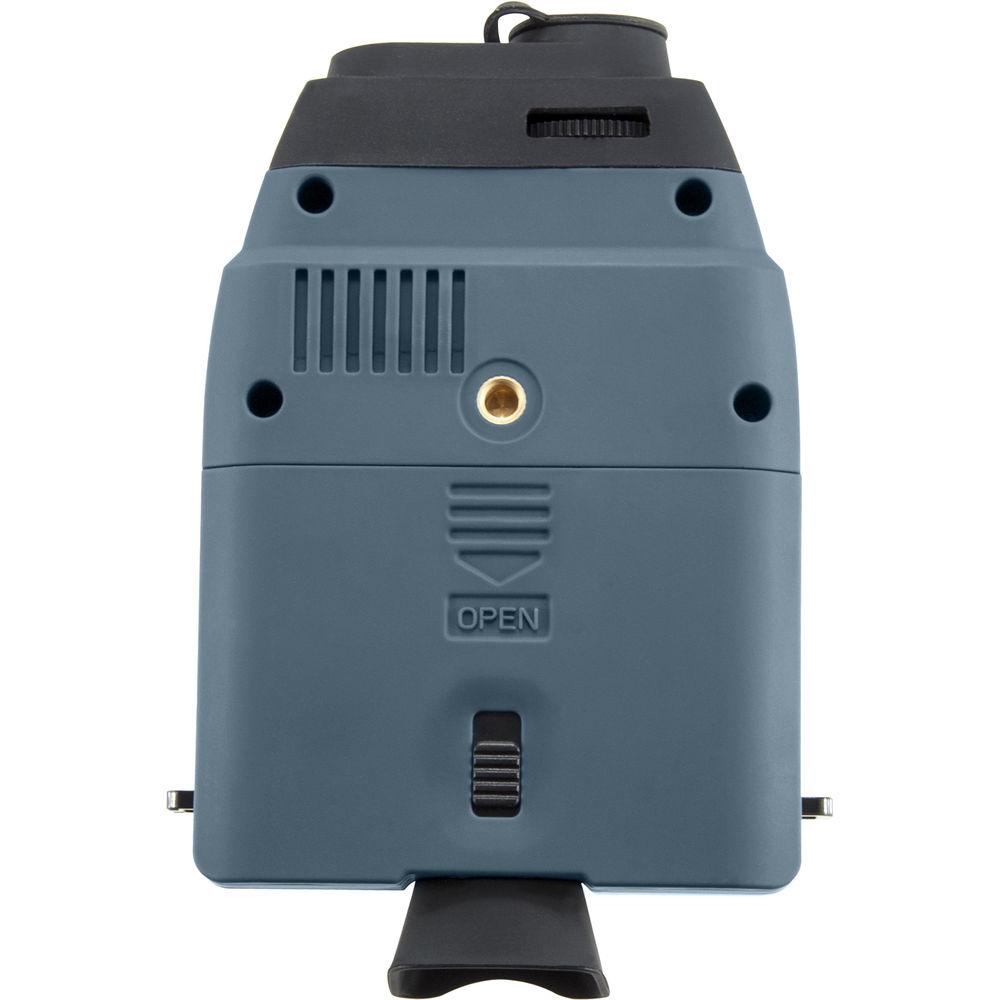

- Socket for tripod compatibility
- Rubberized eyecup
UPC: 790272000791 In the Box Barska NVX100 Digital Night Vision Monocular - 1GB micro-SD Card
- Mini-USB Cable
- AV Cable
- Soft Carrying Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska NVX100 Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska NVX100 Specs | Sensor | 1/5" CMOS
640 x 480 resolution | | Magnification | 3x optical
2x digital | | Angle/Field of View | Angular: 14°
Linear: 73.3' @ 100 yd (24.4 m @ 100 m) | | Lens System | Aperture: 14.5 mm
Focal length: 16mm
F-number: 1.1 | | Minimum Focus Distance | 3.3' (1 m) | | Infrared Illuminator | Built-in, LED
850 nm wavelength
3 W output power | | Battery / Runtime | 4 x AA batteries / 2-5 h
Voltage requirements: 4.5-6 V | | Dimensions | 5.3 x 3.6 x 1.9" (134 x 91 x 48 mm) | | Weight | 8.71 oz (247 g) | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 8.75 x 7.7 x 2.6" |
