User Manual for Barska NVX150 Digital Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the Barska NVX150 Digital Night Vision Biocular
- Product category: Night Vision Bi-Oculars Barska
- Brand: Barska
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Barska Night Vision Bi-Oculars
 |
User manual for the Barska NVX150 Digital Night Vision Biocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Barska product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Barska user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Barska product will considerably shorten its lifespan!
|

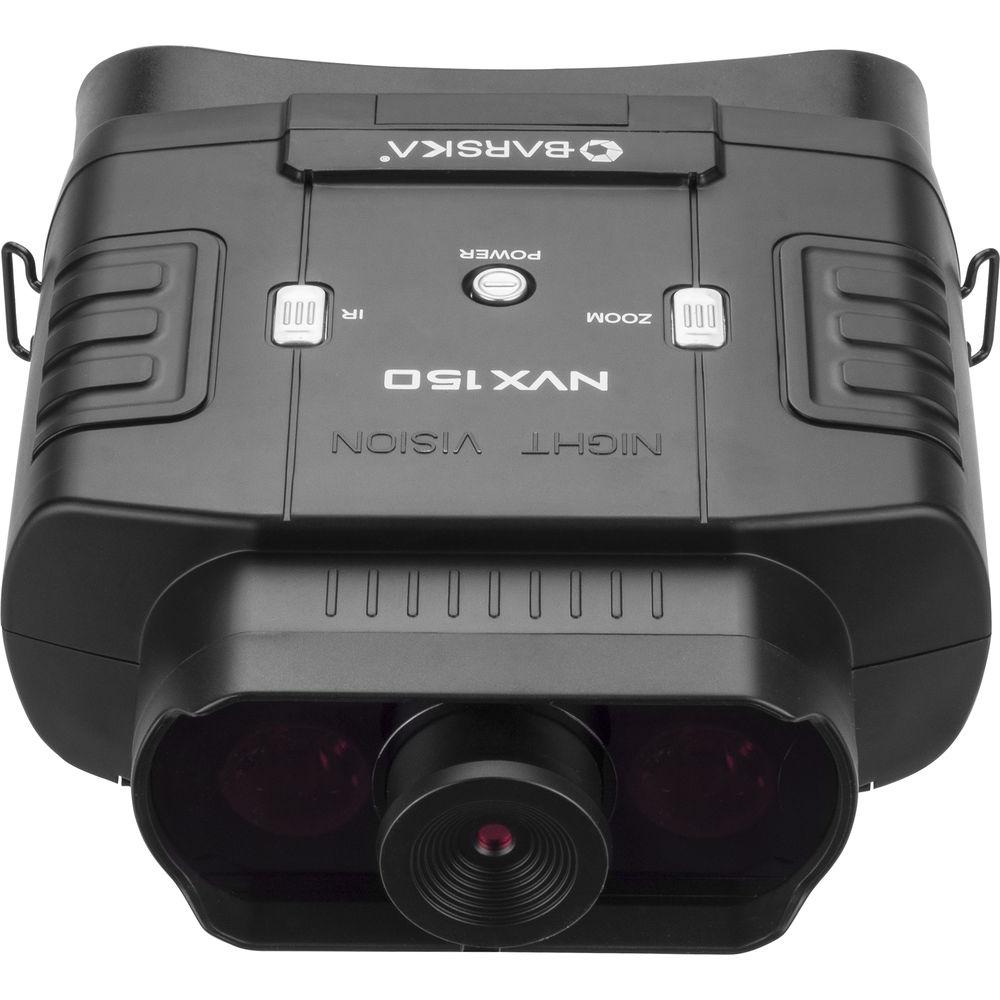

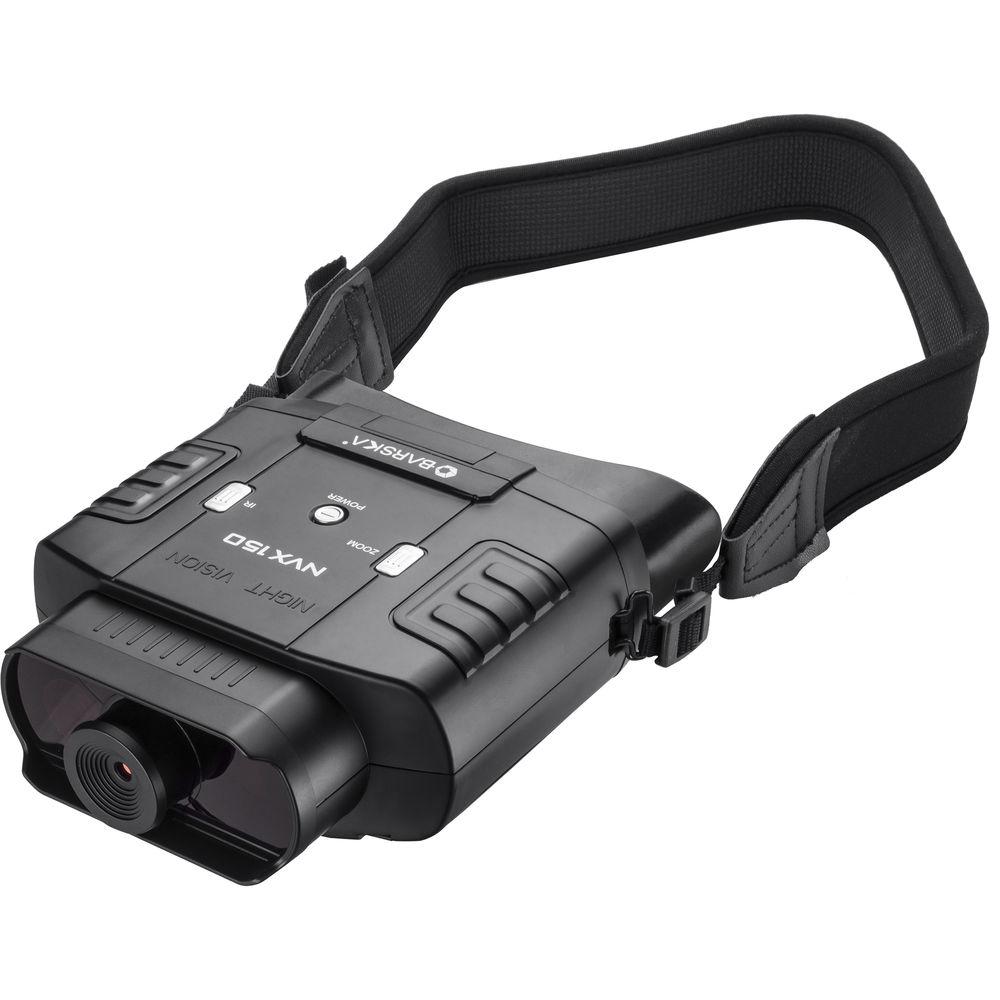

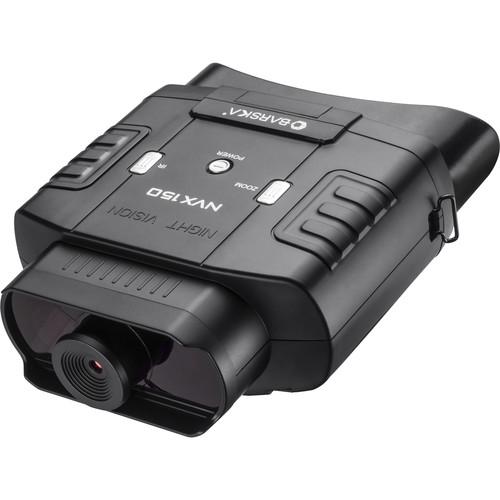

Product description Explore night scenes using the Barska's NVX150 Digital Night Vision Biocular. This versatile night vision device is immune to exposure to bright daylight due to the nature of its 640 x 480 CMOS digital sensor technology and packs a multitude of features . To help you see the scene in total darkness, it also has a powerful 2W infrared illuminator. You can see images on the built-in 320 x 240 (2") color LCD display and use continuous zoom to increase magnification up to 2x. The optical system provides a 24mm objective (with a pinhole cover for day use) with a 10° field of view, and a center focusing wheel allows you to focus from infinity to as near as 3.3'. For convenience and ambidextrous use, the menu pad is located on the top.

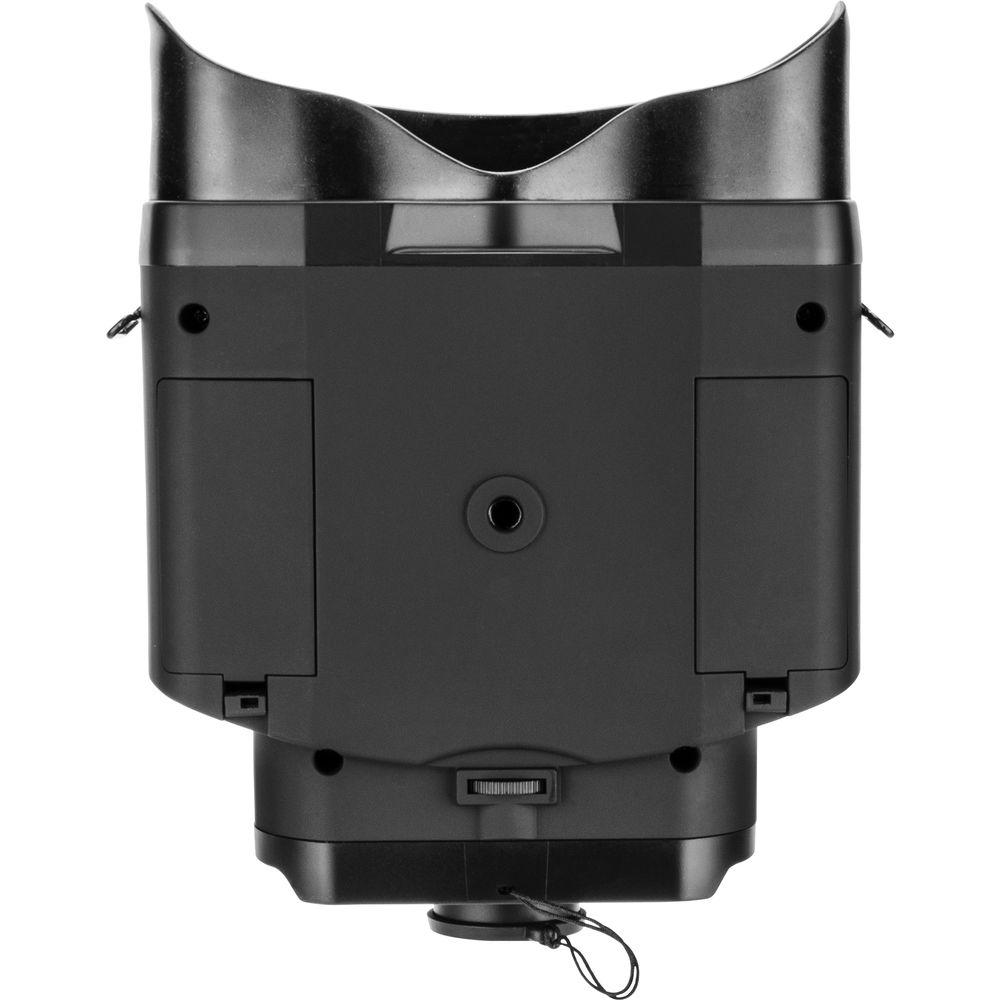

The water-resistant ABS polycarbonate housing is lightweight and offers an ergonomic design with a rubberized covering for a sure grip. It is outfitted with a single-piece eyeguard to prevent leakage of light and has a 1/4"-20 socket for tripod mounting. - Image Sensor & IR Illuminator
-
- 640 x 480 CMOS sensor
- Digital sensor is immune to bright light
- Pinhole lens cover allows for use during the day
- Built-in 2W infrared illuminator
- Optics, Display, Video Performance
-
- 24mm objective lens
- 2x continuous zoom magnification
- 10° angular field of view
- 3.3' minimum focus
- Center focusing wheel
- 320 x 240 color LCD 2" display
- Use and Handling
-
- Control pad is located on the top
- Construction
-
- Ergonomic ABS polycarbonate body
- Rubberized covering for a sure grip
- Built-in one-piece eyeguard
- 1/4"-20 socket for tripod
- Neck strap included
- Water-resistant
UPC: 790272003365 In the Box Barska NVX150 Digital Night Vision Biocular (Black) - Neck Strap
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Barska NVX150 Digital Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBarska NVX150 Specs | Imager | 640 x 480 CMOS sensor | | Magnification | 2x | | Display | 320 x 240 color LCD 2" display | | External Memory | No | | Video Format | No | | Objective Lens | 24mm | | Angle/Field of View | 10° | | Eye Relief | 20 mm | | Minimum Focus Distance | 3.3' / 1.0 m | | Infrared Illuminator | Type: LED
Power: 2.0 W
Wavelength: 850 nm | | Battery / Runtime | 8 x AA batteries / 1 year | | Weatherproofing | Water-resistant | | Dimensions | 7.5 x 6.0 x 2.5" / 19.1 x 15.2 x 6.4 cm | | Weight | 22.0 oz / 623.7 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.85 x 10.25 x 3.35" |
