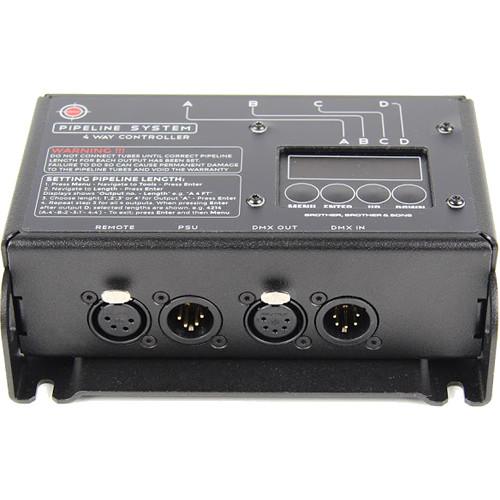

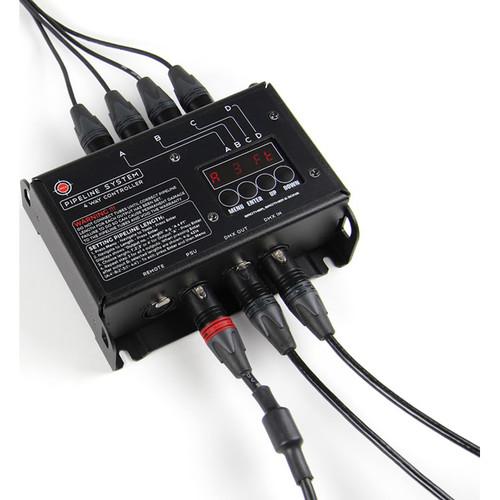

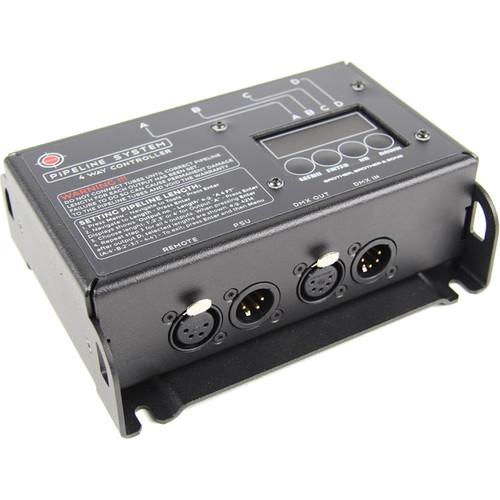

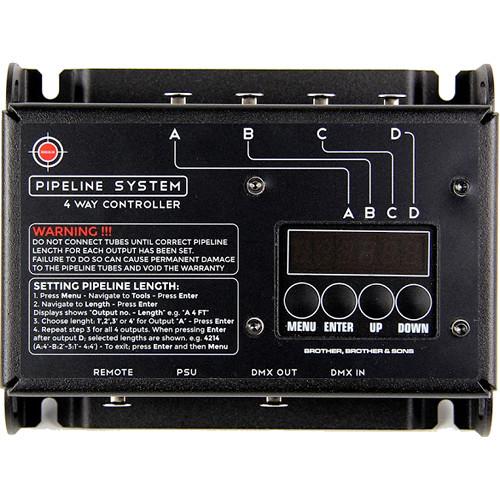

Product description What You Need to Know When Working with DMX Read More Keep a rein on your Pipeline system with the 4-Way Controller from BBS Lighting. Featuring both manual and DMX modes, this control box enables you to run your setup of up to four 1, 2, 3, or 4' remote phosphor LED Raw Pipes via its on-board control panel or from your console. The controller switches to DMX mode automatically as soon as it detects an incoming DMX signal.
At the most basic level the unit gives you control over the output intensity of the connected pipes individually or all as one, either manually or via DMX, and with your choice of standard- or high-resolution dimming. If you have an equal mix of 3200 and 5600K pipes in your setup, you are also able to modulate the overall color temperature of the pipes' output from 3200 to 5600K, in either standard- or high-resolution control mode. Color temperature remains steady as you adjust output intensity. Using two extra DMX channels you're able to add strobe to your control parameters, with command over speed and length of the effect. The controller is powered via the included 48V power supply. - Slow/fast response for smooth fading or snap-switching between intensity levels
- Linear or square dimmer curves
- LED display and 4-button control panel
- Powered by included 48V supply with AC locking cord
UPC: 685239889185 In the Box BB&S Lighting 4-Way Controller with DMX for Pipeline Raw Pipes 48V Power Supply with Locking AC Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BB&S Lighting 4-Way Controller with DMX for Pipeline Raw Pipes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBB&S Lighting BBS-3593 Specs | Compatibility | Up to 4 Pipeline Raw Pipes of any standard length (1/2/3/4') and any color temperature (3200/4300/5600K) | | Functions | Intensity dimming, color temperature, and strobe control | | DMX | USITT DMX512-A
Up to 32 devices on DMX chain | | Dimming | Pipes can be controlled individually or all-as-one
8-Bit: Standard resolution, uses 1 channel
16-Bit: High resolution, uses 2 channels | | Color Temperature Control | 3200-5600K, works only in setups with equal mix of 3200K and 5600K pipes
8-Bit: Standard resolution, uses 1 channel
16-Bit: High resolution, uses 2 channels | | Strobe Control | Via DMX only, uses 2 channels
Mode: Synced (slow-fast) / random
Length: Short-long | | Other Settings | Response: Slow (fades between values) / fast (snaps between values)
Dimmer Curve: Square/linear | | Display | 6 digits

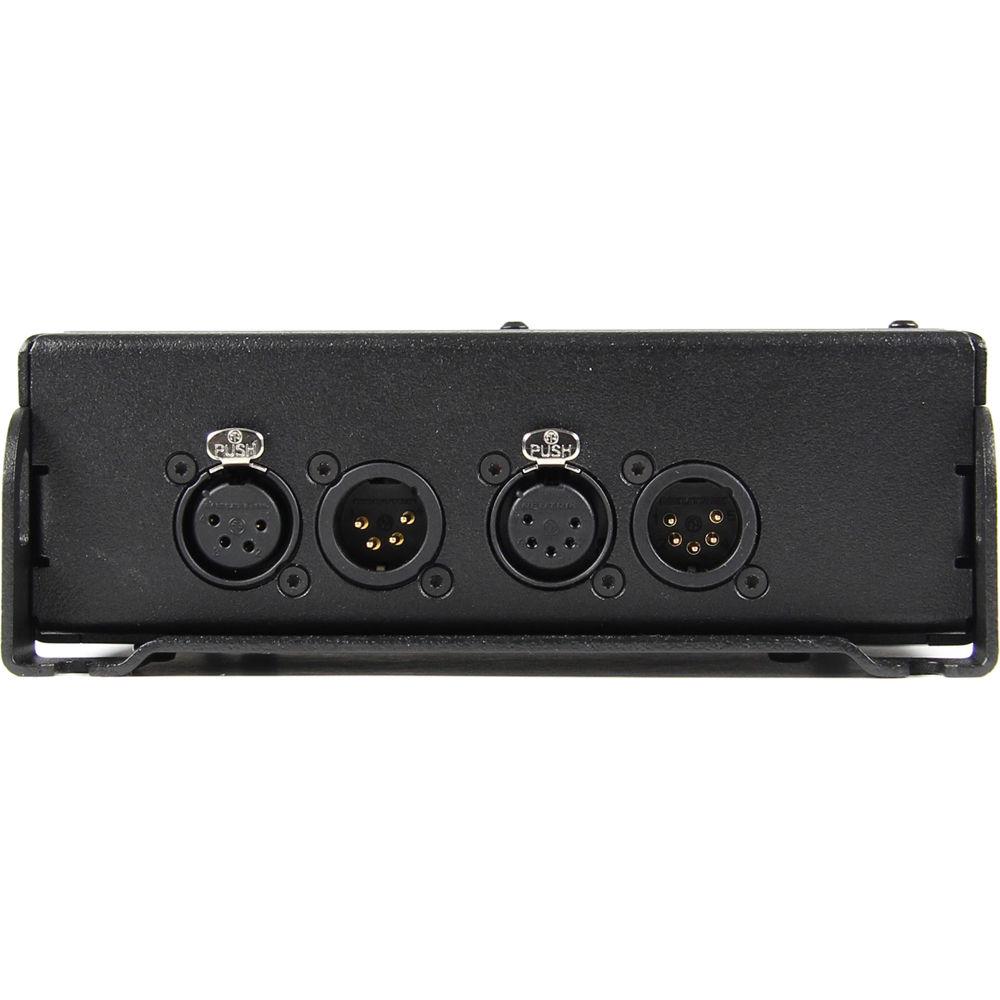

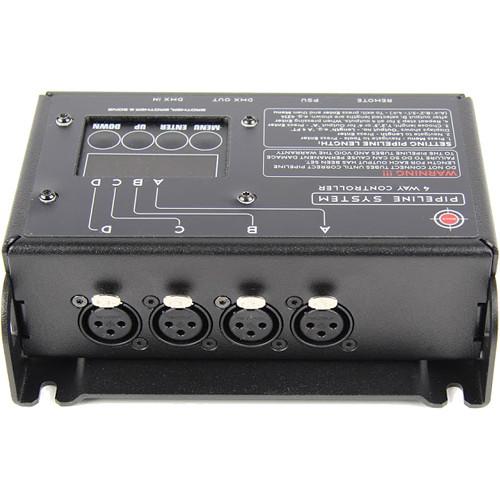

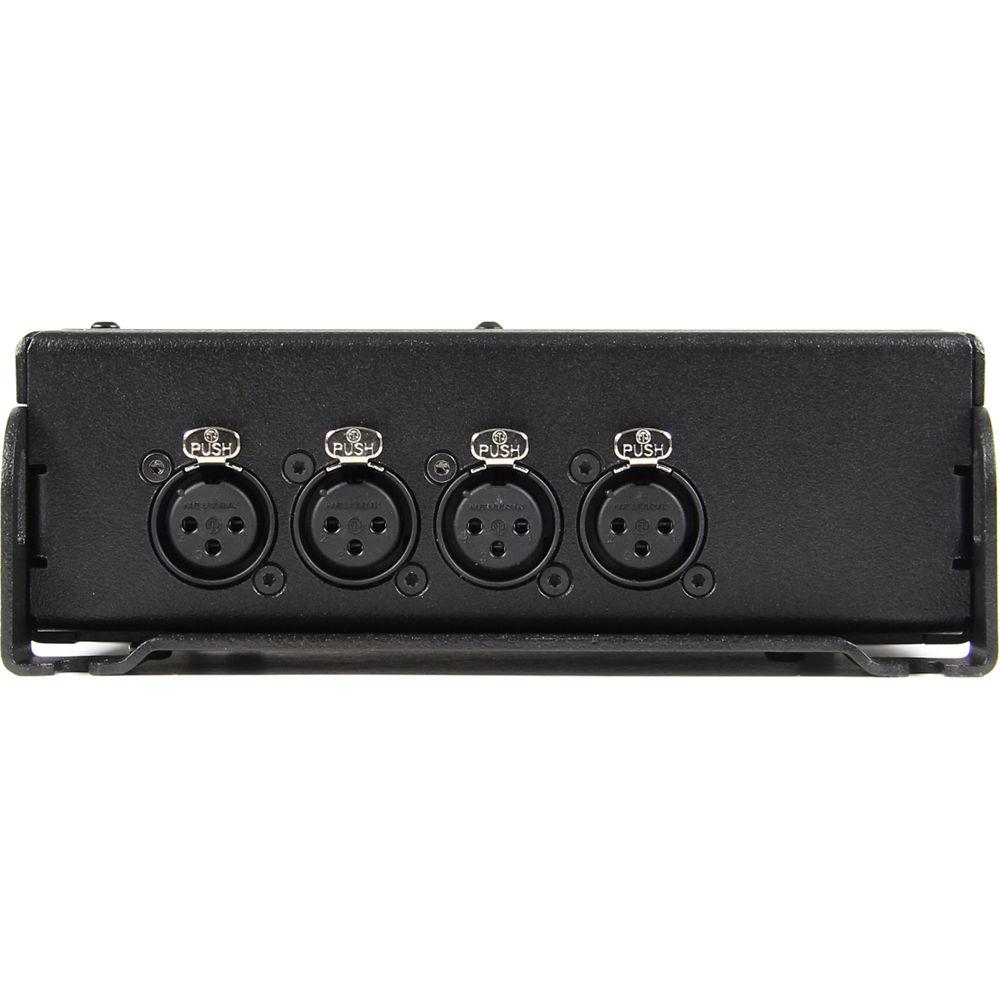

Readout can be flipped 180° | | Start-Up Time | 5 seconds delay at power-up | | Connectors | 4 x 3-pin XLR, pipe outputs
1 x 5-pin XLR, DMX input
1 x 5-pin XLR, DMX output
1 x 4-pin XLR, power input
1 x 4-pin XLR, remote (for future implementation) | | Indicators | Mode/resolution, response, curve, strobe, and DMX signal | | AC Power | 100 to 240 VAC nominal, 50/60 Hz | | Input Voltage | 48 V, from included PSU | | Maximum Power | 144 W | | Maximum Temperature | 104°F (40°F) | | Dimensions | 6.78 x 5.20 x 2.45" (17.2 x 13.2 x 6.2 cm) | | Weight | 1.52 lb (0.69 kg) | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 9.3 x 6.0 x 3.2" |
