User manual
BB&S Lighting Pipeline FREE 2' 5600K

User Manual for BB&S Lighting Pipeline FREE 2' 5600K Kit

• Product category: LED Lights BB&S Lighting
• Brand: BB&S Lighting
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for BB&S Lighting LED Lights

Product description

• Pipeline Free LED Light (2', 5600K) Characterized by its convenient cylindrical shape, this 2'-long Pipeline Free LED Light from BB&S Lighting is a remote phosphor, 5600K-balanced fixture offering with a high TLCI of 98+ for accurate color rendering. Its 180° beam spread makes it an ideal soft light for broad and even coverage, and, despite its slim form factor, can output 2000 lumens while drawing 20W of power. An inline dimmer is connected to the light via a 10' cable and allows for 100-0% dimming adjustment without flickering or color shifting. The Pipeline is delivered with a 100-240 VAC power supply, along with international plugs and also supports 14 VDC power via an optional battery.
  • This 2'-long fixture outputs 2000 lumens with a 20W power draw.
  • Remote phosphor 5600K-balanced fixture has a TLCI of 98+.
  • Can be installed in optional single- or multi-lamp reflector banks, and can also be used in conjunction with other Pipelines of different color temperatures to achieve mid-range color temperatures.
  • Heatless and silent fan-less operation.
  UPC: 780742993203
• 3' D-Tap to 2.1mm Female Jack Cable This 3' long D-Tap to 2.1mm Female Jack Cable from BB&S Lighting is designed for the Pipeline LED fixture. It allows you to power the light with 14.4V batteries or battery plate via the D-Tap connector, making portable operation much easier. UPC: 650135025074

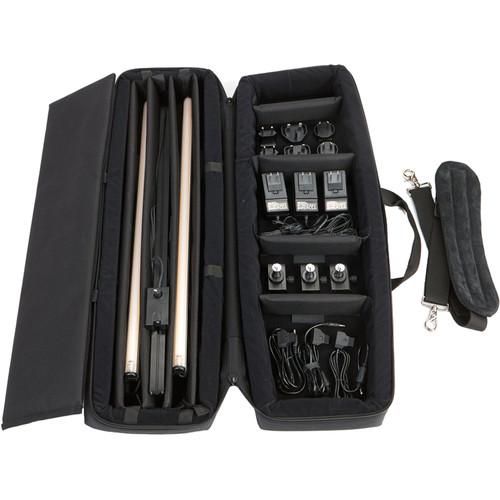

• Pipeline Softbag for Four 2' Pipes and Accessories (Black) Store, transport, and protect up to four 2' Pipes and accessories with the black Pipeline Softbag from BBS. This semi-hard bag, well-padded and constructed from strong, durable Cordura nylon, is suitable for airline travel. Photographers will welcome features such as zipper closure, clear ID pocket, a removable shoulder strap, and dual, connecting strap handles. Padded, touch-fastening dividers make storing gear fast and easy. UPC: 685239889680

• 3/8" Thread Pipemount with Spigot for Pipeline

• Power Supply for Pipeline

• Limited 2-Year Warranty

• Shoulder Strap

• 8 x Padded Dividers

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pipeline Free LED Light (2', 5600K)

  Beam Angle	180°
  Color Temperature	5600K
  Color Accuracy Standard	TLCI 98
  Dimming	Yes, 0 to 100%
  Lumens	2000
  Expected Lamp Life	50000 Hours
  Rectangular Panel Size	24 x 1" / 60.96 x 2.54 cm

  Battery Plate	None
  Power Input Connector	Proprietary
  DMX Connector	None

  Fixture Mount	None
  Mount via Included Adapter	3/8"-16 Female Thread

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	14 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	20 W

  Operating Temperature	14 to 104°F / -10 to 40°C

  Box Dimensions (LxWxH)	25.5 x 2.4 x 2.0"

• 3' D-Tap to 2.1mm Female Jack Cable

  Connector Type	D-Tap to 2.1 mm female jack
  Length	3' / 91.4 cm

  Box Dimensions (LxWxH)	5.2 x 4.9 x 1.3"

• Pipeline Softbag for Four 2' Pipes and Accessories (Black)

  Padding	Foam

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Shoulder Strap
  Material of Construction	Cordura Nylon
  Weight	6 lb / 2.7 kg
