Product description

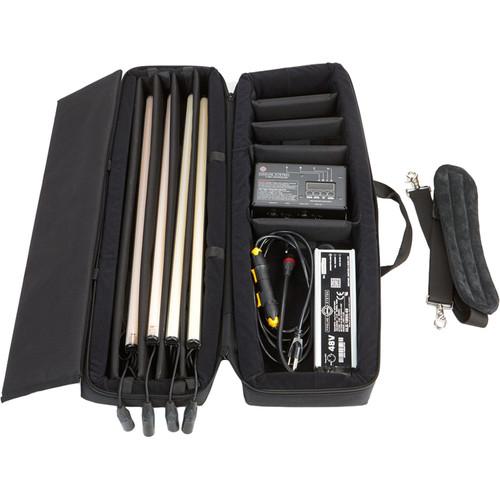

• Pipeline 3' Raw 3200K Pipe with 10' Cable and 3-Pin XLR Connector The Pipeline 3' Raw 3200K Pipe with 10' Cable and 3-Pin XLR Connector from BBS is a remote phosphor LED softlight with a wide coverage of 180 degrees and a high TLCI rating of 95+. This version of the pipe is sold without a required driver or dimmer so that you may use your own. The 3-pin XLR connector allows plug-and-play functionality with the optional 4-Way Controller. The controller can handle up to 4 Raw Pipelines and control dimming manually or via DMX as well as CCT adjustments for 3200/5600K mixed setups.
• 4-Way Controller with DMX for Pipeline Raw Pipes Keep a rein on your Pipeline system with the 4-Way Controller from BBS Lighting. Featuring both manual and DMX modes, this control box enables you to run your setup of up to four 1, 2, 3, or 4' remote phosphor LED Raw Pipes via its on-board control panel or from your console. The controller switches to DMX mode automatically as soon as it detects an incoming DMX signal.

  At the most basic level the unit gives you control over the output intensity of the connected pipes individually or all as one, either manually or via DMX, and with your choice of standard- or high-resolution dimming. If you have an equal mix of 3200 and 5600K pipes in your setup, you are also able to modulate the overall color temperature of the pipes' output from 3200 to 5600K, in either standard- or high-resolution control mode. Color temperature remains steady as you adjust output intensity. Using two extra DMX channels you're able to add strobe to your control parameters, with command over speed and length of the effect. The controller is powered via the included 48V power supply.
  • Slow/fast response for smooth fading or snap-switching between intensity levels
  • Linear or square dimmer curves
  • LED display and 4-button control panel
  • Powered by included 48V supply with AC locking cord
  UPC: 685239889185

• Limited 1-Year Warranty

• 48V Power Supply with Locking AC Cord

• Limited 3-Year Warranty

Also Includes

• 4 x Cold Shoe Adapter
• Cordura Case
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pipeline 3' Raw 3200K Pipe with 10' Cable and 3-Pin XLR Connector

  Color Temperature	3200K
  Color Accuracy Standard	TLCI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	1.0 x 1.0 x 36.0" / 2.5 x 2.5 x 91.4 cm

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	14 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	27 W

  Cable Length	10' / 3.3 m
  Cable Type	3-Pin XLR to

  IP Rating	IP20
  Operating Temperature	14 to 104°F / -10 to 40°C

• 4-Way Controller with DMX for Pipeline Raw Pipes

  Compatibility	Up to 4 Pipeline Raw Pipes of any standard length (1/2/3/4') and any color temperature (3200/4300/5600K)
  Functions	Intensity dimming, color temperature, and strobe control
  DMX	USITT DMX512-A Up to 32 devices on DMX chain
  Dimming	Pipes can be controlled individually or all-as-one 8-Bit: Standard resolution, uses 1 channel 16-Bit: High resolution, uses 2 channels
  Color Temperature Control	3200-5600K, works only in setups with equal mix of 3200K and 5600K pipes 8-Bit: Standard resolution, uses 1 channel 16-Bit: High resolution, uses 2 channels
  Strobe Control	Via DMX only, uses 2 channels Mode: Synced (slow-fast) / random Length: Short-long
  Other Settings	Response: Slow (fades between values) / fast (snaps between values) Dimmer Curve: Square/linear
  Display	6 digits Readout can be flipped 180°
  Start-Up Time	5 seconds delay at power-up
  Connectors	4 x 3-pin XLR, pipe outputs 1 x 5-pin XLR, DMX input 1 x 5-pin XLR, DMX output 1 x 4-pin XLR, power input 1 x 4-pin XLR, remote (for future implementation)
  Indicators	Mode/resolution, response, curve, strobe, and DMX signal
  AC Power	100 to 240 VAC nominal, 50/60 Hz
  Input Voltage	48 V, from included PSU
  Maximum Power	144 W
  Maximum Temperature	104°F (40°F)
  Dimensions	6.78 x 5.20 x 2.45" (17.2 x 13.2 x 6.2 cm)
  Weight	1.52 lb (0.69 kg)

  Box Dimensions (LxWxH)	9.3 x 6.0 x 3.2"
